Goal: You will determine the right trowel size to install Kerdi membrane and apply it correctly. For many standard bathrooms, a 1/4" x 1/4" square-notched trowel is used with unmodified thin-set to achieve full coverage on kerdi membrane. Always verify exact notch size with the current Schluter Kerdi installation guide and substrate conditions.
what size trowel to install kerdi membrane: Key factors
Understanding what size trowel to install kerdi membrane begins with three core factors: substrate, tile size, and the thin-set mortar you plan to use. Kerdi membrane is a waterproofing layer installed beneath tile, and the notch size of your trowel directly affects adhesive coverage and bond strength. The objective is a uniform, void-free contact between the thin-set and the membrane, ensuring a reliable waterproof barrier. According to Install Manual, always follow the manufacturer’s guidelines and the substrate conditions to select the appropriate notch size. This approach minimizes the risk of air voids and delamination later in the project, especially in high-humidity bathrooms where Kerdi membranes are most beneficial for long-term performance.
Key takeaway: start with the substrate assessment, identify tile size, and then confirm notch guidance from the official Kerdi membrane installation guide.
Notch sizes commonly used for Kerdi membrane installations
Notch size selection for Kerdi membrane is influenced by substrate flatness, backer board texture, and tile dimensions. In most standard installations, a 1/4" x 1/4" square-notched trowel is used on walls to lay unmodified thin-set that bonds the Kerdi membrane effectively. For floors or very dense tile options, some installers may opt for a slightly larger notch to improve adhesive transfer, but this should be validated against Schluter’s current recommendations. Always back-butter the membrane in larger areas to ensure full contact and to reduce voids, particularly near corners and transitions. Remember, the goal is consistent coverage across the entire membrane, not just a few anchor points.
Tip: run a small test area first to verify that the chosen notch size yields uniform ridges and complete membrane adhesion before proceeding across the entire installation.
Substrate prep and primer: setting the stage for success
A solid substrate is essential for Kerdi membrane performance. Begin by checking for flatness, cleanliness, and dryness. Any ridges, bubbles, or contaminants can create air pockets that compromise waterproofing. If using plywood, ensure it is structurally sound and properly sealed; if using cement backer boards, confirm they are fully cured and free of dust. Priming is sometimes recommended by substrate manufacturers or Schluter guidelines to improve thin-set bond on challenging surfaces. Apply primer as directed and allow it to cure fully before laying the Kerdi membrane. Proper prep reduces the risk of membrane detachment and ensures a more predictable trowel notch outcome.
Note: Refer to all local building codes and Schluter’s installation instructions for substrate-specific prep steps and drying times to maintain warranty eligibility.
Step-by-step application strategy: seating Kerdi membrane with tension
Apply unmodified thin-set to the substrate using your chosen notch size, maintaining a consistent 45-degree angle to create uniform ridges. Position the Kerdi membrane and press it firmly into the thin-set with even, rolling pressure to avoid air pockets. For larger areas, back-butter the membrane to ensure full contact on the reverse side. Use a threaded roller or a wooden roller to embed the membrane if recommended by Schluter. Check for voids and pull back sections if needed to re-seat. The aim is a continuous, well-adhered membrane that conforms to all contours and corners without stretching or tearing.
Tip: work in manageable panels and stagger seams; this helps maintain consistent coverage and reduces the likelihood of trapped air. Patience at this stage pays off in long-term waterproof performance.
How to verify coverage and adjust on the fly
After seating the membrane, perform a coverage check by inspecting light reflections and running your hand gently over the surface. If ridges collapse or there are visible voids, re-embed those areas promptly. A simple thumb-squeeze test can reveal insufficient contact in tight corners or around outlets. If needed, re-apply thin-set to problem regions and re-seat. Keep the membrane free of moisture during this process to prevent curing issues that could mask coverage defects. Consistent, thorough checks prevent future tile bonding problems and leaks.
Practical check: run your hands over seams and corners and ensure there are no gaps or air pockets. If you find an area with poor adhesion, address it immediately before tiling over it.
Common mistakes and safety considerations to avoid
Common mistakes include using too little or too much thin-set, selecting an incorrect trowel notch, and rushing the seating process, which can lead to voids and bond failure. Safety-wise, always wear eye protection and gloves when handling cementitious products, work in a well-ventilated area, and keep surfaces dry to prevent slips. PPE like knee pads can reduce strain during long installations. Follow Schluter’s guidelines for substrate drying times and thin-set curing to avoid compromised waterproofing. By staying patient and methodical, you’ll reduce call-backs and ensure a durable shower or bathroom membrane.
Warning: using an incorrect notch size or rushing the embedment can create hidden voids that undermine the membrane’s waterproofing integrity over time.
Testing adhesion and preparing for tiling: getting ready for grout
With Kerdi membrane installed, perform a final adhesion check before tiling begins. Look for any edges lifting at corners or any area that doesn’t appear fully bonded. If there are gaps, re-seat with additional thin-set and a gentle rolling action. Once satisfied with adhesion, allow the thin-set to cure according to manufacturer guidelines before continuing with tile installation. This final verification helps ensure a leak-free installation and reduces risk of tile failure later on.
Note: documentation of curing times is essential for warranty compliance and future maintenance.
Tools & Materials
- 1/4" x 1/4" square-notched trowel(Preferred for standardKerdi membrane applications on walls; ensure notch size matches manufacturer guidance.)
- unmodified thin-set mortar(Follow manufacturer mixing ratios; Schluter commonly recommends unmodified thin-set for Kerdi membrane.)
- Kerdi membrane (Schluter Kerdi)(Prepare enough material for the area with appropriate overlaps per guide.)
- mixing bucket, drill mixer or paddle(For consistent thin-set mixing; avoid lumps.)
- measuring tools and straight edge(Check substrate flatness and alignment.)
- clean water and sponge(For mixing, cleaning trowel ridges, and margins.)
- rubber roller or finishing tool(Optional—used to ensure embedded membrane in large areas.)
- utility knife and scissors(Trim Kerdi membrane edges for precise seams.)

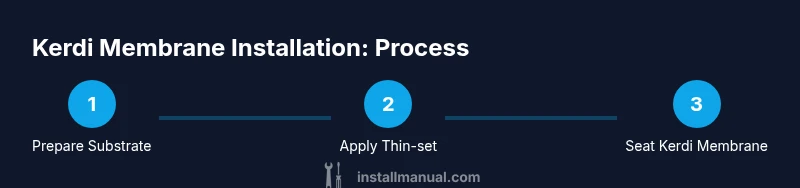

Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace and gather materials
Clear the area, place drop cloths, and assemble all required tools. Verify the substrate is clean, dry, and flat. Measure the wall area and plan membrane layout before cutting to ensure proper overlaps and minimized waste.
Tip: Double-check substrate flatness with a straightedge before applying thin-set. - 2
Mix thin-set to the prescribed consistency
Combine unmodified thin-set with water as per the manufacturer’s instructions until you reach a peanut-butter-like consistency. Do not add extra water to fix a stiff mix after it starts to set. Let the mixture rest for a few minutes before using.
Tip: Avoid overhydrating; work in small batches to maintain workable open time. - 3
Apply thin-set to the substrate with the notch trowel
Hold the trowel at about a 45-degree angle and pull across the surface to create uniform ridges. Maintain even pressure to achieve full coverage, then back-butter the area where you plan to lay Kerdi membrane.
Tip: Always verify the ridges are continuous and not sparse in high-stress zones like corners. - 4
Seat Kerdi membrane and embed fully
Position the membrane and press it into the thin-set using smooth rolling motions. Avoid stretching the membrane. For large areas, back-buttering the membrane on the reverse side helps achieve full contact.
Tip: Use a roller on large panels to reduce air voids and ensure seating. - 5
Check seams and corners for adhesion
Inspect all seams and corners; re-seat any areas showing lift or voids. Trim excess membrane at edges and ensure overlaps per guide. Allow thin-set to cure as directed before tiling.
Tip: Address any issue before tiling; a small defect can lead to big problems later. - 6
Proceed to tile after cure
Once adhesion is verified and the thin-set has cured, proceed with tile installation according to standard tile-setting steps. Ensure you maintain proper grout joint spacing and observe membrane transitions at fixtures.
Tip: Document cure times for warranty and future maintenance.
Got Questions?
What size trowel should I use for Kerdi membrane?
For standard wall installations, a 1/4" x 1/4" square-notched trowel is commonly used with unmodified thin-set. Always confirm the latest guidance from Schluter for your exact substrate and tile size.
Most installers start with a 1/4-inch square-notched trowel, but always check Schluter's current guide for your setup.
Can I use modified thin-set with Kerdi membrane?
Schluter typically recommends unmodified thin-set for Kerdi membranes to ensure proper bonding. If your local code or substrate requires modification, verify compatibility and follow the manufacturer's instructions.
Unmodified thin-set is usually preferred; check local requirements and Schluter guidelines.
Is back-buttering required for Kerdi membrane?
Back-buttering helps ensure full contact, especially on large membranes or challenging substrates. Apply a thin layer to the membrane’s backside in addition to the substrate application.
Yes, back-buttering often improves contact on larger areas.
How can I verify full coverage under Kerdi membrane?
Check for uniform ridges and no air pockets by pressing gently with a roller or your gloved hand. If you feel lift or see gaps, reseat the membrane with additional thin-set and recheck.
Look for even contact across the surface and seal any gaps before tiling.
What substrate conditions affect trowel size?
A very flat, clean, and dry substrate supports consistent adhesive transfer. Rough or dusty substrates may require a slightly larger notch or back-buttering to achieve full contact.
Flat, clean substrates help ensure the recommended trowel size works as intended.
Watch Video
Main Points
- Verify substrate flatness before choosing a trowel size
- Use the recommended notch (commonly 1/4" x 1/4" square) for Kerdi membrane on standard walls
- Back-butter membrane sections over large areas for full contact
- Check adhesion after embedding and re-seat any lifted areas promptly
- Follow curing times exactly to preserve waterproofing integrity
