What to Install Kerdi Band With: A Comprehensive DIY Waterproofing Guide
Learn what to install Kerdi Band with and how to achieve a watertight shower. This step-by-step guide covers materials, prep, fitting, embedding, curing, and troubleshooting for DIY homeowners.
By following this guide, you will install Kerdi Band correctly using unmodified thin-set mortar and the Kerdi system, ensuring watertight corners and seams in showers or wet areas. Gather Kerdi Band, a compatible thin-set, a notched trowel, utility knife, straightedge, and a mixing bucket. Prepare a clean, dry substrate and cured bedding for reliable performance.
What Kerdi Band is and why you need it
Kerdi Band is a waterproof edging strip used with Schluter Kerdi membranes to seal seams and corners in showers and other wet areas. If you're curious what to install kerdi band with, the recommended pairing is unmodified thin-set mortar and the Kerdi waterproofing system. This combination provides a continuous, watertight layer when properly bedded and pressed, reducing the chance of water migration behind tiles. In bathrooms and wet rooms, proper sealing at transitions (walls to floors, corners, and niches) prevents mold and damage. Install Manual’s approach emphasizes preparation, accurate cutting, and careful embedding to ensure the seam strips lay flat and bond evenly. Following the manufacturer’s guidelines for curing times and edge treatment will help you achieve a durable, long-lasting shower or wet-area installation.
Essential pairing: what to install Kerdi Band with
The Kerdi Band is designed to work with Schluter’s waterproofing system and unmodified thin-set mortar. Using the correct combination is crucial for a reliable seal at seams, corners, and transitions. Avoid substitutions that may compromise waterproofing or void warranties. This section expands on why the pairing matters and how to verify you have compatible products before you start.
Substrate readiness matters
Before you place Kerdi Band, ensure the substrate is clean, dry, and structurally sound. Loose material, oil, soap residue, or moisture can prevent proper bonding. A dry-fit check helps you identify any miscuts or overlaps before the thin-set is mixed. The goal is a smooth, flat plane so the band seats evenly without tenting or bubbles.
Cutting Kerdi Band to fit corners and angles
Precision cuts are essential for clean seams. Measure twice, cut once, and account for corner overlaps. Use a sharp utility knife and straightedge to avoid frayed edges. Remember to keep waste manageable by planning your cuts around long seams and visible joints.
Embedding Kerdi Band with thin-set mortar
Mix unmodified thin-set mortar to a workable bed and comb it with a notched trowel. Place the Kerdi Band into the mortar with firm pressure, smoothing from the center outward to expel air pockets. A light rolling pressure helps ensure complete contact and a flush finish at corners and edges.
Seams, overlaps, and corners
Where bands meet, ensure clean, straight seams. Overlaps should be gentle, not forced, to prevent ridges that would telegraph through tile. Use a damp sponge to wipe away excess mortar and verify there are no bubbles or tenting along critical joints.
Curing and protection before tiling
Allow the thin-set to cure per manufacturer guidelines before tiling. The cure time depends on product type, substrate, and ambient conditions. Protect the newly installed Kerdi Band from foot traffic and moisture during this period to maintain bonding strength.
Troubleshooting common issues
If you see air pockets, lift and re-seat the affected section, then re-press with even pressure. If seams aren’t flush, re-clean and re-bed with fresh mortar. Keep working in small sections to maintain a strong, continuous bond across all joints.
Tools & Materials
- Kerdi Band (Schluter)(Waterproof edging strip for seams and corners)
- Unmodified thin-set mortar(Per manufacturer guidelines; compatible with Kerdi)
- Notched trowel(Size per thin-set guidance, typically small- to medium-notch)
- Utility knife or scissors(Sharp blade for clean cuts)
- Straightedge or ruler(For precise cuts and layout marks)
- Mixing bucket(For preparing thin-set)
- Mixing paddle or drill with paddle(To achieve uniform mortar)
- Water and sponge(For cleaning edges and tooling)

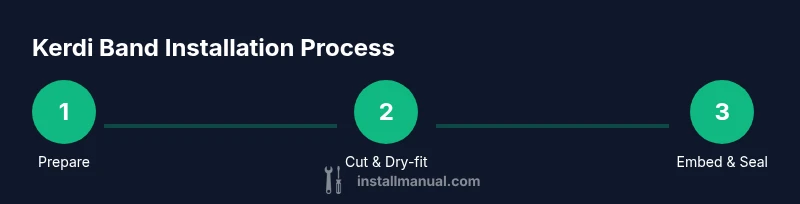

Steps
Estimated time: 60-90 minutes
- 1
Gather and inspect materials
Collect Kerdi Band, unmodified thin-set, trowels, knife, straightedge, mixing bucket, and water. Inspect components for damage and verify compatibility with your substrate. This upfront check prevents mid-project substitutions that could compromise waterproofing.
Tip: Lay out all items on a clean surface so you can access them without stepping on finished work. - 2
Prepare the substrate
Clean the surface of dust, oils, and debris. Ensure the substrate is dry and sound; fix any protrusions that could prevent band seating. A dry, dust-free base improves adhesion and long-term performance.
Tip: If moisture is a concern, use a moisture meter or test patch before proceeding. - 3
Cut Kerdi Band to length
Measure the required lengths for walls, corners, and any niches. Cut the Kerdi Band with a sharp utility knife, leaving a touch extra length for overlaps at intersections.
Tip: Mark measurements on the band with a pencil to guide clean cuts. - 4
Dry-fit Kerdi Band
Lay the cut pieces along seams to confirm fit. Check corners for tight, flush seams and ensure overlaps are aligned with future tiling lines.
Tip: Adjust cuts before mixing mortar to minimize waste. - 5
Mix the thin-set mortar
Follow the manufacturer’s ratio to mix unmodified thin-set to a workable, peanut-butter consistency. Avoid overwatering or under-mixing, which can weaken bonding.
Tip: Mix in small batches to maintain pot life and workability. - 6
Apply thin-set to substrate
Using a notched trowel, comb the mortar in one direction for a uniform bed. The goal is a tacky, even layer that will accept the Kerdi Band without voids.
Tip: Do not apply excessively thick mortar; a thin bed reduces air pockets. - 7
Embed Kerdi Band into mortar
Place the Kerdi Band onto the mortar with even pressure, starting at the center and working outward. Remove air pockets by up-and-down or gentle rolling motions.
Tip: Avoid sliding the band once seated to prevent smearing and misalignment. - 8
Seal and smooth edges
Check seams for flush contact and clean any excess mortar with a damp sponge. Ensure corners remain sharp and overlaps are properly arranged.
Tip: Wipe edges immediately to prevent dried mortar from telegraphing through tile. - 9
Cure and inspect
Let the bedding cure per product guidance. Protect from moisture and traffic during curing to maintain bond integrity.
Tip: After the initial cure, do a visual check for flatness before tiling.
Got Questions?
What is the primary purpose of Kerdi Band in shower waterproofing?
Kerdi Band seals seams and corners when used with Kerdi membranes, preventing water from penetrating behind tiles. It is essential for reliable shower waterproofing and mold prevention in wet areas.
Kerdi Band seals seams and corners to stop water from getting behind tiles, which helps prevent mold and damage in showers.
Can I use modified thin-set with Kerdi Band?
Schluter recommends unmodified thin-set mortar for Kerdi Band systems to ensure proper bonding and warranty compliance. Modified mortars may affect adhesion and waterproofing performance.
Use unmodified thin-set mortar with Kerdi Band for best bonding and warranty compliance.
Do I need to seal Kerdi Band after embedding?
No additional sealant is required once Kerdi Band is properly embedded with the correct thin-set and cured. Follow the membrane system’s instructions for subsequent layers.
If embedded correctly and cured, sealing Kerdi Band afterward isn’t necessary.
How long should Kerdi Band cure before tiling?
Cure time depends on the thin-set and ambient conditions. Wait for the recommended period from the thin-set manufacturer before applying tile or grout.
Wait for the thin-set’s recommended cure time before tiling.
Which substrates are compatible with Kerdi Band?
Kerdi Band works with common bathroom substrates when properly prepared and dry. Follow substrate-specific guidelines and ensure flat, clean surfaces.
Most common bathroom substrates are compatible when properly prepared and dry.
Is a controlled environment important during installation?
A dry, temperature-stable space helps ensure optimal mortar adhesion and band seating. Avoid high humidity or freezing temperatures during curing.
Keeps moisture and temperature stable for better bonding.
Watch Video
Main Points
- Prepare a clean, dry substrate before bonding Kerdi Band.
- Use unmodified thin-set mortar and cut accurate seams.
- Bed the band firmly to remove air pockets and ensure flat seams.
- Allow proper cure time before tiling to guarantee waterproofing.
