What Size Trowel to Install Ditra: A Homeowner’s Guide

What size trowel to install ditra: practical overview

Installing Ditra correctly starts with choosing the right trowel notch. The Ditra membrane relies on a uniform thinset bed to transfer loads evenly from the tile to the membrane. The question what size trowel to install ditra is best answered by tile size and porosity. According to Install Manual, the starting point for most jobs is a 1/4 inch by 1/4 inch square-notched trowel for ceramic or porcelain tiles up to moderate sizes. For larger-format tiles, a larger notch—typically 1/2 inch by 1/2 inch—helps ensure full coverage and proper embedment. Always cross-check with the tile manufacturer and the thinset producer to confirm compatibility and coverage expectations. This approach minimizes voids and reduces the risk of lippage on the finished floor.

A properly chosen notch size supports the Ditra system’s performance, ensuring the adhesive fully penetrates the Ditra’s fleece and bonds the tile to the substrate. The Install Manual emphasizes achieving consistent back-and-forth coverage to avoid air pockets beneath the membrane. The goal is full contact between the mortar and both the Ditra and tile surface, achieved by matching onto the underlying substrate and tile geometry.

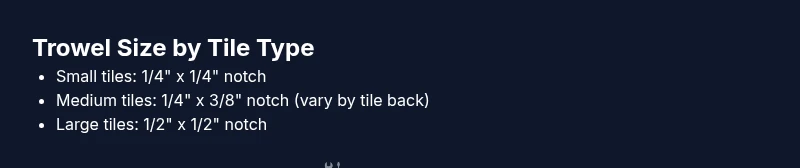

Trowel sizes by tile category

Selecting the right notch depends largely on tile size and tile type. For common ceramic and porcelain tiles, a 1/4" x 1/4" square-notched trowel is the baseline recommendation. When tile dimensions increase—especially for large-format tiles—the 1/2" x 1/2" notch is often used to ensure adequate mortar transfer and embedment. The exact notch should be chosen after verifying that the mortar’s working time and flow are compatible with the trowel. Schluter’s Ditra installation guidelines advise testing a small area to confirm full bed and absence of voids before proceeding with the full floor.

• Small tiles (roughly up to 8 inches) commonly use 1/4" x 1/4".
• Medium tiles (up to 12 inches or longer formats with mixed shapes) may still work with 1/4" x 1/4", but variations exist depending on tile back texture and mortar type.
• Large-format tiles (12x24 inches and larger) frequently require 1/2" x 1/2" notch for reliable coverage.

These ranges are typical, but it is essential to test a patch and follow both Schluter’s and the tile/mortar manufacturers’ guidance for your specific job.

Step-by-step installation workflow with Ditra

1. Surface preparation: Ensure a clean, flat, and structurally sound substrate. Any substrate irregularities should be addressed before Ditra installation.
2. Mixing mortar: Use a modified thinset suitable for Ditra and tile, following the manufacturer’s mixing ratios. Do not mix more mortar than you can use within the pot life.
3. Notch selection: Start with a 1/4" x 1/4" notch for most tiles. For large-format tiles, prepare a 1/2" x 1/2" notch. Confirm with the tile’s manufacturer and the thinset supplier.
4. Spread and comb: Use the trowel to comb the mortar in one direction, ensuring uniform ridges. Back-tilt the trowel to flatten ridges before embedding Ditra.
5. Embed Ditra: Press the membrane into the bed with firm, even pressure to achieve full contact and eliminate voids beneath the fleece.
6. Tile placement: After Ditra is embedded, place tiles and verify alignment before final setting. Ensure consistent gaps and check for lippage as you progress.

Back-buttering and pressing technique

Back-buttering is often recommended for porcelain and large-format tiles to improve bond and prevent hollow spots. Apply a thin coat of mortar to the back of the tile with a separate trowel, then press the tile into the Ditra with a twisting and rocking motion to promote full contact. For small tiles, back-buttering is typically optional, but it can improve coverage on uneven back surfaces. The key is to avoid excessive mortar that can squeeze out at grout joints, creating an uneven bed and potential lippage.

Common pitfalls and how to avoid them

• Inadequate mortar screening: Use a fresh, properly mixed batch; stale mortar can lead to weak adhesion.
• Undercutting the coverage: If air pockets remain after embedding, rework the section with a fresh amount of mortar and re-embed the tile.
• Skipping back-buttering on large tiles: This increases risk of voids under the tile.
• Ignoring manufacturer guidelines: Always cross-check tile, mortar, and Ditra specifications before starting.

Verifying embedment and coverage

After placing the tile, press firmly, then twist gently to confirm bond. Inspect the Ditra surface for even indentation and check that the mortar has spread across the fascia and fleece uniformly. You can perform a simple test by tapping tiles with a rubber mallet and listening for a solid, consistent sound that indicates good embedment. If you detect hollow sounds or visible air pockets, rework the affected area before proceeding.

Special cases: heated floors and substrate considerations

In heated-floor installations, ensure the thinset and Ditra are rated for elevated temperatures. Some mortars require gradual heating and curing to prevent rapid moisture loss or thermal shock. If the substrate has deflection or moisture issues, address those concerns first, as the Ditra system relies on a stable base for long-term performance. Always follow Schluter’s guidelines for heated-floor applications and consult the mortar manufacturer for any temperature-related curing considerations.

Tools, checklists, and workflow optimization

• Tools: Notch trowels (1/4" x 1/4" and 1/2" x 1/2"), margin trowel, rubber mallet, spacers, level, and a notching gauge.
• Workflow: Prepare substrate, mix mortar, pick notch size, spread mortar, embed Ditra, back-butter large tiles if needed, place tiles, and perform cleanup and curing checks.
• Checklists: Verify tile size, verify mortar compatibility, conduct a small-area test, maintain consistent seating pressure, and monitor curing conditions.
