Shower Pan Install: A Complete Home DIY Guide
Step-by-step guide to installing a shower pan with essential tools and safety tips for homeowners and DIY enthusiasts, covering planning, substrate prep, waterproofing, and testing.
By the end of this guide you will confidently install a shower pan from start to finish. You'll learn how to evaluate pan types, prepare the substrate, install the liner, set the pan, waterproof joints, and complete the curb or threshold. With the right tools, most alcove installs take 3–5 hours.
Why Shower Pan Install Matters
A solid shower pan is the foundation of a leak-free shower. For homeowners, DIY enthusiasts, and renters, investing time in a correct pan install pays off with durable performance and fewer calls to the plumber. According to Install Manual, the quality of the pan and its installation determines whether waterproofing remains intact over years of use. The Install Manual team found that improper slope, misaligned drains, or missing waterproofing membranes are common failure points that lead to damp subfloors, mold, and costly renovations.
A typical shower pan acts as a water management system: it channels water toward the drain while isolating the structural substrate from moisture. If the pan fails, moisture can wick into framing, insulation, and even neighboring rooms. A properly installed pan also improves comfort; it provides a stable, level base for tile or stone and reduces the chance of tile cracks from movement. This section will outline the core concepts so you can plan a reliable install.
Key factors to consider include pan type, drain placement, substrate condition, and waterproofing method. You will learn why each choice matters and how to verify compatibility with your bathroom layout. By understanding these fundamentals, you reduce surprises during installation and set yourself up for a durable, long-lasting shower.
Types of Shower Pans and Liners
Shower pans come in several materials and configurations. Ready-made acrylic or fiberglass pans are common for quick installs, while tile-ready or cultured marble pans offer customization. The choice affects weight, durability, and how you waterproof the area. Liners and membranes provide the waterproof barrier beneath tiles or shower walls. A clamping ring drain with a liner system is common in do-it-yourself setups, but some builders prefer a mud bed with a liner. Whatever you choose, ensure the pan fits your shower footprint and aligns with the drain location. If you're tiling, you may opt for a pan liner and a separate waterproof membrane that runs up the walls for extra protection. Always follow the pan manufacturer's guidelines to ensure warranty coverage and correct slope. This section helps you compare options so you can plan a reliable installation path.
Consider factors like maintenance, tile options, and future remodeling when selecting a pan. A good rule is to match the pan to your bathroom layout and your comfort level with moisture management. Remember, the right combination of liner, membrane, and drain setup reduces the likelihood of leaks over time.
Planning and Preparation
Successful shower pan installation starts before you pull out tools. Measure the alcove or corner space and mark the drain center, checking for level and plumb in the surrounding walls. Create a simple cut sheet listing the pan type, liner method, and waterproofing system you will use. Gather tools and materials ahead of time to avoid mid-project trips to the hardware store. Consider the substrate conditions—if you have plywood or existing tile, you may need to remove and repair areas to achieve a flat, solid base. Confirm plumbing rough-in and venting comply with code requirements; a misrouted drain can ruin the pan install and cause leaks. By planning carefully, you reduce wasted work and set a clear path for the install.
A well-thought plan reduces surprises and helps you budget time more accurately. Check local building codes and ensure you have any required permits. Create a ritual of inspecting the area for moisture, rot, or pest damage before committing to a pan type or liner system.
Substrate Prep and Slope
A level, stable substrate is essential for a successful shower pan. Start by inspecting the subfloor or concrete slab for stiffness and moisture; repairs should be completed before laying any pan or liner. If you are using a mud bed, mix deck mud to the right consistency and pack it evenly to the required slope—most systems use a 1/4 inch per foot slope toward the drain. Use a straightedge or level to check the plane from multiple angles. When you switch to a membrane system, install the thin waterproof membrane consistent with manufacturer instructions, ensuring it covers the required area and extends up the walls. Proper anchoring and gradual grading help water move efficiently toward the drain without pooling.
Document any deviations from the plan and adjust the layout before final installation. A consistently sloped base minimizes gullies or low spots that can trap water and compromise the seal over time.
Waterproofing, Joints, and Curb Sealing
Waterproofing is the heart of a leak-free shower. Install a membrane or liner according to the system you chose, then seal all joints with compatible sealant and tape. Pay particular attention to transitions—where the pan meets walls, curb, and drain. The membrane should extend up the walls to tie into wall waterproofing, creating a continuous barrier. Use non-absorbent materials in the curb area and grout joints that resist cracking. After installation, perform a test for leaks by filling a small amount of water and monitoring any moisture intrusion. If you detect movement or gaps, address them before you tile or finish the enclosure.
Keep edges clean and avoid folding membranes in tight corners. Precision here prevents slow leaks that undermine the whole shower enclosure.
Common Mistakes and How to Avoid Them
Even experienced DIYers can trip on common pan installs. Avoid forgetting to slope the pan toward the drain, neglecting wall waterproofing, or skipping a test for leaks. Do not rely on a single layer of sealant on joints; use compatible membranes and proper tapes specified by the manufacturer. Ensure the drain is perfectly aligned with the niche and footprint of your pan; misalignment leads to pooling or tiles cracking. Finally, don’t rush curing times or fail to support the pan during setting; premature load can cause warping or failure in the liner or mud bed. Following a checklist prevents these issues and keeps a project on track.
Finishing Touches and Aftercare
Once the pan is installed and cured, finish by tiling or applying the chosen surface, then seal all edges. Keep the enclosure dry for the recommended cure period and avoid heavy use until the sealants have fully cured. Regularly inspect joints and caulking, especially after seasonal changes when shifts in temperature and humidity are common. With proper care and periodic maintenance, your shower pan will provide a long-lasting, watertight foundation for years of daily use.
Tools & Materials
- Shower pan kit (pre-fabricated or tile-ready)(Includes base tray, curb, and drain compatible with your footprint)
- Adjustable wrench(For drain assembly and fittings)
- Caulk gun(Silicone or polyurethane sealant compatible with waterproofing membrane)
- Trowel set(Fine and notched trowels for setting mud or tile adhesive)
- Deck mud or mud bed mix(Per system guidelines for slope and bed thickness)
- Waterproofing membrane or liner(As specified by chosen system (e.g., sheet membrane or liquid membrane))
- Drain flange and plumbing connectors(Ensure correct size for your drain and pipe work)
- Marker and pencil(Mark layout, lines, and drain center clearly)
- Level and straightedge(Check slope and verify plane across the pan area)
- Safety gear (gloves, goggles)(Personal protective equipment for cutting, mixing, and installation)
- Bucket, mixing paddle, and water(For mixing deck mud and cleaning tools)

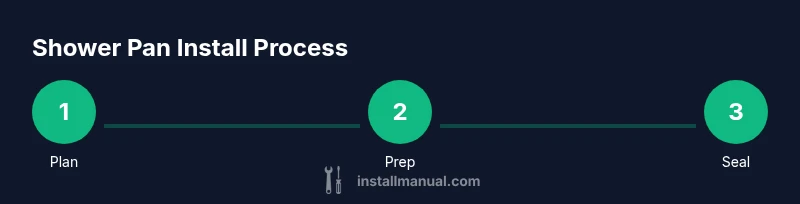

Steps
Estimated time: 3-6 hours
- 1
Assess Layout and Pan Choice
Measure the space, identify the drain center, and confirm your pan type aligns with the footprint and door clearance. Create a simple plan showing where the liner or membrane will run and how the curb will meet the walls.
Tip: Double-check drain alignment with the pan's center before proceeding. - 2
Prepare Substrate
Clear debris, inspect for moisture and rot, and repair any soft spots. A flat, solid base is essential for long-term performance and helps prevent tile cracking later.
Tip: Remove old adhesive and clean the subfloor thoroughly for a clean bonding surface. - 3
Install Drain Assembly
Remove the old drain if present, install a new flange, connect to plumbing, and confirm the slope direction remains toward the drain after the pan sits in place.
Tip: Verify the flange height is flush with the finished surface to avoid stepping hazards. - 4
Dry-Fit Pan and Liner Path
Place the pan to check fit, mark where the liner or membrane will run, and trim as needed to avoid pinching corners or gaps.
Tip: Take time to confirm all transitions before final adhesion. - 5
Set the Pan and Position Liner
Set the pan in place, align with drain, and lay down the liner or membrane according to system instructions; ensure full coverage and proper overlaps.
Tip: Press slowly to avoid air pockets under the liner. - 6
Seal Joints and Curb
Apply waterproofing at all joints, seals, and curb transitions using compatible products; ensure a continuous barrier up the walls where required.
Tip: Follow manufacturer guidelines for cure times before tiling. - 7
Test, Cure, and Finalize
Perform a leak test, allow curing time, and complete edging, tiling, or finishing surfaces as planned.
Tip: Always test in a controlled manner before heavy use. - 8
Finish Edges and Clean Up
Install trim, grout or sealant, and clean the work area to prevent residue from harming seals during cure.
Tip: Keep the area dry during cure to avoid premature moisture exposure.
Got Questions?
What is the first step in a shower pan install?
Plan your layout, confirm drain center, and gather all tools before starting. This reduces mid-project trips and helps maintain accuracy.
Start by planning the layout and gathering tools so you can work smoothly without interruptions.
Do I need a waterproof liner for every shower pan install?
Most systems use a liner or membrane to prevent moisture from reaching the subfloor. Choose a liner type that matches your chosen pan and tile method.
Yes, most installations require a liner or membrane to keep moisture away from the subfloor.
How long does a typical shower pan installation take?
A typical install can take several hours depending on space, materials, and experience. Plan for a dedicated work session with fresh supplies.
Most projects take a few hours, but it’s best to set aside a full session to avoid rushing.
Can I install a shower pan over a wooden subfloor?
Wood subfloors require a proper moisture barrier and a rigid substrate to prevent movement. Consider a concrete backer or a reinforced subfloor if needed.
You can, but you must add a moisture barrier and a solid backing before installing the pan.
What is the recommended slope for a shower pan?
A common guideline is 1/4 inch per foot toward the drain to ensure efficient drainage and reduce pooling.
Slope it at about a quarter inch per foot toward the drain to help water move out properly.
How do I test for leaks after installation?
Fill the pan with water and check for moisture behind walls or under the substrate for at least 20-30 minutes. Address any leaks before finishing.
Fill with water and watch for leaks for a short period after installation.
Watch Video
Main Points
- Plan drain location before you start any cutting.
- Use the correct waterproofing system for your layout.
- Test for leaks before finishing the enclosure.
- Cure times must be respected to ensure long-term performance.
