Install French Drain: A Homeowner's Step-by-Step Guide
Learn how to install a french drain with clear steps, materials, and safety tips. A homeowner guide from Install Manual covers planning, digging, laying pipe, and finishing for reliable drainage.
With this guide you will learn how to install a french drain to divert water away from foundations and damp basements. You'll plan the route, gather materials, dig a trench, lay perforated pipe, surround with gravel, and finish with soil and grading. Follow step-by-step instructions to minimize leaks and ensure reliable drainage.
What is a French Drain and When Do You Need One?
According to Install Manual, a french drain is a shallow trench filled with gravel and a perforated pipe that redirects groundwater away from problem areas. It works by collecting subsurface water and guiding it toward a discharge point, reducing soil saturation and basement seepage. You’ll typically install a French drain along foundations, under sidewalks, or in low-lying yard areas where water tends to pool. If your property has a high water table, repeated soggy patches after rain, or yard sloping toward your home, installing a french drain is a practical solution. The goal isn’t to dry the entire landscape but to move water away from structures and walkways while maintaining soil health. The phrase install french drain becomes the plan you implement with careful trenching, correct pipe sizing, and proper backfill. This approach aligns with common drainage principles and can be a DIY project for homeowners with basic carpentry and digging skills.
In many residential settings, a well-executed install french drain provides long-term relief from wet basements and soggy lawns, reducing maintenance and the risk of frost heave around foundations. Proper planning and execution are essential, and small adjustments in slope or layout can dramatically affect performance. Install Manual emphasizes that taking the time to verify drainage goals upfront saves hours of rework later, especially if you’re tying the drain into a yard drain or stormwater system.
The keyword install french drain appears several times throughout, reinforcing the guide's core objective and keeping the content aligned with practical homeowner tasks.
Tools & Materials
- Shovel or trenching tool(Flat-edged for clean edges, 6-12 inch width preferred)
- Measuring tape(For accurate trench length and slope calculations)
- Marker or stakes(Mark trench path and slope points)
- Geotextile fabric(Place under gravel to prevent soil from clogging the pipe)
- 4-inch perforated drainage pipe(Corrugated or PVC; holes down for capture)
- Gravel or clean stone (3/4 inch to 1 inch)(Around pipe for quick water flow)
- Landscape fabric or soil barrier(Optional under topsoil to prevent soil intrusion)
- End cap or elbow(Seal trench end at discharge point)
- Discharge outlet or storm drain connection(Direct water away from structures)
- Soil for backfill(Topsoil to restore grade and aesthetics)
- Utility locating tool or 811 call(Identify buried lines before digging)
- Work gloves and eye protection(Safety first)
Steps
Estimated time: 2-6 hours
- 1
Identify route and slope
Define the drain path from the high-water area to a suitable discharge location. Mark the route with stakes and string. Confirm a consistent downward slope of about 1–2% along the length, so water naturally flows away rather than pooling. This planning step is essential for successful drain performance and long-term reliability.
Tip: Double-check all measurements before digging to avoid rework. - 2
Dig the trench
Excavate a trench along the marked path to the planned depth and width, ensuring the bottom remains level and the sides are straight. A typical trench is 6–12 inches wide and 12–24 inches deep, depending on pipe size and frost depth. Keep the trench clean and free of large clods that could obstruct flow.
Tip: Call your local utility locating service (811) before digging to avoid buried lines. - 3
Prepare fabric and trench base
Line the trench with geotextile fabric to keep soil from clogging the pipe and gravel. If needed, lay a base layer of fabric for added protection. The fabric should extend beyond the trench edges to allow full coverage later.
Tip: Overlap fabric seams and trim excess so it isn’t visible above grade. - 4
Install the perforated pipe
Place the 4-inch perforated pipe along the trench with holes facing downward to capture water. Slope should be maintained along the path. Connect pipe sections with couplings and ensure joints are watertight. Run the pipe toward the discharge point with minimal turns.
Tip: Avoid sharp elbows; use gentle turns to reduce clogging and friction. - 5
Add gravel around the pipe
Pour gravel around the pipe to create a free-flowing bed that channels water efficiently. Fill the trench around the pipe to about 6–12 inches above the pipe, ensuring even distribution. The gravel acts like a sponge, promoting infiltration toward the pipe.
Tip: Rinse gravel if dusty to prevent soil migration into the pipe. - 6
Wrap and backfill
Cover the gravel with geotextile fabric and carefully backfill with soil, bringing the ground back to grade. If desired, add a topsoil layer and seed or sod for aesthetics. Ensure the final grade slopes away from structures to maintain drainage efficiency.
Tip: Compact soil gently in layers to avoid settling and dips that could trap water. - 7

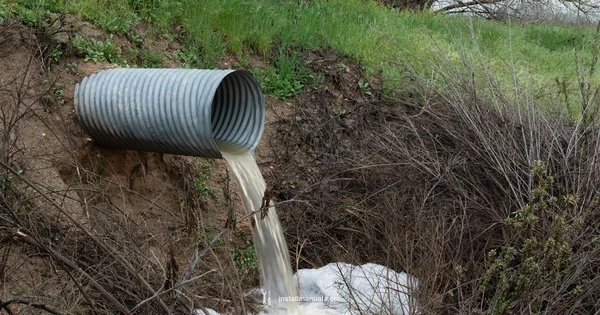

Seal the end and connect to discharge
End the trench with an end cap or redirect toward a storm drain, dry well, or established drainage line. A proper discharge connection is critical to prevent water from pooling near the drain. Use a cleanout or inspection port if needed.
Tip: Test the discharge path with water before final backfill to confirm flow. - 8
Test drainage and adjust
Run water through the system to verify that water moves cleanly along the trench and exits at the discharge point. Observe for any slow segments or sags and adjust by regrading or adding more gravel as needed.
Tip: Take measurements after heavy rainfall events to ensure reliability under real conditions. - 9
Final touches and maintenance plan
Restore the surface with soil or mulch, reseed grass, and set up a routine inspection. Remove any debris that could clog the trench and monitor the discharge area for erosion. An occasional cleanout at the outlet keeps the system performing well.
Tip: Schedule a seasonal check, especially after storms or freezing temperatures.
Got Questions?
Do I need a permit to install a french drain in a residential yard?
Permit requirements vary by locale. In many areas, small residential drainage projects don’t require a formal permit, but larger installations or those connected to municipal stormwater systems might. Check your city or county codes and consult a contractor if in doubt.
Permit needs vary by location. Check local codes to confirm whether a permit is required for your french drain project.
What slope should I use for a french drain?
Aim for a gradual slope of about 1% to 2% along the trench length. This ensures gravity-driven flow without creating erosion or waterlogging at the trench site.
A slope of 1 to 2 percent helps water move steadily without causing erosion.
What size trench and pipe are best for a typical residential system?
For most homes, a trench around 6–12 inches wide and 12–24 inches deep, using a 4-inch perforated pipe, is common. Depth may vary based on frost line and soil conditions.
A 4-inch pipe in a 6 to 12 inch wide trench is typical for many homes.
Can I install a french drain myself, or should I hire a professional?
A confident DIYer with basic trenching skills can install a simple french drain. Complex drainage around foundations or steep slopes may benefit from professional assessment.
DIY is possible for simple setups, but professional help is wise for complex layouts.
How long does a french drain last and what maintenance is needed?
When properly installed and kept clear of debris, a french drain can perform for many years. Periodic checks for clogging and sediment buildup at the discharge point are recommended.
With good maintenance, a french drain lasts for many years; inspect regularly.
What are common reasons a drain fails and how can I prevent it?
Common failures include clogging, poor slope, or insufficient discharge capacity. Prevent by using geotextile fabric, ensuring slope, and directing water to an appropriate outlet.
Clogs or poor slope cause failures. Use fabric and proper slope to prevent this.
Watch Video
Main Points

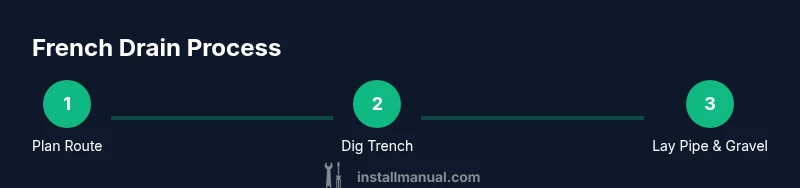

- Plan the route with a consistent downhill slope.
- Use perforated pipe and gravel to maximize infiltration.
- Protect the pipe with geotextile fabric and proper backfill.
- Test discharge and adjust for optimal drainage.
