Drain Field Install: A Complete How-To Guide
Learn how to plan, trench, and install a drain field for a septic system with this homeowner-friendly guide. Includes tools, steps, safety tips, and maintenance.
You will learn how to plan and execute a drain field install for a septic system, including site assessment, permit requirements, trenching, pipe layout, gravel bedding, backfilling, and final commissioning. This quick answer highlights the essential steps and safety considerations for a DIY-friendly process. Proper planning reduces failures, protects groundwater, and extends system life.
Understanding drain field installs
A drain field install is the final stage of a septic system where wastewater is distributed into the soil for natural treatment. The drain field comprises trenches filled with gravel, a network of perforated pipes, and a distribution box to balance flow. The soil type, groundwater level, and slope all influence performance. A properly designed drain field prevents backups and protects groundwater. For homeowners, understanding the core components helps you evaluate site suitability and plan orderly installation. In most residential systems, the drain field is the largest and most sensitive component; the rest of the set relies on it to function correctly. This section outlines the key elements, how they work together, and why each choice matters for longevity and environmental safety.
Planning and permits
Before you dig, confirm local regulations and obtain any required permits. Drain field size, setback distances from wells or buildings, and soil tests are commonly regulated. Engage your local health department or building official early to understand requirements and inspection points. A well-documented plan helps prevent costly redesigns and ensures compliance with health and environmental standards. The goal is to create a layout that balances soil absorption with daily wastewater flow, while maintaining a safe distance from surface water and driveways. This planning phase reduces surprises during installation and improves long‑term performance.
Soil testing and site evaluation
Soil percolation and absorption capacity determine whether a drain field will function as intended. A soils test helps identify soil texture, infiltration rate, and groundwater depth. If percolation is too slow, the field may require deeper trenches or additional treatment beds; if too fast, you may need to adjust the pipe spacing or aggregate depth. Use a qualified inspector or soils professional to conduct tests and interpret results. The evaluation informs trench depth, gravel size, and pipe layout to optimize oxygenation and drainage while protecting groundwater.
Trench design and layout
Trench design includes depth, width, slope, and spacing between runs. Common residential trenches are dug to a depth that accommodates a gravel burial and pipe, with a uniform slope to encourage gravity-assisted flow. Distribution lines should be laid in straight, parallel runs with even spacing. A consistent grade helps prevent puddling and guarantees consistent wastewater dispersion across the field. Accurate staking and line marking are critical to avoid misalignment that could compromise performance.
Bedding, pipe installation, and gravel bedding
Perforated drainage pipe is laid on a clean bedding of gravel to prevent crushing and to promote flow. The pipe should be slightly sloped toward the treatment area, with perforations facing down or as specified by local design standards. Cover the pipe with the recommended amount of gravel or coarse aggregate, ensuring there are no clogs or misalignments. Maintain a clean working area to prevent soil or debris from entering the perforations, which can impair drainage.
Backfill, soil cover, and surface restoration
Backfill should begin with a layer of fine soil and, where required, a larger layer of soil to restore the original grade. Avoid compacting the trench excessively, as over-compaction reduces pore space and can hinder drainage. After backfilling, restore the surface with topsoil or sod, and reseed if needed. Proper restoration minimizes erosion, helps landscaping blend back into the yard, and supports long‑term field integrity.
Commissioning, testing, and maintenance
Once backfilled, perform a walk-through to verify proper installation and connections. Conduct a flow test if required by code to confirm even distribution across all trenches and to identify leaks or blockages. Schedule routine maintenance like pump-outs per local guidelines and monitor for signs of field distress, such as surface pooling or odors. Early detection helps prevent costly repairs and preserves system life.
Maintenance, safety, and long-term care
Regular maintenance includes periodic pumping, inspecting for standing water, and watching for foul odors. Keep heavy vehicles away from the drain field to prevent soil compaction. Never enter trenches or stand on the cover; exposures to wastewater pose health risks. Use licensed professionals for inspections and any repairs, and keep records of installations, permits, and maintenance for future property transactions.
Common mistakes and safety considerations
Rushing the trenching stage, mis-sizing the field, or neglecting permits can lead to system failure. Ensure you follow all local codes and install with proper protective equipment. Septic systems involve hazardous materials and groundwater protection concerns, so exercise caution and rely on professionals when needed. Planning, patience, and adherence to standards help ensure a reliable drainage solution.
Tools & Materials
- Measuring tape(steel tape 100 ft (30 m) or longer for accurate layout)
- String line and stakes(for straight trench lines and precise alignment)
- Shovel (round-point)(for initial digging and fine shaping)
- Trenching shovel or trenching tool(to widen and deepen trenches with control)
- Digging bar or crowbar(for breaking hard soil or rock fragments)
- Ground marking spray or chalk(to mark trench layout and setbacks)
- Gravel bedding (clean aggregate)(under pipes to protect perforations and aid drainage)
- Perforated drainage pipe (HDPE or PVC, 4-inch)(with appropriate outlet connections and fittings)
- Crushed stone or gravel for trench fill(size and depth per design, typical 4-6 inches under pipe)
- Geotextile fabric (optional)(to reduce soil infiltration into gravel beds)
- Soil backfill (topsoil)(topsoil for restoring grade and surface finish)
- Personal protective equipment(gloves, safety glasses, boots, and hearing protection if using machinery)
- Compaction tool (rammer/plate)(use sparingly to avoid over-compaction)
- Safety signage and barriers(to protect work area and prevent accidental entry)
- Permits and design documents(keep on-site for inspections)

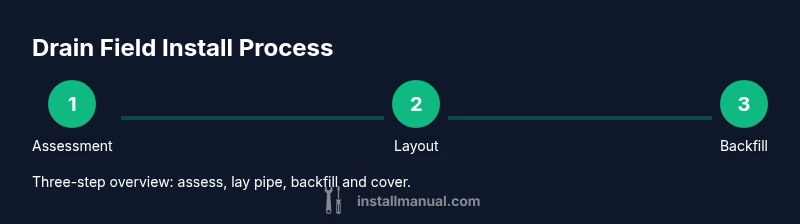

Steps
Estimated time: Estimated total time: 12-20 hours
- 1
Assess site and obtain permits
Begin with a site assessment to confirm soil stability, slope, and groundwater depth. Check local permitting requirements and secure the necessary approvals before digging. Document the design and keep permits on-site for inspections.
Tip: Talk with the local health department early to understand code constraints and drainage expectations. - 2
Mark trench lines and setback boundaries
Use stakes and string to outline trench paths, ensuring straight runs and consistent spacing. Mark setbacks from wells, buildings, and surface water as required by local codes. Double-check all lines before excavating.
Tip: Verify line alignment with a second person to avoid offset errors. - 3
Excavate trenches to specified depth and width
Dig trenches to the depth required for gravel bedding and pipe placement, maintaining uniform width. Avoid disturbing adjacent soils outside the trench boundaries. Keep sides clean to prevent cave-ins during pipe installation.
Tip: Excavation should halt if soil shows signs of instability; reassess slope and support systems. - 4
Prepare bedding and lay perforated pipe
Spread a clean bedding layer of gravel where the pipe will sit, then lay perforated pipe with the correct orientation and slope. Ensure joints are watertight and align lines with the trench network. Place distribution lines per design to achieve even drainage.
Tip: Maintain a consistent slope (as per design) to promote gravity-driven flow. - 5
Backfill around pipes with gravel and secure
Cover the pipe with the calculated amount of gravel to protect perforations and promote filtration. Avoid displacing the pipe or creating voids. Install any required geotextile between gravel and soil to reduce clogging.
Tip: Do not overfill; ensure the pipe remains visible and accessible if inspection is needed. - 6
Backfill trench with soil and restore grade
Fill remaining trench space with soil, avoiding compaction that could crush the pipe or reduce soil porosity. Restore surface grade with topsoil and reseed or re-sod as needed. Final surface should blend with surrounding landscape.
Tip: Compact gently in layers to prevent settling and surface heave. - 7
Test and inspect the system
Conduct the required flow or pressure tests per local requirements to verify proper distribution and absence of leaks. Schedule inspections with authorities as needed. Document test results for future reference.
Tip: Address any leaks or uneven flow promptly to prevent field failure. - 8
Restore site and monitor performance
Re-seed, regrade, and reinstall any fencing or barriers. Monitor the drain field after first use for signs of distress, such as odors or pooling water. Plan routine maintenance intervals based on usage and local guidelines.
Tip: Keep a maintenance log and review it annually. - 9
Finalize documentation and maintenance plan
Compile as-built drawings, permits, and inspection reports. Create a long-term maintenance plan that includes pumping schedules and seasonal checks. Share the plan with the homeowner and store copies for future property transactions.
Tip: Having organized records saves time during future inspections or repairs.
Got Questions?
Do I need a permit to install a drain field?
Yes, most areas require a permit and inspection for drain field installations. Check with your local health or building department to confirm requirements and scheduling. Having permits helps ensure soil, setback, and safety standards are met.
Permits are typically required and inspections are common, so check with your local health or building department before starting.
How large should a drain field be?
Drain field size depends on soil percolation, daily wastewater flow, and local regulations. A soils test and design calculations determine the area and trench layout. Proper sizing prevents backups and ensures reliable treatment.
Sizing is based on soil tests and expected wastewater flow; a professional design helps prevent failures.
Can a homeowner install a drain field themselves?
In some areas, DIY installation is allowed with proper permits, but drain fields are complex and risky. Many homeowners hire licensed septic professionals to ensure code compliance and long-term reliability.
It’s possible in some places, but it’s often safer and more reliable to hire a licensed pro.
What signs indicate a failing drain field?
Common signs include foul odors, soggy or standing water, spongy soil, slow drains, and gurgling sounds in plumbing. If you notice these, stop using water-intensive appliances and consult a pro.
Look for bad smells, wet spots, or slow drains—these can signal problems early.
How long does drain field installation take?
Timeline varies with site conditions and permits, but most projects span several days to a week. Weather, soil type, and equipment availability influence the schedule.
It typically takes a few days to a week, depending on site conditions and approvals.
What maintenance does a drain field require after installation?
Routine maintenance includes scheduled pumping, annual inspections, and monitoring for surface pooling or odors. Follow local guidelines for pumping frequency and conduct periodic professional checkups.
Regular pumping and inspections keep the system healthy and prevent surprises.
Watch Video
Main Points
- Plan first, then trench and install
- Obtain permits and follow local codes
- Use proper bedding, slope, and backfill practices
- Test and monitor the system after commissioning
