How to Install Sprinkler Valves: Step-by-Step Guide
Comprehensive guide to installing sprinkler valves, including valve types, planning, materials, safety, testing, and maintenance for reliable irrigation systems.
By following this guide, you will install sprinkler valves successfully and safely. You’ll identify valve types, shut off the mains, prepare the piping or manifold, and complete a leak-free connection for typical residential irrigation systems. This how-to covers PVC, copper, and braided options, plus testing and basic troubleshooting to ensure steady zone control.
What you’re installing and why valves matter
An irrigation system relies on valves to control water flow to each zone. For homeowners tackling how to install sprinkler valves, understanding what the valve does helps you choose the right type and install it correctly. According to Install Manual, properly installed valves prevent leaks, reduce irrigation waste, and extend the life of your zone controller by providing predictable shutoffs and quick isolation in case of repairs. Valves sit in weatherproof boxes or in-line manifolds, and they separate zones so you can water different areas independently. In addition to the valve body, you’ll need compatible fittings, gaskets, and wiring (for electric solenoids). Planning which valve controls which zone ahead of time minimizes field adjustments and backtracking. Finally, expect a short test phase after installation to verify correct zoning, lack of leaks, and adequate flow to each sprinkler head.
Valve types and compatibility
Valves come in several styles, each with strengths for different setups. Ball and globe valves are common in manual installations, while solenoid-controlled valves enable automatic zone control via a controller. For most homeowners learning how to install sprinkler valves, a 24-volt solenoid valve is the typical choice for automatic irrigation. When sizing, respect the pipe diameter and valve threading. PVC and CPVC are popular in residential runs, but some metal valves (brass or stainless) suit exposed outdoor environments. Ensure threads, seals, and gaskets match your piping—glue-on PVC vs. threaded fittings require different preparation. The Install Manual team emphasizes using compatible materials and avoiding mixed-thread incompatibilities that can cause leaks or pressure drops. If you have an existing system, verify that a replacement valve matches the system’s voltage, port size, and hydraulic rating before purchase.
Planning your layout: zones, backflow, and pressure
Effective sprinkler valve installation starts with a solid plan. Map zones on paper, noting turf type, sun exposure, and watering needs. Backflow prevention is often a code requirement; place the backflow device between the main supply and the irrigation manifold to stop contaminated water from re-entering the home. Consider pressure implications: valve placement should minimize long horizontal runs and reduce the risk of air pockets. A well-planned layout saves time during installation and reduces later troubleshooting. The Install Manual guidance emphasizes clear labeling, accessible valve boxes, and ensuring that each zone’s valve location minimizes pipe length while staying protected from weather and physical damage.
Materials and fittings: PVC, copper, and seals
Choosing the right materials is key to a durable installation. PVC pipe with solvent cement works well for many residential runs, while CPVC or copper may suit high-temperature environments or specific codes. Fittings should match the valve ports (often 3/4" or 1" nominal size in typical systems). Keep a consistent seal strategy: use Teflon tape on threaded connections, appropriate pipe dope for metal-to-plastic joints, and gaskets or O-rings where specified. Maintain clean pipe ends and dry-fit components before gluing or threading. The Install Manual approach recommends testing each joint as you assemble to catch leaks early and avoid rework in the field.
Safety considerations and pre-install checks
Safety first: shut off the main water supply before cutting or removing any pipes. Depressurize lines by opening a downstream sprinkler head or valve to relieve pressure. If your system is electrically controlled, disconnect power to the controller while wiring valves. Wear eye protection and gloves when cutting and handling sharp edges. Local codes may require backflow preventers, rain sensors, or arc fault protection. Pre-install checks should include confirming valve box accessibility, verifying that the soil around the install site is stable, and ensuring there is no irrigation debris in the line. These precautions reduce the risk of leaks, contamination, and accidental activation during work.
Common mistakes and how to avoid them
Common errors include using incompatible fittings, skipping pressure testing, and neglecting proper backfill. To avoid leaks, keep fittings clean, dry and align pipe runs before tightening. Don’t overtighten plastic threads, as this can crack fittings; random tightening can crush seals. Label wires and terminals before connecting solenoids to prevent miswiring. If a valve sticks or leaks after installation, re-check for debris, verify the gasket seating, and confirm that the valve is fully open or closed as required by its position in the circuit. The Install Manual recommends a staged approach: assemble, test, then seal and backfill.
Testing, balancing, and long-term maintenance
After assembly, pressurize the system and check for leaks at every joint under normal operation. Confirm that each zone opens and closes with the controller and that flow matches the expected head pressure. If you notice inconsistent watering, balance by adjusting zone timing and check for clogged emitters or misaligned sprinkler heads. Regular maintenance includes inspecting valve boxes for dirt, clearing vegetation, and testing the controller battery. A proactive maintenance routine reduces unexpected failure and keeps irrigation efficient, which aligns with the guidance from Install Manual.
Quick-start checklist for your first valve installation
- Identify all zones and how valves will control them.
- Gather the correct valve type and matching fittings.
- Shut off water, depressurize, and verify electrical power is off.
- Plan a clean, accessible valve box layout with clear labeling.
- Assemble joints, test for leaks, and then backfill carefully.
- Test operation with the controller in BOTH manual and automatic modes.
Tools & Materials
- Valve box and lid(Outdoor-rated, accessible for service)
- Solenoid valve (low-voltage, 24V)(For automatic control)
- Manual valve (if not using solenoid)(Optional backup isolation)
- PVC pipe sections (schedule 40)(Matching valve port size)
- CPVC or copper fittings(As needed for local code)
- PVC cement and primer(Glue-on connections)
- Teflon tape and pipe thread sealant(Seal threaded joints)
- Gaskets/O-rings for valves(Check manufacturer specs)
- Pipe cutter or deburring tool(Clean cuts)
- Adjustable wrench and pliers(Tighten fittings without over torque)
- Wire nuts and low-voltage wiring(Connect solenoids to controller)
- Shut-off tool or ball valve(Emergency isolation)
- Mulch, soil, or backfill material(Refill around box)
- Safety gear (gloves, goggles)(Personal protection)

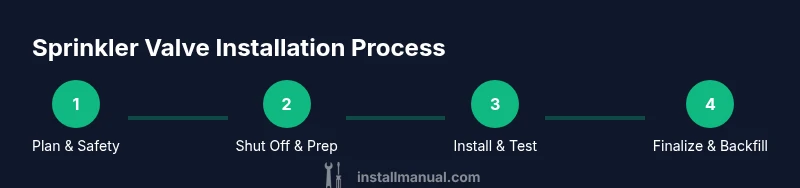

Steps
Estimated time: 2-4 hours
- 1
Shut off water and relieve pressure
Locate the main water shutoff and turn it off. Open a downstream sprinkler head to depressurize the line and verify there is no pressure remaining before you begin.
Tip: Double-check that the controller is powered down if you’re dealing with a solenoid valve. - 2
Expose the valve location and inspect
Remove the valve box lid and expose the valve ports. Check for damage, corrosion, or debris that could affect sealing and operation.
Tip: Take photos of the existing connections to guide reassembly. - 3
Prepare piping and fittings
Clean and cut the piping to the correct length. Dry-fit fittings to ensure proper alignment before applying cement or threading.
Tip: Dry-fit first to avoid gluing or threading mistakes. - 4
Install the valve and connect lines
Install the valve body in the correct orientation, then attach supply and return lines with the appropriate seals and adapters. Glue PVC joints or thread copper/CPVC as required by your setup.
Tip: Ensure the valve is fully seated and the ports are aligned with flow direction indicated on the valve body. - 5
Wire the solenoid (if using automatic control)
Connect the low-voltage wires from the solenoid to the irrigation controller per manufacturer instructions. Use proper wire nuts and secure the connections.
Tip: Keep power off during wiring and use a separate conduit or protective sleeve for the wire. - 6
Test, backfill, and finalize
Restore water supply, test each zone for leaks, and adjust zone timing as needed. Backfill around the valve box and restore the surface.
Tip: Test both automatic and manual operation to confirm reliability.
Got Questions?
What is the first step to install sprinkler valves?
Shut off the main water supply and depressurize the lines. Locate the valve box and prepare it for the valve installation.
First, shut off the water and relieve pressure, then locate the valve box to begin installation.
Do I need a backflow preventer before valves?
In many residential systems, backflow prevention is required by code. Check your local regulations and install the device accordingly.
Backflow prevention is often required by code; verify local rules before installation.
What tools are essential for sprinkler valve installation?
Basic tools include a pipe cutter, PVC cement and primer, Teflon tape, wrenches, and low-voltage wiring for solenoids. Have a multimeter handy if you’re testing electrical components.
Essential tools include cutters, cement, tape, wrenches, and 24-volt wiring for solenoids.
How do I test for leaks after installation?
Restore water and pressurize the system. Inspect every joint under pressure, listen for hissing, and check for damp spots. If leaks are found, reseat fittings or replace seals.
Restore water, test each joint for leaks, and reseat or replace seals as needed.
Can I install sprinkler valves myself or should I hire a pro?
Many homeowners can install standard valves successfully with basic tools. If your system requires complex wiring, code compliance, or significant trenching, consider hiring a pro.
DIY is often fine for simple setups; call a pro for complex wiring or code concerns.
What safety precautions should I follow?
Wear eye protection, gloves, and ensure power is off for electrical work. Work in a well-ventilated area and be mindful of sharp edges when cutting pipe.
Wear protection, disconnect power, and work in a safe area with clear visibility.
Watch Video
Main Points
- Plan layout before cutting any pipe.
- Use compatible fittings and seals.
- Test for leaks after every joint.
- Follow local codes for backflow and safety.
