How to Install a Lawn Irrigation System: A Step-by-Step Guide
Step-by-step guide to install a lawn irrigation system. Learn planning, zoning, components, trenching, wiring, testing, and maintenance for efficient, code-compliant irrigation.
Learn how to install a lawn irrigation system with a practical, step-by-step method. Plan your zones, choose components, map the yard, trench and lay pipes, install valves and a controller, and run a test cycle. This guide from Install Manual helps homeowners, DIY enthusiasts, and renters install an efficient, code-compliant system.
Why a Lawn Irrigation System is Worth Installing
A well-planned lawn irrigation system makes it easier to maintain a lush, green landscape while using water efficiently. If you’re wondering how to install a lawn irrigation system, you’ll benefit from zoning your yard, selecting reliable components, and following a disciplined installation process. According to Install Manual, a properly designed system reduces water waste, minimizes runoff, and can increase home curb appeal. This section covers the core reasons to invest in irrigation, the common scenarios homeowners face, and the basic prerequisites before you begin digging. You’ll learn how to balance plant needs with local watering rules, and how smart controllers can help automate watering to fit weather conditions and soil type.
Planning Your Layout: Zoning, Water Source, and Specs
The heart of any successful irrigation job is a smart layout. Start by surveying your yard to identify sun and shade patterns, plant types, and slope. Divide the area into zones according to water needs and sprinkler type. Plan around the main water supply, meter, and pipe route, ensuring you won’t run into obstacles like buried utilities or irrigation lines under hardscape. Check local codes for backflow prevention and minimum pipe sizes, and confirm your water pressure and flow rates. A precise plan saves time, reduces trenching, and helps the system perform evenly across the lawn.
Budgeting and Scheduling: Cost, Permits, and Timelines
Before you buy parts, estimate costs and secure any required permits. A typical home setup includes a controller, valves, pipes, sprinkler heads, and a backflow preventer. The budget should account for trenching materials, zones, weather-based controllers, and potential upgrades like filters or pressure regulators. Schedule the work during dry weather to minimize soil compaction and mud. Remember to factor in time for testing and adjustments after installation, since initial coverage may require fine-tuning.
Components You’ll Use: Controllers, Valves, and Heads
Understanding each component helps you tailor a system to your landscape. A weather-resistant controller programs watering cycles for each zone, while solenoid valves control water flow to different areas. Sprinkler heads (rotary, spray, or micro) provide coverage tailored to lawn, shrubs, and beds. Lateral lines connect valves to heads, and the mainline delivers water from the source. A backflow preventer protects the potable water supply from irrigation contaminants. Choose components based on yard size, soil type, sun exposure, and local water pressure.
Laying Out the System: Mapping and Trenching Best Practices
A clean trench path reduces later adjustments and helps the system look tidy. Use flags to map zones and route lines around obstacles, then excavate trenches to the recommended depth for your pipe size. Keep trench walls straight and consistent to minimize pipe stress. When crossing sidewalks or driveways, consider conduit or alternate routing to avoid future damage. After trenching, lay pipes loosely to confirm fit before final burial. Mark and protect valves and the control box for accessibility.
Installing Valves, Controller, and Sprinkler Heads
Install the valve manifold or individual valves at evenly accessible points, then connect the controller using buried wiring or a wireless bridge if supported. Place sprinkler heads at calculated heights and spacings to achieve even distribution across each zone. Tighten connections and use appropriate tape or sealant to prevent leaks. Create a simple test plan: run each zone for a few minutes to observe coverage, placement, and any dry spots.
Testing, Adjusting, and Maintaining Your System
Test all zones for coverage and leaks, adjusting head positions and spray patterns as needed. Check for muddy patches, pooling, or dry areas and reseason the lawn with proper adjustments. Schedule seasonal maintenance: inspect for cracks, replace clogged heads, prune trees that shade heads, and winterize in regions with freezing temperatures. Keeping a maintenance log helps you track when parts were replaced and when to re-seal joints.
Seasonal Tips: Winterizing and Long-Term Maintenance
In colder climates, winterizing prevents pipe damage from freezing. Drain lines, store heads and valves properly, and disconnect hose bibs to avoid freezing. In warm seasons, monitor soil moisture and adapt your controller programming to rainfall and evapotranspiration rates. Periodic checks, pressure tests, and backflow inspections support a long-lasting irrigation system that keeps your lawn healthy year-round.
Tools & Materials
- Measuring tape(at least 25 ft for marking zones and distances)
- Shovel/trench digger(for trenching along lawns and beds)
- Pipe cutter or handsaw(for cutting PVC or PE tubing to length)
- PVC pipe (3/4(or 1)
- PVC primer and cement(for joints on PVC piping)
- PVC fittings (tees, elbows, couplings)(to route around obstacles)
- Irrigation valves and controller(solenoid valves + weatherproof controller)
- Backflow preventer(required in many jurisdictions)
- Wiring for controller and valves(include conduit or protective sheathing)
- Sprinkler heads (rotary or fixed spray)(select based on zone and footprint)
- Filter/pressure regulator(optional but helpful for variable water quality)
- Flags or markers(to mark zones and trench lines)

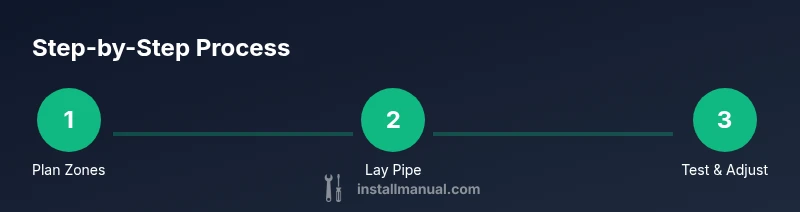

Steps
Estimated time: 8-14 hours
- 1
Assess yard and define zones
Walk the property, note sun/shade, soil type, and plant water needs. Create a zone map that groups plants with similar water requirements. This planning reduces waste and ensures even coverage.
Tip: Use flags to mark each zone and label them clearly. - 2
Measure and map supply routes
Measure distances from the water source to each zone. Plan mainline and laterals to minimize trench length while avoiding buried utilities. Create a simple diagram of pipe routes.
Tip: Double-check distances before trenching to prevent rework. - 3
Select components and create a parts list
Choose a controller, valves, heads, pipes, and fittings based on zone size and water pressure. Prepare a bill of materials to avoid mid-project shortages.
Tip: Prioritize reliable brands and keep extra fittings on hand. - 4
Shut off water and locate main supply
Turn off the main water supply and verify zero flow. Locate the main shutoff valve and install a backflow preventer as required by code.
Tip: Keep a lockable valve box nearby for safety. - 5
Lay out and trench lines
Dig trenches to the appropriate depth for your pipe size. Keep trenches straight and avoid sharp bends. Place mainline and laterals with a slight slope for drainage.
Tip: Avoid sharp cuts; use gradual elbows to reduce pressure loss. - 6
Install valves, controller, and wiring
Mount valves in a protected area, connect to the controller, and run wiring in conduit where possible. Seal all connections and keep wires tidy for future maintenance.
Tip: Use strain relief at connection points to prevent wire fatigue. - 7
Install sprinkler heads and risers
Position heads to maximize coverage and avoid sidewalks or driveways. Install risers and ensure heads sit at grade level for consistent spray.
Tip: Do a quick dry-run to verify clearance and head throw.) - 8
Test, adjust, and calibrate coverage
Turn on each zone, observe spray patterns, fix misalignments, and balance run times for even coverage. Document settings for future seasons.
Tip: Record starting times in the controller for easy reference. - 9
Winterize and plan maintenance
In cold climates, drain lines and protect components from freezing. Schedule annual checks for leaks, head clogging, and backflow preventer functionality.
Tip: Keep a maintenance log and set reminders for spring activation.
Got Questions?
Do I need a backflow preventer for my irrigation system?
In many areas, backflow prevention is required by code to protect drinking water. Check local regulations and install a compliant backflow preventer. This protects your system and the water supply.
Backflow preventers are often required by local codes to protect drinking water. Check your area’s rules and install one if required.
What is the ideal water pressure for residential lawn irrigation?
Most residential systems operate effectively between 40 and 60 psi. Too high pressure can cause misting and head damage; too low pressure may result in insufficient coverage. Use a pressure regulator if your supply exceeds 60 psi.
Most homes use 40 to 60 pounds per square inch. If you’re above that, add a regulator to protect heads and valves.
Can I install an irrigation system myself or should I hire a professional?
Many homeowners tackle basic irrigation installs, especially for small yards. Complex systems with slope, multiple zones, or unusual layouts may benefit from a pro to ensure code compliance and optimal coverage.
It's doable for many homeowners, but for complex layouts, a professional can save time and ensure code compliance.
How long does installation typically take?
For a straightforward yard, installation can take a full day to a couple of days, depending on yard size and trenching conditions. Allow extra time for testing and adjustments.
Usually a day or two, depending on yard size and trenching conditions. Testing adds a bit more time.
How do I maintain and winterize an irrigation system?
Regular maintenance includes checking heads for clogs, adjusting spray patterns, and inspecting for leaks. Winterizing involves draining lines and protecting components in freezing climates.
Keep heads clean and test periodically; drain lines and protect components when it’s cold.
What maintenance schedule should I follow after installation?
Seasonal checks are wise: spring startup test, mid-season spray adjustments, and fall shutdown. Keep records of changes and replacements to simplify future tweaks.
Do seasonal checks and keep a simple log of changes for easy future tweaks.
Watch Video
Main Points
- Plan zones based on plant water needs and sun exposure
- Verify water pressure and backflow requirements before install
- Install a controller, valves, and heads with careful spacing
- Test and adjust coverage for uniform irrigation
- Winterize and maintain regularly to extend system life
