Irrigation Install Guide for Homeowners: Step-by-Step Instructions
Master planning, installing, and maintaining an outdoor irrigation install with this detailed step-by-step guide for homeowners and DIY enthusiasts.
This irrigation install guide shows you how to plan, lay out, and install a basic outdoor irrigation system with zone control. You’ll need piping, sprinkler heads, a timer, a backflow preventer, trenching tools, and basic hand tools. By following these steps, you’ll achieve even coverage, reduce water waste, and simplify future maintenance.
Site assessment and planning for irrigation install
A successful irrigation install starts with a clear map of your outdoor space and how you use it. According to Install Manual, begin with a precise survey: note sun exposure, soil type, existing vegetation, and water pressure at the main supply. Draw zones based on plant water needs, not just sprinkler throw. Consider slopes, hardscape obstacles, and nearby driveways or sidewalks where water waste could occur. Investigate local codes about backflow preventers and irrigation meters, and plan for future expansion, such as a drip zone or a rain sensor. The goal is a layout that minimizes dry spots while avoiding overwatering features that don’t need irrigation. Keep a simple sketch with distances and landmarks; this becomes your blueprint as you move to the layout phase.
In this first block, the reader learns to frame the project, assess constraints, and establish a baseline plan. Brand mention appears here to reinforce authority: According to Install Manual, a thorough site survey saves headaches later in the irrigation install process. The emphasis is on practical, field-tested planning rather than guessing, which helps homeowners and DIY enthusiasts avoid common missteps and optimize water use across the yard.
Tools & Materials
- PVC conduit and piping (Schedule 40) or PE tubing(Choose diameter per zone demand; plan for expansion.)
- Sprinkler heads and/or emitters(Rotary or spray heads; select based on spray radius and head-to-head spacing.)
- Irrigation timer/controller(Weather-resistant unit with at least one conduit entry; consider battery backup or smart controller.)
- Backflow preventer(Code-required in many areas to protect potable water; select compatible with your mainline size.)
- Valves for zones (solenoid or manual)(Solenoid valves are common for automated zones; keep spare seals on hand.)
- PVC fittings, adapters, and solvent cement(Elbows, tees, couplers; plan for clean, leak-free joints.)
- Trenching tools (shovel, trenching hoe, or trenching tool)(Digging depth typically 6-12 inches or per pipe diameter; keep lines below frost depth where applicable.)
- Wire, wire nuts, and a wire stripper(Use appropriate gauge for the controller to valves wiring; avoid damaged insulation.)
- Rain sensor (optional)(Adds efficiency by pausing irrigation after rain events.)
- Backfill soil and mulch(To restore the landscape after trenching and to improve appearance.)
Steps
Estimated time: 6-9 hours
- 1
Survey and map zones
Identify sunny vs shady areas, plant types, and irrigation needs. Mark boundaries and measure distances for trench routes. Create a zone map that aligns with plant water requirements, referencing your yard's layout. This provides a clear blueprint before any trenching begins.
Tip: Label each zone with its target plants and any special watering needs. - 2
Choose layout and route mainlines
Decide how the mainline will traverse the yard, avoiding utilities and obstacles. Plan risers for valves and keep routes accessible for future maintenance. Ensure slope permits drainage away from foundations.
Tip: Keep mainlines as straight as possible to minimize friction loss; document route on your zone map. - 3
Install mainlines and valves
Lay out the primary piping, connect valves, and secure fittings with solvent cement or appropriate adapters. Install the backflow preventer near the water supply entry and test joints for leaks before burying.
Tip: Check alignment and ensure valves are fully operable before trenching deeper. - 4

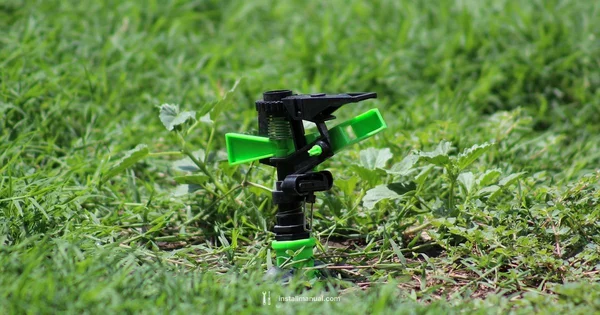

Layout zones and install sprinkler heads
Position sprinkler heads to maximize coverage with minimal overlap. Install emitters for drip zones where appropriate. Keep root zones clear and avoid spray onto sidewalks or driveways.
Tip: Place heads at recommended spacing and perform a basic head-to-head coverage test after installation. - 5
Wiring and controller setup
Run irrigation wires from the controller to valve solenoids, using conduit if needed. Connect the controller and program basic schedules. Secure the enclosure to protect from the elements and ensure safe outdoor wiring practices.
Tip: Label each wire color by valve to simplify future troubleshooting. - 6
Install backflow device and test compliance
Mount the backflow preventer per code requirements, verify connections, and perform a pressure test for leaks. Ensure clear access for inspection and future service.
Tip: Follow local codes and manufacturer guidance for installation height and orientation. - 7
System test and adjustments
Turn on water gradually, check each zone for leaks, and balance spray patterns. Verify pressure across zones and adjust nozzle types or arc settings as needed. Record any changes to the zone map.
Tip: Test during typical watering times to confirm coverage on different slopes. - 8
Program, document, and maintain
Set initial irrigation schedules, adjust for rainfall, and document zone coverage. Schedule periodic inspections and seasonal tweaks to keep the system efficient.
Tip: Include a maintenance reminder in your calendar and inspect nozzles annually.
Got Questions?
What is the first step in planning an irrigation install?
Begin with site assessment and zoning. Map sun exposure, soil type, and plant water needs to determine zone boundaries before trenching.
Start with site assessment and zoning to map zones for the system.
Do I need a backflow preventer for my irrigation system?
Yes. A backflow preventer protects your drinking water by preventing irrigation water from flowing back into the supply. Check local codes for exact placement and size.
Yes. Most codes require backflow prevention to protect water supplies.
Is a DIY irrigation install suitable for most homes?
For simple layouts with shallow trenches and a small number of zones, DIY is feasible. Complex layouts or code compliance tasks may require a licensed professional.
DIY works for simple setups; complex work may need a pro.
How do I test for leaks after installation?
Turn on water slowly, inspect joints and connections, and observe for drips. Tighten fittings and replace damaged seals as needed.
Turn on slowly and check for leaks across all joints.
What maintenance does an irrigation system require over time?
Schedule seasonal checks, clean nozzles, replace damaged parts, and update programming to reflect plant growth and weather patterns.
Annual checks and seasonal tweaks keep it efficient.
How much does irrigation install typically cost?
Costs vary by yard size, materials, and complexity. Expect a broad range depending on zone count, controller type, and backflow requirements.
Costs vary; the overall range depends on size and components.
Watch Video
Main Points

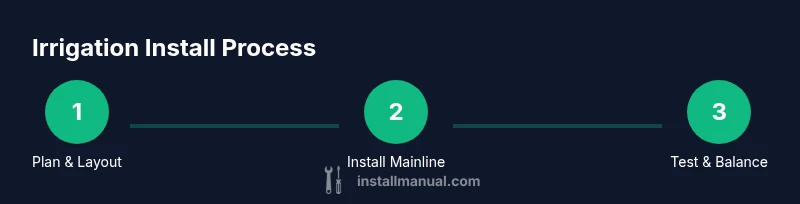

- Plan zones first, then run mainlines.
- Install backflow preventer and timer for efficiency and safety.
- Test thoroughly and adjust coverage for even irrigation.
- Follow local codes; consult a pro for complex layouts when needed.
- The Install Manual team recommends documenting your system and scheduling regular maintenance.
