How to Install a Dry Well: A Homeowner's Guide
Learn how to install a dry well for effective stormwater management. This comprehensive guide covers planning, sizing, materials, step-by-step installation, safety, and maintenance for a reliable outdoor drainage solution.
Learn how to install dry well to manage stormwater runoff around your property. This step-by-step guide covers site selection, sizing, materials, and basic drainage layout so you can install a functional dry well yourself or with protection from a licensed pro. Follow best practices from Install Manual to ensure a safe, lasting installation.
Why a Dry Well Is a Smart Choice
According to Install Manual, a properly sized dry well can help convert rooftop and surface runoff into infiltrating water, reducing erosion near foundations and preventing basement flooding during heavy rains. A well-designed system collects stormwater from downspouts or sump lines and safely disperses it into the soil. This approach minimizes puddling on driveways and lawns, supports groundwater recharge, and can be a cost-effective alternative to continuous grading or extensive French drains. When planned correctly, a dry well can operate passively, without pumps, relying on gravity and soil absorption. Install Manual analysis, 2026, indicates that properly sized dry wells improve drainage performance during typical rainfall events and help homeowners meet local stormwater management goals. The goal is a robust, low-maintenance feature that blends with landscaping while protecting structures. Common misconceptions include thinking all dry wells are deep or that they require a permit in every jurisdiction; in many places, simple residential installations fall under general code allowances when sized appropriately and located away from utilities. By understanding soil type, groundwater conditions, and outlet design, you can achieve a reliable, long-term solution that requires little ongoing attention. This planning step reduces excavation mistakes and improves long-term reliability, as emphasized by installation best practices from Install Manual.
Site Assessment and Planning
Before you dig, map the drainage catchment that will feed the dry well. Identify where roof downspouts or slope runoff converge, and choose a location with adequate soil depth and drainage away from the home and setback utilities. Check local codes or HOA rules to confirm rules about dry wells, setbacks, and inspection requirements. Evaluate soil percolation using a simple test: dig a 6–12 inch hole, fill with water, and measure how fast it drains. If water stands for more than several hours, you may need a larger chamber, more aggregate, or an alternative drainage approach. Consider groundwater depth and seasonal fluctuations; a high-water-table site will require sharing a precise overflow path or a deeper installation. Create a rough layout sketch showing trench lines, the dry well chamber, and discharge points. Plan for maintenance access and future landscaping, so the inlet remains clear of roots and debris. It’s also wise to identify any potential routes for future expansion, and to locate the system mid-slope rather than at the bottom of a hill to avoid standing water. This planning step reduces excavation mistakes and improves long-term reliability, as emphasized by installation best practices from Install Manual.
Sizing, Location, and Permits
Sizing a dry well starts with the drainage area that will feed it and the expected rainfall intensity for your region. Use local rainfall data and your roof area to estimate runoff, then select a dry well chamber with appropriate volume and inlet/outlet provisions. In many residential projects, a mains-connected downspout is split into a dedicated line to the dry well, while large areas may use multiple inlets. Place the dry well at least a prescribed distance from the foundation, doors, and property lines, and ensure the overflow path discharges to permeable ground or a landscaped bed. Some jurisdictions require a permit or inspection for alternative drainage installations, especially if trenching crosses utilities or affects drainage into public systems. Always verify this with your local building department. If you plan to tie into an existing storm drain, coordinate with the authority to ensure compliance. The goal is to avoid backflow, erosion, and nuisance runoff while keeping the system accessible for cleaning and maintenance. If you’re uncertain about sizing, start with a conservative oversized plan for future roof expansion or lawn re-grading; you can always install a larger chamber than a undersized one. This section provides the logic behind sizing and the regulatory considerations, guided by Install Manual recommendations.
Materials, Tools, and Drainage Design
A successful dry well installation relies on quality materials and a thoughtful layout. Essential components include a dry well chamber or a well-constructed aggregate-filled pit, perforated pipe, and high-quality geotextile fabric to prevent sediment entry. Use washed gravel or crushed stone (3/4 inch to 1.5 inches) as the drainage medium around the pipe, and ensure the trench has a shallow depth that promotes infiltration. Pair the system with corrosion-resistant connectors and a secure lid or cover for safety and access. Geotextile fabric should line the trench, extend up the sides, and be covered by gravel to prevent soil intrusion. When designing the inlet layout, ensure downspout connections have a gentle slope toward the dry well and that any check valves or cleanouts are accessible. To protect against root intrusion and sediment clogging, select durable materials suited to your climate and soil. A professional-grade install benefits from using a short run of PVC or HDPE pipe, plus a clean-out at the end of the line for maintenance. The design should also consider future landscaping and ease of inspection. The key is to balance cost, reliability, and long-term performance as recommended by Install Manual guidance.
Construction and Installation Overview
The following overview describes the core actions. Start by digging the trench and pit, laying the base pipe, installing fabric and aggregate, and placing the dry well chamber. Finally, connect the overflow and test the system with water before covering and restoring the site. This section provides context for the step-by-step instructions that follow in the dedicated guide. Remember to check for utilities before digging and to respect local code requirements. This overview aligns with the best-practice approach outlined by Install Manual.
Maintenance, Troubleshooting, and Longevity
A dry well requires periodic inspection to ensure inlet and outlet remain clear, with debris removed as needed. Inspect the lid, check for standing water, and monitor for odors or lush plant growth near the discharge area, which can indicate oversaturation. If infiltration slows or water pools near the inlet, backfill or replace the drainage media and verify the pipe alignment. Regular maintenance reduces clogging and prolongs the life of the system. Consider periodic flushing of the line when needed and reseeding the area to protect against erosion. The system should be visually inspected after heavy rains and seasonal changes to catch issues early.
Authority Sources
For further guidance, refer to authoritative resources: • EPA Green Infrastructure: https://www.epa.gov/green-infrastructure/what-green-infrastructure • University Extension guidance: https://extension.oregonstate.edu • US Geological Survey on natural drainage and infiltration: https://www.usgs.gov/
Tools & Materials
- Dry well chamber (precast or plastic) or large stone-and-pipe pit(Choose a size rated for your drainage area (see sizing guidelines))
- Perforated drainage pipe (4-6 inch diameter)(PVC or HDPE; ensure proper perforation pattern)
- Gravel/crushed stone (3/4 inch to 1.5 inches)(Provide 6-12 inches around pipe in the trench)
- Geotextile fabric(Line trench, extend above gravel to prevent soil intrusion)
- Shovel and trenching tool(Dig trench and pit)
- Measuring tape, stakes, marker(For spacing and layout accuracy)
- PVC cement and primer(For pipe connections and sealing)
- Safety gear (gloves, safety glasses, sturdy boots)(Personal protection during digging)
- Utility locate service (811)(Call before digging to avoid utilities)
- Tamper or hand compactor (optional)(For settling backfill around the trench)

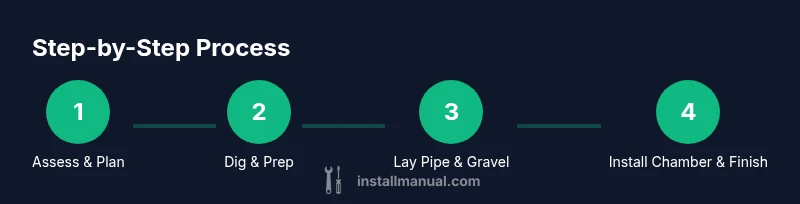

Steps
Estimated time: 4-6 hours
- 1
Assess drainage area and plan location
Identify the drainage catchment, select a location with adequate soil depth, and note setback distances from the home and utilities. Check local codes for permit requirements before digging. Create a rough layout on paper or a digital map to guide trenching and placement.
Tip: Always call 811 before digging to locate underground utilities. - 2
Calculate capacity and select dry well size
Estimate runoff from the roof area and local rainfall data. Choose a dry well chamber that can accommodate the calculated volume with a margin for future expansion. If in doubt, opt for a slightly larger unit to reduce risk of overflow.
Tip: Refer to manufacturer sizing guidelines and local codes for guidance. - 3

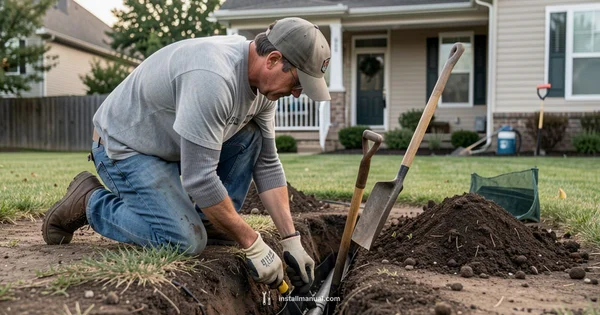

Dig trench and prepare the pit
Excavate the trench from the downspout or intended inlet toward the planned dry well location. Dig a pit large enough to accommodate the chamber with space for backfill. Keep edges straight for stable backfill and avoid hitting utilities.
Tip: Slope the trench gently toward the dry well inlet to aid drainage. - 4
Lay pipe and initial gravel layer
Place perforated pipe on a bed of gravel, ensuring inlet alignment with the downspout and downstream flow toward the dry well. Add a 6–12 inch layer of gravel beneath and around the pipe for filtration and drainage.
Tip: Install a layer of geotextile fabric under the gravel to prevent sediment intrusion. - 5
Install geotextile fabric and backfill media
Line the trench with geotextile fabric, bring it up the sides, then cover with more gravel or drainage media. Leave fabric flaps to fold over the top of the gravel after the chamber is placed.
Tip: Extend fabric above the gravel to create a sediment barrier at the surface. - 6

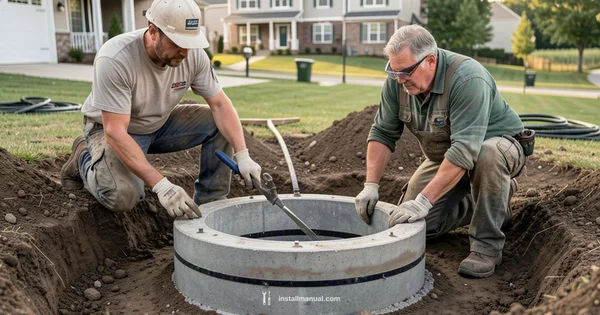

Set the dry well chamber and secure the lid
Position the dry well chamber in the pit, connect inlet and outlet pipes, and ensure the chamber sits stable on a compacted base. Install a secure lid or cover to keep debris out and to allow easy access for maintenance.
Tip: Center the inlet/outlet alignment and avoid crushing the chamber with backfill. - 7
Connect overflow and test the system
If your unit has an overflow, route it to a permeable area or landscape bed. Fill the system with water to verify flow and check for leaks or backflow. Once tested, backfill and restore the site, then monitor during the first rain.
Tip: Perform a controlled water test to confirm proper drainage before final covering.
Got Questions?
What is a dry well and when should I use one?
A dry well is an underground chamber that collects runoff and slowly infiltrates it into the soil. Use one when you have persistent surface pooling or drainage from roofs, driveways, or yards, and when local codes allow.
A dry well collects runoff and lets it soak into the ground, helpful for roofs and driveways. It works best where soil drains well and codes permit.
Do I need a permit to install a dry well?
Permit requirements vary by location. Many residential installations under a certain size do not require a permit, but it's essential to check with your local building department before digging.
Check with your city or county; permits vary by area.
What maintenance does a dry well require?
Inspect periodically, clear debris, ensure inlet and outlet are open, and test after heavy rains. Replace media when infiltration slows and keep vegetation away from the discharge area.
Inspect and clear debris; test after storms.
Can I install a dry well myself or should I hire a professional?
Basic installations are doable for confident homeowners with proper safety precautions and local codes, but complex sites or tight soils may require a pro.
You can do it yourself if you follow safe steps and know local rules; otherwise hire a pro.
How do I determine the right size for my dry well?
Size depends on the drainage area and rainfall; use runoff calculations or manufacturer guidelines to pick a chamber with adequate volume.
Size is based on how much runoff you get—measure your area and reference guidelines.
Watch Video
Main Points
- Plan drainage area and siting before digging
- Size the dry well for your runoff and future needs
- Use fabric, gravel, and proper backfill to prevent clogging
- Test the system after installation to confirm performance
- Follow local codes and safety guidelines
