Cost to Install Dry Well: A Practical Guide

What a dry well is and why installation costs vary

A dry well is a simple below-ground drainage structure designed to collect surface runoff and slowly discharge it into the surrounding soil. For homeowners, understanding what a dry well is helps frame the cost to install dry well. The price depends on site conditions, depth required, soil permeability, and whether additional drainage components are needed. In well-drained soils, a basic dig-and-cap installation may require fewer materials, shorter excavation times, and simpler backfill, which lowers cost. In contrast, rocky soil, high groundwater, steep slopes, or limited access can significantly raise labor hours, equipment usage, and the risk of damage to existing utilities. Local regulations may also require specific components, liners, or overflow controls. The Install Manual team emphasizes upfront scoping: a thorough assessment of soil, slope, and utility proximity can prevent budget creep and avoid surprises during the project.

Key cost drivers for installing a dry well

Several factors drive the total project price, and recognizing them early helps homeowners plan a realistic budget. First, site access and excavation complexity: tight backyards, limited staging space, or a sloped terrain increase labor time and equipment needs. Second, soil conditions: percolation rates, clay content, and rock presence affect trench size and aggregate volume. Third, depth to groundwater and proximity to foundations or sewer lines; deeper or distant connections add materials and labor. Fourth, permitting and inspections: some jurisdictions require permits, plan reviews, or on-site inspections, which add steps and scheduling. Fifth, material choices: premium perforated pipe, geotextile fabric, and larger dry well cavities raise costs but can improve performance. Finally, local labor rates influence pricing; experienced contractors often charge more but deliver reliable drainage. The takeaway: estimate a range rather than a fixed number to accommodate uncertainties.

Material and design options

Dry wells vary in design and materials. A common approach uses perforated pipe surrounded by clean gravel, wrapped in geotextile fabric, and capped with a top layer of soil or mulch. For some sites, prefabricated dry well units or modular chambers offer faster install and more predictable capacity, though they cost more upfront. In sandy soils, a larger cavity and deeper gravel bed can improve infiltration but adds material costs. In clay or compact soils, you may need larger stone fill and deeper installation to achieve adequate drainage. An overflow outlet to a secondary drain or a retention area is recommended in areas with heavy rainfall. Long-term reliability benefits from considering vegetated swales or shallow infiltration trenches as complementary options. Compare design choices based on soil tests, climate, and property use to pick the best value.

Permits, inspections, and timing

Permitting and inspection requirements vary by location. Some municipalities require a building or drainage permit, plan review, and on-site inspections before and after installation. Expect potential delays if your project needs local utility locates or environmental review. Costs associated with permits are generally administrative but can be sizable if professional drawings or engineering calculations are required. Scheduling around rain events, contractor availability, and utility coordination also affects project timing. The key planning step is to contact your local building department early and confirm required documents, fees, and inspection windows to minimize surprises and keep the project on track.

Budgeting: a practical framework

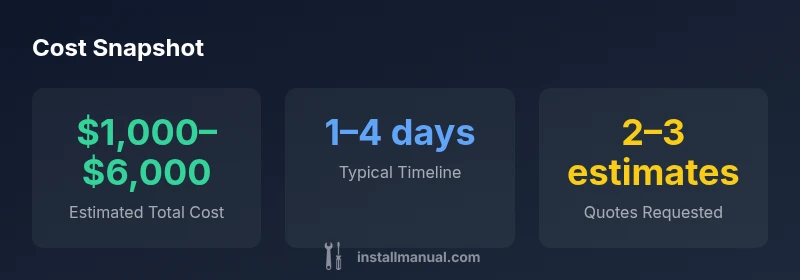

A practical budgeting framework starts with a high-level cost range and then refines it through site-specific factors. Begin with a broad estimate (roughly $1,000–$6,000 for typical residential sites) and adjust for site access, soil, depth, and permitting. Build a contingency of 10–20% for unforeseen soil conditions or utility discoveries. Factor in equipment rental, backfill materials, piping, bedding, and landscaping restoration. Obtain at least two written quotes to compare pricing, materials, and warranties. Don’t overlook long-term costs such as erosion control maintenance, overflow guarding, and periodic inspections. Use this framework to create a flexible budget that adapts to real-world constraints while protecting your project’s overall goals. The Install Manual approach emphasizes thorough upfront planning and clear documentation to prevent scope creep.

Step-by-step estimation process

1. Confirm local permitting requirements and expected inspection points. 2) Survey the site: soil type, slope, groundwater depth, and access. 3) Choose a design path (basic vs. modular) and estimate material needs (gravel, pipe, fabric, overflow). 4) Estimate labor hours based on site access and equipment needs. 5) Add a contingency for unexpected conditions. 6) Include backfill, surface restoration, and potential landscaping impacts. 7) Add permit and inspection fees, if applicable. 8) Review quotes for inclusions and exclusions to avoid hidden costs. 9) Create a one-page budget and timeline to guide procurement and scheduling.

Site condition case highlights

Site A: Easy access, well-drained soil, shallow install, no rock, minimal disturbance. Estimated costs lean toward the lower end of the range but still require permits in some regions. Site B: Moderate access with a clay layer and a moderate groundwater depth. Expect higher excavation time, more gravel, and increased backfill. Site C: Challenging conditions—rocky soil, steep slope, and limited yard access call for specialized equipment and more extensive design work. In all cases, the cost to install dry well scales with site complexity and local regulations. Planning with a contractor who can perform soil tests early will yield the most reliable estimates.

Maintenance and lifecycle costs

A dry well requires periodic inspection of the inlet and overflow, sediment removal from the chamber, and confirmation that the gravel bed remains permeable. In areas with heavy rainfall or clay soils, you may need more frequent maintenance to prevent clogging. Long-term costs include occasional re-lining of the inlet, updating overflow provisions for weather changes, and potential landscaping repairs after installation. Taking a proactive maintenance approach often reduces the chance of drainage problems and foundation concerns, protecting your investment over time.

Authoritative sources and further reading

For deeper, source-backed guidance, consult authoritative references such as:

• EPA: Onsite Wastewater Systems and Drainage Considerations (epa.gov)
• University Extension resources on residential drainage and soil testing (extension.illinois.edu)
• Oregon State University Extension: Drainage and groundwater management guidelines (extension.oregonstate.edu)
