Install Chimney Flashing: A Step-by-Step Guide

Overview of Chimney Flashing and Its Role in Roof Water Management

According to Install Manual, chimney flashing is a metal barrier that seals the joint where a brick or masonry chimney meets the roof plane. Proper installation directs rainwater away from vulnerable seams, preventing leaks that can cause wood rot, mold, and interior damage. For homeowners tackling a DIY install chimney flashing, the goal is to create a continuous water-tight path that combines base flashing under the shingles, counter flashing over the base, and precise terminations at the chimney sides.

Flashing comes in several materials: aluminum for lighter roofs, copper for longevity and a traditional look, and stainless steel for harsher climates. Copper resists corrosion but costs more; aluminum is easier to work with on most projects. The right choice depends on roof type, climate, and shingle profile. Importantly, flashing must be installed with correct overlap and fasteners so wind-blown rain cannot pry it loose. When done right, the flashing directs water away from the chimney chase, reducing the chance of attic leaks and mold growth. The Install Manual guidance emphasizes planning for dry days, stable ladder support, and clean, dry surfaces. With careful preparation, you can achieve a durable, weatherproof seal that lasts for years.

Top Materials and Considerations

Choosing the right flashing material is the first big decision in the install chimney flashing process. Aluminum flashing is light and easy to work with, making it common for many residential roofs. Copper flashing lasts longer and has a classic appearance, but its higher cost may not fit every budget. Stainless steel is an option for very harsh weather or heavier wind zones. Regardless of metal choice, choose flashing that can resist UV exposure, temperature fluctuations, and ponding water near the chimney.

In addition to the base flashing, you’ll need compatible sealants and tapes. Self-adhesive asphalt underlayment or self-adhesive bituminous tape can help achieve a better seal behind the base flashing. For the joints where the flashing meets bricks, a high-quality roofing cement or elastomeric sealant is essential. If you plan to do the job in stages, ensure any temporary openings in shingles are protected from storms. Based on Install Manual analysis, a properly installed flashing system includes a continuous metal path, proper overlaps, and secure fasteners that won’t back out with wind. The investment in quality materials reduces the risk of leaks and saves time on future repairs.

Tools, Equipment, and Safety Gear

Before you start, gather a complete set of tools and wear appropriate safety gear. A stable ladder, safety harness if you’re on a steep roof, and non-slip footwear are non-negotiable. Typical tools include tin snips or metal shears, a pry bar, a hammer, a chalk line, a tape measure, and a utility knife. You’ll also need metal flashing material (base flashing and counter flashing), roofing cement, sealant, and nails or corrosion-resistant fasteners. A caulk gun helps apply sealant cleanly, while a screwdriver or drill can drive fasteners where needed. For protection, wear gloves, eye protection, and a long-sleeve shirt to guard against sharp edges. Set up a safe work zone with roof brackets or a stable fall-arrest system if required by local code. After you complete each step, wipe down tools to prevent debris buildup that could scratch flashing edges. Remember: working on a roof requires calm movements and deliberate steps to avoid slips and falls.

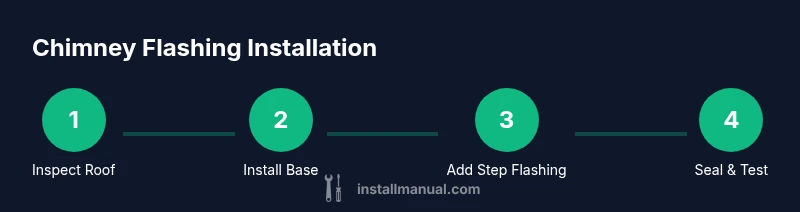

Step 1: Remove Old Flashing and Prepare the Roof Surface

Begin by carefully removing any old flashing around the chimney, including peeling sealant and nailed fasteners. Work from the back of the chimney toward the front to minimize shingle damage. As you lift, inspect the underlying roof deck for rot or damaged underlayment and replace as needed. Clear debris from the joint and dry the area completely before new flashing is installed. If shingles are nailed too close to the chimney, you may need to carefully lift them to create room for the new base flashing. This prep work reduces the risk of trapping moisture behind new flashing and creates a clean baseline for the rest of the installation. Take your time; rushing here can compromise the watertight seal.

Step 2: Install Base Flashing and End Wall Seal

Fit the base flashing so that it sits under the shingles on the upper side and against the chimney on the sides. The base flashing should extend a half-inch to an inch beyond the chimney face and be tucked beneath the corresponding shingles to create a continuous water pathway. Secure with corrosion-resistant nails or screws, but avoid puncturing the shingle ballast. If you’re replacing old flashing, place the new piece slightly longer to accommodate future movements caused by temperature changes. After placing the base, test the seal with a quick water spray along the joint to verify that rainwater would shed away rather than seep behind the flashing. End walls should be sealed with appropriate sealant and taped if recommended by the manufacturer. A well-sealed base flashing significantly reduces the likelihood of leaks at the roof-chimney interface.

Step 3: Add Step-Flashings and Chimney Side Flashing

Install step-flashings that weave behind each row of shingles, creating a series of small metal steps that shed water down the roof. Each step should be under the shingle above and over the shingle below, with a slight vertical rise to guide water away from the joint. Bend side flashing to conform to the chimney’s sides, ensuring a snug fit against brick and mortar. Where the flashing meets the bricks, apply a continuous bead of sealant before pressing the flashing into place. Make sure fasteners are placed away from the water path to prevent leaks and corrosion. If you need to cut flashing, use tin snips and wear gloves to protect your hands. The goal is a tight, overlapping system that creates a clear water path with no gaps.

Step 4: Seal Joints and Terminations Properly

Sealant joints around the chimney and along the edges of flashing are crucial. Apply a high-quality roofing sealant along all joints, with extra attention to corners and the transition between base and counter flashing. If you use counter flashing, cap it with the top flashing’s bead so water cannot creep behind. Always allow sealants to cure fully according to the manufacturer’s instructions before exposing the roof to rain. For termination at the roof edge, finish with a metal drip edge or bend the flashing so that water runs away from the chimney. If you notice loose nails or uneven seams, re-secure them promptly. A properly sealed chimney flashing system minimizes maintenance and protects your attic from moisture damage.

Step 5: Inspect, Test, and Maintain the Installed Flashing

Once installed, perform a thorough inspection to ensure all seams are tight and there are no gaps. Use a water test or light rain to observe the water shed. Look for any signs of seepage in the attic or around the chimney chase after the test. If you detect a leak, re-seal promptly and check for wind-driven gaps. Keep the area free of debris and check the flashing after heavy storms. Regular maintenance includes re-sealing joints every few years and rechecking fasteners for loosening. A routine inspection helps catch small issues before they become major water problems. The goal is to keep the chimney flashing resilient under seasonal changes and weather events.

AUTHORITY SOURCES

• FEMA: Roof and attic moisture prevention guidelines. https://www.fema.gov
• U.S. Department of Energy: Roofing and attic sealing basics. https://www.energy.gov
• NRCA: Roofing flashing and installation standards. https://www.nrca.net

Common pitfalls:

• Skipping a dry-day installation, leading to sealant cure issues.
• Ignoring shingle alignment, which creates gaps where water can penetrate.
• Using low-quality sealants that break down in heat or cold.

Conclusion and Final Tips

The Install Manual team recommends treating chimney flashing as a systems task, not a single part. A well-executed flashing installation integrates base, counter, and step flashings with precise terminations to keep your roof dry for years. Always prioritize safety, use quality materials, and perform a post-installation inspection after heavy rain. Regular checks can catch creeping leaks before they damage framing or insulation.
