How to Install a Chimney Liner: Step-by-Step Guide
Learn how to safely install a chimney liner with our detailed, code-conscious guide. From liner types to permits and testing, Install Manual walks homeowners through a thorough, maintenance-friendly process.
You will learn how to install a chimney liner safely and in code-compliant fashion, covering liner selection, measuring, installation, sealing, and final inspection. This guide emphasizes proper fit, secure connections, and post-install testing to protect your home.
Why you might need to install a chimney liner
A chimney liner helps protect your home by directing combustion byproducts safely to the outdoors, reducing heat exposure to surrounding wood framing, and improving draft. If you have an older chimney, inconsistent drafts, or a fireplace or appliance that wasn’t originally vented with a liner, installing or upgrading a liner can dramatically improve safety and performance. According to Install Manual, many homes with masonry chimneys rely on liners to prevent creosote buildup from igniting, minimize moisture intrusion, and comply with modern venting standards. Homeowners who plan to burn wood, oil, gas, or pellets should consider a professionally sized liner to match the appliance and flue conditions. This decision affects safety, efficiency, and future maintenance, so take time to assess your chimney’s current state and consult local codes before proceeding.
Choosing the right chimney liner type
Chimney liners come in several forms, and the right choice depends on your fuel type, flue size, and weather exposure. Stainless steel liners offer longevity and corrosion resistance, while aluminum-based options may be economical for certain applications. Flexible liners are useful for irregular flues, while rigid stainless liners provide strong, uniform clearances but require precise sizing. Double-wall and triple-wall configurations help with insulation and heat management when venting wood-burning units or high-heat appliances. Install Manual recommends evaluating the flue diameter and the appliance’s vent requirements to select a liner with the correct inner diameter, wall thickness, and insulation properties to maintain safe temperatures and efficient draft. Always verify compatibility with existing masonry or metal components and consider a rain cap or chase cover for weather protection.
Safety and code considerations before you begin
Ventilation work demands respect for fire safety and building codes. Before you touch any chimney components, check with your local building department about permits, inspections, and required clearances. A formal inspection ensures the liner and connections meet fire-stall clearance distances, exhaust gas venting standards, and vapor barrier requirements. If you’re unsure about clearance to combustibles, moisture control, or proper termination, Engage a licensed professional. Install Manual’s 2026 analysis shows that homeowners who obtain permits and use a certified installer tend to experience smoother inspections and fewer rework cycles. This phase is not optional; proper planning saves time, reduces risk, and protects your home investment.
Tools and materials overview (high-level)
Tools & Materials
- Chimney liner kit (stainless steel, flexible or rigid)(Match liner type to flue size and appliance requirements; include adapters if needed)
- Measuring tape(Accurate diameter and length measurements for proper fit)
- Slid-in damper tool or chimney brush kit(Optional for cleaning and preparing the flue before liner installation)
- Safety gear (gloves, eye protection, dust mask)**(Protect yourself from sharp edges and soot particles)
- Tin snips or metal cutter(For trimming liner sections and creating clean joints)
- Screwdrivers and screws(Secure components and supports as required by the liner system)
- Metal snips(Trim insulation and outer layers as needed)
- Caulking or high-temperature sealant(Seal joints to prevent leaks and drafts)
- Rain cap or chase cover(Protect the top of the chimney from rain and debris)
- Support braces or straps(Maintain proper liner alignment and support during installation)
- Flashlight or headlamp(Improve visibility inside the flue)
- Ladder or scaffolding(Access the chimney safely from ground level)
- Vacuum or brushes for cleaning(Clear debris and dust after installation)
- Sealant applicator or brush(Animate even application of sealant in joints)

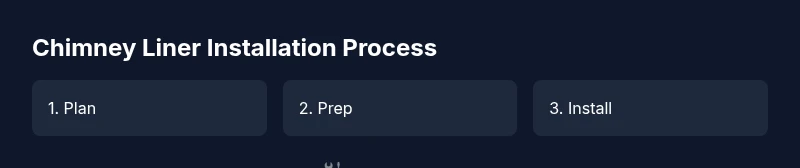

Steps
Estimated time: Several hours
- 1
Assess the chimney and plan
Begin with a thorough assessment of the existing chimney structure, flue diameter, and access points. Measure the flue to determine the correct liner size and calculate the number of liner sections required. Create a simple plan for how sections will be assembled, joined, and vented at the top and bottom. This planning reduces on-site surprises and aligns with local codes. Tip: Document measurements with photos for reference and share the plan with any professionals involved.
Tip: Take clear measurements of the flue and door height before buying components. - 2
Choose the liner type and components
Select a liner with an inner diameter that matches the appliance vent and a wall thickness appropriate for heat exposure. Decide between rigid or flexible options based on the chimney’s geometry; irregular flues often benefit from flexible liners. Also plan for adapters, attaching hardware, and a secure termination at the crown or cap. Tip: Choose a liner with built-in insulation or an easy method to add insulation if your climate is cold.
Tip: Verify compatibility with your appliance and local code requirements. - 3
Clean and prepare the chimney
Remove loose soot and creosote from the flue and inspect for structural damage or obstructions. Clean the flue thoroughly to ensure a smooth liner installation and reduce the risk of creosote buildup after installation. If heavy creosote is present, consider a professional cleaning prior to liner work. Tip: Wear PPE and use a masked chimney brush to minimize inhalation exposure.
Tip: A clean flue reduces joint wear and improves draft. - 4
Install the liner sections
Begin installing sections from the bottom, inserting each segment carefully and connecting joints with manufacturer-approved fasteners or couplings. Use high-temperature sealant at joints and ensure sections are properly interlocked and supported. Maintain a consistent slope to promote drainage of moisture. Tip: Work in short bursts to prevent kinks and check alignment frequently.
Tip: Keep sections aligned to avoid leaks and drafts. - 5
Seal, insulate, and secure
Seal all joints with the recommended compound and ensure adequate insulation around the liner where required. Install protective insulation or double-wall insulation if specified by the liner system to minimize heat transfer to combustibles. Attach braces or straps to keep the liner steady during operation and prevent movement. Tip: Double-check slopes and joint integrity before finishing.
Tip: Proper sealing prevents leaks and drafts that degrade performance. - 6
Top termination, testing, and cleanup
Fit the termination cap or rain cover, ensuring proper clearance from the crown and exterior weather exposure. Perform a smoke test or professional draft test to verify venting efficiency and that there are no leaks. Clean the work area and remove any debris, then document the installation for future maintenance. Tip: Have a professional inspection scheduled after completion for peace of mind.
Tip: A final test confirms safety and compliance.
Got Questions?
Can I install a chimney liner myself?
DIY liner installation is possible for experienced homeowners with proper safety training and local permits. If you’re unsure about structural issues or code requirements, consult a licensed professional. Always follow manufacturer instructions and local regulations.
DIY is possible, but only if you’re confident about safety, sizing, and codes; otherwise hire a pro.
What permits do I need for chimney liner installation?
Permit requirements vary by location. Check with your local building department to determine whether a permit is required, and whether an inspection is scheduled after completion. This helps ensure compliance and safety.
Permits vary by area—check with the local authority before starting.
Liner types for wood-burning?
For wood-burning appliances, stainless steel liners with proper insulation are common. The choice depends on flue size, height, and local codes. Always confirm with a professional and match the liner to the appliance.
Wood-burning liners are typically stainless with insulation—confirm sizing first.
How long does install take?
Installation duration depends on chimney length, access, and liner type. Plan for several hours to a day, plus time for inspections and clean-up. Break tasks into stages to avoid rushing.
Plan for several hours, with an inspection step afterward.
Need inspection after install?
Most jurisdictions require a post-install inspection to verify venting integrity and code compliance. Schedule it with your local inspector or a licensed pro.
Yes—an inspection is usually required to confirm safety and compliance.
Will a liner improve safety and efficiency?
A properly installed liner improves safety by containing heat and combustion byproducts, reducing creosote buildup, and improving draft efficiency. Always pair installation with appropriate maintenance to sustain benefits.
Yes, a proper liner enhances safety and draft efficiency.
Watch Video
Main Points
- Assess chimney needs before buying parts
- Choose liner type based on flue geometry and appliance
- Permits and inspections improve safety and compliance
- Test venting after installation to verify performance
