Chimney Cap Install: Step-by-Step Guide for Homeowners
A homeowner-friendly, step-by-step guide to chimney cap install, covering sizing, mounting, safety tips, and maintenance to protect your chimney from water, pests, and debris.
You will install a chimney cap to prevent water leaks, animal intrusion, and debris buildup. This task requires measuring your flue, choosing the right cap size, and securing the cap with stainless screws or a mounting kit. Follow the step-by-step guide to complete the install safely. Prepare the area, wear gloves, and verify local codes before drilling.
Safety and Planning Considerations
According to Install Manual, starting with a clear safety plan helps prevent accidents and costly mistakes. Before climbing onto a roof or working near the chimney, inspect weather conditions, use a stable ladder, and wear PPE such as gloves and eye protection. If you are uncomfortable with heights or have a steep or slate roof, consider hiring a professional. A well-planned install also means checking local codes for venting and cap requirements, ensuring you choose a cap that fits both the flue and the local climate.
Tools and Materials You'll Need (and why)
Having the right tools before you begin saves time and reduces risk. Essential items include a correctly sized chimney cap, a measuring tape, a pencil or chalk for hole placement, a drill or driver with appropriate bits, and corrosion‑resistant screws. Safety gear like gloves and eye protection is non‑negotiable. A stable ladder or roof access equipment and a sealant compatible with metal flashing help seal the base if required by your installation. Optional items include a level, a helper on the ground, and a spare cap mounting kit for misalignment.
Choosing and Sizing the Chimney Cap
Chimney caps come in many styles: mesh screens to keep animals out, rain guards to minimize water ingress, and spark arrestors for fire safety. The most important dimension is the inner diameter that matches your flue. The caps are often listed by outer dimensions, so you’ll want to confirm the interior opening. Materials like stainless steel and copper resist corrosion in outdoor conditions and offer longer service life in varied weather. If your chimney has a flashing system, choose a cap that complements it or plan to add flashing during installation.
Measuring and Preparing for Install
Measure both the flue liner and any existing flashing to confirm compatibility with your chosen cap. Record the diameter in inches and double‑check with a second measurement to avoid order mistakes. Inspect the roofline for obstructions and ensure you have a dry, stable surface for working. Prepare a plan: identify mounting holes, visualize the cap position, and confirm you have all fasteners and sealants within reach. Safety first: never work from a wet roof or without a buddy nearby.
Maintenance and Safety After Install
Once the cap is installed, perform a quick visual inspection after the first rain or wind event to ensure no gaps have formed around the base. Clean the cap and surrounding flashing periodically to prevent debris buildup that can trap moisture, and check for corrosion annually. If you notice rust or loosening screws, address it promptly to maintain the chimney’s protective barrier. Keep a small repair kit on hand for minor adjustments and resealing as needed.
Tools & Materials
- Chimney cap (correct size for flue)(Match inner diameter to flue liner; ensure clearance from roof and siding)
- Measuring tape(Long enough to measure flue diameter; record in inches)
- Pencil or chalk(Mark hole positions accurately)
- Drill/driver with bits(Phillips bit; 1/8"–3/16" depending on screws)
- Corrosion‑resistant screws or mounting kit(Stainless steel preferred; short enough to bite into mounting surface)
- Safety gear (gloves, eye protection)(Non‑slip gloves; goggles or safety glasses)
- Stable ladder or roof access equipment(Use with stabilizer; have a helper on the ground)
- High‑temperature sealant or flashing sealant (optional)(Use where flashing requires sealing against water intrusion)
- Level (optional)(Helps align the cap evenly for a neat finish)

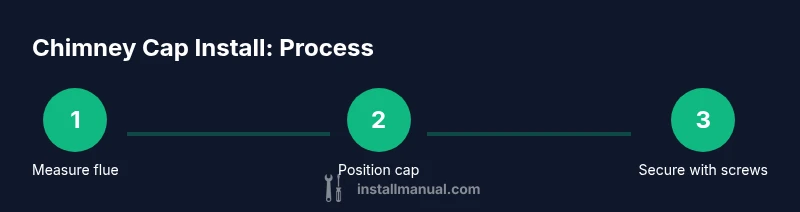

Steps
Estimated time: 45-90 minutes
- 1
Prepare the work area
Clear the area around the chimney and set up a stable ladder on firm ground. Put on PPE and have a helper on the ground ready to assist. Confirm weather conditions are safe before you start.
Tip: A second person on the ground keeps the ladder stable and helps pass tools. - 2
Position the cap over the flue
Lift the cap and align its interior opening with the flue throat. Center the cap so mounting holes will line up with flashing or the roof surface. Hold the cap in place while you verify that it sits squarely.
Tip: Take a moment to visually confirm symmetry before marking holes. - 3
Mark hole positions
With the cap in place, use a pencil to mark where screws will go through the mounting flange. Ensure marks are level and evenly spaced to distribute load. Double‑check clearance from the roof edges or flashing.
Tip: Use a level if you have one to preserve alignment. - 4
Drill pilot holes
From the top surface, drill pilot holes at the marked positions, using a bit appropriate for your roof material. Keep drill steady and perpendicular to the mounting surface. Clear dust from holes before inserting screws.
Tip: Drill slowly to avoid cracking or slipping. - 5
Attach the cap with screws
Insert screws into the mounting holes and tighten evenly with a driver. Alternate sides to maintain even pressure and prevent warping. Stop when the cap sits flush and secure.
Tip: Avoid over-tightening to prevent damage to cap or flashing. - 6
Seal the base (if required)
Apply a thin bead of sealant around the base where it meets the flashing or roof surface. Wipe away excess and smooth for a clean seal. Allow sealant to cure per product instructions before exposure to rain.
Tip: Only seal where flashing requires it; otherwise it can trap moisture. - 7
Verify fit and drainage
Inspect that the cap is level and fully seated. Check that water drains away from the flashing and cap rim. Ensure the mesh is intact and there are no gaps.
Tip: Run a light spray from a hose to test for leaks. - 8
Clean up and final safety check
Remove tools and debris from the roof and ground. Store extra parts and sealant for future maintenance. Do a final safety check to ensure no loose screws or sharp edges.
Tip: Dispose of mounting hardware safely if damaged.
Got Questions?
Do I need a chimney cap?
Yes. A chimney cap helps prevent water intrusion, animal entry, and debris from entering the flue. It also reduces the risk of chimney fires by keeping embers from escaping. In many areas, caps are recommended or required by code.
Yes. A chimney cap protects the flue from water, animals, and debris, and is often recommended by code officials.
What size cap do I need?
Measure the interior diameter of the flue liner. Choose a cap with an interior opening that matches or slightly exceeds that diameter. Some caps list outer dimensions, so check the interior clearance before purchasing.
Measure the flue diameter and match the cap's opening to it.
Can I install it myself?
If you are comfortable working on a ladder and following instructions, you can install a simple cap. For steep roofs, damaged flashing, or uncertain safety, hire a professional.
Yes, for many setups a homeowner can install a cap safely, but call a pro for complex roofs.
How long does an install take?
Most installations take 30 to 90 minutes depending on roof height, cap type, and flashing requirements. Take extra time for safety checks and clean up.
Most installs take roughly 30 to 90 minutes, depending on conditions.
Should I seal around the base?
Sealant is only needed if flashing requires sealing or if there is a known water intrusion risk. Otherwise, a proper cap seated on flashings can be sufficient.
Seal around the base only if you’re using flashing that needs sealing.
Watch Video
Main Points
- Measure flue diameter accurately
- Choose corrosion-resistant cap materials
- Secure cap with proper hardware
- Seal only where needed and test for leaks
- Inspect and maintain after install
