How to Install a Garage Door: Step-by-Step Guide
Learn how to install a garage door safely with this comprehensive guide from Install Manual. Get tools, step-by-step instructions, safety tips, and FAQs to help homeowners, DIY enthusiasts, and renters complete the task confidently.
By the end of this guide you will have installed a standard sectional garage door and connected the opener, following safety-first steps and manufacturer instructions. You’ll measure carefully, assemble tracks, mount panels, balance springs where applicable, hang the door, install the opener rail, and perform a safety test. According to Install Manual, work with a partner on heavy panels and shut off power before electrical work.
Understanding garage door types and components
Residential garage doors are most commonly sectional, comprising multiple horizontal panels connected by hinges. They ride on steel tracks and are guided by rollers, with springs providing counterbalance to make lifting easier. The door’s opener attaches to a trolley that moves along a horizontal rail, pulling the door via cables and pulleys. Springs come in two main varieties: torsion springs mounted above the door on a torsion bar, and extension springs along the sides of the tracks. Weather seals and insulation reduce drafts and improve efficiency. When choosing a door kit, confirm that the panel size, track length, and spring type match your opening. The Install Manual team emphasizes not attempting spring work without proper training, since stored energy can cause serious injuries. Always follow the manufacturer’s installation manual for your specific door model. This section sets the foundation for safe, accurate installation and highlights the key mechanical elements you’ll encounter as you proceed.
Safety-first: planning and PPE
Safety is the backbone of any door installation. Heavy panels, high spring tension, and moving parts create risk if mishandled. Before you begin, shut off power to the garage, remove any vehicles, and ensure the area is well lit with a clear, dry floor. Wear PPE:ANSI-rated safety glasses, work gloves, and sturdy footwear. Have a second person available to assist with lifting panels and guiding tracks. Keep children and pets away from the workspace. Verify that your ladder or lift supports the door and that all tools are within reach. The goal is to minimize pinch points and prevent accidental door movement during assembly. The Install Manual approach prioritizes a controlled environment, proper lighting, and a helper for heavy steps to reduce the chance of injury.
Measuring, ordering, and prepping the door kit
Accurate measurements are essential for a proper fit. Measure width at three points across the opening and use the narrowest measurement to order the kit. Measure height at the left side, center, and right side; use the smallest height to guide panel size and track length. Check headroom (space above the door for tracks and hardware) and backroom (space in the garage for panels to lay when opening). Compare your opening to the kit specifications to avoid buying the wrong size. If you’re replacing an existing door, inspect the rough opening for rot, water damage, or warped framing. Prepare the site by clearing debris, removing old tracks, and ensuring studs are square for solid mounting. This preparation helps prevent misalignment and ensures smoother operation once the door is installed.
Workspace setup and initial assembly on the floor
Set out all parts on a clean, dry surface before assembly. Check that panels, tracks, rollers, and brackets are undamaged and free of sharp edges. Use a level and chalk line to mark where vertical tracks will align on either side of the opening. Beginning on the floor, dry-fit components to verify fitment and identify any adjustments needed before lifting panels into position. Label components if you are working with mixed hardware, so you don’t mix parts later. Following a careful layout saves time and reduces rework, especially for larger doors. The Install Manual guidance stresses deliberate, methodical prep to minimize surprises during the lift and installation.
Springs, balance, and safety considerations
The spring system is the most critical safety element of a garage door. If your kit uses torsion springs, do not attempt to install or adjust them unless you are trained. Extension springs along the sides are also hazardous and require careful handling and proper hardware—they should be balanced and anchored to prevent the door from snapping closed. Always release tension using the manufacturer’s procedure and secure the springs with the correct safety cables and brackets. If you encounter any unusual stiffness, noise, or misalignment during spring installation, stop and consult a professional. The Install Manual emphasizes treating springs with extreme caution and verifying that all safety devices are in place before moving to the next steps.
Hanging and aligning the door panels
With safety measures in place, begin attaching the door panels to the track system on the floor or workstation as recommended by the kit. Install hinges and rollers progressively as you raise the sections into place, ensuring each panel aligns flush with adjacent panels. Once a few panels are secured, place the door into the vertical tracks and adjust until it sits level in the opening. This step is critical for smooth operation and to prevent binding or uneven wear. Take your time and double-check alignment on both sides to avoid asymmetry that could stress the tracks.
Install opener, calibrate, and test the system
Install the garage door opener according to the manufacturer’s instructions, mounting the rail to the ceiling and securing the angle brackets. Attach the opener’s trolley to the door and connect safety sensors. Run a test cycle to check lifts, balance, and travel limits. Use the opener’s adjustment screws to set the travel limits so the door closes completely without bottoming out or leaving gaps. Check auto-reverse function to confirm the door reverses when an obstacle is encountered. If anything feels off, stop tests and re-check alignment and fasteners. The key is a cautious, methodical approach rather than rushing through calibration.
Authority sources
This installation guide references safety and best-practice guidelines from credible sources. For official safety standards and recommendations, consult:
- https://www.osha.gov
- https://www.cpsc.gov/safety-guides/garage-doors
- https://extension.oregonstate.edu
Review these resources to understand local permit requirements, safety considerations, and maintenance tips after installation.
Authority sources (continued)
- Local building codes and permit requirements can vary. Always check with your city or county building department before starting the installation. -
Tools & Materials
- Safety goggles(ANSI Z87.1 or equivalent)
- Work gloves(Cut-resistant preferred for handling panels)
- Measuring tape(At least 25 ft long)
- Pencil or marker(For marking mounting points)
- Utility knife(Trim weather seals or packaging)
- Screwdrivers (Phillips & flat-head)(Assorted sizes)
- Cordless drill/driver(With drill bits and driver bits)
- Socket wrench set(Metric and standard sizes)
- Level(2-ft or 4-ft for squareness)
- Square and plumb line(Helpful for precise alignment)
- Ladder or scaffold(Stable and tall enough for ceiling brackets)
- Clamps or safety straps(Hold parts in place during assembly)
- Lubricant spray (silicone oil)(Lubricate tracks and rollers)
- Safety cables and hardware (if required)(As specified by kit)
- Hammer(Light tapping and adjustments)

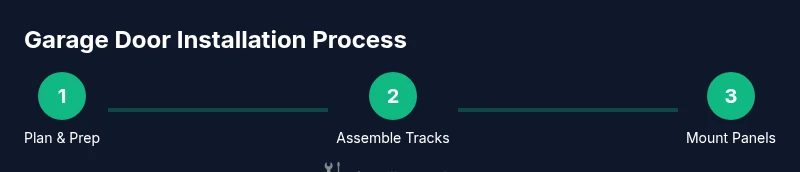

Steps
Estimated time: varies
- 1
Prepare workspace and safety gear
Clear the garage, disconnect power to the door opener circuit, and set up a stable working area. Put on safety glasses, gloves, and proper footwear. Confirm you have a helper for heavy panels and keep children away from the area.
Tip: Always verify the power is off at the breaker before touching any electrical components. - 2
Lay out parts and inspect kit
Unpack the kit and lay out panels, tracks, rollers, brackets, springs, and hardware. Inspect every part for damage or deformation and organize by type. Compare components to the manufacturer’s parts list to ensure you have everything.
Tip: Check each part against the installation manual before starting to avoid missing pieces mid-assembly. - 3
Mount vertical tracks to the jambs
Position the vertical tracks in the door jambs and secure with brackets. Use a level to ensure they are plumb and aligned with the opening. Tighten fasteners gradually to avoid bending tracks.
Tip: Check both sides for symmetry; misalignment here will cause binding later. - 4
Assemble first door section on the floor
Assemble the bottom panel with hinges and attach rollers to the bottom edge. Prepare subsequent panels in the same manner so you can lift them into place in one coordinated motion. Ensure the weather seal is properly seated on the bottom edge.
Tip: Dry-fit the bottom edge with the floor, ensuring the bottom seal sits evenly across the opening. - 5
Hang and align initial panels in tracks
With a helper, lift the first two panels into the vertical tracks, keeping them level. Attach the next panels sequentially, guiding them to sit in the tracks and hinge points. Verify that the door sits square in the opening and moves smoothly.
Tip: Use clamps to hold a panel temporarily while you secure hinges and tracks. - 6
Install springs and balance system
Install torsion or extension springs as specified by the kit. If using torsion springs, do not attempt to adjust tension unless you have training and proper equipment. Secure safety cables if required and ensure drums and cables are correctly threaded.
Tip: If you encounter stiffness or unusual resistance, stop and consult the manufacturer’s instructions or a professional. - 7
Mount the opener rail and connect to door
Install the header brackets and attach the rail to the ceiling as directed. Connect the trolley to the door’s top panel and align the door so it travels without binding. Attach safety sensors and ensure they align with the opposite side of the door opening.
Tip: Keep the rail straight and avoid side-to-side play; misalignment can damage the opener and door. - 8
Calibrate limits, test travel, and safety features
Power on the opener and run a test cycle. Adjust limit switches so the door fully closes without bottoming out and opens to the fully raised position. Test auto-reverse and the sensor beam to confirm safety features work correctly.
Tip: Always observe the door’s full travel before use; improper calibration can cause injury or damage. - 9
Final checks and cleanup
Tighten all fasteners, lubricate moving parts, and re-check door balance. Verify weather seals seal properly, and remove any protective packaging. Leave the area tidy and store extra hardware for future maintenance.
Tip: Document the installation and keep the manual handy for future maintenance or part replacements.
Got Questions?
Do I need a permit to install a garage door?
Permit requirements vary by location. Check with your local building department before starting to ensure you meet structural and safety codes. Some jurisdictions require inspections after completion.
Permit requirements vary by location. Check with your local building department before starting to ensure you meet safety codes.
Can I install a garage door myself?
You can handle many non-spring components yourself, but springs and some electrical work pose serious risks. If you’re unsure, hire a professional for those steps to prevent injury.
You can do many parts yourself, but springs and electrical work are risky. Consider a pro for those steps.
What types of springs are used in residential doors?
Residential doors typically use torsion springs or extension springs. Torsion springs provide balanced support and are generally safer when installed by trained individuals.
Residential doors use torsion or extension springs; torsion springs are common and safer when set up by a trained professional.
How long does installation take?
Time varies with door size, kit complexity, and your experience. Plan for several hours and don’t rush any step, especially when handling springs and alignment.
It varies, but plan for several hours and don’t rush when dealing with springs and alignment.
What should I do if the door won’t close properly after installation?
Check the travel limits, safe-reverse sensor alignment, and track alignment. Misalignment can prevent full closure or cause safety failures. Recalibrate if needed.
If the door won’t close, check limits, sensor alignment, and track alignment, then recalibrate.
Should I lubricate tracks and rollers after install?
Yes, use a light silicone-based lubricant on tracks and rollers to reduce friction and extend life. Wipe away excess to avoid attracting dirt.
Lubricate tracks and rollers after installation with a light silicone lubricant and wipe away excess.
Watch Video
Main Points
- Verify door type and kit compatibility before starting.
- Prioritize safety and use a helper for heavy steps.
- Calibrate the opener after installation for reliable operation.
- Consult local codes for permits and safety requirements.
