LiftMaster Garage Door Opener Install: Step-by-Step Guide
A comprehensive, safety-first guide to installing a LiftMaster garage door opener. Learn tools, steps, wiring, sensor placement, remote programming, and maintenance for a reliable, quiet operation.
According to Install Manual, a proper liftmaster garage door opener install begins with safety checks, planning, and following the manufacturer’s instructions to avoid common mistakes. This guide walks you through setup, mounting, wiring, sensor alignment, remote programming, and testing for a secure, reliable system.
Understanding LiftMaster Garage Door Opener System
A LiftMaster garage door opener is a compact motorized system that coordinates with a steel rail, trolley, and door track to lift and lower a garage door smoothly. Modern LiftMaster models often include features such as battery backup, Wi‑Fi connectivity, and compatibility with smart-home ecosystems. Before you begin, take time to identify the exact components included with your model and read the installation manual closely. This upfront knowledge helps you plan safe wiring, precise mounting, and correct sensor placement. The goal of a proper liftmaster garage door opener install is a quiet, dependable operation that lasts for years, with minimal maintenance. Remember, the team at Install Manual emphasizes safety first and accuracy over speed, so work deliberately and methodically.
Safety and Planning for a LiftMaster Install
Safety should drive every step of the installation. Start by unplugging any power to the door opener area and clearing the space under the door. Verify the door is balanced and moves freely without binding. If the springs or tracks show wear, consult a professional before proceeding. Check that there is a grounded outlet within reach of the opener’s power cord, and ensure the ceiling structure can support the motor's weight and vibration. A well-planned installation reduces the risk of injury and prevents future troubleshooting headaches. According to industry best practices and Install Manual guidance, taking time to survey the space now saves time later and preserves system longevity.
Prep Work: Tools, Workspace, and Safety Gear
Gather the essential tools and safety gear before you start. You’ll typically need a sturdy ladder, a drill with appropriate bits, a socket or wrench set, screwdrivers (Phillips and flat), pliers, a level, and safety glasses. Clear the workspace of vehicles and clutter, and lay out all parts from the LiftMaster kit so you can identify them quickly. Wear eye protection when drilling and handling metal components, and have a helper on hand if the unit is large or heavy. A well-prepared workspace makes the liftmaster garage door opener install safer and more efficient. This phase also gives you a chance to confirm that you have a compatible ceiling joist or beam for mounting the motor and rail.
Rail Assembly and Ceiling Bracket Mounting
The rail and ceiling brackets are the backbone of any LiftMaster install. Start by assembling the rail sections per the model’s manual, ensuring the rail is straight and free of burrs. Attach the ceiling bracket to the chosen joist or support beam, using fasteners rated for the structure. Use a level to confirm the bracket is perfectly horizontal, as a misaligned bracket leads to binding and noise. Once the bracket is secure, slide the rail into place and loosely connect the trolley channel so you can fine-tune alignment later. Precise alignment is critical for smooth operation and long-term reliability.
Mounting the Opener to the Ceiling and Attaching the Rail
With the rail prepared, hoist the LiftMaster motor unit to the ceiling and secure it to the mounting bracket. Attaching the motor securely reduces vibration and noise. Next, position the rail so it aligns with the doorway track and lightly fasten it to the header bracket. Check that the rail is parallel to the door and that there is a consistent gap between the trolley and track. A misalignment here can cause the door to bind or reverse unexpectedly. If the rail is not perfectly level, adjustments should be made before tightening all fasteners.
Door Arm, Trolley, and Track Connectivity
The door arm links the movable door to the trolley, translating door movement into motor action. Attach the arm to the door’s top panel using the appropriate hardware, following the model’s torque specifications. Then connect the arm to the trolley on the rail. Ensure the trolley slides smoothly along the rail without binding. The alignment of the door arm affects travel and safety limits, so take your time and verify that the door hooks engage and retract cleanly. Keep tracks and arms free of debris during installation.
Wiring, Power, Sensor Placement, and Grounding
Power is essential for the LiftMaster system. Plug the opener into a grounded 120V outlet, or route a dedicated circuit as required by your model and local electrical code. Route cables away from moving parts and doors, and secure with clips to prevent snagging. Install the safety sensors (photocells) on the floor about 6 inches to 8 inches above the ground on both sides of the door opening, aligning them so the beam is unobstructed. Correctly wiring the sensors and ensuring a proper ground reduces false activations and enhances safety.
Safety Sensors and Reversal Testing
Safety sensors are a non‑negotiable part of the LiftMaster install. After mounting the sensors, verify alignment by ensuring the beams are clear and unobstructed. Use the test button on the opener to check auto-reverse. Place a light object under the door and attempt to close it; the door should reverse when the beam is broken. If the door fails to reverse, stop the installation and recheck wiring, sensor alignment, and track clearance. Repetition of safe testing builds confidence in a successful installation.
Programming Remotes, Keypads, and Smart Features
Programming remotes and wall consoles is usually straightforward. Use the Learn or Programming button on the opener; within a few seconds, press the remote control button to pair it with the opener. For keypads or smart features, follow the model’s prompts to connect via Wi‑Fi or Bluetooth if supported. Keep a log of pairings and codes in a secure place. Well‑documented programming helps prevent confusion later when multiple remotes or devices are in use.
Final Checks, Calibration, Lubrication, and Maintenance
Before declaring victory, run the door through multiple open/close cycles to confirm smooth operation across different speeds and stop points. Check the door’s balance and ensure there is no binding or grinding. Lubricate moving parts per the manual, focusing on rollers, hinges, and tracks, while avoiding over‑lubrication that can attract dust. Establish a simple maintenance schedule to extend the life of the LiftMaster system and reduce the risk of unexpected failures. Finally, store the manuals and write down model and serial information for future service.
Troubleshooting Common Install Issues and Quick Fixes
Even with careful planning, issues can arise. Common problems include misaligned safety sensors, unresponsive remotes, and a door that won’t fully retract. Recheck sensor alignment, ensure beams are clear, and verify that wire connections are secure. If the opener makes unusual noises, inspect mounting hardware for loose screws and ensure there are no obstructions in the track. For persistent issues, consult the LiftMaster model’s troubleshooting guide and contact support if needed.
Post-Install Best Practices and Home Integration
With the LiftMaster garage door opener install complete, implement best practices to maximize safety and convenience. Create a habit of testing the auto-reverse monthly and inspecting tracks for debris. Consider integrating the opener with compatible smart home systems for remote monitoring and alerting. Keep the user manuals accessible and update any firmware when updates become available. Regular maintenance helps ensure quiet operation and dependable performance for years to come.
Tools & Materials
- Ladder (sturdy, tall enough to reach the ceiling)(Stable footing, non-slip shoes)
- Drill/driver and bits (Phillips and metric sockets)(Use appropriate bit size for fasteners)
- Screwdrivers (flat and Phillips)(Magnetic bits help prevent drops)
- Adjustable wrench or socket set(For mounting bolts and nuts)
- Level and measuring tape(Ensure rail and brackets are square)
- Pliers and wire cutters(Routing and trimming wiring safely)
- Safety glasses and hearing protection(Eye and ear safety during cutting/drilling)
- Stud finder (optional but recommended)(Locate solid mounting points)
- Wire and electrical supplies (per local code)(Grounded outlet or dedicated circuit as required)
- LiftMaster garage door opener unit (model-specific)(Follow your model's manual for rail and hardware)
- Rail and track components from the kit(Check for any damage before installation)
- Safety sensor kit (photo eyes)(Install on sides of door opening)
- Helper or partner(Assist with lifting and aligning large components)
- Marker or chalk for alignment marks(Mark reference points before drilling)

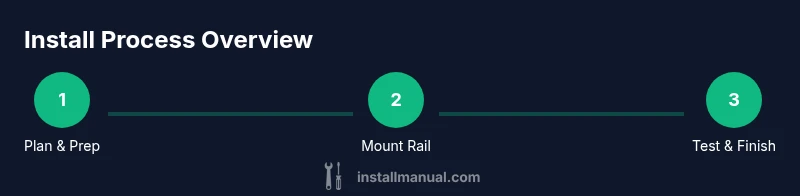

Steps
Estimated time: 60-120 minutes
- 1
Assess and plan
Survey the space, identify mounting points, verify electrical availability, and review the LiftMaster model’s manual. Ensure springs and tracks are in good condition before proceeding.
Tip: Double-check that the garage door opens and closes smoothly by hand before starting. - 2
Gather tools and create workspace
Collect all tools and parts, clear the area, and set up a stable ladder. Having a clear workspace reduces mistakes during the install.
Tip: Label fasteners in a magnetic tray to prevent loss. - 3
Mount ceiling bracket and prep rail
Install the ceiling bracket to a solid joist, then assemble the rail sections according to the model instructions. Use the level to ensure the bracket is perfectly horizontal.
Tip: Do not tighten brackets until you confirm rail alignment with the door track. - 4
Attach motor to ceiling and secure rail
Lift the motor unit into place and secure it to the ceiling bracket. Attach the rail to the header bracket, ensuring a straight run along the door opening.
Tip: Keep hands clear of moving parts during lifting. - 5
Connect door arm and trolley
Attach the door arm to the door’s upper panel and connect it to the trolley. Verify smooth tram movement along the track with no binding.
Tip: If the arm is loose, re-tighten per the manual to avoid misalignment. - 6
Run wiring and power supply
Route the power cord to a grounded outlet or install a dedicated circuit per local code. Keep wiring away from moving parts and secure with clips.
Tip: Avoid using damaged cables; replace immediately. - 7
Install safety sensors and tests
Mount photo eyes on each side of the door opening about 6 inches above the floor. Align beams and perform the opener test to confirm auto-reverse at the beam break.
Tip: If beams misalign, adjust until the beam is clear across the opening. - 8
Program remotes and wall control
Use the Learn/Programming button to pair remotes and wall console. Follow prompts for keypad or smart features if available.
Tip: Keep codes written in a secure location. - 9
Set travel limits and force
Adjust travel limits and force as described in the model manual to ensure safe door operation. Test multiple cycles.
Tip: Start with conservative limits and adjust in small increments. - 10
Test every function thoroughly
Test open, close, and stop functions. Verify auto-reverse and safety features under various conditions.
Tip: Repeat tests with different door positions to confirm reliability. - 11
Final inspection and cleanup
Inspect all mounting points, fasteners, and wiring. Clean the area and store manuals and spare parts.
Tip: Document model details for future maintenance. - 12
Post-install maintenance plan
Create a simple maintenance schedule for lubrication, sensor checks, and firmware updates if available.
Tip: Set a reminder to perform monthly safety checks.
Got Questions?
Do I need a professional to install a LiftMaster garage door opener?
Not always. Homeowners with basic mechanical and electrical skills can install some LiftMaster models following the manual. If you encounter complex wiring, high doors, or uncertain safety steps, hire a professional.
You can install it yourself if you’re comfortable with basic electrical work and reading the manual; otherwise seek a pro.
Is LiftMaster compatible with any standard garage door?
LiftMaster models are designed for standard sectional doors, but you should verify door height, track type, and spring configuration with the model’s guidelines before installation.
Most standard doors work, but always check your model’s compatibility before starting.
Should I adjust the door springs during install?
No. Springs are part of the door itself and should not be adjusted by the opener installer. If there’s door imbalance, contact a professional for spring work.
Springs aren’t adjusted during opener installation; call a pro if there’s a balance issue.
How long does a typical LiftMaster install take?
Most DIY installations take about 1 to 2 hours, depending on door type, mounting conditions, and your familiarity with tools. Plan extra time for wiring and sensor alignment.
Typically 1 to 2 hours, depending on your setup.
What maintenance should I perform after install?
Test safety sensors monthly, lubricate moving parts per the manual, and check mounting hardware for tightness. Keep remote codes secure and update firmware if available.
Test safety sensors monthly and keep hardware tight.
What if the opener doesn’t reverse when something blocks the path?
Re-check sensor alignment and wiring, then test again. If the issue persists, disconnect power and seek professional help. Do not operate until safety is confirmed.
If auto-reverse fails, re-check sensors and wiring, and call a pro if needed.
Watch Video
Main Points
- Plan safety-first before any mounting.
- Align all rails and brackets precisely for quiet operation.
- Test safety features and remotes after wiring.
- Follow local electrical codes for power requirements.
- Maintain a simple, repeatable maintenance routine.
