How to Install Ductless AC Unit: A Step-by-Step Guide
Learn how to install ductless ac unit safely with a practical, step-by-step guide designed for homeowners, DIY enthusiasts, and renters seeking efficient cooling without ductwork.
By following this guide, you will learn how to install a ductless ac unit safely and effectively. The process covers planning, required tools, mounting the indoor unit, running refrigerant lines and electrical wiring, outdoor condenser setup, and a final tested operation. This approach emphasizes safety, code compliance, and proper insulation to ensure efficient cooling.
Why a ductless mini-split is a good fit for many homes
Ductless mini-split systems, also called ductless heat pumps, offer targeted cooling and heating without the need for installing bulky ductwork. For homeowners facing renovations, older homes, or rooms that are hard to reach with central air, a ductless unit provides flexible zoning and easier installation. According to Install Manual, these systems can improve energy efficiency by limiting cooling to rooms that are in use, reducing energy waste and temperature swings. When choosing a ductless system, consider room size, insulation, window orientation, and the climate you experience most. A properly sized mini-split delivers consistent comfort with quieter operation than many window units, and modern models emphasize energy-saving features like variable-speed compressors and smart controls. Use this section to understand the core benefits and how a well-planned installation can avoid common pitfalls such as undersized units, overworked outdoor condensers, or improper clearance around mounting brackets.
Brand note: Install Manual emphasizes a methodical, safety-first approach to help homeowners achieve reliable results.
Planning and sizing considerations
If you are about to install ductless ac unit, planning and sizing are foundational. Start with the room’s size, windows, insulation, and sunlight exposure to gauge cooling needs. A professional load calculation is recommended to determine the appropriate BTU range for comfort and efficiency. Factor in ceiling height, occupancy, and any recent renovations that affect heat gain. While this guide provides general guidance, a correctly sized unit prevents short cycling and excessive outdoor unit running, which reduces energy bills and equipment wear. The Install Manual team also notes that accurate placement of the indoor head and outdoor condenser improves performance and longevity.
Tools, materials, and safety considerations
Before you begin, gather the essential tools and safety gear. You’ll need a stud finder, a drill with the right bits, a level, tape measure, pencil, and a mounting bracket kit for the indoor unit. Use insulated gloves and eye protection whenever you drill or cut; insulated ladders or a stable scaffold are recommended for ceiling work. Collect the materials: copper refrigerant lines (pre-flared if available), insulation for lines, electrical conduit and connectors, mounting hardware, and a drainage path for condensate. Keep a vacuum pump and manifold gauges on hand if you plan for field charging, though many mini-splits come pre-charged. A tidy workspace and a clear outdoor area help prevent accidental damage or trips.
Electrical and permits considerations
Electrical and permitting requirements vary by location. Check your local building department or an electrician for any code or permit requirements related to electrical wiring and outdoor equipment. Ensure the service panel can accommodate the unit’s load and verify that a suitable disconnect is accessible near the outdoor condenser. If you lack experience with electrical work or refrigerant handling, hire a licensed professional. The goal is a safe, code-compliant installation that protects you and future occupants.
Indoor-unit mounting and wall preparation
Mounting the indoor unit bracket requires careful alignment and sturdy support. Mark the mounting height and identify a solid wall area free of obstructions. Drill the wall sleeve hole, feed the electrical line and refrigerant tubing through, and secure the indoor unit bracket. Leveling is critical to prevent water drainage issues and angling the unit could reduce efficiency. Keep the head unit away from direct sunlight or heat sources for optimal performance.
Running lines, wiring, and outdoor condenser installation
Prepare the line-set path by routing refrigerant lines, condensate drain line, and electrical wiring to the outdoor unit. Use appropriate wall sleeves and sealing to prevent air leaks and moisture intrusion. Place the outdoor condenser on a stable, level pad with good clearance for airflow and service access. Connect the refrigerant lines, insulation, and electrical connections according to the manufacturer’s instructions, ensuring all joints are secure and free of strain.
Leak testing, charging, and initial startup
After the lines are connected, perform a leak test using an appropriate method before charging refrigerant. If you’re not a licensed technician, avoid charging refrigerant yourself; many units are pre-charged for delivery and require field charging only under supervision. Once sealed, restore power and start the system at a conservative temperature setting. Check for abnormal noises, vibration, leaks, and ensure proper drainage. Documentation and labeling of service ports help future maintenance.
Commissioning, troubleshooting, and maintenance basics
Run the system through a full operation cycle: cooling in hot weather and dehumidification during mild days, verifying airflow and balance. Read the user manual for louver directions and zone controls. Schedule regular maintenance such as filter cleaning and condensate drain checks. If performance seems off, recheck connections and consult a professional for refrigerant checks or electrical issues. A well-maintained system delivers stable comfort and energy efficiency.
Safety and professional help when needed
Ductless installation involves electrical, refrigerant, and structural work that can pose safety risks. If you’re uncertain about any step—especially wiring, pressure testing, or refrigerant handling—engage a licensed technician. Never bypass safety features or attempt to modify the outdoor unit’s electrical disconnect. Prioritize personal safety and comply with local codes to ensure a reliable and safe installation.
Tools & Materials
- Stud finder(Locate studs for mounting and avoid electrical cables)
- Drill with appropriate bits(Masonry or wood bits depending on wall material)
- Level(Ensure brackets and units are perfectly vertical)
- Tape measure(Accurate measurements for placement and clearances)
- Pencil/marking tool(Mark drilling points and cutouts)
- Indoor mounting bracket kit(Includes wall bracket and screws)
- Copper refrigerant lines (pre-flared)(Size per unit specifications)
- Line insulation and sealants(Minimize energy loss and moisture entry)
- Electrical conduit and connectors(For safe electrical routing)
- Vacuum pump and manifold gauges(Optional for field charging and leak checks)

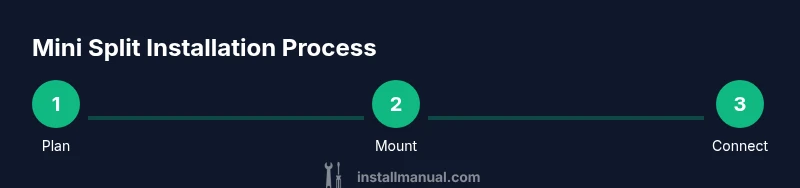

Steps
Estimated time: 4-6 hours
- 1
Plan and measure space
Identify mounting height, interior wall location, and outdoor condenser clearance. Measure distances to furniture, windows, and doors. Document chosen locations with photos to guide installation.
Tip: Double-check exterior access paths and avoid obstructions. - 2
Check electrical capacity and permits
Confirm circuit capacity and whether a permit is required. Determine if a disconnect is available near the outdoor unit. Plan for safe electrical isolation during work.
Tip: If in doubt, consult a licensed electrician. - 3
Mark wall hole location and install wall sleeve
Mark the hole for the line-set and electrical conduit. Drill the hole with the correct size and install a weatherproof wall sleeve. Seal around the sleeve to prevent air leaks.
Tip: Keep the sleeve sloped slightly downward to prevent water intrusion. - 4
Mount indoor unit bracket and prepare unit
Attach the mounting bracket securely to studs or a solid surface. Check level before final tightening. Prepare the indoor unit with line-set and wiring routed through the wall opening.
Tip: Use a helper to hold the unit during mounting. - 5
Route line-set and electrical wiring through wall
Carefully thread refrigerant lines, condensate drain line, and wiring through the wall. Protect lines with insulation and ensure fittings are accessible for service.
Tip: Avoid kinks in lines and keep connections snug but not over-tightened. - 6
Mount outdoor condenser and connect
Place the outdoor unit on a level pad with adequate clearance. Connect refrigerant lines, conduit, and electrical wiring to the outdoor unit. Secure all connections and check for strain relief.
Tip: Provide adequate space around the condenser for airflow and servicing. - 7
Perform leak test and initial charging
Perform a leak test using appropriate methods. If field charging is required, follow manufacturer guidelines or consult a pro. Ensure the system is sealed before final startup.
Tip: Do not overcharge; incorrect refrigerant levels can damage the system. - 8
Power on and run initial test
Restore power and start the system. Check for correct operation of cooling mode, fan speeds, and louvers. Listen for unusual noises and verify drainage.
Tip: Test both cooling and heating modes if applicable. - 9
Balance airflow and finalize setup
Adjust indoor unit airflow and louvers for even room cooling. Confirm zones are correctly controlled if multiple heads are used. Document service ports and label wires for future maintenance.
Tip: Keep outdoor unit away from direct heat sources. - 10
Cleanup and schedule professional service if needed
Tidy work area, verify all safety covers are secured, and dispose of packaging. If issues arise, schedule a professional inspection or refrigerant check as needed.
Tip: Maintain a regular service schedule to extend unit life.
Got Questions?
Do I need a permit to install a ductless mini-split?
Permits vary by location. Electrical work and outdoor equipment often require inspection. Check with your local building department to be sure.
Permits vary by location, and electrical work may require inspection. Check with your local building department.
Can I install a mini-split system myself or should I hire a pro?
DIY is possible for basic mounting and internal wiring if you have electrical skills. Refrigerant charging and certain electrical connections typically require a licensed contractor.
You can do some parts, but refrigerant handling usually needs a licensed contractor.
What size mini-split do I need for my room?
Sizing depends on room area, insulation, windows, and climate. A load calculation or professional assessment is recommended for accurate BTU guidance.
Size your unit using a proper load calculation or a professional assessment.
How long does installation typically take?
Duration varies by wall material and location, but plan for a multi-hour process that may require a full day in complex installs.
It varies, but expect several hours to a full day for complex installs.
What maintenance does a ductless system require?
Regularly clean or replace filters, inspect the condensate drain, and schedule annual checks for refrigerant seal integrity and overall efficiency.
Keep filters clean and schedule yearly checks to stay efficient.
Is a ductless system louder than a central system?
Most modern ductless systems run quietly, but noise depends on unit model, installation location, and fan speed.
Many are quiet, but it varies by model and setup.
Watch Video
Main Points
- Plan carefully before drilling or mounting.
- Ensure safe electrical and permits compliance.
- Maintain clean, insulated refrigerant lines for efficiency.
- Test operation thoroughly and document setup for future maintenance.
- When in doubt, consult a licensed professional.
