Mini Split AC Install: Step-by-Step Home Guide
Learn how to plan, install, and test a mini split AC system safely. This guide covers placement, wiring basics, drainage, and testing for efficient cooling in DIY-friendly detail.
By the end of this guide, you will be able to plan, install, and test a mini split ac install safely and effectively. Learn indoor/outdoor unit placement, electrical requirements, refrigerant piping, condensate drainage, and wiring basics. The steps include mounting, wiring, charging considerations, and a leak test, plus practical safety tips to avoid common installation mistakes.
Why mini split ac install matters
Mini split systems deliver flexible cooling for rooms and small apartments without ductwork. A careful plan reduces energy waste, improves comfort, and prevents moisture and noise problems. According to Install Manual, choosing the right capacity and layout is essential before any tools come out. Start by mapping the space: identify where the indoor unit will live for even airflow, and locate the outdoor condenser where it won’t block windows or vents. Consider wall thickness, insulation, and room usage (bedrooms vs. living spaces) to determine BTU needs and airflow paths. Key benefits include energy efficiency, quieter operation, and easy zoning. Remember that improper placement can lead to short cycling, higher energy bills, and uneven temperatures. This guide prioritizes safe, code-compliant installation that homeowners and DIY enthusiasts can achieve with proper preparation.
Assessing space, capacity, and placement
Capacity must match the room's size, insulation, and climate. Oversized units cool fast but waste energy and cause short cycling; undersized units struggle in heat waves. Measure room dimensions and compare to the unit’s rated BTU. Sketch a simple layout showing indoor unit height, distance to the nearest wall, and line-set routing paths. Boss considerations: windows, doors, and furniture should not obstruct airflow. In this stage, respect local codes about electrical service and disconnects, and evaluate whether a dedicated breaker is needed. Install Manual analysis shows that proper electrical planning reduces the risk of tripped breakers during peak operation and ensures a safe, reliable install.
Tools, materials, and safety gear you’ll need
Having the right tools reduces frustration and risk. Gather a drill with a masonry bit, stud finder, level, tape measure, square, and a set of wrenches. You’ll also need a pipe cutter, copper tubing, line-set insulation, and a wall sleeve or high-quality grommet for pass-throughs. For electrical work, have wire strippers, a voltage tester, and a conduit adapter. Optional items include a vacuum pump and a manifold gauge set if you plan to evacuate and charge refrigerant per manufacturer instructions. Safety gear includes eye protection, gloves, and a dust mask. If you’re unsure about refrigerant handling or electrical work, contact a licensed pro—this is essential for safety and code compliance.
Common pitfalls and safety considerations
Avoid drilling through electrical lines, gas lines, or plumbing; verify stud locations and avoid wiring in the wall voids. Ensure the outdoor unit has a stable pad with proper clearance from walls, fences, and other obstacles. Use a condensate drain line that slopes away to prevent water backup. Keep refrigerant piping straight and minimized, and protect it with insulation to prevent condensation and heat gain. If you encounter unfamiliar wiring colors, consult the unit’s wiring diagram and, when in doubt, pause the project and seek professional guidance to prevent shocks or fire hazards.
Post-install testing and maintenance
After mounting, wiring, and sealing, perform a quality test. Power up the indoor unit, check for error codes, and verify airflow across vents. Use the included remote or wall controller to test cooling and fan speeds, and listen for abnormal noises. Inspect the condensate drain for leaks and ensure the line-set is sealed at entry points. Then monitor performance over 24–48 hours to confirm steady temperatures and energy usage. Finally, schedule a yearly check to clean filters, inspect wiring, and verify refrigerant integrity if your system allows DIY service.
Verdict and final considerations
If you are new to electrical work or refrigerant handling, consult a licensed technician. For experienced DIYers, follow the steps above and refer to the manufacturer for model-specific notes. The Install Manual team notes that safety and code compliance should guide every decision, from mounting height to line-set routing and leak testing. With careful planning, the right components, and diligent testing, a DIY mini split ac install can deliver dependable comfort while protecting warranty and long-term efficiency.
Tools & Materials
- Indoor mounting bracket kit(Includes screws and wall anchors compatible with drywall or masonry.)
- Outdoor mounting pad or bracket(Provide stable surface with airflow clearance.)
- Wall sleeve or pass-through grommet(Seal entry to minimize air leaks.)
- Refrigerant line set(Size varies by model; ensure correct line-set from the unit manufacturer.)
- Line-set insulation(Foam or flexible insulation to prevent condensation.)
- Copper piping cutter(Prepare line-set with clean cuts.)
- Pipe insulation for lines(Cover exposed pipes to reduce heat gain.)
- Wall drill and masonry bit(Create clean holes for pass-through and mounting.)
- Drill bits/driver bits set(For mounting hardware and electrical connections.)
- Wall-mounted electrical box and conduit(Protect wiring and simplify connections.)
- Electrical tester/voltage tester(Verify power is off before work.)
- Wire strippers/crimpers(Make clean, secure electrical connections.)
- Conduit, electrical tape, sealant(Wrap, seal, and protect exposed wiring.)
- Silicone sealant(Seal exterior penetrations to prevent drafts.)
- Gloves and eye protection(Personal safety gear.)
- Vacuum pump (optional)(Needed if evacuating line-set per manufacturer.)
- Manifold gauge set (optional)(For pressure testing if you have training.)
- Permits (if required)(Check local codes before starting.)

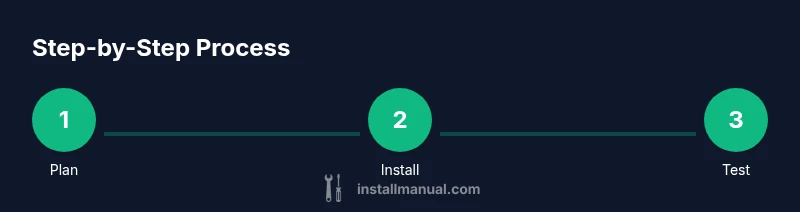

Steps
Estimated time: 3-6 hours
- 1
Plan and confirm site suitability
Evaluate room size, insulation, and layout. Confirm a clear path from indoor to outdoor unit and ensure electrical capacity matches the unit requirements. Use a simple sketch to map line-set routing and drainage slope. This planning minimizes surprises during mounting and wiring.
Tip: Double-check that the outdoor unit has access to airflow and isn’t shaded by nearby structures. - 2
Mount indoor unit bracket
Secure the mounting bracket at the chosen height using a level and sturdy fasteners. Ensure the bracket is plumb so the indoor unit sits evenly. Drill pilot holes and anchor into studs or solid masonry as appropriate.
Tip: Use a level throughout to avoid tilting the unit, which affects drainage and airflow. - 3
Drill wall and install pass-through
Create a clean pass-through hole for the line-set, condensate drain, and wiring. Use a wall sleeve or grommet to seal the hole and prevent air leaks. Keep the line-set gently curved to minimize kinks.
Tip: Seal around penetrations with silicone to prevent drafts and pests. - 4
Mount outdoor unit on pad
Place the outdoor unit on a solid, level pad with clear space around it for airflow. Secure the unit to the pad or wall bracket, ensuring it is upright and level. Verify proximity to the line-set entry point for neat routing.
Tip: Avoid locating the outdoor unit in a sheltered alcove where heat builds up. - 5
Route line-set and conduit
Run the refrigerant line set and electrical conduit from the indoor to the outdoor unit. Maintain clean bends, protect lines with insulation, and secure with clamps. Keep lines away from sharp edges and ensure the line-set angle does not trap moisture.
Tip: Keep line-set length as short as feasible to reduce charge requirements. - 6
Install condensate drain and slope
Connect the condensate drain and ensure it slopes away from the unit to prevent backflow. Test drain flow with water before sealing any exterior penetrations. Support the drain line to avoid sagging that can trap moisture.
Tip: A trap-free drain path prevents water backup and mold growth. - 7
Make electrical connections and thermostat wiring
Turn off power at the source before touching wires. Connect the external unit to the indoor unit according to the wiring diagram and secure all connections. Install any required disconnects and route the thermostat wiring to the indoor head.
Tip: Use proper wire gauges and protect exposed conductors with conduit. - 8
Evacuate air and perform leak test
If you have a vacuum pump, evacuate the line-set to remove moisture and air. Check all joints for leaks using a suitable detector or soap solution. Do not skip this step, as moisture and leaks reduce efficiency and shorten the system’s life.
Tip: Hold vacuum for at least 15 minutes and ensure no rise in pressure. - 9
Power up and test operation
Restore power, set up the remote, and verify cooling function, airflow, and temperature consistency. Listen for unusual noises and monitor for ice formation on the line-set. Record readings and adjust as needed.
Tip: Run a quick 30-minute test to catch initial issues before final sealing.
Got Questions?
Can I install a mini split ac myself?
DIY installation is possible for basic units and straightforward layouts, but refrigerant handling and certain electrical work often require a licensed technician. Always check local codes and warranty terms before starting.
You can install some DIY-friendly units, but refrigerant handling and electrical work may require a licensed pro. Check local codes first.
Do I need permits or inspections?
Permit requirements vary by locality. Contact your building department to confirm if inspections are needed after installation. Failing to obtain approvals can affect warranty and safety.
Permits depend on where you live; check with local authorities and plan for possible inspections.
Is it safe to drill through walls for a pass-through?
Only after confirming safe routing paths and avoiding electrical, gas, or plumbing lines. Use proper tools and seal penetrations to prevent leaks and pests. If unsure, hire a professional.
Drill only after you’ve mapped safe paths and protected the wall; if in doubt, hire a pro.
What maintenance does a mini split require?
Regular filter cleaning and periodic checks of the line-set and condensate drainage help maintain efficiency. Schedule an annual professional check if your model supports DIY service.
Keep filters clean and inspect the drainage regularly; plan an annual check.
Can I recharge refrigerant myself if needed?
Refrigerant charging should be performed by a licensed technician to avoid leaks and health risks. Improper charging can damage the system and void warranties.
Recharging refrigerant is generally not a DIY task; hire a pro.
Will a mini split work in very cold climates?
Many models are designed for cold climates, but performance varies by unit. Verify the operating temperature range with the manufacturer before purchasing.
Check the unit’s cold-weather specs before buying.
Watch Video
Main Points
- Plan space, capacity, and placement before mounting.
- Use proper safety gear and follow local electrical codes.
- Seal penetrations to prevent leaks and drafts.
- Test thoroughly: airflow, drainage, and cooling performance.
- Consult a professional for refrigerant handling or complex wiring.
