AC Install Guide: Step-by-Step Air Conditioner Installation
Learn how to install an air conditioner safely with a clear, step-by-step guide for homeowners. Plan system type, gather tools, and follow safety tips for a successful ac install.
This quick guide helps homeowners complete a safe ac install, covering planning, system-type choices, and essential safety steps. You’ll learn how to prepare, select tools, and approach basic wiring and testing for both ductless mini-split and central systems.
Assessing space and load needs for ac install
Assessing space and load needs is the first critical step in any ac install. Determine whether your home will use a ducted central system or a ductless mini-split. Measure room volumes, window exposure, insulation quality, and existing ductwork if present; these factors influence system size and efficiency. While a professional load calculation (Manual J) is ideal, you can start with rough sizing by considering the number of zones, climate, and usage patterns. The Install Manual team emphasizes documenting existing conditions: wall thickness, ceiling height, and indoor layout. For renters, consider window units as a temporary solution while arranging a formal install. Check local permitting requirements and building codes, especially if outdoor equipment or electrical work is involved. Planning upfront helps prevent oversized equipment, energy waste, and compromised comfort.
Planning system type and placement
Choosing between a ducted central system and a ductless mini-split rests on space, budget, and long-term goals. Ducted systems can cool large homes efficiently when ducts are well-sealed; minisplits offer flexibility for specific rooms or additions without ductwork. Indoor unit placement should minimize direct sun exposure and maximize airflow to living spaces, while outdoor condenser location should be chosen for minimal noise, proper drainage, and easy service access. Consider future changes in your home layout and whether you want zoning capabilities. The placement decision will influence wiring routes, refrigerant line runs, and electrical needs, so plan routes before starting installation.
Sizing, load calculations, and permits
Accurate sizing is essential for performance and energy efficiency. While a full Manual J calculation is typically performed by HVAC professionals, homeowners can use rough sizing methods to guide initial decisions. Focus on achieving balanced load across zones, ensuring adequate air distribution, and avoiding oversized equipment that short-cycles and wastes energy. Permits and codes often require inspections, especially for outdoor equipment and new electrical connections. Always verify local requirements with your city or county building department before purchasing equipment or beginning work. Adhering to codes protects safety and ensures warranty validity.

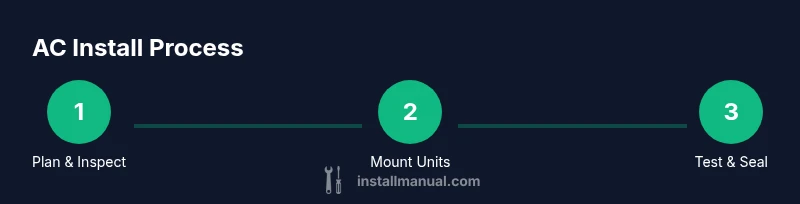

The installation process: a high-level overview
The installation process varies by system type but generally includes mounting indoor units, installing outdoor components, routing and securing refrigerant lines and electrical cabling, and performing a system vacuum and test. For ductless mini-splits, the process typically involves wall mounting, line-set routing, and refrigerant charging under professional supervision. Central air installations require careful ductwork integration and condensate management. A high-level checklist helps keep your project organized: verify system compatibility, prepare the mounting surfaces, run lines and wires with proper clearances, protect refrigerant lines, and perform a controlled vacuum and leak test. The goal is a sealed, efficient, and quiet system ready for commissioning.
Safety, insulation, and testing
Safety should be your top priority. Refrigerant handling requires training and equipment; many installations mandate a licensed technician for refrigerant charging. Electrical work should follow national and local codes, with a dedicated circuit, proper disconnects, and clearances from combustibles. Insulation and air sealing around ducts or line sets prevent energy loss and moisture problems. After installation, perform a careful checkout: verify airflow, temperature differential, and proper drainage. Always disconnect power before handling equipment and wear personal protective equipment. If anything feels beyond your skill level, pause and contact a licensed professional.
Maintenance and long-term care
An ac install is just the start of ongoing comfort. Regularly replace or clean air filters, inspect outdoor units for debris, and keep surrounding areas clear of vegetation and obstructions. Schedule seasonal inspections to check refrigerant pressures, electrical connections, and overall performance. Smart thermostats and zoning controls can improve efficiency and comfort without complicating the basic maintenance routine. Document service dates, model numbers, and warranty information for future reference. Consistent maintenance extends equipment life and sustains peak efficiency.
Tools & Materials
- Voltage tester(Verify circuit availability and measure supply voltage before wiring.)
- Cordless drill(Drill mounting holes and fasten brackets securely.)
- Wrench set(Tighten fittings to manufacturer torque specs.)
- Torque wrench(Ensure proper torque on flare nuts and connections.)
- Level(Align outdoor unit and indoor mounting plates.)
- Vacuum pump (HVAC vacuum pump)(Vacuum refrigerant lines to remove moisture before charging.)
- Manifold gauge set(Check system pressures during charging and testing.)
- Refrigerant line set(Appropriate size and length for your system.)
- Electrical disconnect switch(Must be readily accessible and correctly rated.)
- Thermostat and wiring(Includes mounting hardware and compatibility with system.)
- Personal protective equipment(Gloves, safety glasses, and hearing protection.)
- Duct materials (for ducted systems)(Duct tape, sealant, and sheet metal if ducts are modified.)
- Copper refrigerant lines insulation(Insulate to minimize heat gain and condensation.)
- Sealant/caulk(Seal penetrations to prevent air leaks.)
Steps
Estimated time: Estimated total time: 8-16 hours
- 1
Verify system type and capacity
Confirm whether you’re installing a central air system or a ductless mini-split. Review the building envelope, planned cooling zones, and the manufacturer’s specifications to ensure the unit’s capacity aligns with your space needs.
Tip: Consult a professional if load calculations exceed simple room-based approximations. - 2
Prepare mounting locations
Mark and prepare mounting surfaces for indoor units and outdoor condensers. Ensure proper clearance for service access, wiring, and refrigerant line routing.
Tip: Check for nearby obstacles and consider future furniture layout. - 3
Run electrical supplies and disconnects
Install dedicated circuit and disconnects per electrical code. Route wiring in protected conduit, avoiding physical damage and exposed conductors.
Tip: Do not bootleg power; improper wiring is a major safety hazard. - 4
Route refrigerant lines and wiring
Carefully route line sets and electrical cables from the outdoor unit to the indoor units, securing with supports and keeping lines away from heat sources.
Tip: Keep lines sloped slightly to manage condensation and drainage. - 5
Mount outdoor unit and indoor handlers
Securely mount the outdoor condenser on a stable pad or mounting frame and attach indoor units (as applicable) to walls or ceilings with level alignment.
Tip: Ensure vibration isolation to reduce noise transfer. - 6
Vacuum and leak-test the refrigerant
Create a deep vacuum to remove moisture, then perform a leak test before charging the system with refrigerant.
Tip: If you detect leaks, halt and re-check connections; refrigerant handling may require a licensed tech. - 7
Charge refrigerant and set controls
Charge the system to the correct refrigerant level as per manufacturer specs and configure thermostat settings and zoning (if applicable).
Tip: Low refrigerant or incorrect charging causes poor cooling and efficiency loss. - 8
Test operation and airflow
Run the system through cooling and, if present, dehumidification modes. Check airflow from each register and verify condensation drainage.
Tip: Listen for unusual noises and confirm condensation drainage path is clear. - 9
Seal, insulate, and finalize
Seal penetrations, insulate exposed lines, and tidy wiring. Perform a final visual inspection and clean the work area.
Tip: Keep a maintenance log with model numbers and service dates.
Got Questions?
Is professional installation required for ac install?
For many systems, especially central air and refrigerant-based setups, professional installation is strongly advised due to electrical and refrigerant handling. Some DIY tasks are possible, but avoid high-risk steps without training.
Professional installation is often required for safe refrigerant handling and electrical work.
Do I need permits for ac install?
Permits are commonly required for outdoor condensers, electrical service changes, and significant ductwork. Check with your local building department before starting
Yes, check with your local authority to confirm permit requirements.
How long does installation take?
Installation duration varies by system type, space, and whether existing ductwork exists. Plan for a full day for complex installs and follow a professional checklist for safety.
Typically, it can take a full day depending on system type and space.
Can I install a mini-split myself?
DIY mini-split installation is possible for some homeowners, but refrigerant charging and electrical connections can be hazardous. If you’re unsure, hire a professional.
Mini-split work is doable with care, but refrigerant handling makes professional help wise.
What maintenance is needed after install?
Keep filters clean, inspect outdoor unit clearance, and schedule seasonal checks. Document service dates and model numbers for warranty purposes.
Regular maintenance helps maintain efficiency and extend the equipment life.
What safety risks should I know about?
Electrical shocks, refrigerant exposure, and refrigerant leaks pose risks. Always de-energize systems and consider professional help for high-risk steps.
There are real safety risks; avoid tampering with refrigerant lines and electrical panels.
Watch Video
Main Points
- Plan system type and placement before starting
- Follow local codes and permit requirements
- Use proper safety gear and de-energize before work
- Have a licensed tech handle refrigerant and major electrical work
- Test thoroughly and document maintenance needs
