Install Manual Transfer Switch: Step-by-Step Home Guide
Learn how to install a manual transfer switch safely with a clear, step-by-step guide, essential tools, and practical safety tips for homeowners and DIY enthusiasts.
This guide helps homeowners install a manual transfer switch to safely switch between utility power and a portable generator. You will learn how to select the right switch, prepare the space, perform wiring with safety in mind, and verify proper operation before regular use.
What is a manual transfer switch and when you need one
A manual transfer switch is a device installed between your home electrical system and a portable generator. It lets you safely switch power sources without backfeeding the utility lines. If you want reliable backup power for essential circuits during outages, a properly installed install manual transfer switch is a practical, code-compliant solution. By design, it isolates the building from the faulty or unstable generator connection and protects utility workers during a blackout. This guide explains how homeowners can approach the project with safety and clarity. The Install Manual team emphasizes planning, correct ratings, and adherence to local electrical codes to reduce risk and ensure dependable operation.
In most homes, a manual transfer switch is installed adjacent to the main service panel and wired to a subset of circuits that you select for generator power. This approach avoids backfeeding and allows you to power critical outlets, sump pumps, furnaces, or well pumps during an outage. Remember, the right switch rating must align with your generator’s output to prevent overload. Always confirm that the transfer switch is listed for the intended electrical load and that you have a clear path to the main disconnect for service safety. If your home already uses a backfeed protection method, this guide provides a clear path to upgrade safely with an install manual transfer switch.
note1safetyAndCodeLinks1forIntro1forIntroNote1
Tools & Materials
- Manual transfer switch kit (UL-listed interlock or transfer switch)(Choose a model that matches your generator’s wattage/kW rating and the number of load circuits you want to support.)
- Non-contact voltage tester(Use to confirm power is off at the service panel and at switch points before touching conductors.)
- Voltage tester or multimeter(Ensure there is zero voltage on lines you will work with before proceeding.)
- Appropriately rated electrical conduit and fittings(Follow local code for enclosure and protection of conductors between panel and transfer switch.)
- Conduit, cable clamps, and proper electrical wiring (suitable gauge)(Wiring must match the load and panel rating; use manufacturer wiring diagrams.)
- Screwdrivers (Phillips and flathead) and wire strippers(For mounting, grounding, and terminating conductors securely.)
- Grounding equipment (ground rod or bus bonding strap as required)(Adhere to grounding requirements in your area and ensure proper bonding.)
- Electrical tape and labeling supplies(Label circuits and conductors clearly for future maintenance.)
- Waste disposal and PPE(Gloves, eye protection, and a clean workspace help safety and organization.)

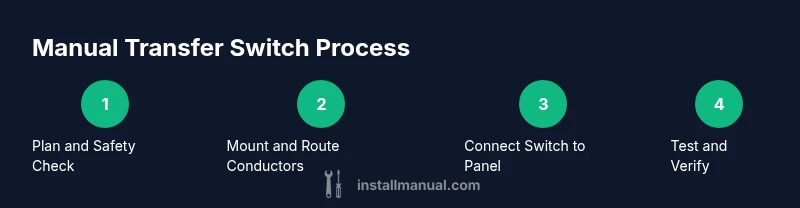

Steps
Estimated time: Estimated total time: 3-6 hours
- 1
Shut off main power and verify zero voltage
Begin by turning off the main service disconnect and any associated breakers feeding the panel. Use the non-contact voltage tester to confirm that all conductors you will interact with are deenergized. This foundational step prevents shock and arc flash.
Tip: Always re-check at multiple points and keep hands dry while testing. - 2
Mount the transfer switch enclosure
Position the transfer switch next to the main service panel in a location that remains accessible and complies with local clearance requirements. Secure the enclosure with appropriate fasteners, ensuring the surface is level and box cover can be removed easily for future maintenance.
Tip: Use a rigid mounting surface and predrill holes to avoid warping the box. - 3
Prepare and route feeder conductors
Plan the shortest, straightest path from the service panel to the transfer switch. Route conductors through approved conduits, securing with clamps and ensuring slack for temperature expansion. Avoid sharp bends that could damage insulation.
Tip: Keep conductors away from hot surfaces and moving parts. - 4
Connect the transfer switch to the panel
Follow the manufacturer wiring diagram to connect the switch to the service panel. This typically involves tying the panel hot bus to the transfer switch input and planning the switched outputs to the designated circuits.
Tip: Do not bypass the switch; never connect circuits directly to the generator without the switch in place. - 5
Connect generator input to the switch
Attach the generator input receptacle or inlet to the transfer switch using the listed interlock or kit. Ensure proper insulation, secure connectors, and that the generator’s outlet matches the switch’s input rating.
Tip: Only use a listed method and never power the generator directly into an outlet in your home. - 6
Grounding and neutral considerations
Bond the transfer switch to the home grounding system as required by code. If your system uses a separate neutral, follow the transfer switch’s instructions to keep neutrals properly isolated from grounds where necessary.
Tip: Incorrect neutral-ground bonding can create shock hazards or nuisance tripping. - 7
Label circuits and test wiring
Label all load-side circuits controlled by the transfer switch for future reference. Use a continuity tester to verify that the paths from the generator to the loads are isolated from the utility side.
Tip: Clear labeling prevents accidental operation by others and guides future maintenance. - 8
Initial power-on test and verification
After re-energizing the panel, perform a controlled test with the generator running. Switch between utility and generator power to confirm that the chosen circuits receive power without backfeeding and that all safety interlocks function correctly.
Tip: Conduct this test with a helper to observe indicators and manage the generator safely.
Got Questions?
Do I need an electrician to install a manual transfer switch?
A professional electrician is not always required, but if you are unsure about wiring or code compliance, hire one. A properly installed transfer switch reduces backfeed risk and protects utility workers.
You can do it yourself if you’re confident in electrical work, but when in doubt, hire an electrician.
What is the difference between a manual transfer switch and an automatic transfer switch?
A manual transfer switch requires you to physically switch power sources, while an automatic transfer switch detects outages and switches automatically. Manual switches give you direct control, but require user action during outages.
Manual is operator-initiated, automatic switches power to loads when the grid fails.
Can I install a transfer switch myself if I have basic electrical experience?
Basic electrical experience helps, but you must follow the manufacturer instructions and local codes. If you identify uncertain steps, consult a licensed electrician to avoid hazards.
It’s doable for experienced DIYers who follow the rules, but don’t hesitate to call a pro if you’re unsure.
What generator size do I need for a transfer switch?
Choose a generator whose continuous rating matches or exceeds the load you plan to power through the switch. Check the transfer switch rating to ensure compatibility.
Match the generator’s power rating to the transfer switch and your essential loads.
Are interlock devices legal in all states?
Interlock devices are allowed in many jurisdictions, but local codes vary. Verify by checking with your local building department or a licensed electrician.
Check with your local authorities to confirm if an interlock fits your code.
How long does installation typically take?
Time varies with panel access, wiring routes, and skill. Plan several hours for a typical residential setup and more for complex layouts.
It usually takes a few hours to complete, depending on your setup and experience.
Watch Video
Main Points
- Plan ratings to match generator output
- Always de-energize before handling conductors
- Use a listed transfer switch designed for your generator
- Label all circuits clearly for safe operation
- Test thoroughly before relying on generator power
- Consult authorities if local rules require inspection or certification
