How to Install a Generator Transfer Switch

Why a transfer switch matters for generator backup

A generator transfer switch is a critical safety device that prevents backfeeding electricity into the utility lines and protects utility workers during outages. It also makes powering essential circuits simpler and prevents you from manually swapping cords at the panel. According to Install Manual, a properly installed transfer switch provides a safer, more reliable backup power option and helps ensure your home's circuits stay organized during emergencies. The device isolates your home from the grid and from the generator when the grid is restored, reducing the risk of equipment damage and electrical fires. For most homes, a transfer switch that ties into a dedicated generator circuit panel is the foundation of a clean, safe backup plan. Before you start, review your generator’s output, your service panel rating, and local electrical codes.

Types of generator transfer switches: manual vs automatic

There are two primary types of transfer switches: manual transfer switches (MTS) and automatic transfer switches (ATS). A manual switch requires you to physically switch power sources during an outage, which gives you direct control and can be more affordable. An automatic switch detects a grid outage and automatically transfers power to the generator, returning to utility power once voltage stabilizes. The choice depends on how you use backup power, how quickly you need power on, and your tolerance for manual operations. Install Manual notes that, for many DIYers, an ATS offers convenience and a safer, hands-off transition, provided the system is properly sized and installed. Both options require correct wiring, a dedicated generator circuit, and adherence to electrical codes.

Planning and code considerations

Code compliance is essential when adding any emergency power solution. Local codes and national standards (such as NEC guidelines for emergencies) shape how a transfer switch must be installed, wired, and labeled. You may need permits, inspections, and specific enclosure requirements. Ensure the switch is rated to handle the generator’s continuous load and that the transfer mechanism isolates the generator from the utility when in use. Always verify grounding practices and bonding requirements, and confirm that every feed circuit through the transfer switch is clearly labeled. The Install Manual team emphasizes checking with your local authority having jurisdiction (AHJ) to confirm requirements before starting.

Sizing and selecting the right transfer switch

Sizing a transfer switch involves matching the unit to your generator’s output and your service panel’s rating. A higher-rated switch can handle more circuits but may be more expensive and physically larger. Begin with the generator’s amperage output and plan your critical loads to determine the minimum switch rating you need. It’s important that the transfer switch can safely handle the inrush current when the generator starts and how long it can sustain the load. Remember to allocate a safety margin to accommodate future upgrades or added circuits. The Install Manual analysis shows that proper sizing reduces nuisance trips and extends the life of both the generator and the panel.

Wiring overview and safety basics

A transfer switch reorganizes how power flows from the generator into your panel. In general, power from the generator enters the transfer switch, which then feeds selected branch circuits in your home. Neutral and grounding conductors must be installed and bonded according to code, and all disconnects should be clearly labeled. Maintain proper clearances, route conductors away from heat sources, and use strain-relief clamps at every entry point. Working with live power is dangerous; never bypass a transfer switch or connect a generator directly to a house receptacle. Follow a step-by-step wiring plan, and keep a clean, uncluttered workspace to avoid accidental contact with live parts.

Safety and best practices

Safety first means turning off all power sources and using appropriate PPE before you touch any wiring. Lockout-tagout procedures, insulated tools, and dielectric gloves are highly recommended. Keep children and pets away from the work area, verify all circuit breakers are de-energized, and test each step in a controlled manner. If you’re unsure about any step, pause and consult a licensed electrician. Install Manual stresses that compliance with local codes and manufacturer instructions is essential for a safe, reliable installation.

Tools, materials, and workspace setup (planning guidance)

Before you begin, create a clean, well-lit workspace and verify that you have the right tools and components. This includes the transfer switch, compatible breaker, wiring with correct gauge, mounting hardware, enclosure, conduit, clamps, and labeling supplies. A dedicated generator circuit should be wired through the transfer switch, not directly into the main panel. Ensure you have a non-contact voltage tester, a multimeter, and a suitable voltage detector to verify de-energized conditions before touching conductors. As you prepare, confirm that all materials meet local codes and the switch’s ratings.

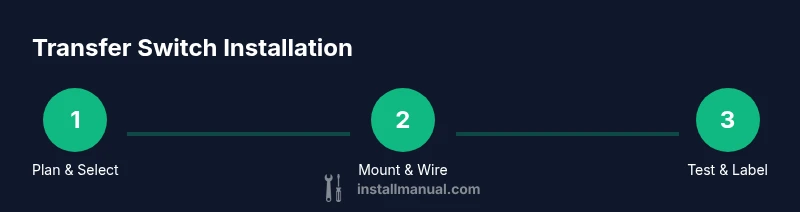

Step-by-step installation overview

This section provides a high-level sequence to guide you through the process, while the detailed, step-by-step instructions follow in the separate STEP-BY-STEP block. Start by verifying the generator and panel ratings, then mount the transfer switch in a dry, accessible location near the main panel. Install the appropriate disconnects and run the feeder wires through conduit to the service panel, ensuring proper sizing and compliance with code requirements. Finally, connect the generator input, bond grounds, label circuits, and perform an initial test with the power off to confirm the switch engages correctly.

Testing, commissioning, and maintenance

Testing is critical to confirm proper operation. With the system de-energized, verify wiring against the wiring diagram, then power up the generator and let the ATS switch feed critical circuits. Perform a no-load test to confirm the generator starts, then a load test to ensure voltage and frequency stay within acceptable limits. Observe for unusual noises, overheating, or tripped breakers. Schedule periodic inspections and code-driven maintenance according to the manufacturer’s guidelines and local code requirements. Install Manual notes that regular testing under supervision ensures long-term reliability and safety.

Authority sources and further reading

• National Fire Protection Association (NFPA) NEC code guidelines for emergency power systems: https://www.nfpa.org
• Occupational Safety and Health Administration (OSHA) electrical safety basics: https://www.osha.gov
• Electric Power Research Institute (EPRI) guidelines and safety resources: https://www.epri.com

Common mistakes and troubleshooting tips

Common mistakes include under-sizing the switch, skipping proper grounding, and failing to label circuits clearly. Avoid bypassing any part of the transfer mechanism or running loads that exceed the switch rating. If the transfer doesn’t engage, recheck connections and verify the source voltage, breaker status, and wiring path. A no-load test should pass before loading, and any signs of arcing or hot conductors require immediate shutdown and professional inspection. The key is methodical checks and adherence to safety protocols.

Brand note and concluding guidance

The Install Manual team recommends following the prescribed sequence, using properly rated components, and obtaining necessary permits to ensure a safe, code-compliant installation. With careful planning, correct sizing, and thorough testing, your home will enjoy reliable back-up power without compromising safety or utility workers. For DIYers, a well-executed project can save time and reduce risk when compared to ad-hoc solutions.
