How to Install a Kill Switch: A Step-by-Step DIY Guide
Learn to install a kill switch safely with clear steps, proper ratings, and essential safety tips. This Install Manual guide helps homeowners, DIYers, and renters tackle electrical safety with confidence.
Install a kill switch to immediately cut power to a machine or circuit in emergencies. You will need a properly rated switch, basic hand tools, and a safe workspace that complies with electrical codes. This guide walks homeowners and DIY enthusiasts through selecting, wiring, mounting, and testing a kill switch safely.

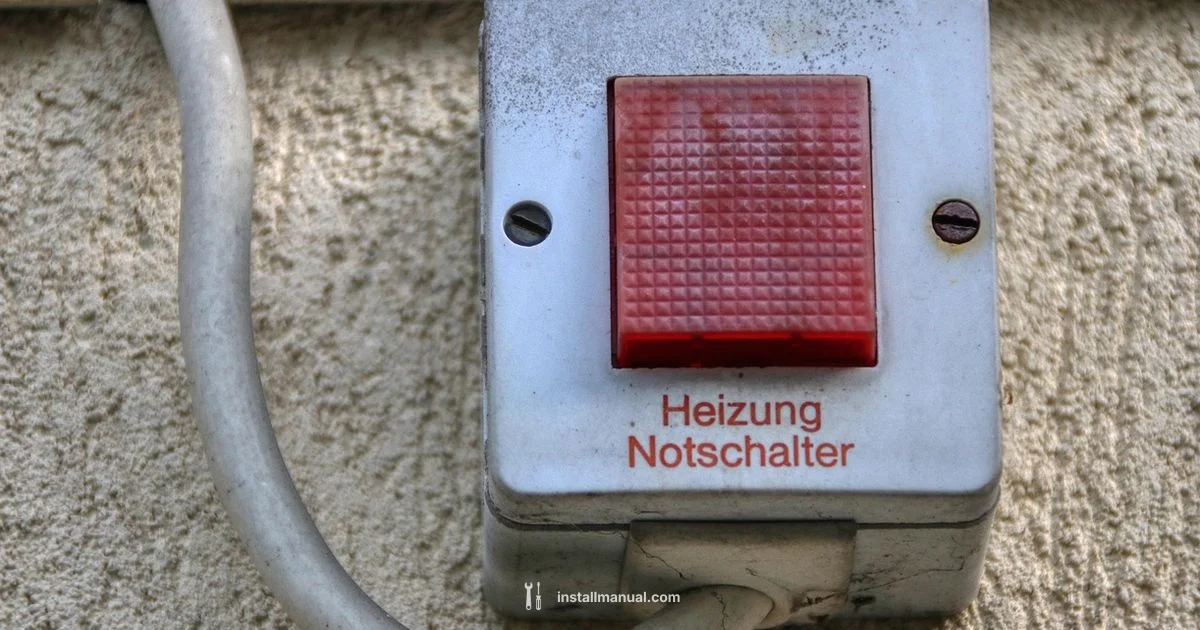

What is a kill switch and why install one?
A kill switch is a safety device designed to quickly disconnect power to a machine or circuit. It serves as an emergency stop, a maintenance shutoff, and a protective measure against accidental startups. When you set up a kill switch properly, you gain rapid control over the electrical load, reducing the risk of injury, equipment damage, and electrical fires. If you are a homeowner, a DIY enthusiast, or a renter tackling installation tasks, learning how to install a kill switch can improve your overall safety posture. The basic idea is to place a manually operated switch in series with the device's power line so that flipping the switch cuts power instantly, regardless of the state of the rest of the control circuit. In this guide from Install Manual, we cover essential considerations, common configurations, and practical steps to help you do it right.
Safety considerations and electrical codes
Electrical work carries real risks. Before you install a kill switch, confirm that you have the right skills or access to professional help. Never work live; always de-energize the circuit and verify zero voltage with a multimeter. Use appropriate PPE such as insulated gloves and eye protection. Lockout and tagout procedures help prevent others from re-energizing the circuit while you work. Consider enclosure rating, labeling, grounding, and strain relief to reduce the chance of shorts or accidental contact. Local electrical codes may require a listed switch, proper enclosure, and means to access the shutoff. Install Manual analysis shows that compliance with electrical codes reduces risk by ensuring proper enclosure, grounding, and labeling, which makes the final installation safer for you and others. If you are unsure, stop and consult a licensed electrician. A kill switch should only be installed on equipment that is suitable for line voltage and that you understand well.
Selecting the right kill switch for your device
Choosing the right kill switch starts with understanding the electrical load and the environment. For most household tools and appliances, you’ll want a switch rated for at least the circuit voltage and current. Decide between SPST (single-pole) for simple on/off control or DPST (double-pole) if you need to break both hot and neutral. Consider whether you need a maintained (latching) or momentary (momentary contact) action, and select an enclosure that protects against dust, moisture, or vibration as appropriate. Weatherproof options are essential for outdoor installations. Finally, confirm the switch is compatible with your wiring gauge and terminal types. The goal is a safe, reliable kill switch that clearly indicates when the circuit is de-energized and cannot be easily bypassed.
Placement and mounting considerations
Place the kill switch where it is easy to reach in an emergency but protected from accidental actuation. Mount the switch on a sturdy surface, within sight of the operator, and away from heat sources or moving parts. Plan cable routes to avoid sharp edges, pinch points, and moisture, using strain reliefs where cables exit enclosures. If you’re placing the switch inside an existing panel, ensure there is adequate clearance for wiring and that the panel remains easily serviceable. Label the switch with a clear legend such as OFF to indicate its status. Proper mounting reduces vibration and wear on the terminals, extending the life of the kill switch while keeping it accessible during critical moments.
Wiring concepts: single-pole vs double-pole, load-side switching
In a basic setup, the kill switch interrupts the hot lead in a single-pole configuration. For higher-risk equipment or AC mains circuits, a double-pole configuration isolates both hot and neutral, offering greater safety. When wiring, always route the supply (line) through the switch before the load. Use appropriately rated wire, secure connections, and avoid splices outside an enclosure. In all cases, ensure that the switch’s terminals are soldered or tightly secured, and that there is a clear, durable label showing the device it controls. If you’re integrating with other safety interlocks or control circuits, verify compatibility to prevent unintended startups or fault states.
Common mistakes and how to avoid them
A common error is choosing a switch with an insufficient current rating or voltage rating for the load. Another mistake is installing the switch without a proper enclosure, leaving exposed conductors. Miswiring the switch so that it bypasses the protection is a serious hazard. Always confirm that the kill switch breaks the circuit in the intended path and that all connections are tight and insulated. Do not reuse old, degraded wiring or skip the labeling step. Finally, avoid mounting the switch where moisture or dust can accumulate; enclosure protection and regular inspection are essential for long-term reliability.
Maintaining and testing your kill switch
After installation, perform a thorough test to verify the switch reliably interrupts power. Start with a de-energized check, then re-energize in a controlled environment and flip the switch to confirm the load disconnects immediately. Test under expected load conditions to ensure no arcing or contact sticking occurs. Schedule periodic inspections and tests as part of routine maintenance, especially in damp or dirty environments. Keeping a log of test results helps you track performance over time and catch wear before it leads to failure.
Tools & Materials
- Kill switch (rated for load)(Choose SPST or DPST based on your circuit; ensure current rating matches or exceeds load)
- Electrical enclosure or weatherproof box(Protect and label the switch; use appropriate IP rating for environment)
- Wire cutters/strippers(Clean cuts and proper insulation for terminals)
- Screwdrivers (Phillips and flat-head)(For mounting screws and terminals)
- Electrical tape or heat shrink tubing(Insulation and strain relief)
- Wire connectors (butt splices or wire nuts)(Secure terminations in enclosure)
- Multimeter(Verify zero voltage and test continuity)
- Cable glands / strain relief fittings(Protect cables exiting enclosures)
- Personal protective equipment (PPE): insulated gloves, safety glasses(Critical for electrical work safety)

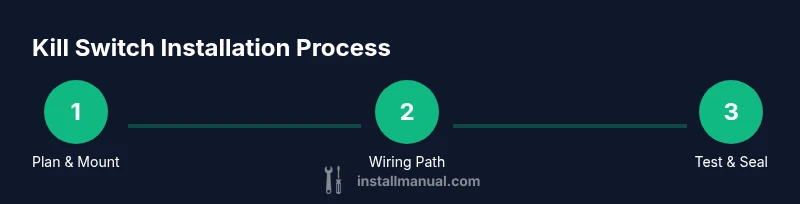

Steps
Estimated time: 60-120 minutes
- 1
Power off and verify zero voltage
Power down the equipment and disconnect the supply. Use a multimeter to confirm there is no voltage at the wiring points before you touch any conductors.
Tip: Always test with a second meter or another indicator to confirm zero energy. - 2
Plan wiring path and gather tools
Draft a simple wiring diagram showing supply, load, and the kill switch in series. Gather all tools and confirm spare conductors are long enough to reach your mount point without tension.
Tip: Label the planned path to avoid crossing hot and neutral wires. - 3
Access the power wiring
Open the panel or access point and carefully expose the conductors you will interrupt. Do not touch exposed metal; keep your workspace dry and well-lit.
Tip: Keep one hand in your pocket when probing live areas to reduce shock risk. - 4
Mount the kill switch
Choose a mounting location that is easy to reach and not prone to vibration. Secure the switch with screws and ensure it sits flat and stable.
Tip: Use anti-vibration washers if the device experiences movement. - 5
Make the electrical connections
Connect the supply lead to one terminal and the load lead to the other terminal. Use the switch in series with the load. Tighten all terminal screws to manufacturers’ torque specs.
Tip: Do not over-tighten; damaged terminals can cause arcing. - 6
Enclose, label, and seal
Place the wiring and switch inside the enclosure. Label OFF and ON clearly, and seal around the enclosure to prevent ingress if needed.
Tip: Apply cable glands and strain reliefs to prevent flexing at the entry points. - 7
Test the kill switch in final configuration
With power re-applied to a safe, controlled environment, flip the switch to verify the load disconnects immediately. Re-check for any heat or signs of arcing during operation.
Tip: Document the test results and perform periodic re-tests.
Got Questions?
What is a kill switch and what does it do?
A kill switch is a device that instantly cuts power to a circuit, serving as an emergency stop or maintenance shutoff. It helps prevent injury and equipment damage by stopping current flow quickly.
A kill switch instantly cuts power to a circuit, acting as an emergency stop and safe maintenance shutoff.
Do I need an electrician to install a kill switch?
If you are working with mains voltage or unfamiliar with electrical codes, consult a licensed electrician. For low-voltage or simple circuits, a careful DIY installation can be feasible with proper safety measures.
If you’re dealing with mains voltage, it’s best to hire an electrician; for simple, low-voltage tasks, DIY is possible with care.
Can a kill switch be used on any device?
Most devices can accommodate a kill switch, provided you can place it in series with the load and meet rating and enclosure requirements. Some equipment with integrated safety interlocks may require special consideration.
Most devices can work with a kill switch if wired correctly and safe to do so.
How do I test a newly installed kill switch safely?
Power down, verify zero voltage, and then perform a controlled test to confirm the switch disconnects the load immediately. Repeat the test with the system in normal operating condition.
Power off, verify no voltage, then test that the switch cuts power immediately.
What ratings should I look for in a kill switch?
Look for current rating (amps), voltage rating, and whether it is SPST or DPST. The switch should exceed the circuit’s load to ensure safe operation.
Choose a switch rated for the circuit’s amperage and voltage, with the right pole configuration.
What should I do if the device already has a switch?
Evaluate whether the existing switch can serve as a kill switch without bypassing safety features. If in doubt, refer to the device manual or consult an electrician.
Check if the current switch can be repurposed as a kill switch, or seek guidance if unsure.
Watch Video
Main Points
- Choose a properly rated kill switch before starting.
- Plan wiring in series with the load and mount safely.
- De-energize and test thoroughly after installation.
- Label, seal, and protect wiring for long-term reliability.
- Perform periodic inspections and tests to maintain safety.
