Install a 4-Wire Dryer Plug: Comprehensive DIY Guide
Learn how to safely install a 4-wire dryer plug with clear, homeowner-friendly steps. This guide covers code basics, necessary tools, step-by-step wiring, safety tips, and where to find authoritative references.
This guide helps homeowners and DIY enthusiasts install a 4-wire dryer plug safely and code-compliantly. You’ll verify compatibility, gather the right tools, and follow a clear, step-by-step process to replace or upgrade a dryer cord. Safety remains the priority: power off, check local codes, and know when to call a licensed electrician. Expect to complete the task in about an hour or more depending on setup.
Why install 4-wire dryer plug matters
According to Install Manual, upgrading to a 4-wire dryer plug is a safety-first update that aligns with modern electrical codes. The previous 3-wire configuration used a shared neutral and grounding path, which could pose a shock risk under fault conditions. The Install Manual team found that most residential dryers operate on a 240V circuit and require a dedicated grounding conductor for safe operation. By using a properly wired four-prong plug, you establish a distinct ground path, isolate the neutral, and improve appliance safety and performance. This guide is designed for homeowners, DIY enthusiasts, and renters who want to perform a compliant conversion with confidence, while recognizing when professional help is the safer choice.
Code basics and safety considerations
Upgrading to a four-wire system is widely recommended to meet current electrical safety standards. The core principle is to separate ground and neutral so that fault currents travel along a dedicated grounding path rather than through the neutral wiring. This separation reduces shock risk and helps protect sensitive dryer components. While local amendments vary, most jurisdictions require a four-conductor cord and a properly installed outlet for new dryers or when replacing older cords. The Install Manual team emphasizes following the National Electrical Code (NEC) guidance and your dryer's manufacturer instructions. If you are unsure about code applicability, consult a licensed electrician or your local building authority.
Preparing your workspace and confirming compatibility
Before touching any wires, confirm that your dryer and outlet are compatible with a four-wire plug. Inspect the receptacle (NEMA 14-30 or equivalent) and verify the circuit is not shared with other devices. Identify the dryer’s cord and terminal block type, and check the dryer’s rating and the circuit’s amperage to ensure the cord and plug are appropriate. It helps to photograph the existing arrangement for reference and to label each conductor color before disassembly. The goal is to create a clean, organized connection that follows the manufacturer’s wiring diagram and local regulations. If any doubt remains, pause work and seek professional guidance. The goal is a safe, reliable installation that minimizes shock risk and ensures proper operation of the dryer.
Wiring concepts and conductor roles (theory you’ll apply)
A four-wire setup uses two hot conductors, one neutral, and one ground. When wiring the plug, you connect the two hot legs to the two hot terminals, connect neutral to the neutral terminal, and attach the ground conductor to the grounding screw. Do not bond neutral to ground at the dryer once you’ve upgraded to four wires. This separation is critical for safety and for reducing potential electrical noise that could affect appliance electronics. While it’s possible to see color conventions change by region, the underlying idea is consistent: maintain a clear, separate path for grounding and for neutral.

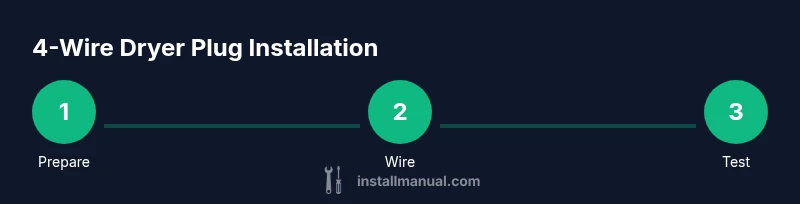

Step-by-step overview of the process
Understanding the steps helps you stay organized and safe even if you’re new to electrical work. Expect to work methodically, with power off, and to test each connection as you go. The process involves removing the old cord or plug, preparing the new four-wire assembly, mounting the plug, making the four connections according to color/terminal designations, securing the strain relief clamp, and performing a test run on a de-energized circuit. Throughout, keep the work area dry, use insulated tools, and double-check all screws for tightness. The Install Manual approach emphasizes verifying compatibility, following the exact manufacturer diagram, and stopping if you encounter corrosion or damaged terminals.
Tools, materials, and safety gear you’ll use
A four-wire dryer plug installation typically requires a four-conductor dryer cord, a four-prong plug, a screwdriver set, wire strippers, a voltage tester, electrical tape or heat-shrink tubing, and appropriate clamps. Wear safety glasses and gloves to protect yourself from sharp edges. Keep a clear workspace and avoid metal jewelry that could accidentally contact live terminals. If the dryer or outlet shows signs of damage, or if the wiring looks burned or corroded, do not proceed and seek professional help. This project assumes you’re working on a de-energized circuit and that you have a clear, dry workspace.
Common mistakes and how to avoid them
Going fast can cause skipped steps or miswired connections. Avoid mixing up neutral and ground, which can create a shock hazard or fault conditions. Do not force a cord or plug into terminals not designed for them, and never bypass the strain-relief clamp. Ensure each conductor is firmly attached to the correct terminal and that the terminals are clean and free of corrosion. After wiring, verify there are no loose wires and that the cord is routed without tight bends. Finally, perform a careful post-install test with a voltage tester on a de-energized circuit before plugging the dryer into power.
Authority sources and further reading
For authoritative guidance on electrical safety and dryer installations, consult select federal and university resources. The Occupational Safety and Health Administration (OSHA) provides general electrical safety guidelines for home work, while NFPA offers consumer safety tips on electrical outlets and clothes-dryer safety. University extension resources also cover basic home wiring safety and code compliance. These sources help you verify best practices and stay aligned with current safety standards. See the sources listed below for deeper reading and updates.
Final check and next steps
When you’ve completed the wiring, re-check every connection, mount the plug securely, and restore power only to run a controlled test. If the dryer runs without tripping breakers and without buzzing or heat buildup at the plug, you’ve achieved a successful install. If you encounter any irregularities, stop immediately and consult a licensed electrician. This project is a solid DIY task for many homeowners, but safety and local code compliance must always come first. The Install Manual approach is to proceed with caution and verify outcomes at every stage.
Tools & Materials
- 4-wire dryer plug (4-prong, compatible with 240V dryers)(Ensure rating matches your circuit and dryer output; confirm compatibility with NEMA 14-30 or equivalent.)
- 4-conductor dryer cord(Use a cord rated for the dryer's amperage; check manufacturer guidance.)
- Screwdriver set (Phillips #2 and flathead)(For terminal screws and clamp screws.)
- Wire stripper/cutter(Cleanly strip insulation without nicking conductors.)
- Non-contact voltage tester(Verify power is off before touching conductors.)
- Electrical tape or heat-shrink tubing(Insulate connections and seal exposed conductors.)
- Wire nuts or crimp connectors for 4 conductors(Use appropriate connectors for four separate conductors.)
- Voltage tester or multimeter (optional but recommended)(Helpful for verifying post-install voltages.)
- Safety gear: gloves and safety glasses(Personal protection during disassembly and wiring.)
- Pliers(Useful for bending conductors and guiding wires.)
Steps
Estimated time: 60-90 minutes
- 1
Power off and verify de-energized
Turn off the dryer at the circuit breaker and confirm the outlet is de-energized using a voltage tester. This prevents shocks while you work on conductors and the new plug.
Tip: Double-check the circuit with the tester before touching any wires. - 2
Remove old outlet/plug and access the terminal block
Carefully detach the existing cord or plug from the dryer, noting which wire connected to which terminal. Take photos or label conductors to guide reattachment on the new plug.
Tip: Keep track of ground and neutral paths to avoid cross-connections. - 3
Prepare the new plug and cord
Unpackage the four-wire plug and prepare the four-conductor cord. Strip insulation, leaving appropriate conductor length for secure terminal connections, and inspect conductors for nicks.
Tip: Avoid damaging the conductor strands during stripping. - 4
Attach conductors to the plug terminals
Connect two hot conductors to the two hot terminals, connect the neutral conductor to the neutral terminal, and connect the ground conductor to the grounding screw or terminal. Tighten screws firmly without over-tightening.
Tip: Ensure there is no loose wire exposed beyond the terminal clamp. - 5
Secure the cord and reassemble
Reinstall the strain-relief clamp and secure the plug to the dryer body per the manufacturer’s guidance. Reconnect the dryer power cord assembly, ensuring strain relief is properly seated.
Tip: A properly seated strain-relief clamp prevents moved wires during use. - 6
Test with power off and then power on
With power restored, test for voltage using a multimeter at each terminal if applicable. If everything reads correctly, run a brief dry cycle while monitoring for unusual signs like heat at the plug or tripping breakers.
Tip: If you detect unusual heat or smells, disconnect power immediately. - 7
Final inspection and cleanup
Inspect all connections for tightness, secure routing of the cord, and absence of exposed conductors. Remove tools, tidy the workspace, and label the area as a completed electrical task.
Tip: Keep documentation handy in case you need to reference it later.
Got Questions?
Is it legal for a homeowner to install a 4-wire dryer plug?
In many areas, homeowners may install a 4-wire dryer plug if they follow local electrical codes and manufacturer instructions. Some jurisdictions require a licensed electrician for certain work. Always check with your local building authority before starting.
In many places homeowners can install a four-wire dryer plug if they follow local codes. If in doubt, consult your local authority.
Do I need to upgrade the outlet as well as the cord?
Yes. A four-wire plug requires a compatible four-prong outlet (and the corresponding wiring) to supply separate neutral and ground paths. Replacing the outlet is usually part of the upgrade.
Yes. A four-prong outlet is typically required when using a four-wire plug.
What tools are essential for this upgrade?
Common tools include a screwdriver set, wire strippers, a voltage tester, and safety equipment. A multimeter helps verify post-install voltages, but is optional if you’re confident in testing safely.
Screwdrivers, wire strippers, a tester, and safety gear are essential.
What should I do if the dryer trips a breaker after installation?
Turn off power and recheck all connections for proper placement and tightness. A tripping breaker may indicate a miswire, a short, or a damaged cord. If issues persist, disconnect and seek professional help.
If the breaker trips, recheck connections. If it continues, consult an electrician.
Can I convert a 3-wire setup to 4-wire myself?
Conversion may be allowed in some areas if you follow code requirements and manufacturer guidelines. In many places, it’s safer to hire a professional to avoid improper grounding or wiring mistakes.
Conversions are sometimes allowed, but often best done by a professional.
Watch Video
Main Points
- Verify compatibility with local codes before starting
- Use a four-conductor plug and separate ground from neutral
- Label and organize conductors to avoid miswiring
- Test connections safely and inspect for heat or arcing
- Consult a licensed electrician if unsure
