Install 3 Prong Dryer Cord: Safe, Code-Ready Guide
Learn how to install a 3-prong dryer cord safely, with a step-by-step approach, essential tools, and safety checks for homeowners and DIY enthusiasts.
By following this guide, you will install a 3-prong dryer cord safely and correctly, meeting electrical code and safety standards. Gather the cord, an outlet tester, a screwdriver, wire stripper, and needle-nose pliers. The instructions outline safe disconnection, cord removal, terminal identification, and proper connection to the dryer's terminal block and power inlet.
Safety fundamentals for dryer cord replacement
Electrical work carries risk, and even small mistakes can result in shock or fire. According to Install Manual, always begin by ensuring power is fully removed from the dryer. Unplug the appliance at the wall outlet and, if the dryer is hard-wired, switch off the circuit breaker or remove the fuse serving the laundry area. Use a non-contact voltage tester to confirm that the terminal block is dead before touching any wires. Wear safety glasses and avoid loose clothing or jewelry that could snag or contact live terminals. Clear the work area of clutter, pets, and kids. If you’re uncertain about any step, pause and consult a professional. This guide is designed for homeowners and DIY enthusiasts seeking safety and code compliance. With proper preparation, you can replace a worn cord without violating electrical codes.
Understanding 3-prong cords versus 4-prong configurations
A 3-prong dryer cord combines two hot conductors with a neutral path, bonding to the chassis through a grounding strap. Many older installations used this 3-wire arrangement, while newer codes require a 4-prong cord with separate ground. When you decide to install a 3-prong cord, you must ensure the dryer is configured to bond neutral to the frame via the grounding strap, and you should not create a separate ground wire. Always consult the dryer's label and installation manual to confirm compatibility. If the dryer was previously wired for a 4-prong setup, you may need to reattach or adjust the grounding strap to maintain a proper bond. This is not a one-size-fits-all task; local codes often drive the correct approach.
Cord options, compliance, and compatibility checks
Choose a cord rated for your dryer's amperage and wire gauge, and ensure it has the correct plug type for your outlet. The terminal block on the dryer is color- and label-coded; hot terminals usually take the outer wires, while the center terminal accepts neutral in a 3-prong arrangement. Before purchasing, verify the cord length clears the back of the dryer and fits through the strain relief. Examine the dryer for a bonding strap that may need to remain connected on 3-prong configurations; removing it is only applicable to specific 4-prong-to-3-prong transitions. Always buy a UL-listed cord from a reputable retailer and keep the packaging for reference.
Codes, safety checks, and documentation
Electrical work is subject to local codes and appliance manufacturer requirements. Confirm that the cord is rated to the correct amperage and that the circuit supplying the dryer matches the dryer’s rating. Document the change and keep the receipt, cord packaging, and any warranty information in a dedicated home-maintenance folder. If you access the electrical panel, replace any old fuses or circuit breakers with correctly rated components only if you are confident in the task. Always test the outlet and the dryer after connection and inspect for heat buildup or loose connections. Based on Install Manual analysis, following a structured, safety-focused process reduces errors and increases reliability.
Tools and materials you’ll need (and why)
To replace a 3-prong dryer cord safely, gather the following essentials: a UL-listed 3-prong dryer cord, an outlet tester, a screwdriver set (Phillips and flat-head), wire stripper, needle-nose pliers, electrical tape or heat shrink, safety glasses, and a voltage tester. The cord must be compatible with your dryer's terminal blocks and back panel clearance. The tester helps confirm power is off before you touch conductors, while tape or heat shrink provides insulation if needed. Keeping screws organized and labeling wires can prevent miswiring and save time during reassembly.
Step-by-step overview (high-level) for quick reference

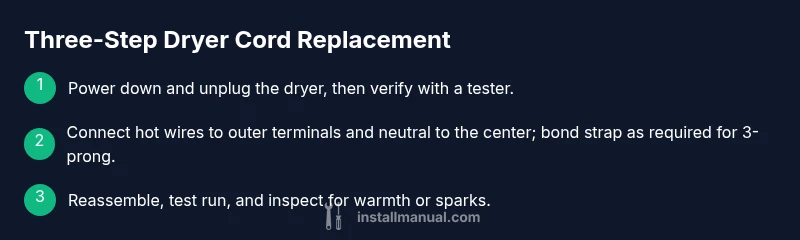

This section provides a concise summary of the practical process to install a 3-prong dryer cord. The approach begins with power shutdown and appliance unplugging, proceeds to expose the terminal block and identify conductors, then moves to disconnect, connect (hot wires to outer terminals, neutral to center, ground bond as required), secure the strain relief, reassemble the back panel, and finally test the dryer to ensure proper operation and safe temperatures. Always consult the manufacturer during each sub-step and never rush a connection when conductors are exposed.
Wiring specifics and common mistakes to avoid
The most common errors in cord replacement involve mixing up the hot wires and neutral, incorrectly bonding the ground, or skipping the strain-relief clamp. Neatly route wires, avoid pinched insulation, and confirm that each conductor is firmly tightened under its terminal screw. Do not reuse old terminal blocks if signs of corrosion or wear appear. A deliberate, methodical approach minimizes risk and helps maintain warranty coverage. If wiring colors differ from the standard, rely on the terminal labeling and manufacturer instructions rather than color alone.
Reassembly, testing, and post-install care
With the cord connected and secured, reinstall the back panel, tighten screws without over-torquing, and reinsert the breakers or fuses if you shut them off. Before powering up, perform a final visual inspection for loose wires, exposed conductors, or misrouted cables. Plug in the dryer and run a short cycle to verify heat and operation. If you notice any abnormal warmth, crackling sounds, or smells, power down immediately and recheck the wiring. This final check ensures safety and reduces the likelihood of a post-install failure.
Maintenance, documentation, and when to call a pro
Document the cord type, date of installation, and any observations during testing. Periodically inspect the terminal screws for tightness and the strain-relief for wear. If the outlet shows signs of scorching, discoloration, or if you are unsure about the wiring, contact a licensed electrician. Even with a successful DIY install, maintain a habit of proactive checks to prevent future problems. Regular documentation can help future homeowners or renters understand the configuration and uphold safety standards.
Tools & Materials
- 3-prong dryer cord(UL-listed, rated for your dryer's amperage and wire gauge; ensure the length matches your dryer's back-panel opening)
- Outlet tester(to verify the outlet is dead before working and to test after installation)
- Screwdriver set (Phillips and flat-head)(used to remove back panel and secure terminal screws)
- Wire stripper/cutters(strip insulation without nicking conductors)
- Needle-nose pliers(for bending wires and positioning strands)
- Electrical tape or heat shrink(for insulation if needed)
- Safety glasses(eye protection during all steps)
- Voltage tester(optional second device to verify no voltage present)
Steps
Estimated time: 45-60 minutes
- 1
Shut off power and unplug the dryer
Begin by switching off the circuit breaker serving the laundry area or removing the fuse. Unplug the dryer from the wall outlet to eliminate power. Use a voltage tester to confirm the terminal block is de-energized before touching any wires.
Tip: Double-check power at the receptacle and the cord plug before proceeding. - 2
Access the terminal block
Remove the back panel or access cover to expose the terminal block. Note the layout: two outer terminals for the hot wires and a center terminal for neutral. Keep track of each wire’s position for accurate reconnection.
Tip: Label wires or take a quick photo to avoid confusion during reassembly. - 3
Disconnect the old cord
Loosen the terminal screws and detach each conductor from its terminal. Inspect insulation for wear or looseness. If any conductor is frayed, trim and re-strip carefully.
Tip: Do not force wires free; work gradually to avoid damaging the terminal block. - 4
Prepare the new cord and wires
Strip the insulation on each conductor to the appropriate length and tin the ends if recommended by the cord manufacturer. Arrange the conductors so they mirror the terminal layout (outer to outer, center to center).
Tip: Keep stripped ends uniform; uneven lengths can cause poor terminations. - 5
Connect the new cord
Attach the two hot wires to the outer terminals and the neutral to the center terminal. In 3-prong configurations, ensure the grounding strap remains bonded to the chassis as required by your dryer model. Do not reverse hot and neutral positions.
Tip: Tighten screws firmly but do not overtighten and strip the screws. - 6
Secure strain relief and reassemble
Reposition the cord through the strain-relief clamp and secure it to prevent movement. Reinstall the back panel and tighten all fasteners in a consistent pattern. Store or label any removed parts for future reference.
Tip: Ensure a small amount of slack behind the panel to avoid kinking the cord. - 7
Test the installation
Reconnect power, plug in the dryer, and run a short cycle to verify operation and heat. Check for unusual warmth, smells, or buzzing near the terminal block. If anything seems off, power down and re-check the connections.
Tip: Observe the first cycle closely; don’t leave the dryer unattended if you notice issues.
Got Questions?
Can I replace a 4-prong dryer cord with a 3-prong cord?
In some cases you can, but it depends on the dryer's grounding configuration and local codes. If your dryer was wired for four wires, switching to three requires reconnecting bonding and grounding according to the manufacturer. Always verify with the dryer label and code guidelines.
You can switch from four-prong to three-prong in some setups, but check the label and local rules first.
Do I need to remove the grounding strap for a 3-prong cord?
For many 3-prong configurations, the grounding strap remains bonded to the chassis to provide ground continuity. If the unit was previously configured for a 4-prong setup, consult the manual to determine whether you should adjust or remove the strap according to the model.
Usually, the grounding strap stays bonded to the chassis in a 3-prong setup.
Is this task safe for a DIY homeowner?
Yes, with proper safety steps, tools, and adherence to codes, this is a common DIY task. Do not proceed if you’re uncertain about wiring or local requirements; consult a licensed electrician.
It can be DIY if you follow safety steps and guidelines; if unsure, hire a pro.
What tools are required besides the cord?
You’ll need screwdrivers, wire strippers, a tester, and possibly pliers. Keep screws organized and follow the color-to-terminal mapping.
Screwdrivers and wire strippers are essential; keep track of terminals.
What if I smell burning after installation?
Shut off power immediately, unplug, and re-check wiring for loose or miswired terminals. If the smell persists, stop and seek professional help.
If you smell burning, power down and check wiring right away.
Watch Video
Main Points
- Shut power off before handling electrical components.
- Match cord terminals to the dryer's terminal block.
- Use a strain-relief clamp to protect conductors.
- Test the outlet and dryer after installation.
