Install 4 Prong Dryer Cord: A Safe DIY Guide
Learn how to install a 4-prong dryer cord safely with clear, step-by-step instructions, tools, and safety tips from Install Manual.
By following this guide, you’ll safely replace or install a four-prong dryer cord to restore proper grounding and voltage for your dryer. Ensure the dryer is unplugged or the breaker is off, select a correctly rated 4-prong cord, and attach wires to the terminal block with the bonding strap removed when applicable. Expect a quick installation that improves safety and dryer performance.
Understanding four-prong dryer cords and outlet safety
According to Install Manual, safely replacing a dryer cord starts with power isolation and correct cord selection. When you plan to install 4 prong dryer cord, you’ll want to verify that your dryer's terminal block is compatible with a four-wire setup and that the outlet is the corresponding four-prong type. The four conductors—two hot wires, a neutral, and a ground—work together to provide balanced voltage and a reliable earth ground. Getting this right reduces the risk of shock and fire. In practical terms, verify the dryer's model number against the manual, confirm the outlet is a NEMA 14-30 or equivalent, and ensure the cord you buy has the correct amperage rating (commonly 30 amps). If the terminal block shows signs of corrosion, or if the dryer has been repaired previously with non-standard parts, approach the task with extra caution or seek a professional opinion. This understanding sets a safe baseline and helps you plan the rest of the installation confidently.
Safety foundations for DIY dryer cord replacement
Safety is the core of any electrical task. Before you touch a single screw, make sure the dryer is completely de-energized—unplug it or switch off the appropriate circuit breaker. Wear insulated gloves if available, work on a dry surface, and use tools with insulated handles. Keep the work area clear of water and moisture, and never bypass grounding provisions. If you’re unsure about your knowledge level or the dryer model, pause and consult a licensed electrician. Additionally, work slowly and deliberately; avoid twising wires or forcing terminal screws. After completion, restore power and test the unit in a controlled environment, watching for unusual heat, smells, or arc sounds. Document the cord type and connection points for future maintenance and refer to your dryer’s manual for any model-specific cautions. Following these safety foundations helps reduce the risk of electric shock, fire, and equipment damage.
Understanding terminal blocks, color coding, and four-prong wiring
A four-prong dryer cord uses distinct conductors: hot wires (red and black), a neutral (white), and a ground (green). On most dryers, L1 and L2 are the hot terminals, N is the neutral, and the ground screw attaches to the frame. Bear in mind that older three-prong configurations often required bonding the neutral to the cabinet, which is no longer permitted with four-wire cords in most jurisdictions. With a four-prong arrangement, the bonding strap between neutral and ground is removed to create a separate ground path. Many dryers will also have a separate grounding terminal that requires the green wire to be torqued into the ground screw. Check the terminal layout in your model’s wiring diagram and confirm there are no loose or frayed strands prior to installation. When wiring, only touch the copper portion of the conductors and keep the insulation intact up to the screw terminals. This knowledge helps you prevent mis-wiring and protects against potential shocks.
Matching the cord, outlet, and dryer model
Check your dryer's rating plate and the outlet type in your home. Use a cord with the correct amperage rating (commonly 30 A for residential dryers) and ensure the plug or receptacle matches the outlet. If your dryer is hardwired, you may need a compatible hardwired kit and different terminal connections. Always verify the model-specific guidance in your owner’s manual. If the outlet is an older NEMA configuration, you may need to replace the receptacle with a compatible four-prong version. Ensure the cord’s gauge (for a typical 30-amp circuit, 10 AWG copper is common) matches the circuit wiring and terminal sizes. If the dryer is located in a humid area or near heat sources, consider extra protection for the cord and strain-relief clamp. In short, compatibility across all three components—cord, outlet, and dryer—is essential for safe operation.
Common mistakes and how to avoid them
Common mistakes include mixing up wire colors, over-tightening screws, or skipping the strain-relief step. To avoid these, install the strain-relief where the cord enters the back panel, align wires to their proper terminals, and tighten screws just enough to grip without warping conductors. Don’t reuse damaged cords; replace them when the sheathing or insulation shows wear. Also avoid bending conductors excessively or leaving exposed copper beyond the terminal clamp. If you’re using a drum heat setting or testing method, do so in a safe, ventilated space to prevent accidental ignition of lint or dust near the exhaust. Lastly, never attempt to modify the outlet or dryer to accommodate a mismatched plug; that defeats safety measures. A methodical approach plus careful inspections reduces the chance of a miswired connection that could cause a shock or fire.
Tools & Materials
- 4-prong dryer cord (NEMA 14-30) compatible with your dryer(Ensure gauge and amperage match the dryer's rating)
- Screwdrivers(Phillips and flat-head for terminal screws and casing screws)
- Nut driver or wrench(To secure strain-relief hardware)
- Needle-nose pliers(For gripping conductors and adjusting wires)
- Wire stripper/cutter(If you need to trim bare wire ends)
- Voltage tester or multimeter(Optional but recommended to confirm power off)
- Strain-relief clamp/cord connector(Secures entry of cord into the dryer cabinet)
- Insulated work gloves(Adds protection while handling metal components)
Steps
Estimated time: 20-45 minutes

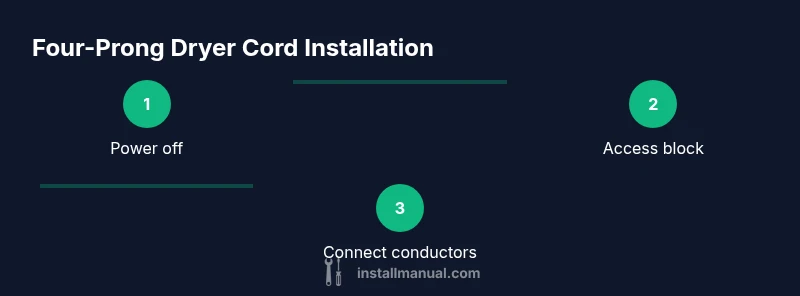

- 1
Power down and unplug
Turn off the dryer's circuit breaker and unplug the dryer from the wall outlet. Confirm no voltage using a tester if you have one.
Tip: Double-check the room for any residual power before touching wires. - 2
Access terminal block
Move the dryer away from the wall, remove the rear access panel, and locate the terminal block where the cord connects.
Tip: Keep track of screws and note wire positions before removal. - 3
Remove old cord and bonding strap
Loosen the terminal screws and detach the old cord from its terminals. If your model uses a bonding strap, remove it for a true four-wire setup.
Tip: Take a photo of the old arrangement for reference if needed. - 4
Prepare the new cord and route
Thread the four conductors through the dryer’s strain-relief and into the terminal block area, ensuring the sheathing sits properly and no strands are exposed.
Tip: Do not crimp or nick wires; expose only the necessary length. - 5
Connect wires to proper terminals
Attach red to L1, black to L2, white to N, and green to the ground screw. Tighten each terminal firmly but avoid overtightening.
Tip: Ensure the copper conductors are fully under the terminal screws. - 6
Reassemble, test, and secure
Install the strain-relief, replace the rear panel, and plug the dryer back in. Restore power and run a quick test to ensure the drum rotates and heat appears during a cycle.
Tip: If you smell burning or see discoloration, power off immediately and re-check wiring.
Got Questions?
Do I need to unplug the dryer before starting?
Yes. Always unplug the dryer or switch off the circuit breaker before accessing the terminal block.
Yes—unplug or switch off the breaker before working on the dryer.
Can I install a 4-prong dryer cord if my dryer is older or has a 3-wire setup?
Three-wire models can be updated to four-prong cords, but you should follow the manual and NEC guidance. Some dryers require panel or terminal changes.
Upgrading may require changing the internal strap and wiring per the manual.
What should I do if I can't remove the bonding strap easily?
Carefully review the model’s wiring diagram. If stuck, do not force it; consult the manual or a licensed electrician.
If the strap is hard to remove, consult the manual or a pro.
Which gauge is recommended for a typical residential dryer cord?
Most residential dryers use 10 AWG conductors rated for the circuit amperage; verify the dryer’s manual and outlet rating.
Most dryers use 10 AWG wire; check your model's manual.
Is this task allowed for DIY or should I hire a professional?
If you’re comfortable with basic wiring and your local code allows it, you can do it. If not, hire a licensed electrician to ensure code compliance.
DIY is possible for some models, but hire a pro if unsure.
Can I test the dryer safely after installation?
Yes. After reassembly, plug in the dryer and run a short cycle to verify heating and exhaust, while watching for any unusual smells or heat.
Test with a short cycle and monitor for issues.
Watch Video
Main Points
- Unplug, verify power off, and review model requirements
- Use a proper 4-prong cord with correct gauge
- Remove any neutral-ground bonding strap for 4-wire setup
- Secure with strain-relief and test before use
- When in doubt, consult a licensed electrician
