How to Install a 220V Garage Outlet: Cost, Steps, and Safety
Learn the costs, factors, and steps to install a 220V garage outlet, including materials, labor, permits, and safety considerations for homeowners and DIY enthusiasts in 2026.
This guide helps you estimate install 220v outlet in garage cost. You’ll learn the main cost factors, typical material and labor ranges, and when to hire an electrician. By planning ahead, you can compare quotes, stay compliant with codes, and complete a safe installation. This 2026 resource from Install Manual highlights cost ranges, code considerations, and safety steps.
Why a 220V Garage Outlet Makes Sense
For homeowners tackling workshops, power tools, EV charging, or heavy-duty air compressors, a dedicated 220V garage outlet expands capability and efficiency. If you’re researching the install 220v outlet in garage cost, you should anticipate that a dedicated circuit improves safety and avoids overloading general-purpose outlets. The Install Manual team found that many garage projects benefit from a dedicated 220V circuit, reducing nuisance trips and improving performance on welders, large compressors, and vehicle chargers. In practice, a properly installed 220V outlet can support a 20-amp or 30-amp receptacle depending on equipment requirements. Keep in mind that even seemingly simple projects can become complex when access routes or panel capacity are limited. This section lays groundwork for understanding what drives price and where to start your planning. According to Install Manual, planning ahead reduces surprises and helps you build a realistic budget.
Key cost factors for install 220v outlet in garage cost
The total price to install a 220V garage outlet is driven by several interrelated factors. First, the amperage and outlet type you choose (for example, a 20A vs a 30A receptacle or a NEMA 6-20 vs a NEMA 14-30) determine the required wire gauge, breaker size, and hardware. Second, how far the run travels from your main panel to the garage location changes both material and labor needs. Third, panel capacity and whether you need a subpanel influence both permit scope and labor time. Fourth, permit requirements and inspections vary by jurisdiction and can add to the cost. Fifth, labor rates vary by region and contractor experience. Finally, upfront decisions about conduit (surface-mounted vs. hidden), additional safety devices (GFCI/AFCI), and the quality of components all affect price. The Install Manual team emphasizes comparing multiple quotes and confirming that work plans align with local codes.
To summarize, cost is not only the price of the outlet and wire; it includes planning, compliance, and safety investments that protect people and equipment.
DIY considerations and risk assessment
DIYing a 220V garage outlet can save money but carries safety risks if local codes and wiring practices aren’t followed. The Install Manual team recommends assessing your own comfort level with electrical work, the availability of the correct tools, and whether permits are required. If in doubt, consult a licensed electrician early in the process to prevent costly mistakes and ensure a compliant installation.
Tools & Materials
- Voltage tester(Non-contact or contact-type tester to verify power is off)
- Stud finder(Locate joists and avoid hidden utilities)
- NEMA 6-20 or NEMA 14-30 outlet(Select outlet type based on planned load)
- Electrical box and cover(Weather/garage-rated as needed)
- Conduit or cable routing supplies(EMT or flexible conduit, clamps, fittings)
- Appropriate wiring (per amperage)(Wiring gauge rated for the circuit (e.g., heavier gauge for higher amperage))
- Dedicated circuit breaker(Size matched to outlet and wire gauge)
- GFCI/AFCI devices(Enhances safety where required by code)
- Safety gear(Safety glasses, gloves, and dust mask as needed)
- Permitting documents (if required)(Check local regulations)
- Pliers, wire strippers, and screwdriver set(For wiring and hardware installation)
- Hammer drill or punch tool(If wall anchors are needed)

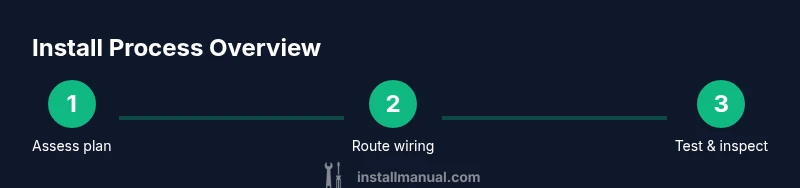

Steps
Estimated time: 2-6 hours
- 1
Assess electrical service and load
Evaluate your garage location, existing panel capacity, and whether you need a dedicated circuit to support a 220V outlet. Use a load calculation to determine if you can add a circuit without overloading the panel. This planning step sets the foundation for choosing the correct breaker size and wire gauge.
Tip: Document current loads and plan for future equipment to avoid underestimating capacity. - 2
Choose outlet type and breaker size
Decide between common 20A or 30A layouts and pick the corresponding NEMA receptacle (e.g., 6-20 or 14-30). The breaker size must match the outlet and wire gauge; mismatches can create nuisance trips or safety hazards.
Tip: When in doubt, err on the side of a higher-capacity circuit only if wiring and panel allow. - 3
Plan routing path from panel to garage
Determine the most direct route for your wiring, considering walls, joists, and potential obstacles. Minimize the number of bends and avoid running live wires near water or heating ducts. If you must run conduit, select a route that is easy to inspect.
Tip: Keep wire runs short and straight to reduce voltage drop and complexity. - 4
Install the breaker and run conductors
Shut off the main power and install the dedicated breaker. Run the properly rated conductors from the panel to the garage, using conduit or NM cable as required by local code. Secure everything with clamps and strain relief as needed.
Tip: Always confirm power is off and re-check connections before turning the panel back on. - 5
Mount the outlet box and connect wiring
Mount the weather-rated outlet box, install the receptacle, and connect hot, neutral, and ground wires per device instructions. Close the box with the cover plate, ensuring a clean, code-compliant connection.
Tip: Double-check wiring color codes and tighten all screws firmly to prevent arcing. - 6
Test, inspect, and finalize
Turn power back on and test the outlet with a multimeter or tester. If local permits apply, schedule an inspection to verify compliance with code and safety requirements.
Tip: Record the installation details and keep receipts for future service or warranty needs.
Got Questions?
Is it legal to install a 220V garage outlet myself?
In many areas you may perform the work if you follow local codes and obtain permits where required. Some jurisdictions require a licensed electrician for high-voltage installations. Always check with your local electrical code and inspection office before starting.
You should check your local codes; some places allow DIY with proper permits, others require a licensed electrician.
What amperage and outlet type should I plan for?
Common options are 20A or 30A circuits with corresponding receptacles (such as NEMA 6-20 or 14-30). The choice depends on your tooling needs and the wire size you can run safely.
Choose based on your equipment; 20A or 30A is typical for garage 220V outlets.
Do I need a permit to install a 220V garage outlet?
Permit requirements vary by locality. Many regions require a permit and a final inspection for any new 220V circuit. Failing to obtain a permit can lead to safety risks and non-compliance.
Yes, often you need a permit and inspection for a 220V garage outlet.
How long does installation typically take?
A straightforward install might take 2-6 hours for a single outlet on an existing circuit, more if route planning or panel work is extensive.
Usually a few hours, but it can take longer if routing is tricky.
What safety steps should I follow during installation?
Always de-energize the circuit, verify power with a tester, use appropriate PPE, and follow wiring codes and device instructions. Consider hiring a pro if any step feels uncertain.
Turn off power, test with a tester, and use proper PPE; consult a pro if unsure.
Watch Video
Main Points
- Plan load and route before starting work
- Choose correct outlet type and breaker size
- Obtain necessary permits to stay code-compliant
- If unsure, hire a licensed electrician for safety
