How to Install an Overhead Microwave: A DIY Guide
Learn how to install overhead microwave safely with a dedicated circuit, proper venting, and secure mounting. This Install Manual guide covers tools, steps, and safety to help homeowners complete a code-compliant install with confidence.
By following this guide, you will install overhead microwave safely, securely, and with proper ventilation. You’ll confirm ceiling or wall mounting supports, locate a dedicated circuit, and install a vented or recirculating hood. Prepare with a mounting bracket, appropriate fasteners, and a reliable ladder; then follow the step-by-step instructions to complete the install with minimal risk.
Overview and Goals for Overhead Microwave Installation
Installing overhead microwave can free counter space and create a streamlined kitchen aesthetic, but it requires careful planning and adherence to safety codes. This midline project blends carpentry, electrical work, and ventilation, so understanding the tasks helps homeowners decide if this route is right for their space. The goals are simple: secure mounting that supports the microwave’s weight, a clean electrical connection on a dedicated circuit, adequate ventilation, and minimal disruption to cabinets and counters. When you plan, consider the microwave’s height relative to eye level, the doorway clearance for leaning in with a dish, and the location of existing outlets and vent paths. The following sections walk through the decision points, the tools you’ll need, and the practical steps to complete a code-compliant install with reliable performance. By aligning with manufacturer guidelines and local building codes, you’ll reduce safety risks and improve kitchen workflow.
Planning Your Mounting Location
Selecting the right mounting location is as important as the bracket you choose. Start by identifying a sturdy section of ceiling or upper cabinet framing that can bear the microwave’s weight. Use a stud finder to locate ceiling joists or cabinet supports, then measure to ensure the microwave will sit at a comfortable height for cooking and safe clearance for opening the door. Consider nearby outlets, ventilation paths, and any obstructions such as light fixtures or shelving. If your kitchen layout lacks a ready-made mounting point, you may need to add support, relocate a vented duct, or adjust cabinet configuration. Planning ahead reduces the number of re-works and ensures a smoother installation process.
Electrical and Ventilation Considerations
Overhead microwaves typically require a dedicated branch circuit to avoid overloading shared outlets. Check the microwave’s electrical rating, and plan wiring that complies with local codes and GFCI requirements as applicable. Decide whether the unit will vent to the outside or operate as a recirculating hood. Exterior venting provides better air removal but requires ductwork and external venting, while recirculating models need a charcoal filter and are easier to install in a closed space. Ensure plenty of clearance around the hood to avoid heat buildup and allow for service access.
Mounting Brackets and Height Options
Choose a mounting bracket rated for the microwave’s weight and compatible with your ceiling or cabinet configuration. Most installations use a two- or three-point bracket attached into solid framing. It’s essential to align bracket mounting holes with ceiling joists or cabinet studs and to level the bracket precisely. If you’re mounting between mounting points that aren’t standard, you may need an adaptor plate. Verify that the final height keeps the microwave door clear of upper cabinets and provides comfortable access for loading and unloading containers.
Wiring and Cable Management Best Practices
Run electrical wiring through proper channels and avoid exposing wires to heat or sharp edges. Use a dedicated conduit or proper NM cable routing to a junction box, then connect according to the appliance’s wiring diagram. Use wire nuts, strain relief, and cable clamps to secure connections and prevent movement. Maintain clean, organized cable management so vents and fans draw air freely and there’s no risk of chafing or pinching during operation. Label circuits and test continuity before final mounting.
Venting Options: External Vent vs Recirculating
Vent choice is critical for performance and safety. Exterior venting sends air outside, which is ideal for reducing kitchen heat and moisture, but requires ducting through the wall or ceiling. Recirculating venting uses filters to clean the air and is simpler in apartments or spaces without exterior access. If exterior venting is chosen, plan duct routing that minimizes bends and uses proper duct tape and collars to prevent leaks. For recirculating models, replace filters regularly and ensure air intake isn’t blocked by cabinets or appliances.
Testing, Safety Checks, and Maintenance
With the unit mounted and wired, restore power and test the microwave across multiple cycles. Listen for unusual noises, check for overheating, and verify that the venting system moves air effectively. Re-check mounting screws, bracket alignment, and door clearance after a test run. Schedule periodic maintenance to inspect wiring, vents, and filters. If anything seems off, power down immediately and reassess the mounting or electrical connections.
Common Mistakes and Troubleshooting
Common mistakes include mounting without solid studs, underestimating weight, or routing wires too close to heat sources. Always verify bracket torque and ensure there’s no flex in the ceiling installation. If the microwave doesn’t vent correctly, re-check duct connections or switch to an external vent option. For electrical issues, confirm a dedicated circuit and verify all connections with a tester before powering the unit again.
Authority sources
For safety and installation standards, consult reputable resources:
- OSHA: https://www.osha.gov
- NFPA: https://www.nfpa.org
- U.S. Department of Energy: https://www.energy.gov
Tools & Materials
- Stud finder(Locate ceiling joists or cabinet supports to anchor brackets.)
- Mounting bracket rated for microwave weight(Ensure compatibility with your unit and framing.)
- Lag bolts/structural screws(Use hardware matching bracket specifications and wood density.)
- Power drill and bits(For pilot holes and bracket mounting.)
- Level(Ensure bracket and microwave are plumb.)
- Measuring tape(Accurate height and alignment measurements.)
- Ladder or sturdy step stool(Safe reach for ceiling mounting.)
- Safety gear (glasses, gloves)(Protective equipment during drilling and wiring.)
- Non-contact voltage tester(Verify power is off before wiring.)
- Wire nuts and electrical tape(Secure and insulate connections.)
- Vent duct kit (exterior vent or recirculating kit)(Match venting method to space.)
- Foil tape and duct tape(Seal duct joints and secure runs.)
- Pencil and spare screws(For marking and extras.)

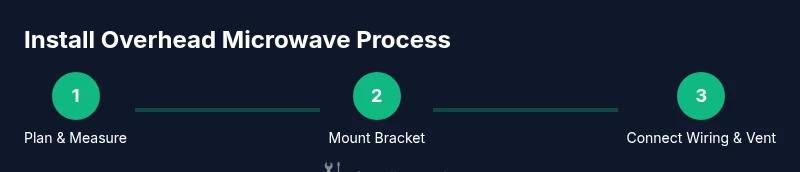

Steps
Estimated time: 2-4 hours
- 1
Assess ceiling structure and load
Inspect the ceiling or cabinet frame to confirm it can support the microwave’s weight. Locate joists or studs, and plan mounting points that avoid electrical boxes or plumbing. If unsure, consult a professional.
Tip: Do not mount on hollow drywall alone; choose solid framing or use appropriate anchors. - 2
Plan mounting location and clearances
Measure height and width to ensure the microwave door clears cabinets and countertops, and that there’s enough space for venting and service access. Mark center points for bracket installation.
Tip: Create a simple mock-up with painter’s tape to visualize fit before drilling. - 3
Turn off power and prep wiring
Shut off the circuit feeding the intended outlet and verify power is off with a voltage tester. Remove any cover plates and prep the junction box area for wiring.
Tip: Label wires and keep a clear workspace to prevent accidental contact. - 4
Attach mounting bracket to framing
Drill pilot holes, drive lag bolts into studs or joists, and attach the bracket firmly. Use a level to ensure the bracket is perfectly horizontal.
Tip: If brackets require two points, confirm both are level and evenly spaced. - 5
Run electrical wiring and connections
Route the microwave’s power cable from the junction box to the dedicated circuit, following local code. Use wire nuts and approved connectors, and secure with clamps to avoid movement.
Tip: Keep wiring away from heat sources and sharp edges. - 6
Install venting system
Attach the vent duct kit to the microwave’s exhaust and route to the outside or into a recirculating path with filters. Seal joints with foil tape.
Tip: Minimize bends to reduce backpressure and improve vent efficiency. - 7
Mount the microwave and align
Hang the microwave on the mounted bracket, verify it is level, and perform a final reach check to ensure door clearance.
Tip: Have a helper assist with placement to avoid damaging the unit or bracket. - 8
Test, finalize, and maintain
Restore power and run several cycles to test operation and venting. Tighten any loose screws and inspect for heat or vibration during use.
Tip: Schedule periodic inspection of mounting hardware and vent lines.
Got Questions?
Is overhead microwave installation safe for a DIY project?
Yes, it can be safe for a skilled DIYer who follows electrical and ventilation guidelines, uses proper tools, and adheres to local codes. If you’re unsure about wiring or structural support, consider hiring a licensed professional.
Yes, many DIYers install overhead microwaves safely by following the steps and codes. If in doubt about wiring or support, get a pro to help.
Do I need a dedicated circuit for an overhead microwave?
Most installations require a dedicated circuit that is appropriately rated for the appliance. Always verify the microwave’s manual and local electrical codes before wiring.
Most overhead microwaves need a dedicated circuit. Check the manual and local rules before wiring.
What venting options should I consider?
Choose exterior venting for best air removal if your kitchen allows, or select a recirculating vent kit if exterior venting isn’t feasible. Exterior venting requires ductwork and an outside wall or roof vent.
You can vent to the outdoors for best performance, or use a recirculating system if exterior venting isn’t possible.
How high should I mount the microwave?
Follow the manufacturer’s recommended height and ensure door clearance for safe loading and unloading. Avoid mounting too high, which makes access difficult or unsafe.
Mount it at a height that’s easy to reach while keeping the door clear of cabinets.
What if there are no ceiling studs?
If there’s no solid ceiling framing at the installation points, you should not mount the unit there. Use alternative supports designed for the space or consult a professional.
If there are no studs where you plan to mount, don’t proceed—seek a different mounting solution or a pro’s help.
What common mistakes should I avoid?
Avoid mounting without solid anchors, underestimating weight, or mixing different venting types. Poor wiring and inadequate clearance can lead to safety risks and poor performance.
Don’t mount on hollow surfaces or mix venting methods—check weight, clearance, and wiring carefully.
Watch Video
Main Points
- Mount on solid framing with proper supports
- Use a dedicated circuit and verify venting route
- Follow manufacturer and local codes for safety
- Test thoroughly and maintain hardware over time
