Install Over the Range Microwave: A Complete DIY Guide
Learn how to install over the range microwave safely with a step-by-step guide, including measurements, venting options, electrical considerations, and finishing touches for a reliable kitchen upgrade.
By following these steps, you will successfully install an over-the-range microwave. Ensure you have a dedicated 120-volt circuit, proper ventilation, and the mounting kit that matches your model. Measure clearances, prep the cabinet space, and secure the mounting bracket before you connect the electrical supply. This guide outlines essential steps and safety checks to complete a safe, code-compliant install.
Planning and Fit: Assessing Your Space
Before you lift the microwave up, verify that the space above your range can accommodate the unit's width, height, and venting needs. Most over-the-range microwaves share a standard width, but the exact depth and clearance from cabinets vary by model. Use a tape measure to confirm the final fit, and check the installation template from the manufacturer. If your cabinets have decorative molding or an oddly shaped hood, account for extra clearance and consider removing trim during mounting. A quick sketch helps: mark the centerline above the stove, note outlet location, and outline where brackets will mount. Plan for safe ventilation, wiring access, and future service. This planning step reduces surprises during mounting and helps you choose the right venting path.
Tools, Safety Gear, and Prep
Equip yourself with a sturdy ladder or step stool, a measuring tape, a level, a pencil, and a drill with driver bits. A safety mask and eye protection are advised when cutting or drilling. Ensure a clear path to the breaker panel and prep the work area with a drop cloth. Verify that the microwave model came with a mounting bracket, screws, and a venting kit. If not, order the correct accessories from the manufacturer. Keep a helper nearby for lifting and maneuvering. Finally, turn off the circuit power to prevent shocks while wiring or placing screws.
Venting: Vented vs Recirculating
Over-the-range microwaves offer two venting options: vent outside or recirculate air through filters. External venting provides better odor and moisture removal but requires ductwork through walls or cabinets and a vent cap outside. Recirculating venting is easier to install in apartments or rental kitchens where exterior venting isn't feasible, but it relies on filters and may be less effective. Check local code requirements and the microwave's ventilation kit. If you choose exterior venting, route the duct straight and avoid sharp bends. Seal joints with high-temperature silicone and test for air gaps. Record the vent path for future maintenance.
Electrical Requirements and Circuit Sizing
Most over-the-range microwaves require a dedicated, properly grounded circuit. Do not use an extension cord or share the outlet with other high-draw appliances. If your kitchen outlet is older or ungrounded, remove power at the breaker and test the line for continuity and grounding. Some models are plug-in while others are designed for hard-wiring; follow the manufacturer instructions for your unit. If in doubt, consult a licensed electrician to verify that the wiring meets current electrical code and safety standards.
Measuring and Clearance: Getting It Right
Measure the space above the range, including cabinet depth, to ensure the microwave will clear the bottom of upper cabinets and any hood. Record the width, height, and depth of the appliance and compare it to the opening using the manufacturer's template. Maintain a few inches of clearance around the sides to allow airflow and service access. If your range hood sits taller, you may need to relocate or modify the cabinet float. Use a level to confirm that the base and the mounting brackets will sit perfectly plumb. A precise fit reduces rattling and ensures safe operation.
Mounting Bracket Installation and Alignment
Attach the mounting brackets to the wall or cabinet per the template. Ensure brackets are aligned level and centered over the range. Lift the microwave into place and rest it on the brackets, then secure the screws but do not overtighten. Verify the weight is evenly supported and that the unit sits flush with the cabinet face. If your model includes an anti-tip device, install it according to the instructions. Alignment is critical to prevent tipping when the door opens.
Ductwork and Vent Connection: Sealing the Path
If external venting is used, attach the duct to the microwave's exhaust port and run it to the exterior vent, using clamps and elbows with as few bends as possible. If recirculating, install the filter housing and ensure air can flow freely through the filters. Seal all duct joints with silicone and test for air leaks with a simple smoke test or a tissue test. Secure the duct to prevent movement during operation. This step protects against leaks and improves vent performance.
Finishing Touches and Initial Test
Attach any trim kit or faceplate, ensure the unit is level, and plug in or connect the hardwire if required. Before connecting power, recheck all mounting screws for tightness. Turn on the circuit and run a test cycle to verify rotation, heating, fan operation, and vent function. Listen for unusual noises, check for smoke or sparks, and inspect the vent duct for leaks. If everything runs smoothly, turn off the unit and re-check alignment after a brief cooldown.
Common Issues and Quick Fixes
If the microwave tilts, loosen and re-seat the brackets, then re-tighten to level. If the vent fan seems weak, inspect ducting for blockages or leaks and replace filters as needed. A humming or buzzing noise during operation may indicate a loose screw or misalignment; tighten and re-check. If the unit does not power on, confirm the outlet is live and the breaker is not tripped. When in doubt, consult the manufacturer’s troubleshooting guide.
Tools & Materials
- Over-the-range microwave mounting kit (brackets, screws, and hardware)(Ensure kit matches model and cabinet depth)
- Electrical outlet tester(Verify a properly grounded 120V outlet nearby)
- Power drill or screwdriver with Phillips head and hex bits(Used to install mounting screws and bracket)
- Measuring tape(Measure width, cabinet depth, and venting clearance)
- Level or combination square(Ensure mounting brackets sit plumb)
- Pencil or masking tape(Mark locations and alignment before drilling)
- Vent ducting kit (external vent or recirculating kit)(Depends on chosen vent path)
- Caulk or high-temperature silicone sealant(Seal duct joints and cabinet seams)
- Safety gear (gloves, safety glasses)(Protect during drilling and lifting)
- Helper or second person(Assist with lifting and alignment)

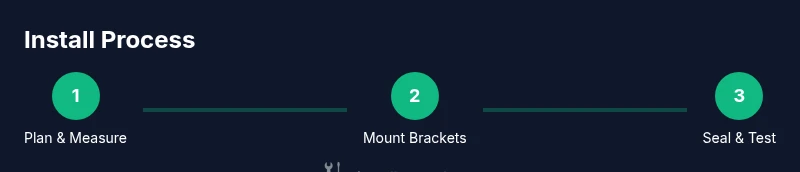

Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and safety checks
Clear the area, put on safety gear, and unplug nearby outlets if needed. Verify the circuit is accessible and the floor is protected. This reduces the risk of injury and accidental damage during mounting.
Tip: Have a second person help you manage the weight of the unit. - 2
Measure space and confirm template fit
Use the manufacturer's template to verify opening width and height. Mark centerlines on the cabinet to ensure the unit will align with the range below and the vent path above.
Tip: Double-check measurements at several angles to avoid misfits. - 3
Install mounting brackets on wall/c cabinet
Attach brackets at the marked heights, ensuring they are level and securely anchored into studs or wall anchors. Do not skip this step; proper support prevents sagging.
Tip: Use a level and predrill pilot holes for cleaner screws. - 4
Lift microwave onto brackets and level
With help, lift the microwave onto the brackets and adjust until the unit sits flush with the cabinet face. Check for plumb and horizontal alignment.
Tip: Lift gradually to avoid bending the brackets. - 5
Attach vent duct to microwave
Connect the chosen vent path (external or recirculating) to the microwave exhaust port. Secure with clamps and route ducting with minimal bends.
Tip: Seal joints with silicone to prevent leaks. - 6
Make electrical connections or plug in
If plug-in, insert into a grounded outlet. If hard-wired, follow the manufacturer wiring diagram and local code. Do not force cords or improvisations.
Tip: Never use an extension cord for a high-draw appliance. - 7
Secure unit and check alignment
Tighten mounting screws evenly and confirm the unit remains level after any adjustments. Recheck the vent path and clearance from nearby cabinets.
Tip: Re-tighten after a brief test cycle heat cycle. - 8
Install trim and finish
Attach any decorative trim or faceplate included with the unit. Ensure a clean, professional look and a snug fit against the cabinet edge.
Tip: Avoid over-tightening trim that could crack finish. - 9
Run test cycle and inspect
Power the unit, run a short cooking cycle, and verify fan, light, and vent functions. Listen for unusual noises and check for air leaks around the duct.
Tip: If smoke or sparks appear, power off immediately and recheck wiring. - 10
Final safety check and cleanup
Confirm the install complies with local codes and manufacturer instructions. Clean up tools and dispose of packaging appropriately.
Tip: Keep the user manual accessible for future reference.
Got Questions?
Do I need a dedicated circuit for an over-the-range microwave?
Most over-the-range microwaves should be on a dedicated, grounded circuit. Do not share outlets with other high-draw appliances and follow local electrical codes. If uncertain, consult a licensed electrician.
Typically, you should have a dedicated grounded circuit for an over-the-range microwave. If unsure, consult an electrician.
What venting options are available for this installation?
You can vent to the outside or use a recirculating kit with filters. External venting provides better air removal, while recirculating is common in apartments where exterior venting is not possible.
Vent to the outside for best performance, or use a recirculating kit where exterior venting isn’t feasible.
How do I know if my cabinet can support the microwave?
Check cabinet depth, width, and the mounting surface for strength. Use the manufacturer’s template and ensure brackets can be anchored into studs or solid substrate.
Ensure the cabinet can bear the unit and brackets by checking depth and stud anchors.
Can I install without removing the microwave from the cabinet?
In many cases you can mount directly to the brackets and hang the unit, using a second person to assist. If the model requires removal for access, follow the manual.
Often you mount using brackets with a helping hand; some models require opening the cabinet for access.
What safety checks should I perform after installation?
Verify the power source is stable, test venting, and listen for abnormal noises. Confirm the unit is level and securely fastened, and ensure there are no air leaks in the duct.
Power it up, test venting, and make sure it’s level and secure with no leaks.
Should I hire a professional for this task?
DIY installation is feasible for many homeowners with basic carpentry and electrical skills. Hire a pro if the venting path is complex, or if wiring requires hard-wiring to your home circuit.
You can DIY most installations, but consider a pro for complex venting or wiring.
Watch Video
Main Points
- Plan fit before starting; measure twice.
- Choose venting path that matches your home and codes.
- Use a dedicated circuit and proper grounding.
- Level, secure brackets, and verify alignment.
- Test thoroughly and review the manual during setup.
