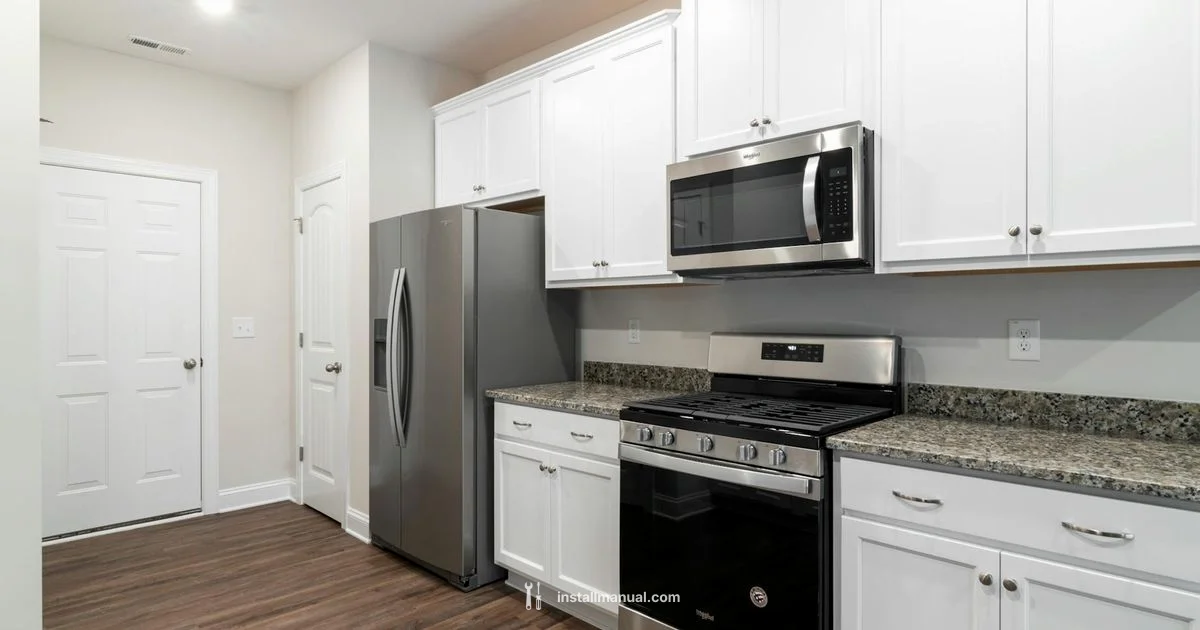

Install Over-the-Range Microwave with Vent: Step-by-Step Guide

Preparation and Planning for a Safe Install

Before you lift a heavy appliance into position, take a moment to plan. Start by identifying whether your microwave uses a ducted vent (venting to the outside) or a recirculating vent (carbon filters). Check the unit’s installation manual for vent type, cutouts, and support requirements. Verify that the existing cabinet space above the range provides adequate clearance and that the wall behind the cabinet is solid enough to anchor a mounting bracket. This planning phase reduces rework and helps you avoid creating heat or smoke pathways near combustible materials. The Install Manual team recommends reviewing the manufacturer’s instructions and local building codes before you begin, to ensure compliance and safety.

Venting Options and Compliance

Over-the-range microwaves are commonly vented to the outside or configured to recirculate air through filters. A ducted vent typically delivers the best performance by exhausting steam and odors outdoors, while a recirculating vent depends on filtration. If you choose ducting, measure the shortest, straightest path to the exterior and minimize bends to maximize airflow. Use metal duct: it resists heat and preserves performance better than flexible plastic. Ensure the vent outlet is clean and unobstructed, and seal all joints to prevent leaks. If local codes restrict external venting, a recirculating kit may be required. Always follow the installation manual’s venting diagrams and use an appropriate mounting height for safe operation.

Location, Studs, and Mounting Template

Correct mounting begins with locating wall studs to support the microwave’s weight. Use a stud finder to mark stud centers, then align the mounting bracket with these marks. Confirm that the chosen location isn’t in front of a gas line, plumbing, or electrical box. Many models include a mounting template; align it to the cabinet face and transfer the drill holes precisely. Precise placement reduces the risk of door interference and ensures the vent aligns with any external duct. If you need to modify cabinetry, do so before mounting the bracket to avoid damage and misalignment.

Ducting and Sealing Best Practices

For vented installs, attach the duct to the microwave’s vent outlet and route it towards the exterior. Prefer rigid metal ducts over flexible ones for higher efficiency and durability. Seal every joint with metal foil tape (not cloth tapes) to prevent air leaks that reduce performance. If the route requires a bend, keep it as smooth as possible; sharp bends create resistance and noise. For recirculating vents, install the filter and confirm proper airflow through the grille. Always refer to the vent kit instructions and use grommets or pass-throughs where the cabinet wall meets the duct to maintain a clean seal.

Electrical Safety and Power Grounding

Safety begins with the power supply. Turn off the dedicated circuit at the breaker before you touch any wiring. If your home lacks a nearby outlet, you may need to install a new receptacle or relocate an existing one, which should be performed by a licensed electrician. Use a voltage tester to confirm there is no power on the circuit while mounting. Many models require a grounded outlet or a hard-wired connection, depending on the unit’s plug type and local codes. Never use extension cords for permanent installs, as they pose fire and shock hazards. Keep the area dry and avoid refrigerant pipes or water lines behind the cabinet.

Cabinetry and Structural Support

A sturdy cabinet or dedicated wall segment is essential to support the microwave’s weight and reduce vibration. If the existing cabinet cannot bear the load, you may need to-install a reinforcing brace or to modify the cabinet frame. Do not rely on the countertop lip or cabinet doors to bear the load. Use the manufacturer’s mounting screws and the included hardware, ensuring all fasteners are tightened according to the torque recommendations. When in doubt, opt for a professional assessment to prevent sagging or misalignment that can affect function and safety.

Mounting the Microwave: Bracket and Alignment

Attach the mounting bracket or bracket kit to the wall studs as instructed by the manufacturer. Use a level to ensure the bracket is perfectly plumb, then secure it with the proper screws. With assistance, lift the microwave into place and align the appliance so the vent outlet and air intake line up with the cabinet cutouts and duct. Slide the unit onto the bracket or into the mounting slots, then secure it with screws through the rear or bottom of the cabinet as directed. A misaligned microwave can rub against the door or vent and impair venting or operation.

Wiring, Power, and Final Checks

If wiring is required, follow the manufacturer’s electrical diagram precisely. In most cases, homeowners can install a standard outlet, but if your model requires hard-wiring, a licensed electrician is recommended. Re-check all connections: the vent should be clear of obstructions, the wiring insulated, and power should be restored only after confirming no shorts. Lock out the circuit if necessary while performing final checks. Run a test cycle to verify vent operation, door latch, and cooking settings. Listen for unusual noises and watch for overheating around the mounting area. If anything seems off, power down and re-check the installation before use.

Testing, Calibration, and Safety Sign-Off

After installation, perform a methodical test: door closes securely, the vent engages on fan settings, and control panels respond correctly. Check that the microwave sits level, with equal clearance around the unit for safe door movement. If your unit includes a trim kit or exterior surround, install it per the manual. Keep a record of model details, serial number, and installation date for future maintenance. A proper test ensures long-term performance and reduces the risk of heat damage to surrounding cabinetry.
