Install AC Unit Window: A DIY Guide
Learn how to install a window air conditioner safely and efficiently with a step-by-step DIY approach. Measure correctly, mount securely, seal gaps, and test performance for reliable cooling.
By following these steps, you can install a window AC unit safely at home, ensuring proper cooling and energy efficiency. Start by choosing a unit that fits your window, then unplug the power and gather the required tools. This guide covers measurement, mounting, sealing, electrical safety, and a thorough test to ensure reliable operation.
Understanding window AC installation basics
Installing a window air conditioner is a practical DIY task for many homeowners and renters, but success hinges on sizing, window type, and secure mounting. The goal is a stable enclosure that minimizes air leaks, reduces vibration, and ensures proper drainage. According to Install Manual, selecting the right-sized unit reduces energy waste and compressor strain. Start by identifying whether your window is a single- or double-hung type, then consider the sill depth and available clearance around the window to allow side panels to seal properly. With the unit unplugged, inspect the window frame for damage or cracks that could undermine the seal. If you plan carefully, you’ll avoid common issues like sagging mounts, drafts, or water leaks, and you’ll create a safer, more energy-efficient cooling solution. This foundation sets you up for a safe, effective installation that protects your home and equipment.
Measuring window and sizing the unit
Accurate measurements are the backbone of a successful window AC installation. Measure the width of the opening from jamb to jamb, the height from sill to the top of the sash, and the depth available behind the window to accommodate the unit’s condenser and mounting hardware. Most units come with adjustable side panels; ensure you have enough room to extend them without hitting curtains or blinds. Use a level to verify the window is plumb; an angled installation can lead to leaks and drainage problems. When in doubt, consult the manufacturer’s sizing chart and opt for a unit that fits the window kit. Based on Install Manual research, proper sealing around the unit delivers notable energy efficiency improvements and reduces drafts.
Safety prep and workspace setup
Before lifting the unit, create a clean, clear workspace and power down the room’s electrical circuit to prevent shocks. Remove curtains or blinds that could snag the unit, and lay down a drop cloth to protect floors. Check the window track and sill for damage and reinforce as needed. Enlist a helper to assist with sliding the unit into place and to prevent pinch injuries. Wear gloves to protect against sharp edges and use proper lifting technique to avoid back strain. If your window is compromised or you’re unsure about the wiring, stop and seek professional assistance. This planning phase reduces injuries and costly mistakes.
Mounting hardware and side panels
Most window AC units include a mounting kit with expanding side panels, brackets, and screws. Attach the brackets to the window frame following the manufacturer’s directions, then slide the unit into the sash opening from the outside. Extend the side panels so they press firmly against the window jambs; seal any gaps with provided foam or weather-stripping. Use a level to check that the unit sits straight, and secure the interior mounting point to minimize movement. If you have a vinyl frame, take care not to crack the frame with mounting screws. A stable base minimizes vibration and improves cooling efficiency.
Installing the unit and securing the window
With the window slightly open, insert the AC unit into the opening from the outside, resting it on the sill. Gently slide it into the window frame until the exterior grille sits flush with the wall. Close the window slowly to trap the unit, then install interior retaining screws or latches as directed. Check the drain hole and tilt the unit slightly toward the outside to promote drainage. Avoid mounting the unit so it points into the room, which can hinder drainage and cause leaks. If a helper is available, have them hold the unit while you finish tightening. This step confirms a secure fit and makes sealing easier.
Sealing gaps and ensuring proper drainage
Seal gaps between the unit and the window frame with the provided foam strips or weather-stripping, and apply sealant around exterior gaps to prevent air infiltration and moisture intrusion. Ensure the unit has a slight tilt toward the outside so condensate drains properly. Clean the condensate tray and verify the drain hole isn’t blocked. If your unit includes a drain hose, route it to an appropriate outside location. Improper sealing leads to higher energy bills and moisture issues that can promote mold growth over time. Proper drainage safeguards floor and sill integrity.
Electrical safety and test run
Most window AC units run on a standard household outlet, but verify that the circuit can handle the load without tripping. Use a grounded outlet and avoid extension cords, which can overheat. Plug in the unit and run a test in fan mode to listen for unusual noises or vibrations. Confirm that the thermostat responds and cooling starts within minutes. If you smell burning or see frayed cords, unplug immediately and have the unit inspected. Finally, run a full cooling cycle in a controlled room environment to ensure consistent performance.
Maintenance, troubleshooting, and energy tips
After installation, maintain efficiency by cleaning the air filter every 30–60 days, cleaning condenser coils, and keeping the exterior grille clear. If cooling seems weak, check the filter, seals, and drainage path. Common issues after installation include air leaks, moisture near the sill, and vibration noise. Troubleshoot by rechecking seals, tightening mounting screws, and ensuring the drainage path is clear. For energy savings, use the thermostat wisely, keep blinds closed on hot days, and schedule annual checks. Install Manual’s guidance emphasizes that a well-sealed, properly tilted window installation yields better performance and longer equipment life.
Authority sources
- Energy.gov: https://www.energy.gov/energysaver/air-conditioning
- OSHA: https://www.osha.gov
- EPA: https://www.epa.gov/iaq
Tools & Materials
- Window air conditioner unit(Select a unit sized for the window opening and room area)
- Sash window kit or mounting brackets(Includes side panels and screws per manufacturer)
- Foam weather stripping / weather seal(For gaps between unit and window frame)
- Measuring tape(Measure width, height, and sill depth accurately)
- Level(Ensure unit sits straight to prevent leaks)
- Screwdriver set (Philips #2 common)(For brackets and interior screws)
- Utility knife(Trim foam and open packaging)
- Caulk gun and silicone sealant(Seal exterior gaps once mounted)
- Pencil(Mark mounting points and alignment)
- Outlet tester(Verify outlet is properly grounded)
- Step ladder(For safe access to window height)

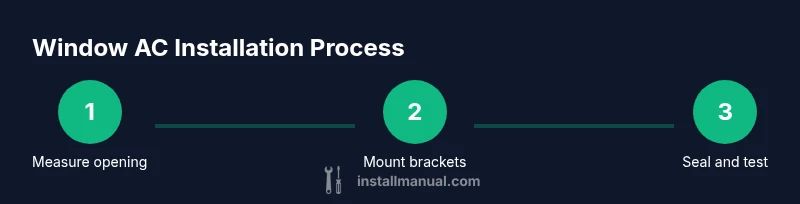

Steps
Estimated time: 60-90 minutes
- 1
Verify window compatibility
Confirm the window opening dimensions fit the chosen AC unit and that the sash can hold the weight when opened and closed. Check for any damage to the frame that would affect sealing. Have a helper ready to assist with lifting and positioning.
Tip: Always measure twice and verify the unit’s width and height against the window opening. - 2
Unpack and inspect the unit
Remove packaging and verify that mounting hardware, side panels, and seals are included and undamaged. Test that the fan turns freely by hand and that there are no loose parts before installation.
Tip: If you notice missing parts, contact the manufacturer before proceeding. - 3
Prepare the window and sill
Clear the window opening, remove drapes, and wipe down the sill. Place a drop cloth to protect the floor. Ensure the sill is clean and dry to improve adhesion of seals.
Tip: Keep the window open just enough to insert the unit during mounting. - 4
Mount the brackets and side panels
Attach the interior mounting screws and brackets to the window frame as directed. Extend the side panels and press them firmly against the jambs to seal gaps. Use a level to verify straight alignment.
Tip: Double-check that side panels are fully engaged and not twisted. - 5
Install and secure the unit
Slide the AC unit into the opening from the outside, resting it on the sill. Close the window slowly to trap the unit, then secure interior fasteners and ensure exterior grille sits flush. Check drainage alignment.
Tip: Have a helper hold the unit while you secure screws to prevent slips. - 6
Seal exterior gaps
Apply foam weather stripping around the sides and seal exterior gaps with silicone where needed. Ensure the unit tilts slightly toward the outside to encourage drainage.
Tip: Avoid over-tightening screws, which can warp the frame and create leaks. - 7
Electrical check and test run
Plug into a grounded outlet or dedicated circuit. Test fan mode, verify cooling onset, and listen for abnormal noises. If anything smells burnt, unplug immediately.
Tip: Do not use extension cords; they can overheat and trip breakers. - 8
Final checks and maintenance plan
Run a full cooling cycle, check for leaks, and clean/replace the air filter after first use. Schedule periodic inspections to maintain efficiency and prolong unit life.
Tip: Mark a calendar reminder for monthly filter checks during hot seasons.
Got Questions?
Do I need to remove the window sash to install a window AC?
Often you can install with the sash in place or with a sash kit; some models require partial sash removal. Always follow the unit’s manual for your window type. If you’re unsure, seek professional help.
You can usually install with or without removing the sash depending on the model. Check the manual and if you’re unsure, get help.
What size window AC should I buy for a room?
Choose a unit based on the room size and window opening, following the manufacturer’s sizing chart. Avoid under-sizing, which reduces cooling, or over-sizing, which wastes energy.
Pick a unit that matches your room size according to the chart, avoiding under- or over-sizing.
Is it safe to plug a window AC into a regular outlet?
Yes, most window units use a standard grounded outlet, but ensure the circuit can handle the load and avoid using extension cords. If in doubt, consult an electrician.
Most units use a standard outlet, but don’t use an extension cord and verify the circuit can handle the load.
Can I install a window AC in a double-hung window?
Yes, but it requires careful mounting and additional supports or a specially designed kit. Follow the unit’s instructions and consider professional help for complex frames.
It’s possible, but it may need extra supports or a special kit; follow the manual and consider help if needed.
What maintenance does a window unit require?
Regularly clean or replace the air filter, inspect seals, and keep outdoor grilles clear. Schedule annual checks to maintain efficiency and prevent buildup.
Keep the filter clean, check seals, and clear the outdoor grille; annual checks help maintain efficiency.
Why is there condensation leaking into the room after installation?
Leaking water usually means poor drainage or improper tilt. Recheck the tilt toward the outside and ensure the drain is clear. Seal any gaps to prevent moisture infiltration.
Leakage often comes from drainage or tilt issues; adjust tilt outward and clear the drain.
Watch Video
Main Points
- Measure window opening precisely before purchasing.
- Seal gaps thoroughly for energy efficiency.
- Mount securely to minimize vibration.
- Test the unit after installation to verify cooling.
- Perform regular maintenance for longevity.
