How to Install a Window Air Conditioner: Step-by-Step
Learn how to install a window air conditioner safely and effectively with a complete step-by-step guide, tools list, and pro tips. This Install Manual guide covers sizing, mounting, sealing, electrical safety, testing, and common mistakes for homeowners, renters, and DIY enthusiasts.
This guide helps you safely install a window air conditioner, seal gaps for efficiency, and test performance. You’ll learn to size the unit, gather essential tools, prepare the window, mount brackets, secure the unit, seal with weatherstripping, and connect power safely. Following these steps reduces leaks, vibration, and inefficient cooling for homeowners, renters, and DIY enthusiasts.
Window AC sizing and placement
Choosing the right window air conditioner starts with understanding your window opening and the unit's cooling capacity. Begin by locating the window that receives the most sun during the day and is easy to access for maintenance. Review the mounting kit that comes with the unit; many kits are designed for standard vertical or horizontal openings. If you’re renting, or you lack a secure sill, select a model with a compatible mounting accessory. Before purchasing, consult the manufacturer’s sizing guidance and consider room size, insulation quality, and sun exposure, since a unit that’s too small will run continuously while a unit that’s too large can cool unevenly. Prepare the window by removing or lifting the sash according to the kit’s instructions. Ensure the window frame can support the unit’s weight and that there is a clear path for any condensation drain. If in doubt, consult a professional or a rental-friendly installation service. Finally, plan the drain hose routing and electrical outlet location to avoid obstruction and ensure safe operation.
Preparing the window and frame
Clear the space around the window, remove curtains, and unplug any nearby outlets if needed. Inspect the window frame for damage, rot, or loose trim; repair or reinforce as required before proceeding. Remove the window screen and, if possible, lower the sash to create an open channel for the unit. Dry-fit the mounting kit without screws to confirm alignment and clearance. Use a level to verify that the mounting brackets will sit square with the sill, as misalignment can cause air leaks and vibrations. Gather all tools and components, including weather stripping, foam sealant, and any extension pieces in your kit. If the kit uses side panels, adjust them to fill gaps between the unit and frame. Confirm the window will safely support the unit’s weight and won’t slip during operation. Take photos of the initial setup for reference. Finally, ensure the electrical outlet near the installation is appropriate for a window AC and rated for the unit’s power needs.
Mounting the unit and securing it
With a helper, lift the AC unit into the window opening from inside the room, allowing the top to rest on the upper window frame. Extend the side panels to seal gaps and position the lower sash as required by your kit. Secure the mounting brackets or kit to the window frame with the supplied screws, taking care not to overtighten and damage the frame. Use a level to ensure the unit is plumb and tilt it slightly toward the outside to promote proper condensation drainage. Attach any sash locks or braces to prevent movement during operation. If your kit includes a foam seal, press it firmly around the edges to minimize drafts. Do not force-fit the unit; if it won’t fit, re-check window size and mounting hardware. Keep the drain hose unobstructed and routed to the exterior to prevent backflow during use.
Sealing, insulation, and electrical safety
Seal remaining gaps between the window frame and the mounting kit with foam weatherstripping or gasket tape to reduce drafts and improve efficiency. Avoid sealing too tightly on interior surfaces if air needs to circulate for safe operation, but ensure a clear route for condensation drainage. Route the power cord through an opening in the mounting kit rather than pulling it through tight gaps. Plug the unit into a properly grounded outlet that matches the unit’s plug; avoid extension cords, which can overheat. If the room shares a circuit with high-demand devices, consider a dedicated outlet or consult an electrician. Check that the outlet is readily accessible and the cord isn’t pinched by the sash. Wear gloves when handling the unit and screens, and inspect for moisture around the unit after the first operation. If you notice odors or excessive moisture, stop and reassess the seal and drainage.
Testing, adjustments, and care
Power the unit and run in cool mode at a comfortable setting; listen for unusual noises or vibration and re-check mounting screws and brackets if needed. Check for drafts around the sash – you should feel a cooler interior air flow but minimal outside air leakage. Adjust side panels if leaks are detected to improve sealing. Confirm the unit sits level and the drainage path works as intended by observing exterior water flow. Inspect the coils and grills after the initial 24 hours of use and clean or replace filters according to the manufacturer’s schedule. Keep the area clean and store tools properly for future maintenance. Finally, document the installation so you remember the kit model, screws used, and any peculiar fit issues for next time.
Common mistakes and quick fixes
Common mistakes include forcing a unit into a window that is too small or misaligning the brackets, which can crack trim or distort the frame. Skipping the weather seal leads to drafts and higher energy costs. Avoid using extension cords or overloaded outlets; use a dedicated circuit if possible. If you notice water leaking into the room, check the tilt and drain line routing. If the sash can’t close completely after mounting, re-check the bracket alignment or switch to a differently sized unit. For renters, select a temporary mounting kit that doesn’t require permanent modifications. If odors persist, clean the air filter and inspect the drainage path for clogs. If issues remain after testing, consult a licensed electrician or HVAC professional for evaluation.
Tools & Materials
- Window air conditioner unit(Choose a model sized for the window opening and room cooling needs)
- Mounting brackets/kit compatible with your window type(Ensure it includes side panels or extension pieces)
- Measuring tape(Measure window width and sill depth accurately)
- Level(Check that the unit sits plumb with a slight outdoor tilt)
- Screwdriver set (Phillips and flat-head)(For mounting screws and brackets)
- Pencil or marker(Mark screw positions or alignment on the frame)
- Foam weather-stripping or gasket tape(Seal gaps between unit and window frame)
- Safety gloves(Protect hands when lifting and handling screens)
- Headlamp or flashlight(Improve visibility inside the window opening)

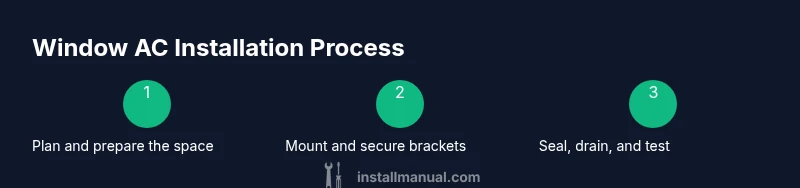

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and tools
Clear the area, unplug nearby outlets, and lay out all tools and mounting components. Verify you have a clear path to move the unit into the window. Check the window for any damage that would affect installation.
Tip: Have a helper nearby to manage heavier units and maintain balance. - 2
Measure window and select unit
Use a measuring tape to confirm window width and sill depth. Cross-check the mounting kit’s dimensions with the unit. If measurements don’t align, adjust by selecting a different kit or unit.
Tip: Always double-check measurements before attempting installation. - 3
Power down and unplug outlets
Ensure the room is safely de-energized by unplugging the outlet or turning off the circuit. This reduces the risk of accidental shock while handling electrical components.
Tip: If you’re unsure about wiring, ask for an electrician's help. - 4
Remove screen and lower sash
Open the window and remove the screen. If required by your kit, lift or remove the lower sash to create an opening large enough for the unit.
Tip: Keep the screen and sash parts in a safe place for reassembly. - 5
Attach mounting brackets
Position the brackets on the window frame as instructed by the kit. Insert screws and snug them without overtightening to avoid frame damage.
Tip: Use a level during attachment to maintain proper alignment. - 6
Lift and set the unit into the opening
With assistance, lift the AC into the window from inside and seat the top on the upper frame. Center the unit in the opening and align with the brackets.
Tip: Keep the unit balanced to prevent dropping. - 7
Extend side panels and seal gaps
Extend any side panels to fill the space between the unit and window frame. Apply foam weather-stripping or gasket tape around the edges for a tight seal.
Tip: Avoid compressing the seal too much; it should be snug but flexible. - 8
Secure the unit and check leveling
Secure the unit with screws or brackets, re-checking that it’s level. If it tilts forward, adjust the brackets and relevel.
Tip: A slight forward tilt helps condensate drain outside. - 9
Seal and insulate around the opening
Apply weather-stripping around the exterior side to minimize drafts. Ensure no blockages to drainage paths and that the hose exits freely.
Tip: Keep drainage hose clear of kinks. - 10
Route drain hose and power cord
Position the drain hose toward the exterior and ensure it won’t kink or pinch. Thread the power cord through a designed opening, not through tight gaps.
Tip: Avoid stretching the cord across the window gap. - 11
Plug in and perform a safety test
Plug into a grounded outlet and power on the unit in cool mode. Listen for unusual noises and check for immediate air flow pattern around the sash.
Tip: If you hear grinding or grinding-like noises, stop and inspect mounting. - 12
Test cooling and adjust as needed
Set a comfortable temperature and observe cooling performance. If airflow seems weak, verify that seals are tight and the filters are clean.
Tip: Clean the filter monthly during peak use. - 13
Clean up and finalize
Tidy the workspace, store tools properly, and keep packaging for future reuse. Take a final walkthrough to ensure the area is safe and accessible.
Tip: Document model and kit for future maintenance. - 14
Dispose packaging responsibly
Recycle cardboard and dispose of any plastic wrap per local guidelines. Return any unused hardware to the storage box.
Tip: Save the mounting kit manual for quick reference later.
Got Questions?
Do I need a professional to install a window AC?
For most standard units, this is a DIY task if you follow safety guidelines and use the correct mounting kit. Heavy or unique window configurations may require professional help.
For most standard window ACs, you can install it yourself if you follow safety steps and use the proper mounting kit. Heavy units or unusual windows may require a pro.
Can I install a window AC in a double-hung window?
Yes, with a mounting kit designed for sash windows. You may need to remove the lower sash and confirm the frame can support the weight. Follow the kit’s instructions closely.
Yes, but use a sash-compatible kit and check the weight limits. Follow the instructions carefully.
What safety precautions should I take during installation?
Power down the area, unplug the outlet, and wear protective gloves. Ensure the window is stable and avoid forcing any parts into place. If unsure about electrical safety, consult a licensed electrician.
Power down, wear gloves, and don’t force anything. If in doubt about wiring, get a licensed electrician involved.
How do I know which size window AC to buy for a room?
Refer to the manufacturer’s sizing chart and consider room size, insulation, sunlight, and ceiling height. A unit that’s too small runs constantly, while an oversized unit can cool unevenly. Choose a model recommended for your room type.
Use the manufacturer's sizing chart and consider room size and sunlight. Don’t guess—select a model rated for your space.
Is sealing with foam around the window OK?
Yes, foam weather-stripping is recommended to reduce drafts and improve efficiency. Do not seal so tightly that you impede drainage or the sash from closing completely.
Foam sealing is fine and helps efficiency, just don’t seal so tight that drainage or closure is blocked.
Watch Video
Main Points
- Choose the right size and mounting kit for your window.
- Prepare the window and frame before mounting the unit.
- Seal gaps and follow electrical safety guidelines.
- Test operation and perform final adjustments for best efficiency.
