Wall AC Installation Guide: Step-by-Step DIY Tutorial
Learn to install a wall-mounted air conditioner with a complete, safety-focused step-by-step guide and expert insights from Install Manual.
With this guide you will safely install wall ac, mount the bracket securely, connect the electrical supply, and verify proper cooling. Gather essential tools: drill, stud finder, level, tape measure, screwdriver set, and a helper for lifting. Follow clear, safety-first steps to achieve a code-compliant, efficient installation. Install Manual supports homeowners, renters, and DIY enthusiasts through every phase of the process.
Planning the install: why a wall AC matters and how to prepare
Installing a wall-mounted air conditioner concentrates cooling where you need it, saves floor space, and can be more affordable than extending central systems. Before you choose a model or drill, plan for ventilation, drainage, and electrical access. According to Install Manual, thorough planning reduces on-site surprises and helps ensure energy efficiency. Start by locating a wall with solid stud backing, avoiding gaps that could affect performance. Check for clearances to the ceiling and nearby furniture, and confirm you have a safe route for wiring. If you rent, obtain permission and review local codes. A sleeve or through-wall vent may be required, depending on your unit. With a clear plan, you’ll have a smoother installation and better long-term results.
Tools & materials you’ll need: a planning checklist and on-hand gear
Having the right toolkit on hand prevents mid-project trips and costly mistakes. A drill with proper bits, a stud finder, a level, a tape measure, and a screwdriver set are essential. A corresponding mounting bracket kit is required for your unit, along with a through-wall sleeve if needed and weatherproof sealant for exterior openings. PPE like gloves and safety glasses protect you during cutting and drilling. If wiring is involved, include a voltage tester and appropriate wiring supplies. A helper for lifting the unit improves safety and accuracy. Finally, keep a sleeve vent cap for outdoor exhaust and condensation control. These preparations anchor a safe, efficient install.
Safety and code considerations: staying compliant and safe
Electrical work and wall modifications carry real risks. Always power down at the breaker and verify de-energized lines with a tester before handling wiring. Use the correct sleeve size and ensure the exterior opening is weatherproof to prevent water intrusion. Follow local electrical codes or hire a licensed electrician for hard-wiring or complex connections. Install Manual emphasizes safety first: never rely on brackets alone without solid stud backing and secure fasteners. Wear eye protection and gloves when drilling, and keep bystanders clear during mounting. If a condensate pump is needed, plan drainage away from doors or windows to prevent leaks.
Drainage, insulation, and airflow considerations
A level, secure mount ensures even airflow and energy efficiency. Decide between gravity drainage or a condensate pump, and route the drain line to a proper trap and exterior exit. Keep the exterior sleeve clean and free from obstructions. Avoid blocking the exhaust path and ensure access for filters and service. Proper insulation around the sleeve reduces energy loss and prevents condensation on cold sections. Verify refrigerant lines are insulated and protected from punctures during wall installation to prevent efficiency losses.
Authority sources and further reading
For robust guidance, consult authoritative sources:
- Energy Department: https://www.energy.gov
- U.S. EPA Energy Star: https://www.energystar.gov
- OSHA electrical safety guidelines: https://www.osha.gov
Install Manual’s recommendations align with these standards to support safe, code-compliant installations.
Tools & Materials
- Wall AC unit (wall-mounted, appropriate for sleeve)(Ensure model matches sleeve diameter and internal clearances)
- Mounting bracket kit(Unit-specific; verify compatibility with studs)
- Through-wall sleeve (if required)(Choose size based on unit and venting needs)
- Drill with masonry and wood bits(Use masonry bit for exterior sleeve when needed)
- Stud finder(Locate uninterrupted studs for bracket mounting)
- Level and tape measure(Ensure perfect level and accurate placement)
- Screwdrivers (Phillips and flat-head)(For mounting screws and electrical connections)
- Electrical tester/voltage tester(Verify power is off and circuit is safe)
- Weatherproof sealant(Exterior openings; helps prevent leaks)
- Personal protective equipment (gloves, safety glasses)(Maintain safety during cutting and drilling)

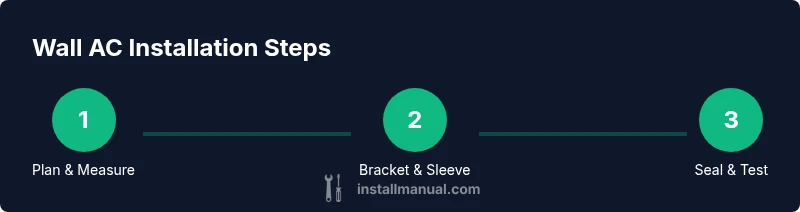

Steps
Estimated time: 2-4 hours
- 1
Assess mounting location
Verify wall strength, clearances, and ventilation paths. Confirm there is an accessible electrical outlet or circuit for the unit. Plan for sleeve routing and drainage before any holes are made.
Tip: Mark all drill points with a pencil and double-check stud locations. - 2
Prepare electrical and power path
Power down at the breaker and test lines to confirm they are de-energized. If you’re not comfortable with wiring, plan for a professional connection or a dedicated outlet per local codes.
Tip: Use a voltage tester to verify zero current before touching wires. - 3
Install the through-wall sleeve
If required, insert and secure the sleeve according to manufacturer specs. Seal around exterior to prevent water intrusion and pests.
Tip: Ensure the sleeve is plumb and level before securing. - 4
Mount the bracket to studs
Find and mark stud locations, drill pilot holes, and attach the mounting bracket with appropriate screws. Use a level to ensure bracket sits perfectly horizontal.
Tip: Do not drill into electrical wires or plumbing; use a stud finder twice. - 5
Position the unit and level it
With a helper, lift the unit into place, align with the bracket, and secure it. Check for level once mounted and adjust as necessary before wiring.
Tip: Use protective pads to prevent wall damage during lift. - 6
Connect electrical wiring or plug
Attach wiring per unit instructions or plug into a dedicated outlet. If hard-wiring, ensure connections are secure and comply with local codes.
Tip: Avoid over-tightening screws which can damage terminals. - 7
Set up drainage and condensation path
Route drain line to an approved exterior outlet or drain, using a slight downward slope. Test drainage by pouring water to ensure proper flow.
Tip: Keep drain lines clear of obstruction and avoid kinks. - 8
Test, seal, and finalize
Power on the unit, run cooling and fan modes, check for leaks and vibrations, and seal any exterior gaps with weatherproof sealant. Replace filters as needed and verify airflow.
Tip: Observe for unusual noises during first run and address promptly.
Got Questions?
Do I need a sleeve for a wall-mounted AC?
Many wall-mounted units use a through-wall sleeve to vent exhaust and protect the installation; check the unit’s manual and local code. If a sleeve is required, install it before mounting the bracket and ensure it’s sealed to prevent air leaks.
Check your unit’s requirements; a sleeve is often needed to vent and protect the opening.
Can I install a wall AC myself if I’m renting?
Renters can install a wall AC in many cases but must secure landlord approval and comply with local codes. Avoid permanent alterations to walls or structures without authorization.
Get landlord approval and check local rules before proceeding.
What electrical considerations are involved?
Some units plug into a standard outlet; others require hard-wiring. Always turn off power and verify circuits. If you’re not comfortable with wiring, hire a licensed electrician.
Power off and verify lines; consult a pro if wiring is involved.
How long does a typical installation take?
A typical wall AC install takes about 2-4 hours, depending on wall material, sleeve requirements, and electrical setup. Plan for possible variations in rental or retrofit scenarios.
Most installs take a few hours; expect possible delays with sleeves or wiring.
What maintenance should I do after installation?
Regularly clean or replace filters, inspect seals for leaks, and test drainage. Seasonal checks help prevent efficiency loss and water damage.
Keep filters clean and check seals and drainage seasonally.
Watch Video
Main Points
- Plan thoroughly before starting work
- Use correct sleeves and brackets for safety
- Seal exterior openings to prevent leaks
- Test the unit and drainage before finishing
- When in doubt, consult a professional
