What to Do When You Install Windows: A DIY Home Guide
Learn a thorough, step-by-step approach to installing new windows at home. Plan openings, choose the right unit, properly seal, and finish trim for energy efficiency and long-lasting performance.
Installing windows successfully requires careful planning, precise measurements, and proper sealing. This quick guide summarizes the essential steps: measure openings, select the right unit, remove the old window safely, prepare the rough opening, install the new unit, seal and insulate, and finish with trim. Safety and local codes matter—go slow, double-check plumb and level, and reference the full guide for details.
Assessing the opening and planning
A successful window installation starts with accurate opening dimensions and a thoughtful plan. Measure the width at multiple points (top, middle, bottom) and the height in three places, noting the smallest dimension as the true rough opening. Check for plumb walls and level floors; if the opening isn’t square, you’ll need shims and possibly frame adjustments. Inspect for wood rot, water damage, or insect activity in the studs, and address any issues before fitting the new unit. Document the rough opening with photos and sketches for reference. According to Install Manual, taking time to plan saves time later, reduces call-backs, and improves energy performance. Decide on window type (sliding, double-hung, or fixed) and frame material (vinyl, wood, or fiberglass).
Tools and materials you'll need
Before you start, assemble the essential tools and materials. A well-prepared toolkit minimizes trips to the garage and keeps the job on track. Gather a measuring tape, level, carpenter’s square, utility knife, pry bar, and a cordless drill with bits. Have shims, flashing tape, backer rod, low-expansion spray foam, silicone or polyurethane sealant, caulk gun, exterior trim, nails, and screws on hand. Include safety gear: goggles, gloves, and a dust mask. If the existing opening has rot or damage, bring along replacement framing stock and wood preservative. Prepare a drop cloth or tarps to protect floors and furniture during removal and installation.
Removing the old window safely
Put on PPE and protect nearby finishes. Remove interior trim carefully to avoid damaging reveals. Unscrew the window fasteners from the frame and sash, then pry the unit out of the opening with a pry bar. If there are any painted stop beads, remove them with care to avoid splintering. Remove the sash or moving parts, transport them out, and inspect the opening for rot or damage. Clean out old sealant and debris, and take photos of the opening for reference later. For homes built before 1978, be mindful of lead paint; if present, follow local safety guidelines and containment procedures. According to Install Manual, taking a methodical approach here reduces later fit issues and helps you note the true opening.
Preparing the rough opening
Clean the opening edges and inspect framing for damage. Replace any swollen or rotten sill, jamb, or header members before continuing. If the rough opening isn’t square, use shims to adjust the frame so it sits plumb and level. Install a sill pan and flashing where required to direct water away from the interior. Check for proper drainage and ensure the interior is dry before placing the new unit. Take measurements again after any repairs to confirm the opening meets the window’s manufacturer specs. A well-prepared opening makes installation smoother and improves long-term performance.
Installing the new window unit
Dry-fit the new window to verify fit before final installation. Place the unit in the opening and center it, using shims at the corners to achieve level and plumb alignment. Secure the frame with screws through the jambs or nail fins, checking for even gaps all around. Recheck the plumb, level, and square; trim or adjust as needed. Install any required flashing or weather-resistant barriers according to the manufacturer’s instructions. If you’re using foam insulation, apply minimal expanding foam around the frame after securing. Allow foam to cure according to product instructions before trimming excess material.
Sealing and insulating for energy efficiency
Seal the exterior first with flashing tape to block water intrusion and improve airtightness. Fill gaps between the frame and rough opening with low-expansion spray foam or backer rod as appropriate, being careful not to overfill and distort the frame. From the interior, caulk the gap between the window frame and drywall or trim with a paintable sealant. Install interior trim and finish, ensuring clean lines and consistent gaps. Check for drafts around the operable sections and adjust seals as needed. Energy efficiency comes from a tight, well-sealed installation as much as from the window’s glass and frame.
Finishing touches and cleanup
Install interior trim, casing, and any decorative molding. Caulk along the interior edge of the trim for a clean, professional look. Reinstall or repaint exterior trim and ensure proper drainage away from the home. Clean the glass and tracks, lubricate moving parts if the window has sashes, and test operation in both modes. Dispose of packaging and scrap materials responsibly. Document the install with notes and photos for future reference, including model numbers, dimensions, and any deviations from standard procedure. A neat finish protects the investment and reduces maintenance down the line.
Common installation pitfalls and how to avoid them
Avoid rushing through measurements or using a non-square opening as-is. Do not overtighten screws; it can bow or distort the frame. Don’t skip flashing or drainage details, which leads to leaks and wood rot. Plan for seasonal expansion—wood frames move with humidity and temperature—and choose sealants that are compatible with your frame material. If the opening is aggressively out of plumb, consider shimming or structural adjustments rather than forcing a fit. Finally, don’t neglect safety: always wear protection and work with a partner when handling large or heavy units.
Maintenance tips to extend window life
Regularly inspect seals, caulking, and flashing for wear. Clean tracks and hinges to prevent buildup that can impede operation. Lubricate moving parts with a silicone-based lubricant and check hardware yearly. Repaint or refinish exterior trims as needed to protect against weather. Keep drainage paths clear and monitor the seal around the frame after extreme weather. A proactive maintenance routine helps your investment last longer and keeps energy efficiency high.
Tools & Materials
- Measuring tape(at least 25 ft blade)
- Pencil and marking tool(for precise marks on framing)
- Carpenter's square(to check corner angles)
- Level(at least 2 ft; longer is better)
- Utility knife(for trimming foam and sealant beads)
- Pry bar(standard tool for removing old trim)
- Cordless drill and bits(for screws and fasteners)
- Hammer(nail-driven components and trim)
- Screwdriver set(flat and Phillips)
- Shims (plastic/wood)(to plumb and brace the frame)
- Flashing tape(exterior weather sealing)
- Backer rod(to fill gaps before foam)
- Low-expansion polyurethane foam(seal gaps without bowing frame)
- Caulk gun and sealant(silicone or polyurethane)
- Exterior trim and nails(for finishing exterior look)
- Safety gear (glasses, gloves, mask)(protect during removal and cutting)
- Drop cloths or tarps(protect interior surfaces)
- Replacement sill/rot repair kit(only if rot is found)
- Sash removal tool(optional for heavy sashes)
Steps
Estimated time: 4-8 hours

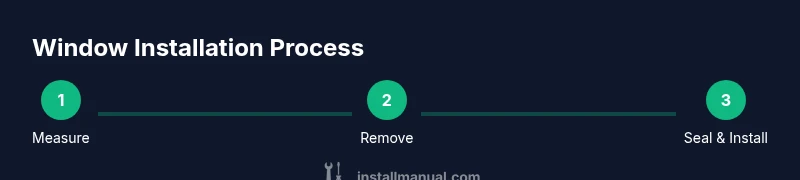

- 1
Measure and plan opening
Measure the opening in three places on each axis and document the smallest width and height. Check for plumb and level and note any deviations. Confirm window type and manufacturer specs before purchase.
Tip: Double-check all measurements; a 1/4 inch variance can affect fit. - 2
Remove old window
Power down any nearby circuits, protect surfaces, then remove interior trim and fasteners. Pry the unit free and lift it out carefully, avoiding damage to surrounding wall or studs.
Tip: Work with a partner for heavy units to prevent injuries. - 3
Prepare rough opening
Clean edges, remove rot, and repair framing as needed. Ensure opening sits plumb and square using shims and level as you secure the frame.
Tip: Install a sill pan and flashing per manufacturer guidance. - 4
Dry-fit and set unit
Place window in opening without adhesive, check alignment, then adjust with shims until the frame is perfectly plumb and level on all four sides.
Tip: Avoid over-shimming; keep gaps even. - 5
Secure the window
Fasten the frame through the jambs or nail fins, ensuring consistent pressure without bowing. Recheck alignment and adjust if necessary.
Tip: Use corrosion-resistant screws suitable for your framing material. - 6
Seal and insulate
Apply flashing tape to exterior, inject low-expansion foam around the frame, and seal interior gaps with caulk. Trim excess foam after cure.
Tip: Do not overfill foam; expansion can warp the frame. - 7
Finish interior and exterior
Install interior trim and exterior trim, re-caulk as needed, and touch up paint. Clean glass and test operation across modes.
Tip: Take photos for your records and future maintenance.
Got Questions?
What is the first step in window installation?
Begin with precise measurements and opening planning. Verify plumb and square, then select the appropriate window type and install method according to manufacturer instructions.
Start by measuring the opening accurately and planning the install to ensure the unit fits perfectly.
Do I need a permit to install new windows?
Permit requirements vary by locality. Many replacements in existing openings are exempt, but always check with your local building department to be compliant.
Check local codes with your building department to confirm permit needs.
Can I install windows myself or should I hire a pro?
A capable DIYer can install standard windows, but complex openings, historic homes, or structural concerns may require a licensed pro to ensure code compliance and warranty validity.
If in doubt about structural issues, hire a pro.
What insulation materials should I use around a window?
Use low-expansion foam around the frame, backer rod for gaps, and a compatible sealant. Follow the window and foam manufacturer guidelines for best results.
Choose foam and backer rod appropriate for your frame material.
How long does window installation take?
Most installations take several hours to a full day, depending on opening condition, weather, and the number of units being installed.
Expect a few hours per window, longer for multi-unit jobs.
What maintenance is needed after installation?
Inspect sealing and flashing annually, clean tracks, lubricate hardware, and touch up paint or sealant as needed to prevent water intrusion and air leaks.
Do yearly checks and keep seals in good condition.
Watch Video
Main Points
- Measure accurately before purchasing.
- Seal and insulate to maximize energy efficiency.
- Plumb and level are non-negotiable for a proper fit.
- Flash, seal, and finish to protect against moisture.
- Maintain windows regularly for longevity.
