How to Install an AC in a Window: A DIY Guide
Learn to install ac in window safely with a step-by-step guide, including tools, safety, sealing, and testing tips for homeowners.
Goal: You will learn to install ac in window safely and effectively, with proper mounting, sealing, and testing. Key prerequisites include a window that opens fully, a correctly sized unit for your room, and the right mounting brackets. Gather basic tools, fasteners, and safety gear before you start. Follow this step-by-step guide for a secure, energy-efficient installation.
Prep and Safety Considerations
Installing an air conditioner in a window is a common DIY task, but it must be done safely and correctly to avoid injury and energy waste. To install ac in window, start with a stable, unobstructed opening and the right-sized unit. According to Install Manual, unplug the unit and unplug any nearby outlets before handling, wear gloves, and inspect the window frame for structural integrity. If the frame is cracked or bowed, do not proceed—repair or replace the frame first. Also confirm you have a helper, since lifting a large unit alone can cause strains or accidents. Finally, ensure you have a clear space for the exhaust hose and any electrical cord management.
Tools and Materials You'll Need
Before you start, gather the following tools and materials. Having everything on hand prevents mid-project trips to the hardware store. The list below includes essential items; optional tools can speed up the installation.
- Window AC unit appropriate for your room size
- Mounting brackets and screws
- Screwdriver set (Phillips and flathead)
- Measuring tape
- Level
- Utility knife or scissors
- Weatherstripping or foam sealant
- Foam insulation or caulk
- Safety gear (gloves, safety glasses)
- Helper to assist with lifting

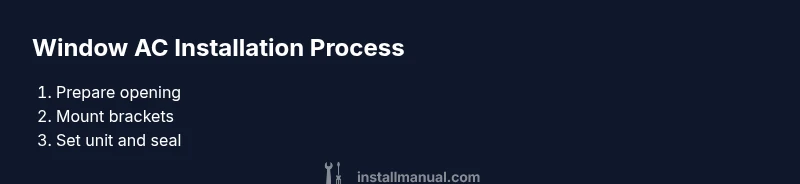

Step-by-Step Overview for Window AC Installation
The following steps describe the actual installation. For the full details, see the STEP-BY-STEP block below; each step is a discrete action with a clear purpose. The overview covers prepping the opening, mounting brackets, setting the unit, sealing, and testing. Visual references: Figure references in each step can guide alignment.
Finishing Touches and Testing
With the unit mounted and sealed, plug it into an appropriate outlet. Power on the unit and run through test modes: cooling, fan, and dehumidification as applicable. Check for air leaks around the window and the exterior seal; adjust foam or caulk as needed. Make sure the exterior weatherstripping remains intact and the exhaust hose is directed outside without kinks. Finally, observe the unit for a full cycle to confirm drainage and that the unit is level.
Authority Sources
Reliable, publicly available references can help verify sizing, installation, and safety considerations. The U.S. Department of Energy's resources explain how energy efficiency features of window AC units influence performance and energy use. The EPA's Indoor Air Quality (IAQ) guidelines emphasize proper ventilation and sealing to prevent moisture issues. OSHA's home electrical safety recommendations cover safe connection practices, cord management, and heighted awareness around water and electricity. While this article provides a practical DIY guide, always cross-check installation steps against the manufacturer's instructions, local building codes, and the latest federal safety recommendations. If you are unsure about any step, consult a licensed technician rather than proceeding. The aim is a secure, efficient, and safe window AC installation that will perform reliably for years.
Tools & Materials
- Window air conditioner unit suitable for your room size(BTU rating should match room size per manufacturer guidance.)
- Mounting brackets and screws(Use provided brackets; ensure compatibility with window frame.)
- Screwdriver set(Include Phillips and flathead sizes.)
- Measuring tape(Measure window width and depth accurately.)
- Foam weatherstripping or caulk(Seal gaps to block drafts.)
- Safety gear (gloves, safety glasses)(Protect hands and eyes during lifting and sealing.)
- Level(Check that unit sits level for proper drainage.)
- Utility knife(Trim foam or excess material as needed.)
- Helper to assist with lifting(Window AC units can be heavy; get an extra person.)
- Extension cord (optional)(Only if necessary and allowed by unit's power requirements.)
Steps
Estimated time: 60-90 minutes
- 1
Prepare the opening and safety setup
Unplug the unit and clear the window area. Remove the screen and inspect the window frame for stability. Have a helper ready to hold components while you position brackets. Ensure the space around the opening is clean and dry.
Tip: Use a helper to prevent dropping the unit. - 2
Measure opening and position brackets
Measure the window opening and compare it to the unit's width. Attach the mounting brackets to the window frame according to the manufacturer's instructions. Confirm brackets are level and evenly spaced to support the unit.
Tip: Double-check bracket alignment before lifting the unit. - 3
Install brackets and side panels
Secure any side panels or extension pieces as needed to fill gaps between the unit and the window frame. Tighten fasteners securely but avoid over-tightening. Keep panels aligned with brackets for a snug fit.
Tip: Take a photo of bracket placement for future reference. - 4
Set the unit into the window
Lift the AC into the window and guide it onto the tracks. Extend side panels to fill gaps and position the top retention bracket to hold the unit. Have a helper steady the unit as you secure it.
Tip: Keep a firm grip and have a helper assist to avoid injuries. - 5
Seal the exterior and insulate
Apply foam weatherstripping or caulk around the exterior edges to prevent drafts. Do not obstruct the exhaust hose. Check that seals are continuous with no large gaps.
Tip: Use non-expanding foam around the exterior edge to avoid pressure on the window. - 6
Check level and drainage
Verify the unit sits level using a nearby level. Ensure the drain pan can drain properly; adjust if necessary to prevent water backflow or leaks.
Tip: Place a level across the top of the unit to confirm. - 7
Power connection and basic test
Plug the unit into a properly grounded outlet. Avoid extension cords when a dedicated circuit is available. Run a short test cycle to confirm cooling, airflow, and drainage. Listen for unusual noises or vibrations.
Tip: If the outlet trips, turn off the unit and inspect wiring. - 8
Final adjustments and cleanup
Reinstall any window screens or trim, tidy cords, and check that the unit is secure. Remove any excess sealing material and store extra supplies. Take a photo of the finished installation for future reference.
Tip: Keep a spare bracket screw in a labeled container for future maintenance.
Got Questions?
Do I need to remove the window sash or trim for installation?
In many cases you will need to remove the sash or clear the opening to fit the unit. Always follow the unit's installation guide for the exact steps.
Usually you’ll need to open the window fully or remove the sash to fit the air conditioner. Check your model's instructions.
What size of AC unit should I install for a given room?
Choose a unit sized to the room and insulation level. Refer to the manufacturer's sizing chart or guide for your model.
Pick a unit based on room size and insulation; consult the chart in the manual.
Can I install window AC without mounting brackets?
Mounting brackets provide essential support and safety. Do not install without brackets unless the manufacturer specifically allows it.
No—brackets are needed to hold the weight and keep the unit secure.
Is it safe to use a window AC during rain?
Yes, if the exterior is properly sealed and the unit is designed for outdoor exposure. Ensure seals and drainage are intact.
Yes, but make sure the outside is sealed and there are no water leaks.
What if the unit is too heavy for me to lift?
Ask for help or hire assistance. Do not attempt to lift a heavy unit alone.
If it’s too heavy, get someone to help you lift it.
How do I check for leaks after installation?
Inspect seals around the window and exterior edge after sealing. Run a short test and feel for drafts or wet spots.
Check around the edges for drafts after sealing and testing the unit.
Watch Video
Main Points
- Assess window opening and unit compatibility.
- Mount securely and seal all gaps.
- Test the unit thoroughly and monitor for leaks.
- Finish with safety and efficiency in mind.
