Install Drop Ceiling: A Complete Step-by-Step Guide
This guide helps homeowners and DIY enthusiasts install a drop ceiling, with planning steps, tool lists, a detailed step-by-step process, lighting considerations, and safety reminders.
Goal: Install a drop ceiling to form an accessible, clean ceiling finish for basements or finished rooms. You’ll need a ceiling grid, tiles, perimeter molding, lighting adjustments, and basic hand tools. With careful planning, precise measuring, and strict safety checks, you can complete a compliant, professional-looking installation in a single space.
What is a drop ceiling and when to use it
A drop ceiling, also known as a suspended ceiling, uses a lightweight metal grid hung below the structural joists to support ceiling tiles. This system creates an accessible plenum that hides electrical cables, plumbing, and insulation while delivering a smooth finish. It’s ideal for basements, bonus rooms, or retrofit projects where accessing utilities above the ceiling is necessary but the joists remain in place. If you plan to install a drop ceiling, consider accessibility, future remodels, and your tolerance for work at height. Importantly, this approach can improve thermal performance and sound control when paired with appropriate insulation and tiles. When you set out to install a drop ceiling, your planning determines success, cost, and end results, so measure twice, budget wisely, and proceed with care.
Planning and design: layout, lighting, and access
Before you cut a single tile, draft a layout that balances room aesthetics with utility access. Start by measuring the room perimeter and noting doorways, vents, and light fixtures. Decide on a grid pattern that minimizes tile cuts while accommodating lighting and access panels. Plan perimeters with a wall angle or trim, and map where main tees and cross tees will run. Lighting should be repositioned or recessed to stay within the grid, and access panels should be placed where you need the easiest (and safest) service. A well-planned layout reduces waste and ensures a smooth install when you finally install drop ceiling components.
Materials and grid systems: tiles, grids, and trim
Choose a grid system that fits your room height and install requirements. Common options include metal main tees, cross tees, and wall angles along the room perimeter. Ceiling tiles come in various sizes, textures, and fire ratings, and should be compatible with your grid. Perimeter trim helps create a clean edge along walls. In addition to tiles and grid hardware, you’ll need hangers or suspension wires, and a method to hold the grid level during installation. The right combination ensures a sturdy, level ceiling with minimal tile cutting.
Tools and safety basics to prepare
A successful install drop ceiling starts with the right tools and safety gear. Assemble a retractable tape measure, a level, a chalk line, utility knife, tin snips, a drill/driver, stud finder, and a sturdy ladder or scaffold. Wear safety goggles and work gloves, and keep a vacuum or dust pan handy for debris. Have a helper if possible; handling a grid in larger rooms is much easier with two people. Finally, clear the workspace and protect flooring to minimize mess and injuries during installation.
Step-by-step approach you can follow
With your layout confirmed and components staged, begin by installing the perimeter wall angle along the room walls. Then hang the main tees at the planned height, ensuring they’re plumb and level. Add cross tees to complete the grid, leaving access panels for utilities as planned. Drop-in ceiling tiles sit into the grid, and you’ll trim any edges to fit precisely. Recheck level and alignment, adjust as needed, install lighting fixtures or access panels, and ensure all tiles are seated securely. This approach balances accuracy with efficiency and reduces waste.
Lighting and utilities: safe integration and access
Relocating or modifying lighting and vents requires careful planning. Shut off power where you’ll work and verify circuits before cutting any openings. Reposition fixtures to fit within the grid or plan for recessed lighting. Create access panels above tile groups that require regular service, like filters, vents, or junction boxes. Keep wiring tidy and above the ceiling plane to avoid obstruction, and label any changes so future work is straightforward.
Finishing touches: trim, paint, and cleanup
After tiles are in place, install perimeter trim or wall angles to produce a clean edge. If you want a uniform color, consider painting tiles or the grid before final assembly. Clean up all dust and debris, remove tools, and inspect the ceiling for any loose tiles or misaligned elements. A final walk-through helps catch issues such as gaps at the perimeter or uneven tiles, ensuring a professional finish.
Safety, codes, and insulation considerations
Always check local building codes and permit requirements before beginning. Ensure your installation complies with fire resistance standards and ventilation guidelines. If your space has insulation above the ceiling, verify that it remains undisturbed or properly re-sealed to maintain performance. Use tiles with appropriate fire ratings and install according to manufacturer instructions. This helps prevent hazards and ensures your finished ceiling stands up to use over time.
Maintenance, care, and long-term considerations
A drop ceiling is designed for easy access; periodically check tile alignment and replace any damaged tiles promptly. Inspect suspension wires and support points for signs of wear and tighten if needed. Keep the plenum clear of excessive dust, and consider periodic insulation upgrades if your home’s energy needs change. With regular checks, your ceiling system remains functional and looking polished for years.
Tools & Materials
- Measuring tape (25 ft or longer)(At least 25 ft. for room measurements and layout.)
- Carpenter's level (12-24 in)(Ensure grid is level across long spans.)
- Chalk line(Mark straight reference lines on walls.)
- Utility knife with extra blades(Cut ceiling tiles cleanly.)
- Tin snips(Trim grid components and tiles as needed.)
- Drill/driver with bits(Secure hangers and wall angles.)
- Stud finder(Locate joists when needed for anchoring.)
- Ladder or scaffold(Stable access for overhead work.)
- Safety goggles and work gloves(Protect eyes and hands during cutting.)
- Ceiling grid components (main tees, cross tees, wall angles)(Ensure compatibility with tiles.)
- Ceiling tiles(Choose tiles that fit your grid and lighting.)
- Perimeter molding/wall angle(Creates clean edges along the wall.)
- Light fixtures and electrical tools (if wiring)(Plan for recessed lighting or fixtures.)
- Shop vac or broom for cleanup(Keep work area clear of dust.)

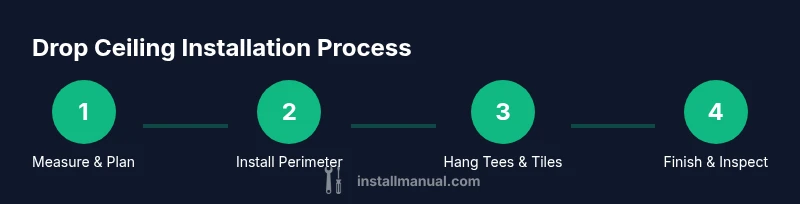

Steps
Estimated time: 3-6 hours (depending on room size and prep)
- 1
Measure and plan layout
Measure the room perimeter and entry points. Draft a grid layout that minimizes tile cuts and accommodates lights and access panels. Confirm the final height and the position of the perimeter wall angle.
Tip: Mark reference lines with a chalk line and verify consistency across walls. - 2
Mark reference lines for grid
Use a level and chalk line to mark ceiling reference lines at the planned height around the room. Double-check measurements against door openings and vents to avoid clashes later.
Tip: Check multiple corners; small deviations can compound across the room. - 3
Install perimeter wall angle
Attach the wall angle along the marked lines to form a stable edge for the grid. Use screws at every stud or joist and ensure the angle is level.
Tip: Begin at a corner and work your way around to maintain a consistent line. - 4
Hang main tees
Install the main tees perpendicular to the perimeter, aligning with the grid lines. Use suspension wires or hangers as specified by the grid system and ensure the tees are plumb.
Tip: Space hangers evenly to prevent sag and keep measurements precise. - 5
Add cross tees
Insert cross tees to complete the grid pattern. Ensure tiles will fit cleanly without excessive trimming, and test a few tile samples for fit.
Tip: Leave room for lighting fixtures if they intersect grid lines. - 6
Install tiles
Drop tiles into the grid starting at a corner and working outward. Trim edges with a utility knife to create clean lines where necessary.
Tip: Keep tiles flat and avoid forcing tiles into tight gaps; trim as needed for a snug fit. - 7
Install lighting and vents
Reposition or install lighting fixtures per plan. Cut openings for vents or lights carefully, ensuring electrical safety and proper clearances.
Tip: Turn off power at the breaker before cutting any electrical components. - 8
Check alignment and adjust
Inspect the grid for levelness and alignment; adjust hangers or tiles as needed. Validate that all tiles sit flush and there are no gaps.
Tip: Use a level across multiple runs to catch subtle deviations. - 9
Finalize trim and edges
Install perimeter molding or wall angles for a clean edge. Trim any excess tile and seal gaps if needed.
Tip: Paint or finish edges if a consistent color is desired. - 10
Clean up and inspection
Vacuum dust, remove debris, and perform a final inspection for safety and stability. Confirm all service panels function as planned.
Tip: Document any changes for future maintenance or upgrades.
Got Questions?
Do I need a permit to install a drop ceiling?
Permit requirements vary by locality. Check with your municipal building department about any permits or inspections required for ceiling modifications, especially if electrical work is involved.
Permit requirements vary by location; check with your city or county about ceiling changes and any electrical work permits.
What tools are essential for installation?
Key tools include a tape measure, level, chalk line, utility knife, tin snips, drill/driver, stud finder, ladder, and safety gear. A helper can speed up the process.
You’ll need measuring, cutting, drilling tools, plus proper safety gear; a helper helps with large grids.
Can I install a drop ceiling myself or should I hire a pro?
DIY installation is feasible for many spaces with careful planning and adherence to instructions. Complex wiring, fire-rated tiles, or large rooms may benefit from a professional.
Many homeowners can install a drop ceiling themselves, but complex electrical work or large rooms might warrant a pro.
How long does it take to install a drop ceiling in a typical room?
For a standard basement room, plan on several hours to a full day depending on room size, prep work, and whether you install lighting in the grid.
Most rooms take several hours, up to a full day depending on details and prep.
Will a drop ceiling improve insulation and acoustics?
Yes, a properly sealed plenum with the right tiles and insulation can improve acoustic performance and thermal resistance, especially in unfinished spaces.
A drop ceiling can improve sound control and insulation when paired with appropriate materials.
What maintenance is required after installation?
Inspect tiles and grid annually, replace damaged tiles promptly, and check for loose components. Keep panels accessible for service.
Check for damage each year and replace tiles as needed; keep access panels functional.
Watch Video
Main Points
- Plan layout before starting to minimize waste
- Keep grid level for a professional finish
- Prioritize safety when dealing with electrical work
- Choose tiles and grid compatible with lighting design
- Inspect and maintain the ceiling after installation
