How to Install a Drop Ceiling: Step-by-Step Guide
Learn how to install a drop ceiling in your home with a step-by-step process, tool lists, safety tips, and troubleshooting to achieve a professional-looking suspended ceiling.
You will learn how to install a drop ceiling, including measuring, framing, grid installation, and tile placement. This guide covers essential safety steps, tool lists, and timing estimates so DIY homeowners can complete a professional-looking suspended ceiling. We emphasize accurate leveling, proper support, and moisture considerations for basements or kitchens. According to Install Manual, following the steps prevents sagging and ensures long-term performance. Get started with the right measurements and a clear plan.

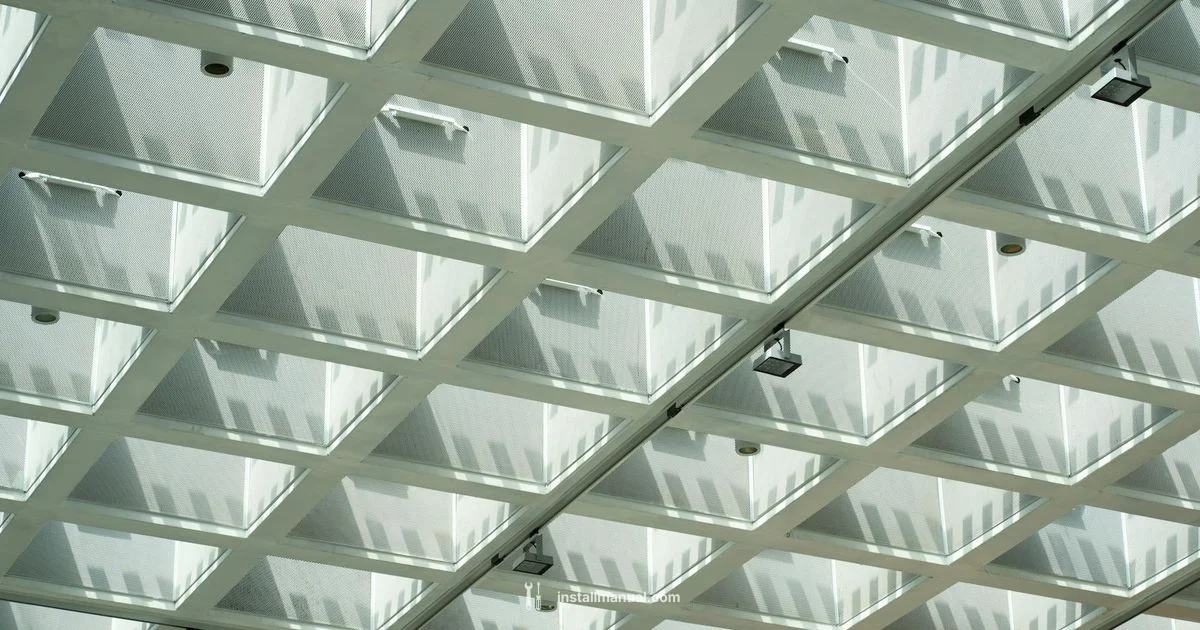

What is a drop ceiling and why choose one?
A drop ceiling, also known as a suspended ceiling, creates a secondary framework of metal grids that hang below the structural ceiling. Acoustic tiles fit into the grid to form a neat, accessible surface. The most common rooms for drop ceilings are basements, garages, and mechanical rooms, but they also appear in kitchens and laundry spaces where access to ducts or plumbing is a bonus. The main advantages are easy access to utilities, improved sound absorption, and a clean, uniform look that hides imperfect drywall or uneven framing. Before you start, verify that your room’s humidity and moisture levels are appropriate for tiles. In damp spaces like basements, choose tiles rated for moisture resistance and ensure that any vapor barriers remain intact. The Install Manual team notes that a well-planned grid helps prevent sagging and creates a durable, long-lasting ceiling. Planning upfront saves you time and reduces waste, especially if you choose tile sizes that minimize cuts. Remember that a drop ceiling is a modular system; you can replace individual tiles without ripping out large sections of drywall, which is a major time-saver for homeowners and renters.
Planning the layout: grid, tiles, and access doors
Successful drop ceiling installation starts with a thoughtful layout. Decide on tile size (commonly 2x2 ft or 2x4 ft) and how the perimeter trim will frame the room. A well-planned grid minimizes cuts, reduces waste, and creates a uniform pattern across walls. Mark a straight reference line from the longest wall and use a laser or chalk line to ensure all main runners align, especially in rooms with uneven edges. Consider future access: if you’ll need to reach plumbing, wiring, or vents, plan for an access panel or larger duct openings. The perimeter track should sit level and flush with the finished wall, which keeps the ceiling square as you install the rest of the grid. Remember to account for any lighting fixtures, vents, or irregularities in wall geometry so you don’t end up with awkward gaps or misaligned tiles.
Measuring, materials, and safety planning
Accurate measuring is the foundation of a clean drop ceiling. Measure the room length and width, then determine the ceiling height you want. Check joist depths, duct runs, and electrical wires that could interrupt the grid. Draft a bill of materials that includes tiles, grid components (main runners, cross tees, perimeter trim), hangers or wires, and fasteners. Safety planning is essential: turn off nearby circuits as needed, wear eye protection and masks to cope with dust, and use a sturdy ladder or scaffold. Establish a plan for moisture-prone areas by selecting moisture-rated tiles and ensuring ventilation. Keep a clean workspace and label cut tiles to avoid misplacement as you work through layout and installation.
Common challenges and how to solve
You’ll encounter obstacles like uneven walls, irregular ducting, or low joists. When walls aren’t square, you may need to cut perimeter tiles or adjust the grid with partial cross tees to maintain a straight line. Ducts and pipes require precise cutouts in tiles or temporary rerouting of the grid to maintain clearance. If a tile becomes warped, store it flat and allow it to relax before installation or replace it entirely. For basements with moisture, choose tiles specifically rated for humidity and ensure that the space remains dry before finishing. Finally, plan for future maintenance by leaving room around light fixtures or vents, so you can reach components without disassembling large areas of the grid.
Finishing touches and long-term care
With the grid in place and tiles laid, trim any tiles along edges to fit precisely and snap them securely into the channels. Wipe tiles to remove dust before final inspection. Re-check levelness across the grid and adjust as needed with anti-sag hangers or screws, if applicable. Install perimeter molding to create a clean, professional edge that conceals gaps. Periodically inspect the ceiling for sagging or moisture-related staining, especially in basements, and replace tiles if sections show wear. Clean tiles with a soft brush or cloth; avoid harsh chemicals that could degrade finishes. Proper care extends the life of your drop ceiling and preserves its appearance for years.
Additional notes on acoustic considerations and aesthetics
If sound control is a priority, consider tiles with higher NRC ratings and a darker finish for a refined look. The grid system itself can influence acoustics; diffuse the ceiling with a combination of tile textures if you want to balance reverberation. A well-chosen tile pattern can enhance visual interest, but keep the pattern simple in small rooms to avoid a busy feel. For busy family spaces, a brighter color tile or a white-on-white pattern can keep the room feeling open, while a lower panel density can reduce echo in workshop areas.
Tools & Materials
- Tape measure (25 ft or longer)(Essential for accurate room dimensions)
- Pencil or marker(For layout marks on walls)
- Carpenter's level (2 ft and 4 ft)(Keeps grid lines true)
- Chalk line(Mark straight wall references)
- Tin snips(Cut metal grid components)
- Utility knife(Trim tiles and edge pieces)
- Framing square(Check right angles on corners)
- Drill/driver with bits(Attach hangers, fasteners)
- Ceiling grid system kit (perimeter track, main runners, cross tees)(Select a kit size for your room)
- Hangers or suspension wires(Support grid from joists)
- Ladder or portable scaffolding(Safer access to high areas)
- Safety gear (glasses, gloves, dust mask)(Protect during cutting and drilling)
- Tiles rated for moisture (if applicable)(Choose for damp spaces)
- Tile cutter or sharp utility blade(Edge cuts for clean fit)
- Trash receptacle or bag(Keep work area tidy)

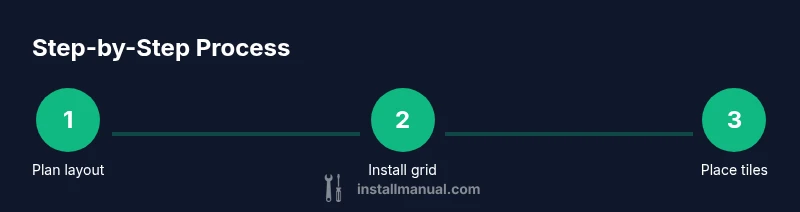

Steps
Estimated time: 4-8 hours
- 1
Assess space and plan layout
Walk the room to identify joists, ducts, and any wiring that could affect the grid. Decide tile size and grid pattern that minimizes cutting. Mark the layout on the walls with a chalk line and verify clearances around doors and fixtures.
Tip: Double-check the planned tile orientation against traffic flow and lighting. - 2
Prepare workspace and safety setup
Clear the room of obstacles and cover flooring to protect surfaces. Put on safety gear and set up a stable ladder or scaffold. Turn off nearby circuits if you’ll be near outlets or wiring.
Tip: Have a helper on standby to lift long grid sections during setup. - 3
Install perimeter track
Attach the perimeter metal track to walls along your marked lines. Use a level to ensure it sits perfectly straight. This frame defines the ceiling height and creates a clean edge for the grid.
Tip: Check intersections for square corners; adjust with shims if walls are uneven. - 4
Hang main runners
Mount the main runners parallel to each other, spaced to match the tile size. Secure with hangers or screws into joists, keeping everything level. Use a laser level to confirm even height across the room.
Tip: Start in a corner and work outward to keep alignment consistent. - 5
Attach cross tees
Insert cross tees between main runners to form a grid, cutting tees as needed for edges. Maintain square intersections and keep the grid flush against the perimeter track.
Tip: Cut tees one at a time to preserve grid integrity as you progress. - 6
Place tiles
Fit tiles into the grid, pressing gently to lock them into place. Leave a small gap for expansion and ensure the pattern remains uniform across the room.
Tip: Lay tiles in a consistent orientation to avoid visible seams. - 7
Trim tiles and install access panels
Trim edge tiles carefully with a utility knife for precise fits. Install any required access panels or larger cutouts for ducts or light fixtures.
Tip: Label edge pieces if pattern orientation is critical. - 8
Inspect, clean, and finalize
Check for level and alignment, remove dust, and secure any loose tiles. Reinstall fixtures and perform a final safety check before use.
Tip: Walk the room and look for high spots; adjust with minor shims if necessary.
Got Questions?
What is a drop ceiling and why would I install one?
A drop ceiling is a suspended grid system that supports acoustic tiles, allowing easy access to plumbing, wiring, and ducts. It provides a clean, uniform appearance and can improve sound control. This approach is popular in basements and utility rooms where accessibility matters.
A drop ceiling is a suspended grid with tiles for easy access to utilities and a cleaner look.
Do I need a permit for a residential drop ceiling?
Most residential drop ceiling projects don’t require a permit, but local codes vary. If you’re altering structural elements, running new wiring, or working near hazardous spaces, check with your local building department. When in doubt, consult a licensed contractor.
Permit requirements vary; check with your local building authority if you’re unsure.
What tools and materials do I need to start?
You’ll need a tape measure, chalk line, level, tin snips, utility knife, a drill, a ladder, and a complete ceiling grid kit. Having a helper and proper safety gear makes the project smoother and safer.
Get the basic tools, a grid kit, and a helper to start.
Can I install a drop ceiling over an existing drywall ceiling?
Yes, you can install a drop ceiling under an existing ceiling, provided there’s adequate space and access to joists. This approach adds height flexibility and allows for easier access to utilities without removing drywall.
Yes, but ensure there’s room and joists for the grid.
How long does it typically take to install a drop ceiling?
A typical basement-sized installation may take a full day to a couple of days depending on space, complexity, and helper availability. Planning and pre-cut tiles can shorten the process.
Most projects take one to two days with proper planning.
Are there safety concerns I should be aware of?
Yes. Work safely around electricity and sharp edges, wear protective gear, and ensure the ladder or scaffold is stable. Ventilate dusty areas and avoid forcing tiles into tight corners to prevent tile breakage and injuries.
Take precautions with electricity and sharp tools; stay balanced on ladders.
What maintenance is required after installation?
Dust the tiles regularly, check for signs of moisture or sagging, and replace tiles if they show damage. Keep an eye on vents and ducts to prevent mold and ensure good airflow.
Dust and check for moisture; replace damaged tiles as needed.
Watch Video
Main Points
- Measure twice, cut once.
- Plan layout for accessibility and minimal waste.
- Keep the grid square and level throughout.
- Choose moisture-rated tiles for damp spaces.
- Inspect and maintain the ceiling regularly.
