How to Install Door Frame: A Complete DIY Guide
A comprehensive, step-by-step guide to install a door frame with precise measurements, shimming, leveling, and finishing touches for a durable, seamless fit.
To install a door frame, start with a precise opening, level and square the frame, then fasten it with shims and screws. Dry-fit the jamb, trim as needed, and check that the hinge side is plumb. Finish by securing casing and adjusting for a tight seal.
Assessing the Opening and Choosing Frame Type
Before diving into the install, assess the rough opening and choose the correct door frame type. The goal is a frame that fits snugly with the wall, leaves even reveals, and accepts the hinge alignment you plan to use. If you’re replacing an existing door, measure the current opening at three points for width, height, and depth. Do not assume the opening is perfectly square; small deviations matter for flush hinges and solid sealing. The question of how to install door frame begins with precise measurement and correct frame selection. When selecting a frame, consider whether you’ll use a prehung unit or a hollow-core jamb with separate trim. Prehung frames simplify alignment, but require exact opening dimensions.
Essential Tools and Materials Overview
Successful door frame installation relies on having the right tools and materials at hand. Gather a tape measure, level, square, pencil, carpenter’s knife, pry bar, hammer or drill, impact driver if available, shims in multiple thicknesses, and fasteners: finish nails or screws appropriate for your wall (drywall, plaster, or lumber). You’ll also need a saw to trim jambs if the opening is slightly undersized, and a utility knife to trim shims. For best results, include a helper to hold the frame in place during initial positioning. The core idea is to prepare a predictable workspace so you can focus on how to install door frame with accuracy.
Preparing the Opening: Dry Fit and Layout
Begin with a dry fit of the jamb in the rough opening to verify fit and identify any high spots or gaps. Mark hinge locations on the jamb and the wall, ensuring alignment with your planned door. Check both width and height at multiple points and mark where shims will be placed to correct any deviations from square. This layout step is critical for a smooth install and is where most misalignments originate. Remember, the goal is a stable, plumb frame that remains square as you proceed.
Installing the Door Frame: Dry Fit, Shim, and Secure
With the opening prepared, place the jamb into position and perform a second dry fit. Begin shimming at the hinge side and diagonally opposite corners to create a plumb, level frame. Once the jamb sits true, secure it with screws or nails through the frame into the studs, checking for twist after each fastener. If the base or header sits low or high, trim shims as needed and recheck plumb and level. This is where you turn measurements into a secured frame that won’t bow or twist over time.
Aligning, Plumb, and Level: Final Adjustments
After initial fastening, verify the frame is perfectly plumb on all sides using a level on both planes and by checking diagonal measurements. Small shims can correct any remaining warp, and you should re-tighten fasteners after adjustments. The hinge side should be straight and the gap around the door uniform. If you notice binding, reassess hinge positions and lateral movement, correcting before finalizing with the trim.
Finishing the Frame: Hinges, Latch Prep, and Trim
With the frame square and secure, install the hinges and align the door with the frame. Predrill hinge mortises if needed and test swing. Prepare the latch side by marking strike plate locations, chipping out for a clean fit, and ensuring the door closes snugly without binding. Finally, install casing or trim to cover gaps and provide a finished look. The result should be a door that opens smoothly, seals well, and presents a clean, professional appearance.
Common Pitfalls and Quick Fixes
Common issues include a frame that seems too tight to fit, hinge misalignment, and uneven reveals. If gaps are uneven, recheck plumb and adjust with additional shims. If the door binds at the top or bottom, verify that the frame is not bowing and that the jambs are cut square to the wall. In tight spaces, a good stance and clear communication with a helper can prevent mistakes and save time during the learning process on how to install door frame.
Tools & Materials
- Carpenter's pencil(for marking precise locations on trim and framing)
- Measuring tape (min 8 ft)(for rough opening measurements)
- Speed square(to mark plumb and square lines)
- Hammer or drill/driver(for fastening jambs and hinges)
- Finish nails or wood screws(2-1/2 in nails or appropriate screws for jambs)
- Shims (1/4 in and 1/2 in)(for plumb and alignment adjustments)
- Utility knife(trim shims and trim as needed)
- Level(to verify vertical and horizontal alignment)
- Saw (hand or circular)(to trim jamb height or width)
- Pry bar(help align and fit frame in tight openings)
- Safety gear (eye protection, gloves)(protect during cutting and fastening)
- Door frame kit or prehung frame (optional)(depends on opening and preference)

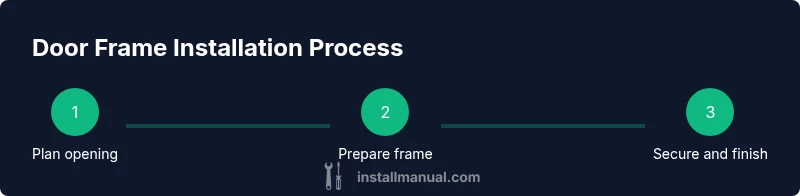

Steps
Estimated time: 90-120 minutes
- 1
Measure the rough opening
Take width measurements at the top, middle, and bottom of the opening; record the smallest. Measure height on the hinge side and latch side at three vertical points. Check depth to ensure the wall finish will sit flush with the jamb. These measurements guide frame size and prevent binding later.
Tip: Measure twice, record three values per dimension, and use the smallest width for safety. - 2
Dry-fit the jamb in the opening
Place the jamb into the opening without fasteners to confirm fit. Look for gaps around the sides and top; identify high spots that require shaving or packing. Adjust the frame until it sits roughly square and flush with the wall before proceeding.
Tip: Use a helper to steady the jamb during the dry-fit stage. - 3
Mark hinge locations
Hold the frame in position and mark the hinge locations on both the jamb and wall. This ensures hinge screws align with studs and that the door will swing correctly.
Tip: Double-check marks against the door you’ll install to avoid misalignment. - 4
Shim to plumb and square
Start with the hinge side and diagonally opposite corner. Insert shims at these points and recheck plumb with a level on both planes. Add or remove shims until the frame sits square.
Tip: Shim in small increments; avoid overpacking behind hinges. - 5
Secure the frame to the opening
Drive screws or nails through the frame into studs at the marked hinge positions and the strike side. Tighten progressively while checking for twist or bow as you go.
Tip: Torque fasteners just enough to hold without warping the jamb. - 6
Trim and test fit the door
If the door is rubbing, trim the bottom or hinge side as needed. Re-test the swing and clearance around the frame. Ensure the gap remains even with the wall on all sides.
Tip: Make conservative cuts; you can always trim more if needed. - 7
Install hinges and prep latch side
Predrill hinge mortises if required and mount hinges. Mark and chisel out the strike plate area on the frame or wall stud so the door latches smoothly.
Tip: Use a sharp chisel for clean mortises to avoid binding. - 8
Finish with casing and sealant
Install casing or trim to conceal gaps; apply sealant or caulk along the outside edges to improve energy efficiency and weather resistance. Double-check the door operates freely after trim is installed.
Tip: Choose a caulk color that matches the wall for a seamless finish.
Got Questions?
What is the rough opening and why is it important?
The rough opening is the unfinished space in the wall where the door frame sits. Proper sizing ensures the frame sits flush, supports hinges, and the latch lines up correctly. Measuring accurately at multiple points is essential when learning how to install door frame.
The rough opening is the space the frame sits in. Get accurate measurements to ensure hinges and latch align properly.
Do I need to remove the old door before installing a new frame?
If you are replacing a door, you may remove the existing door and trim to expose a clean rough opening. For some projects a new frame can be installed around the existing door with proper adjustments. Always verify the opening is ready for a new frame when learning how to install door frame.
You may remove the old door to expose the opening, but assess if you can fit a new frame in place first.
How long does it take to install a door frame?
Time varies with opening condition and experience. Plan for a few hours for a typical interior door, including framing, aligning, fastening, and finishing. If you’re new to this, expect a longer session while you learn how to install door frame.
Expect a few hours for a typical interior door, more if you’re new to framings.
Which tools are essential to install a door frame?
Essential tools include a measuring tape, level, square, pencil, hammer or drill, shims, screws or nails, a saw, and a utility knife. A helper makes positioning easier and can speed up the process of how to install door frame.
You’ll need tape, level, square, shims, screws, a saw, and a helper for best results.
Can I install a door frame without a level?
A level is critical to ensure the frame is plumb and square. Without a level, you risk a door that binds or doesn’t seal properly. Use a level throughout the process to assure proper alignment as you learn how to install door frame.
No. A level is essential to ensure proper alignment and function.
How do I fix a binding door after installation?
Identify whether binding occurs at the hinge side or latch side. Recheck hinge positions, adjust shims, and trim as needed. If issues persist, re-check frame squareness and ensure the door is not oversized for the opening.
If it binds, re-check hinges and shims, and adjust until the door swings freely.
Watch Video
Main Points
- Measure twice, cut once for the opening.
- Keep the frame plumb and square during installation.
- Shim precisely to align hinges and latch.
- Test swing and clearance before finishing.
- Seal and trim for a clean, durable finish.
