How to Install Interior Door: A Complete DIY Guide
Learn how to install an interior door with a clear, step-by-step method. From measuring and choosing the door to hanging, aligning, and finishing with weatherstripping and trim, this guide covers all essential steps.
You will install an interior door by selecting the right door, preparing the frame, and carefully hanging and aligning the door with hinges and hardware. This guide covers measuring, hinge mortises, shims, and finishing touches to ensure a square, smooth swing. Expect to work with tools safely and plan for minor adjustments as the frame settles.
Understanding door types and frame compatibility
This section answers the core question: how to install interior door starts with understanding the types of doors and the frames they fit. A standard interior door is either a slab (a door slab that requires a separate frame) or a prehung unit (door already mated to a frame with hinges installed). When homeowners ask, “how to install interior door,” the most reliable approach is to assess the existing rough opening and the door that will work best with it. A well-fitting door must align with the jambs and have enough space for latching hardware without binding. The Install Manual team has found that choosing the right door type based on the doorway dimensions saves hours of trim adjustments later. Precise measurement and a reality check against your current frame help prevent over-shimming and misalignment. In this guide, you’ll learn how to identify whether your doorway needs a slab or a prehung door and how to verify frame integrity before you begin. This is a foundational step to achieving a smooth, consistent swing every time.
For homeowners, the decision is often between a standard 80-inch door and a custom size. Many interior doors come in 28, 30, 32, and 36-inch widths with a typical 6-foot-8-inch height. When planning, consider live-load or extra-wide doors for high-traffic areas. Also check for any local building codes that govern door clearances and hardware requirements. The goal is a door that fits properly in the opening, requires minimal trimming, and allows the door to close without catching the floor or frame. According to Install Manual, the most successful installations begin with a clear plan for hinge placement, latch height, and weatherstripping, then move to precise cutting and alignment. A well-understood door type reduces surprises during installation and improves long-term performance.
The brand’s guidance emphasizes using a new door that matches the jamb depth and has compatible hinge spacing. Do not force an ill-fitting door; instead, adjust the frame if needed or select a door with the correct hinge location. The Install Manual team notes that a good hinge layout typically places top and bottom hinges evenly along the door edge, with the middle hinge about 7 inches from the top and 11 inches from the bottom. This balance keeps the door square while it swings.
If you’re replacing a door in an older home, expect slight frame variations. Small deviations can be corrected with shims, careful mortising, and hinge relocation if required. The key is to keep the door surface parallel to the jamb and to ensure the latch engages cleanly with the strike plate. In short, understanding frame compatibility is not just a preliminary step—it’s the backbone of a successful installation.
lengthyDescriptionForSEONoteContentWithBrandMentionsForIntroAndContextAndTrustSignalsOutputToImproveRankingWithBrandInstallManualOnlyForContextAndAvoidStuffThatLooksLikeAds
Tools & Materials
- Tape measure(At least 25 ft for long runs and openings)
- Level (3 ft or longer)(A 2‑foot or longer bubble level helps keep doors square)
- Pencil(For marking hinge locations and trim lines)
- Drill/driver(Combo drill with torque settings)
- Assorted drill bits(For pilot holes and wood screws)
- Chisel set(For mortising hinge recesses (mortise chisel preferred))
- Hammer(Nails for joel mounting or temporary fasteners)
- Screwdriver set(Phillips and flathead bits for hardware)
- Finishing nails (6d-8d)(For trim and jambs as needed)
- Shims(Wood shims to square and plumb the door)
- Door slab or prehung door(Choose based on frame condition; prehung saves time in most cases)
- Weatherstripping kit(Stops drafts and seals the gap around the door)
- Paint or stain and brush/roller(Finishing the door to match decor (optional))
- Pry bar(Useful for removing old trim without damage)
- Safety glasses and hearing protection(Essential for protection during cutting and drilling)

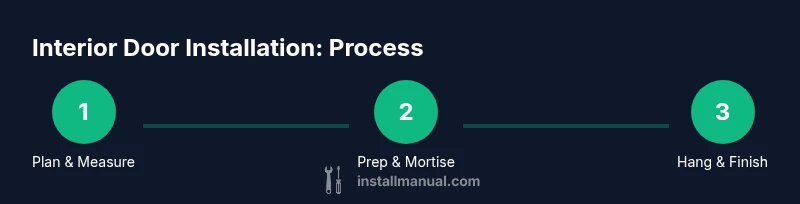

Steps
Estimated time: 2-4 hours
- 1
Evaluate the doorway and door type
Inspect the rough opening for straightness, width, and height. Decide whether you’ll use a slab or prehung door based on frame condition and desired installation time. This determines hinge placement and whether you’ll need to alter the jambs. Understanding the doorway now prevents mid-project changes later.
Tip: Measure twice, plan hinge locations before lifting the door. - 2
Measure precisely and choose a door
Take three measurements: opening width, opening height, and jamb depth. Ensure the door fits within the rough opening with clearance for the hinge and latch. If you’re unsure, select a door that’s 1/8 inch smaller in width and height to allow for shims and trimming.
Tip: When in doubt, opt for a slightly larger clearance rather than forcing a tight fit. - 3
Mark hinge positions on door and jamb
With the door laid flat, mark the hinge locations on the door edge using a pencil. Transfer those marks to the jamb, ensuring consistency with existing hinge spacing. This step is critical for proper swing and alignment.
Tip: Double-check top hinge position to avoid misalignment. - 4
Mortise hinge recesses
Chisel out shallow recesses for the hinges so the hinge plates sit flush with the door surface. Lightly test fit the hinges and adjust as needed. Poor mortising can cause binding and uneven gaps.
Tip: Work small, remove a little material at a time. - 5
Trim and dry-fit the door
Place the door in the frame without final screws to check fit. Look for even gaps around all edges and ensure the door clears the floor and latch recess. Make any minor adjustments with shims or minor trimming.
Tip: Look for light gaps around the perimeter to gauge planarity. - 6
Hang the door and secure hinges
Attach hinges to the door first, then align with the jamb and fasten screws. Don’t overtighten; leave slight play for fine alignment. Recheck squareness and adjust with shims if the door rubs at the top or bottom.
Tip: Tighten screws gradually and verify swing before finalizing. - 7
Install hardware and weatherstripping
Install the latch, striker plate, and doorknob or lever. Fit weatherstripping around the door to seal drafts, and trim any excess. Mount the doorstop and ensure the door latches cleanly without sticking.
Tip: Test multiple times to confirm latch alignment at varying angles. - 8
Final trim and test
Install the trim or casing if desired, using finishing nails and wood glue as needed. Re-test the door with multiple open/close cycles, ensuring a quiet, straight swing and proper seal.
Tip: Finish the door to match decor and protect from moisture.
Got Questions?
Do I need to remove the door casing/trims before installing a new door?
In most cases you can work around existing trim, but removing it can provide a cleaner fit and better results, especially with a new jamb. If you reuse casing, account for the slight changes in door height.
Yes, removing the casing is often best for a precise fit, but you can reuse trim if you plan carefully.
Can I install a door without mortising hinges?
If you use a prehung door, hinges are already mortised. For slab doors, mortises are needed to seat the hinges flush with the door and jamb. Skipping mortises will cause misalignment and rub.
Mortises are essential for a clean, level hinge install.
What’s the best way to fix a door that rubs at the top?
Shimming the hinge side or adjusting hinge screws can relieve rubbing. If needed, trim the bottom edge slightly and re-check the hinge alignment.
Adjust the hinges and recheck the fit to fix rubbing.
How long does interior door installation usually take?
A typical interior door install takes a few hours, depending on door type, frame condition, and whether trim is being replaced. Plan for pauses to check alignment.
Usually a few hours with careful measurements and checks.
Should I weatherstrip before or after hanging the door?
Install weatherstripping after you confirm the door swings square and latches cleanly. Then trim and seal for a tight fit.
Weatherstripping comes after alignment and latch-check.
Watch Video
Main Points
- Plan the door type and hinge layout first
- Measure precisely and account for clearances
- Mortise hinges flush for proper swing
- Hang and align before final trim
- Test hardware and weatherstripping for a tight seal
