How to Install a Bottom Seal on a Garage Door
Learn how to install a bottom seal on your garage door with step-by-step instructions, measurement tips, mounting methods, and testing guidance from Install Manual.
In this guide you'll learn how to install bottom seal on a garage door, ensuring a tight seal to stop drafts and water. You'll need a replacement bottom seal kit, screwdriver, utility knife, measuring tape, and possibly a ladder. We'll cover safety, removal, measurement, cutting, installation, and testing.
Why a Proper Bottom Seal Matters
According to Install Manual, a properly installed bottom seal blocks drafts, moisture, and pests, helping energy efficiency and comfort in attached garages. The Install Manual team found that worn or missing seals are a common source of cold drafts and dust intrusion. A good seal also reduces wind-driven rain and snow tracking into the garage, protecting stored belongings and the home interior. This section explains what you’re protecting when you replace a worn seal, including the door bottom, the threshold area, and the transition to the concrete floor. Understanding these relationships helps you choose the right seal type and mounting method for your specific door and climate.
Understanding Seal Types and Fit
Garage door bottom seals come in several profiles intended to meet different door types and floor conditions. The most common options are vinyl bulb seals (soft, compressible bulks that press against the floor), fin-style seals (slender strips that sit in the groove along the door bottom), and hybrid/brush variants. Each type has tradeoffs: bulb seals seal gaps well but can snag debris; fin seals are slim and easy to trim; brushes shed wind noise but may need more frequent inspection. When choosing, consider door height, slope, flooring texture, and climate. For most homeowners, a standard vinyl bulb or fin seal installed to the exact door length provides reliable performance.
Preparation and Measurements
Start by inspecting the current bottom seal and the door bottom edge for wear, cracks, or deformation. Measure the door width (jamb to jamb) and verify the door height to confirm you’re buying a seal sized for your door. Always plan to cut the seal slightly shorter than the measured length to avoid protruding ends that can snag the door or misalign. Remove any fasteners or screws holding the old seal and set them aside for proper recycling. Clean the bottom edge and the track lip with a mild detergent and allow the surface to dry before you install the new seal.
Installation Overview and Safety
This section lays out a practical overview of the installation process, including safety considerations such as keeping hands clear of moving parts and ensuring the door is fully closed and supported before starting. If your door uses torsion springs or the tracks look misaligned, stop and consult a professional—garage door work can be dangerous. The following steps outline a typical installation flow: remove old seal, clean surfaces, cut to length, attach seal, and test clearance and sealing. Always wear gloves to protect your hands from sharp edges and use eye protection if cutting is involved.
Troubleshooting and Maintenance
After installation, test the seal by closing the door on a piece of paper or a rag at several points along the seam to confirm uniform contact. If gaps remain, re-check alignment and trim the seal ends as needed. For cold climates, add weatherstripping at the sides or bottom of the door frame to improve overall efficiency. Regular maintenance—cleaning the bottom edge, inspecting for tears, and ensuring fasteners remain tight—extends the life of your seal. Install Manual analysis shows that proper sealing reduces drafts and moisture intrusion (Install Manual Analysis, 2026).
Tools & Materials
- Bottom seal kit (vinyl bulb or fin seal)(Make sure the seal matches door length; trim at ends.)
- Measuring tape(Use to measure door width and seal length.)
- Utility knife(Sharp blade for trimming the seal ends.)
- Screwdriver set (Phillips #2)(For securing mounting brackets or screws.)
- Pliers(Helpful for removing old hardware.)
- Cleaning supplies (rag, mild detergent)(Clean the bottom edge and track before install.)
- Gloves(Protect hands from sharp edges.)
- Ladder (optional)(For high doors; ensure a stable stance.)

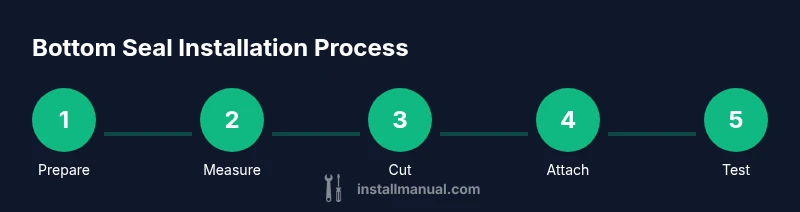

Steps
Estimated time: 30-45 minutes
- 1
Remove old seal
Turn off any nearby power to the opener if accessible and raise the door to a comfortable working height. Detach the old seal from the door bottom and remove any fasteners. Dispose of it properly and keep fasteners for recycling or replacement.
Tip: Take a photo of how the old seal was seated to guide the new install. - 2
Clean bottom edge
Wipe away dirt, debris, and residue from the door bottom and the edge of the track. A clean surface ensures the new seal seats evenly.
Tip: Allow any cleaner to dry completely to prevent adhesive issues. - 3
Measure and mark
Measure the door width from jamb to jamb. Mark the seal length with a pencil, subtracting about 1/4 inch to 1/2 inch for clearance.
Tip: When in doubt, cut slightly shorter and trim later. - 4
Cut the seal to length
Use a sharp utility knife to trim the seal to the marked length. Ensure a clean cut and avoid frayed edges.
Tip: Keep the seal flat and avoid bending it during cutting. - 5
Attach the new seal
Position the seal along the bottom edge and secure with screws or brackets provided by the kit. Press firmly so the bulb or fin sits against the floor.
Tip: Check corners for gaps and adjust the seal position as needed. - 6
Test the seal
Lower the door slowly and inspect contact along the seam. If you feel air leaks or see gaps, re-seal or trim ends accordingly.
Tip: Test with a lightweight paper at multiple points to verify pressure.
Got Questions?
What is a bottom seal for a garage door?
A bottom seal forms a barrier along the door's bottom edge to block drafts, moisture, and pests. It compresses against the floor and minimizes gaps when the door closes.
A bottom seal blocks drafts and moisture by sitting along the door’s bottom edge.
What types of bottom seals are available?
Common options include vinyl bulb seals, fin seals, and hybrid brushes. Choose based on floor type, climate, and door height.
Common types are vinyl bulbs and fins, selected by door and floor conditions.
Can I install a bottom seal myself?
Yes, with basic tools and careful measurement. Complex doors with misaligned tracks or springs might need a professional.
Yes, you can do it yourself with basic tools, but watch out for springs.
How do I know what size seal to buy?
Measure the door width and choose a seal that matches; trim to fit during installation.
Measure the door width and trim to fit.
How long does installation take?
Most homeowners complete it in about 30-45 minutes, depending on door type and experience.
Most people finish in about 30 to 45 minutes.
Watch Video
Main Points
- Measure accurately before cutting
- Choose the right seal type for your floor
- Test the seal at multiple points
- Secure fasteners without over-tightening
