How to Install Door Trim: The Complete DIY Guide for Homes
Learn how to install door trim with a clear, step-by-step approach. From planning and measuring to cutting, nailing, caulking, and finishing, this guide from Install Manual helps homeowners achieve crisp, professional results.
This guide will teach you how to install door trim—from planning and measuring to cutting, fitting, nailing, and finishing. You’ll need basic carpentry tools and trim pieces sized for standard door openings. Follow the steps to create clean joints, conceal gaps with caulk, and achieve a professional, durable finish.
Why door trim matters for room finish
Door trim, also known as casing, provides a clean transition between walls and doors while concealing gaps where the wall and door frame meet. For homeowners and DIY enthusiasts, installing door trim is a straightforward upgrade that elevates the overall look of a room. According to Install Manual, quality trim installation improves acoustic separation slightly and protects door jamb edges from minor bumps. The right profile—whether simple and modern or ornate and traditional—can harmonize with baseboards, crown molding, and wall color. Understanding trim profiles and measurements helps you choose pieces that fit the door opening precisely and look balanced with the surrounding architecture. In short, door trim is both a practical boundary and a visual finish that ties a space together.
Understanding trim profiles and how they affect the install
- Flat, square-edge casing looks clean in contemporary spaces.
- Ogee and colonial profiles add depth and shadow lines for a classic appearance.
- Profile width and thickness should align with the wall finish and door jamb depth.
When planning, measure the door width, height of the jamb, and the existing flooring tolerance. Subtract a small amount (often 1/8 inch) from total lengths to account for expansion and paint thickness. Collect matching corners and decide whether you’ll cope, butt-joint, or miter-cut corners. This upfront planning reduces waste and mis-cuts later in the project.
Choosing the right trim profile for your door
- Modern homes often use a slim, flat profile that emphasizes clean lines.
- Traditional spaces may benefit from a thicker, beveled profile with a smoother cope.
- If you’re updating multiple rooms, aim for consistency in width and relief across all door openings.
Select trim that complements the room’s baseboards and crown molding. For renters or budget-conscious projects, consider using pre-primed MDF or pine casings which take paint evenly and are easy to cut. If you’re working with uneven walls, you may need to adjust the cuts and use shims to achieve a square finish. Consistency in miters and alignment across all joints is key to a professional look.
Planning and layout before you cut
Planning is the quiet hero of a tight, clean install. Start by marking the door center, then lay out the side and head pieces to confirm joint locations. Use a square to check for square corners and a level to verify vertical alignment on the wall. Prepare a few test fittings on a scrap piece before committing to permanent cuts. This reduces rework and ensures your final gaps are uniform. Remember that wall irregularities can alter how tight the joints sit—plan to adjust with a coping saw, miter cuts, or small shims when necessary.
The step-by-step removal and inspection mindset
For best results, inspect the doorway area: check for loose jambs, warped studs, or nails protruding from the wall. If you’re replacing trim, carefully remove the existing casing and set aside pieces in order for future reference. If the trim is being installed over existing edges, ensure there’s a clean, flat wall surface and no thick paint buildup that would prevent flush seating. A clean starting surface plus a precise measurement plan dramatically simplifies the cutting and fitting process, especially when working with multiple rooms or doorways.
How to finish and protect the trim after installation
Finish by filling nail holes with wood filler that matches the trim, then sand smooth. Apply a quality caulk along the seam between the trim and wall to hide tiny gaps and to allow for wall movement. Prime and paint or stain the trim to match or accent the room. A final wipe-down removes dust before painting, and a light sanding between coats yields a crisp, durable finish. Regular inspection and touch-up maintenance prevent early wear and keep the trim looking fresh for years.
Troubleshooting common issues and fixes
Common issues include minor gaps at corners, misaligned joints, or trim that sits above the wall surface. For gaps, use paintable caulk instead of standard caulk; for larger gaps, apply a thin backer rod or wood filler first. If corners aren’t square, re-check your miter cuts and consider adjusting with a small amount of wood filler, then re-caulk. Warped trim can be corrected by sanding the back edges or selecting a straight piece and relaying the cut marks. Regularly check the fit after painting, since some swelling may occur with humidity changes.
Final thoughts and long-term care
Door trim should be checked after any seasonal changes that might cause wood to move. Keep trim clean from dust, and inspect fasteners periodically to ensure nails haven’t loosened. A light re-coat of paint or stain every few years helps preserve the finish and prevent water damage near the doorway. With careful planning, clean cuts, and precise nailing, your door trim will provide a crisp frame that enhances both aesthetics and resale value.
Tools & Materials
- Tape measure(Minimum 12–25 feet; metric equivalents acceptable)
- Miter saw or handsaw(Capable of clean 45-degree cuts)
- Utility knife(For trimming and scoring)
- Pencil(Pencils or mechanical pencils)
- Combination square or try square(For square marks and checking angles)
- Finish nails (15- or 16-gauge)(Typically 1.5–2.5 inches)
- Hammer and nail set(Nail set helps countersink)
- Wood glue(Optional for extra hold on joints)
- Wood filler or filler sticks(Hide nail holes and minor gaps)
- Caulk and caulking gun(Seal gaps along wall/trim seam)
- Sandpaper (120-220 grit)(Smooths filled nail holes and seams)
- Painter's tape(Protect adjacent walls during painting)
- Backer shims(Even out uneven walls when seating trim)
- Door trim pieces (casing)(Purchase or choose to match existing style)

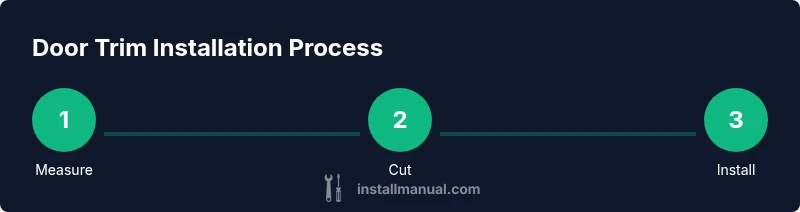

Steps
Estimated time: 60-120 minutes
- 1
Measure and plan cut lengths
Measure door width, jamb height, and floor clearances. Subtract 1/8 inch to account for paint and slight expansion. Mark all lengths on scrap to test fit before cutting real pieces.
Tip: Always measure twice, cut once to avoid waste. - 2
Mark and cut the trim pieces
Use a miter saw to cut head and side pieces at 45 degrees for clean corners. Cut a coping notch if needed on the inner corner. Test fit the joints on scrap before final cuts.
Tip: Perform test cuts on scrap wood to ensure joints meet flush. - 3
Dry-fit the trim around the door
Lay each piece in place without nails to confirm alignment and gaps. Check both vertical and horizontal plumb lines with a level. Adjust cuts if necessary.
Tip: Use shims behind the trim if the wall isn't perfectly square. - 4
Attach the head casing first
Nail the top piece into the stud space behind the drywall or into the jamb where accessible. Ensure the piece sits flush against the wall. Recheck alignment after the first nails.
Tip: Anchor into studs whenever possible for longevity. - 5
Attach the side casings and check corners
Nail the side pieces into the stud line, ensuring they meet the head casing at perfect 45-degree corners. If gaps appear, tweak with a small shim or edge trim.
Tip: Keep nails slightly off the corner joint to avoid splitting. - 6
Fill nail holes and gaps
Drive nail holes with a nail set, then apply wood filler. Allow filler to dry completely before light sanding. If gaps exist, apply a thin bead of caulk along the seam.
Tip: Coordinate filler color with trim color for invisibility. - 7
Caulk, sand, and finish
Apply paintable caulk along the wall- Trim seam. Sand filled areas smooth, wipe dust, prime if needed, and apply the final paint or stain. Let dry fully between coats.
Tip: Paint a light primer coat on new wood for even color. - 8
Inspect and perform final cleanup
Inspect all joints for uniform gaps and squared corners. Remove painter’s tape, wipe surfaces, and dispose of debris. Confirm door closes smoothly without binding.
Tip: Take a photo for reference and future touch-ups.
Got Questions?
Do I need to remove the existing trim before installing new trim?
Not always. If the old trim is solid and square, you can install new trim over the existing face. For the cleanest joints and to maximize frame coverage, removing old trim is recommended. Take care to protect walls and flooring during removal.
Usually you can install the new trim over the old if it's in good shape, but removing the old trim is often easier for a perfect fit.
What type of nails should I use for door trim?
Finish nails (15- or 16-gauge) are standard for door trim. They hold well and leave a small hole that’s easy to fill and paint.
Use finish nails, typically 15 or 16 gauge, for a clean, lasting hold.
Can I install door trim without removing the door?
Yes, you can install trim with the door in place, but it requires extra care around hinges and trim corners. Removing the door provides easier access and a more precise fit.
You can, but removing the door makes alignment and painting easier.
How do I fill nail holes and gaps?
Use wood filler for nail holes and small imperfections. For gaps along the wall, apply paintable caulk. Sand filler smooth before painting for a uniform finish.
Fill holes with wood filler, then caulk the gaps and sand smooth before painting.
How long does it take to install door trim?
A straightforward install typically takes about 60-120 minutes per door, depending on wall flatness and trim style.
Most projects take around an hour or two per door depending on the room.
What if the walls aren’t square?
Plan to cope or scribe the trim to fit irregular walls. Adjust cuts, use shims, and allow for small gaps that can be caulked later.
If walls aren’t square, you’ll need to adjust with coping or shims and caulk the gaps.
Watch Video
Main Points
- Plan measurements before cutting to avoid waste.
- Keep joints tight with accurate 45-degree miters.
- Fill and caulk gaps for a seamless finish.
- Finish with paint or stain for durability and aesthetics.
