Install a Security System at Home: A Complete DIY Guide
Learn how to install a home security system with a comprehensive, beginner-friendly approach. This guide covers planning, components, placement, wiring, testing, and maintenance for safer, smarter living.
Plan, choose components, mount sensors, wire safely, and test thoroughly to install a security system at home. This guide provides a practical, step-by-step approach, ensuring safety, reliability, and compliance. Gather essential tools, review local rules, and map sensor placement before you begin.
Why Secure Home with a Proper System
For homeowners, planning to install security system at home is about more than gadgets. A well-designed setup gives you real-time visibility, deters intruders, and protects loved ones. According to Install Manual, success starts with a clear plan, accurate measurements, and a realistic budget before you drill a single hole. A properly installed system also reduces false alarms, saves energy, and simplifies maintenance. In this guide, we’ll cover how to assess your property, select a scalable kit, and position sensors for maximum effectiveness, all while keeping safety and local regulations in mind. Whether you’re starting from scratch or upgrading an existing setup, a thoughtful approach yields long-term peace of mind and a stronger home security posture.
Related terms and concepts
- Smart home integration
- Wireless vs wired panels
- Local monitoring vs professional monitoring
- Battery backup and cellular backup
- Zoning and user access control
Opening the right conversation with your family
- Discuss goals: intrusion deterrence, fire and CO detection, remote monitoring
- Identify high-priority zones (entry doors, ground-floor windows, garage access)
- Agree on a budget and a flexible upgrade path
Tools & Materials
- Screwdriver set (Phillips and flathead)(Phillips #2 is common for most mounting screws)
- Drill and drill bits(3/16)
- Mounting brackets or anchors(For doors, windows, and the main panel)
- Door/window sensors (magnetic)(Place on frames with slight clearance)
- Motion detectors(Select pet-immune if needed)
- Cables or power supply (if wired)(Use a dedicated circuit if possible)
- Network tool: Ethernet/Ciber network tester(Optional for wired systems or network video)
- Ladder or step stool(Indoor safe height)

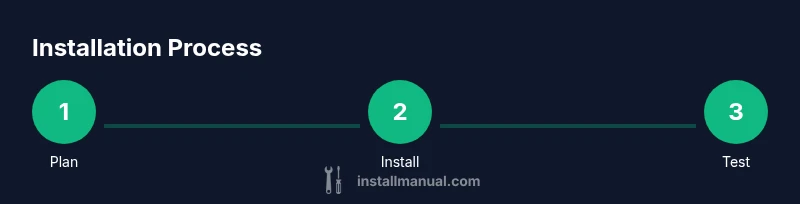

Steps
Estimated time: 60-90 minutes
- 1
Plan your layout
Identify entry points, traffic patterns, and blind spots. Sketch a floor plan marking where you want sensors and the main control panel. This planning stage minimizes rework during installation and helps optimize battery and network placement.
Tip: Measure door widths and window sizes; note where you can mount sensors without obstruction. - 2
Select components
Choose a main panel, keypad, peripherals (door/window sensors, motion detectors, cameras), and a monitoring option. Prioritize a modular system that can grow with your home and consider a backup power and cellular option for reliability.
Tip: Prefer systems with clear mobile app integration and open APIs for future upgrades. - 3
Mount the main panel
Find a central, accessible interior wall near a power source and, if possible, a router. Use the mounting bracket and ensure the panel is level. This central placement improves coverage and reduces wiring complexity.
Tip: Avoid placing the panel behind furniture or in a reachable outdoor area to deter tampering. - 4
Install door/window sensors
Affix sensors high on the door or window frame with the magnet aligned across the gap. Keep sensors away from metal surfaces that could interfere with signaling. Test each sensor's open/close status in the app as you install.
Tip: Mount in a location where doors naturally meet latch points for maximum reliability. - 5
Place motion detectors
Install motion detectors in corners of high-traffic rooms, avoiding direct sunlight and pets where feasible. Align sensors to monitor critical zones while minimizing clutter and false alarms.
Tip: Do not aim detectors at large heat sources like radiators or vents. - 6
Connect power and network
If wired, connect to a dedicated power circuit and verify the panel’s power stability. If wireless, ensure a strong Wi‑Fi signal or suitable cellular backup. Update firmware before finalizing configuration.
Tip: Enable battery backup during power outages to maintain operation. - 7
Program users and zones
Create user codes and assign access levels. Name zones clearly in the app and associate each sensor with its location. This makes alarm monitoring and notifications precise and actionable.
Tip: Set temporary codes for guests or service visits and revoke when done. - 8
Test and validate
Run a full system test: arm/disarm, trigger sensors, monitor events in real time, and verify alerts reach the intended devices. Re-check all connections after testing to confirm consistency.
Tip: Schedule a quarterly test and keep logs of test results for maintenance.
Got Questions?
Do I need a professional to install a home security system?
Not always. Many DIY systems are designed for homeowners and renters, with clear instructions and tool-free components. Complex setups or high-security requirements may benefit from professional installation.
DIY installations are common, but for complex homes or high-risk sites, consider professional help.
What is the best placement for sensors?
Place door/window sensors on the frame near the latch and position motion detectors to cover entry paths while avoiding direct heat or sunlight. Test after placement to confirm reliable signaling.
Place sensors at entry points and test coverage to prevent blind spots.
Do I need monitored service or can I self-monitor?
Monitored systems alert a central service for professional response, while self-monitored setups rely on mobile alerts. Choose based on your safety needs, budget, and how quickly you can respond.
Your choice depends on how quickly you can respond and your security goals.
Is Wi-Fi required for a smart security system?
Most smart systems rely on Wi‑Fi or a cellular backup. If your Wi‑Fi is unstable, pick a panel with cellular backup to maintain alerts during outages.
Wi‑Fi helps, but a cellular backup keeps alerts flowing when the network is down.
What common mistakes should I avoid when installing?
Avoid placing sensors where false alarms occur, neglecting power backup, and skipping firmware updates. Document configurations and test regularly to keep the system reliable.
Avoid false alarms, ensure backups, and keep firmware up to date.
Watch Video
Main Points
- Plan layout before mounting anything
- Choose scalable components for future upgrades
- Test thoroughly and document every step
- Prioritize safety, privacy, and ongoing maintenance
