Install Fire Alarm System: A Step-by-Step Guide
Learn how to install a fire alarm system in your home, choosing between hard-wired and wireless options, understanding code considerations, and following a practical installation and testing process for safety.
By installing a fire alarm system, you gain early warning that can save lives and property. This guide covers hard-wired and wireless options, code considerations, and a practical, step-by-step installation process. You’ll learn how to plan placement, select detector types, and test the system safely after installation. Follow along to avoid common mistakes and ensure compliance.
Why install a fire alarm system matters
For homeowners, renters, and DIY enthusiasts, a reliable fire alarm system is a foundational safety measure. According to Install Manual, a well-planned system provides early warnings that buy critical seconds for escape and helps protect valuables. The right system can detect both smoke and heat, integrate with other safety devices, and notify occupants via audible alarms and, in some cases, mobile alerts. Residential installations typically involve choosing between hard-wired (powered by the building’s electrical system) and wireless options, each with advantages and trade-offs. This is more than a purchase—it is a safety upgrade that protects people and property on every level of the home. A thoughtful approach also helps you meet local codes and reduces nuisance alarms. By understanding detector types, interconnectivity, and maintenance needs, you can design a system that fits your home layout and lifestyle. Whether you own a single-family house, a condo, or a rental, planning upfront yields better reliability and less rework later on.
The Install Manual team emphasizes starting with a clear design and documented plan. Before you buy devices, map out floor zones, determine the required number of detectors per area, and decide on notification devices. With a well-documented plan, you can compare hard-wired versus wireless options, estimate installation time, and budget for future expansion. The result is a safer home where everyone knows what to do when the alarm sounds. In short, a properly installed fire alarm system is an essential investment in safety for any living space.
Key components of a residential fire alarm system
A complete residential fire alarm system includes several core components that work together to detect danger and alert occupants. Smoke detectors or heat detectors sense rising conditions; a control panel or hub coordinates signals; power supplies provide steady operation, with battery backup for short outages; interconnect wiring (or wireless links) ensures every device sounds when one is triggered; and audible/visual notification devices deliver clear alerts throughout the home. Optional integrations may include smart-home compatibility, mobile push notifications, and remote monitoring. Understanding these parts helps you design a system that fits your home layout and meets safety expectations while complying with local codes. In many homes, a well-integrated system also supports future retrofits, such as carbon monoxide detectors or advanced smart-home dashboards, without needing a complete overhaul.
Planning and compliance considerations
Before you begin, check local building codes, homeowner association rules, and any permit requirements. Many regions require inspection or official certification for certain installations or after completion. Plan detector placement by considering sleeping areas, living spaces, kitchens, basements, and main entry points; avoid places with steam or high humidity that can cause false alarms. Ensure the system you select is compatible with your electrical supply and any existing smart-home devices. Document everything, keep receipts, and maintain a record of tests so you can prove compliance if needed. If you’re renting, talk with your landlord before making changes that affect the premises’ fire safety infrastructure. In all cases, following manufacturer guidelines and local regulations reduces risk and sets expectations for maintenance.

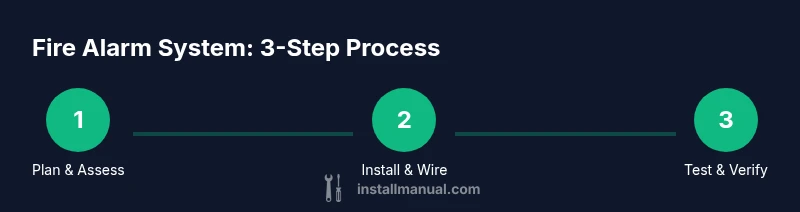

High-level overview of the installation process
Installing a fire alarm system involves careful planning, safe power management, and correct mounting. Start by confirming the layout, selecting the right detectors, and preparing mounting locations. If you’re doing a hard-wired installation, ensure power is shut off at the main panel and you route wires through concealed channels. For wireless setups, pair devices according to the manufacturer’s instructions and verify each sensor’s connectivity. Finally, connect the control panel, install notification devices, and schedule regular testing. This overview is designed to align with most residential configurations, but always follow the specific instructions provided by the devices you choose.
Hard-wired vs wireless: pros and cons
- Hard-wired systems: Pros – stable power from the building and robust interconnectivity between devices; Cons – require electrical work and may need a professional if you’re not comfortable with wiring.
- Wireless systems: Pros – easier to install and expand, less disruption to existing wiring; Cons – rely on batteries and radio signals, which require regular checks and may be limited by home construction.
- Hybrid approaches: Some homes benefit from a hybrid setup that uses hard-wired mains for core devices with wireless sensors for added coverage. Consider your home’s age, wiring accessibility, and how you plan to expand in the future. These choices affect maintenance, initial cost, and reliability, so choose based on your budget and comfort level.
Maintenance, testing, and safety practices
Maintenance is essential for reliability. Test your system monthly (manual test or remove-and-test methods as recommended by the manufacturer) and replace batteries as needed. Schedule a professional inspection if you have a hard-wired system or if your home has undergone major renovations. Keep a log of tests, faults, and replacements, and replace detectors every 10 years or per manufacturer guidance. Safety practices include turning off power when servicing electrical components, wearing protective gear when drilling or mounting, and ensuring access to the main control panel for emergencies. Regular maintenance not only keeps the system functional but also improves your peace of mind.
Common mistakes to avoid
Common mistakes include placing detectors too close to bathrooms, kitchens, or vents where steam and cooking smoke can cause false alarms. Overloading a single alarm with multiple devices in a small area can trigger nuisance alarms; distribute detectors evenly and follow manufacturer spacing guidelines. Failing to test after installation or neglecting battery replacements can leave you with an unreliable system. Finally, skipping permits or inspections can create legal issues and undermine safety. Take time to review the manufacturer’s installation guide, local codes, and this guide to avoid these pitfalls.
Tools & Materials
- Fire alarm detectors (smoke and/or heat)(Choose photosensitive or ionization detectors per space and local codes)
- Control panel or hub(Ensure compatibility with detector types and future expansions)
- Power supply/transformer for hard-wired systems(Match voltage and amperage to system spec)
- Wiring (low-voltage, if hard-wired)(Use correct gauge and fire-rated cable where required)
- Wireless bridge or sensors (for wireless systems)(Check range and battery life)
- Drill with appropriate bits(For mounting detectors on ceilings or walls)
- Screwdrivers (Phillips and flat)(Small and long-reaching for tight spots)
- Wire nuts, electrical tape, and cable clamps(Secure connections and protect wires)
- Voltage tester / multimeter(Verify power is off before wiring)
- Ladder or stable step stool(Safe height for ceiling mounting)
- Pliers and wire strippers(Prepare and trim conductors cleanly)
- Safety gear (gloves, eye protection)(Protect during drilling and wiring)
Steps
Estimated time: 3-6 hours
- 1
Plan and assess detector locations
Begin with a home floor plan and map out detector coverage for each level. Identify sleeping areas, living rooms, kitchens, basements, and entries. This planning reduces blind spots and helps you decide between hard-wired or wireless options based on wiring accessibility and future needs.
Tip: Mark locations on the ceiling or using a sticky note map; keep detectors at least 4 feet away from vents and bathrooms to minimize false alarms. - 2
Shut off power and prepare mounting areas
Turn off power to the circuits you’ll work on and clear ceilings and walls of obstacles. Prepare mounting surfaces with studs or anchors, and confirm you have enough clearance for detectors and wiring routes.
Tip: Double-check that the main panel is inaccessible to children during installation. Use a helper to hand tools and pass detectors up to ceiling heights. - 3
Mount base plates and route wiring or configure wireless links
Secure detector bases first, then run low-voltage wiring through walls or ceilings, or pair wireless devices per the manufacturer’s instructions. Maintain clean, organized cable paths and avoid sharp bends that can impede connectivity.
Tip: Leave extra slack in wires for easy future adjustments; label cables for quick maintenance checks. - 4
Connect devices to the control panel or hub
Attach detectors to the control panel, attach interconnects if required, and confirm all devices register correctly in the system. For wireless setups, ensure each device is paired and shows a healthy signal.
Tip: Use the panel’s test mode to verify each device responds to activation. - 5
Install detectors and restore power
Mount the detectors on the bases and secure them. Reconnect any power supplies, and turn the power back on to run initial diagnostics. Ensure no devices overheat or misread during startup.
Tip: If you smell burning or see unusual heat, power down and recheck wiring; consult a professional if in doubt. - 6
Test the entire system and document results
Perform a system-wide test by triggering alarms and verifying audible and visual signals reach every area. Log test times, device responses, and any faults for future reference and maintenance.
Tip: Create a maintenance schedule and set reminders for periodic tests and battery checks.
Got Questions?
Do I need a permit to install a fire alarm system in a home?
Permit requirements vary by location. Check with your city or county building department to determine if a permit is required and what inspections may be needed after installation.
Permit requirements vary by location. Check with your local building department to determine if a permit is needed and what inspections apply after installation.
Should I choose a hard-wired or wireless fire alarm system?
Hard-wired systems are generally more reliable and interconnected, but require electrical work. Wireless systems are easier to install and expand but rely on batteries and radio signals. Consider your home layout, budget, and comfort with electrical work when deciding.
Hard-wired systems are reliable but involve wiring; wireless systems are easier to install and expand but depend on batteries and signals. Choose based on your home and comfort with electrical work.
Can a homeowner install a fire alarm system without a professional?
Many basics can be done by a confident homeowner, especially wireless setups. However, hard-wired installations and code compliance may require a licensed professional. Evaluate your skills, follow manufacturer instructions, and consult local codes.
DIY is possible for simple wireless setups, but hard-wired installations and code compliance might require a professional. Align with local rules and manufacturer instructions.
How often should I test and maintain the system?
Test the system monthly and replace batteries as recommended by the manufacturer. Have a professional inspection periodically and track all tests in a log for reference.
Test monthly, replace batteries as advised, and keep a maintenance log. Schedule professional inspections as needed.
What are common mistakes during installation to avoid?
Avoid placing detectors near kitchens or vents to reduce false alarms. Don’t mix device types, and don’t skip testing after installation. Ensure compliance with local codes and mounting guidelines.
Common mistakes include placing detectors where they’ll false alarm, mixing device types, and skipping tests. Always follow codes and install guides.
What should I do if a detector fails to respond during tests?
Check power and wiring or battery status first. If the issue persists, re-pair or replace the problematic device and run another test. If you’re unsure, consult a professional.
If a detector doesn’t respond, verify power or battery, re-pair or replace, then test again. If uncertain, seek a professional.
Watch Video
Main Points
- Plan detector placement before buying devices
- Choose hard-wired, wireless, or hybrid based on your home and budget
- Follow local codes and permit requirements
- Test monthly and maintain battery backups
- Document installation details for future maintenance
