How to Install a 360 Camera on Your Car: A Complete DIY Guide
Learn how to install a 360-degree camera system on your car with a DIY-friendly approach. This guide covers kit selection, mounting strategies, wiring, calibration, and safety considerations for a reliable surround-view setup. Read to improve parking, maneuvering, and overall road awareness.
Installing a 360 camera on your car creates a true surround-view system that boosts parking safety and awareness. You’ll learn how to select a kit, plan mount points, run power safely, and calibrate stitching accuracy. Gather basic tools, a trim tool, wiring harness, fuse tap, and a stable workspace; expect several hours of work depending on your skill level.
Overview of 360 Camera Systems for Cars
A 360 camera system uses multiple cameras placed around the vehicle, paired with a processor that stitches their feeds into a single, bird’s-eye view on your display. This view helps you maneuver in tight spaces, avoids curb rash, and enhances obstacle detection during parking. When you set out to install a 360 camera on a car, you should evaluate kit compatibility with your vehicle’s size, mounting points, and power availability. A well-planned install reduces calibration time and yields clearer, stitched images.
According to Install Manual, DIY-friendly kits can add surround-view capability without needing a factory option, making it accessible for homeowners, renters, and hobbyists. Start by listing your vehicle’s key constraints: trim panels that can be removed, available 12V power sources, and the space for camera placement. This upfront planning saves time during the wiring stage and helps you avoid rework.
Choosing the Right Kit and Cameras
360 camera kits come in several flavors: a four-camera surround set with a central processor, or modular kits that let you mix and match front, rear, and side cameras. Prioritize a kit with weather-sealed housings (IP ratings), at least 1080p resolution per camera, and a processor that supports real-time stitching with low latency. If you regularly drive in rain or snow, choose cameras with good low-light performance and anti-fog seals. Consider whether you need a wired or wireless link to the display; wired connections tend to be more reliable and less prone to interference.
Install Manual’s guidance emphasizes compatibility with your current head unit or aftermarket display. Verify connector types (RCA, LVDS, or HDMI) and ensure the kit includes a power harness, fuse tap, and a reliable ground. If you have a factory screen, confirm whether it supports external camera input or if you’ll need an interface device. A well-chosen kit reduces calibration complexity and improves stitching precision.
Mounting Considerations and Best Placements
Camera placement determines the quality of the stitched view and the usefulness of the system. Front-facing cameras are often mounted behind the lower grille or on the bumper, while rear cameras sit near the license plate area. Side cameras can live on the front fenders or under side mirrors. Ideal positions are low enough to stay clear of road debris, yet high enough to minimize blind spots. Ensure cameras have a clear field of view, are unobstructed by trim, and are protected from direct contact with water and rocks. Consistent mounting depth across all cameras helps the stitching algorithm deliver a stable, accurate panorama.
Plan mounting points on the vehicle’s body panels, and use non-destructive mounting methods whenever possible. Some DIY setups require drilling, which increases risk; if you’re uncomfortable, look for clip-on or bracket solutions that reuse existing holes or factory mounting points. Route cables away from moving parts, heat sources, and vibrating components to avoid wear over time.
Wiring and Power Options
Wiring is often the most technically demanding part of the install. You’ll typically need to run a dedicated camera power line from the vehicle’s 12V system, ideally from an ignition-switched circuit so the system powers on with the car. Use a fuse tap placed close to the fuse box, and ensure a solid ground connection to a clean chassis point. Route the video cables along factory grommets and under trim panels to minimize exposure and physical wear. If your kit supports CAN bus integration, follow the manufacturer’s guidance to minimize interference with other vehicle electronics.
Label wires, take photos during removal, and avoid sharp bends in the wiring harness. If you’re using a long run to the display, consider a shielded HDMI or LVDS cable to preserve image quality and reduce noise. Properly sealed grommets and weatherproof connectors help keep moisture out, which is crucial for longevity.
Integration with Displays and Processors
Many aftermarket 360 kits offer a single-display interface or compatible apps for your existing head unit. If you’re starting from scratch, you’ll need to choose a display that can accept four camera inputs and provide a stitched, user-friendly view. Some setups include a dedicated processor module that handles image stitching and de-warping, while others rely on the head unit’s processor. Verify power requirements and ensure that the display can handle the latency of real-time stitching; lag can defeat the purpose of a surround-view system.
If your vehicle uses a factory infotainment system, confirm whether an external camera input is available or if an adapter is needed. For wireless options, check range, interference risk, and battery life for any transmitters that may be installed in the cabin. Documentation from Install Manual recommends documenting channel wiring and keeping data cables organized for future updates.
Calibration, Testing, and Fine-Tuning
Calibration is the process that aligns the four camera feeds into a coherent 360-degree view. Most kits require you to place calibration targets at known distances and drive a short route at low speeds to map the stitching seams. Expect to spend 15–60 minutes for calibration, depending on how stable your mounting is and whether you’re using a factory-integrated system. After calibration, test in a controlled area: park near curbs, drive slowly in a straight line, and perform tight turns to verify that the stitched image corresponds accurately to your vehicle’s position.
Document any misalignment and recalibrate as needed. If you notice distortion in corners or warped stitching, re-check camera angles, mounting heights, and cable terminations. Some kits offer auto-calibration with updates; keep the firmware current to maintain accuracy.
Safety, Legality, and Maintenance Considerations
Before taking the vehicle on public roads, review local regulations regarding aftermarket camera placement and screen usage. In some jurisdictions, the display should not distract the driver or obscure critical instrument visibility. Regular maintenance includes cleaning lens surfaces, checking seals for moisture, and inspecting cable routes for wear. If a camera’s view is obstructed by dirt or debris, run a quick wipe and re-check the seal.
The Install Manual team emphasizes safety-first: never compromise airbag systems, seat belts, or sensor housings. Keep all fasteners tight and verify that all connections are secure after road testing. A well-maintained 360 camera setup lasts longer and continues to provide reliable situational awareness.
Common Mistakes and Troubleshooting
The most common mistakes during the install are rushing the wiring, ignoring cable routing, and skipping calibration. Take your time with the layout, keep power and video cables separate, and test the system incrementally as you connect each camera. If you encounter a black image or warped stitching, recheck camera angles, confirm ground integrity, and ensure all connectors are fully seated. If latency is present, consider reducing the video resolution or upgrading the processor.
Final Checklist Before Road Testing
- Confirm all four cameras are mounted firmly with clean lenses.
- Verify that the power source is ignition-switched and fused properly.
- Recheck cable routing for heat, moisture, and interference.
- Complete calibration with a practical drive in a low-traffic area.
- Update firmware if available and save calibration data for future reference.
Tools & Materials
- 360-degree camera kit (four cameras + processor)(Ensure weather sealing (IP rating) and compatibility with your display)
- Trim removal tools(Non-destructive panels removal)
- Wiring harness with fuse tap(Prefer ignition-switched supply)
- Grounding strap or solid chassis ground(Corrosion-free ground point)
- Shielded video cables (HDMI/LVDS as needed)(Keep runs short and protected)
- Weatherproof connectors and heat-shrink tubing(Moisture protection at all entry points)
- Electrical tape or zip ties(Organization and strain relief)
- Multimeter or test light(For checking voltage and continuity)
- Calibration target or chart(Needed for stitching alignment)
- Silicone sealant or gasket maker(Extra weather seal where needed)

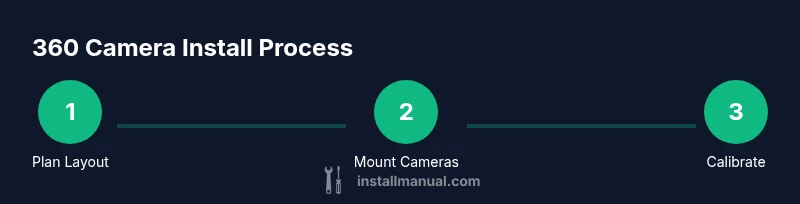

Steps
Estimated time: 2-6 hours
- 1
Plan the camera layout
Identify mounting points for front, rear, and side cameras. Sketch a layout map, noting clearances from bumper, fenders, and under-trim areas. Confirm that your chosen display can accept inputs from all cameras and that wiring routes won’t interfere with flight paths of airbags or other sensors.
Tip: Mark mounting points with painter’s tape before drilling or fastening. - 2
Prepare the vehicle and components
Remove necessary panels to access mounting points and expose wiring channels. Inspect weather seals where the cameras will be installed and clean the mounting surfaces. Verify that all kit components are present and match the vehicle’s model year.
Tip: Take photos of the stock configuration before any disassembly for reference. - 3
Mount the front cameras
Attach the front cameras to the planned points, ensuring each lens sits level and faces slightly downward to cover curb area. Use provided brackets and non-destructive fasteners when possible to avoid body damage.
Tip: Use a small spirit level to ensure horizontal alignment. - 4
Mount the rear camera and side cameras
Secure the rear camera near the license plate or bumper center. Install side cameras on front fenders or mirror housings, maintaining similar height on all units. Keep lens clear of mud and wash lines for optimal image quality.
Tip: Test-fit all four cameras before final mounting to verify clearance. - 5
Route and secure the harness
Run video and power cables along factory channels, keeping them away from moving parts and heat sources. Use grommets for any entries through metal and seal with heat-shrink or weatherproof connectors. Secure cables with zip ties at regular intervals.
Tip: Label each cable path to simplify future maintenance. - 6
Connect power and data
Tap power from an ignition-switched circuit using a fuse tap. Connect the video outputs to the processor or display input and verify ground continuity. Double-check that all connections are fully seated and free of corrosion.
Tip: Power up the system with the ignition off to avoid surges during wiring. - 7
Calibrate the surround-view system
Place calibration targets at known distances and drive a short route slowly to map stitching seams. Follow the kit’s calibration steps, repeating if seams appear misaligned. Update firmware if a newer version is available.
Tip: Document the calibration results and keep a backup of settings. - 8
Test, verify, and finalize
Test camera feeds at low speed in a controlled area, checking for lens clarity, stitch accuracy, and lag. Inspect all mounts and seals for moisture, and tidy up any loose ends. Re-lock trim panels and store tools securely.
Tip: Take a test drive with varied lighting to confirm reliability.
Got Questions?
Do I need to remove panels to install a 360 camera on my car?
In many cases, you can access mounting locations by removing trim panels. Some cars require more extensive interior access. Plan to work slowly and keep panels labeled for reassembly.
Most installations need panel access. Label parts and work methodically to avoid damage.
Will a 360 camera work with my factory head unit?
Some factory head units accept external camera inputs via an adapter or software update. If not, you can use an aftermarket display that supports four camera feeds and stitching.
Check if your head unit has external camera inputs or consider an aftermarket display.
Is professional installation required?
Not always. A DIY install is feasible for those with basic wiring and trimming skills. If you’re uncomfortable with electrical work or drilling, seek professional help to avoid damage or warranty issues.
DIY is possible for skilled DIYers, but professional help is wise for warranty and safety.
How long does calibration take?
Calibration typically takes 15 to 60 minutes depending on mounting stability and system complexity. A stable setup minimizes repeat calibrations.
Calibration usually lasts 15 to 60 minutes if the mounts are solid.
Can I use a wireless 360 camera kit?
Wireless kits exist but can introduce latency and interference. A wired connection is generally more reliable for real-time stitching.
Wireless can work, but wired connections are more reliable for real-time view.
Will the system drain my car battery?
If wired to an ignition-switched circuit and properly fused, the system won’t drain the battery when the car is off. Avoid constant-power feeds for safety.
Power from ignition-switched circuit; it won’t drain when off if fused correctly.
Watch Video
Main Points
- Plan camera placement before any drilling or mounting.
- Choose a kit with weatherproof cameras and a reliable processor.
- Calibrate carefully for accurate stitching and minimal distortion.
- Prioritize safe wiring routes and proper grounding.
- Test in a controlled area before road use.
