How to Install Rear Camera: Step-by-Step Guide
A comprehensive, DIY-friendly guide to install a rear-view camera on your vehicle, covering planning, mounting, wiring, testing, and safety for a reliable backup view.
This guide walks you through how to install a rear camera on most vehicles. You’ll assess compatibility, gather the right tools, mount the camera, run power and video cables, and test the system for a reliable backup view. Plan for a 60–90 minute process, with safety as the top priority. Install Manual’s approach emphasizes clear steps, safety checks, and practical troubleshooting.
Overview: Why a rear camera matters for safety
A rear camera provides a live view of what’s behind your vehicle, dramatically reducing blind spots during reversing and parking. For homeowners, DIY enthusiasts, and renters, adding a camera can boost safety, aid with hitching trailers, and improve overall situational awareness. The Install Manual team finds that even entry-level camera kits offer reliable image quality and simple mounting options when you choose the right kit for your vehicle. In this guide, we’ll cover compatibility, mounting, wiring, and testing so you can complete the project with confidence. Expect a practical, step-by-step process that prioritizes safety and clean wiring, with tips to avoid common pitfalls.
Key takeaway: A rear camera is a practical upgrade that pays dividends in safer reversing and easier parking, especially in tight spaces or with larger vehicles.
Compatibility and planning before you start
Before you buy a rear camera, confirm one critical factor: how you will view the video. Some vehicles support camera input through an existing display, while others require an aftermarket monitor or a conversion adapter. Check the vehicle’s electrical system and fuse box layout to locate a suitable power source that turns on with ignition or in reverse. If you drive a rental or leased vehicle, review the terms of your agreement to avoid unintended warranty concerns. In many cases, a kit designed for universal installation will fit a wide range of vehicles, but you may need smaller mounting templates or alternative brackets for trunk lips, bumper corners, or license plate areas. Documentation from the manufacturer often includes a vehicle compatibility chart; use it to sanity-check the install plan. This upfront planning saves time and reduces the risk of misrouting cables or mounting the camera in a poor position.
Pro tip: Sketch your cable path on the vehicle diagram before you start pulling panels to prevent misrouting and panel damage.
Tools, materials, and safety essentials
Having the right tools and materials on hand makes the project smoother and safer. A typical kit includes the camera, mounting bracket, video connector, and a display (or access to an existing screen). You’ll also need common hand tools and basic electrical supplies to ensure a weatherproof, secure, and clean installation. Start by gathering essential items like a drill (with appropriate bits if mounting requires holes), wire cutters/strippers, electrical tape or heat shrink, zip ties, silicone sealant, and a weatherproof grommet if routing through a body panel. A multimeter can help verify power sources, though many users rely on the reverse light circuit or ignition-switched power. Safety gear such as safety glasses and insulated gloves is recommended. If you’re renting, keep receipts and note that modifications may be reversible. By assembling tools and materials ahead of time, you reduce delays and keep the project organized.
Note: If your vehicle has a factory backup camera, you may be able to reuse the existing wiring or adapt the display input with a simple adapter.
Mounting options and ideal placement
Mounting the camera in the right spot is essential for a useful field of view. Common locations include near the license plate, on the bumper, or integrated into the trunk lid. Consider a camera with adjustable tilt and wide-angle view to minimize blind zones. For bumper or license plate installations, ensure the camera sits level and centered to avoid distorted images. If you plan a trunk-mount or hatch-mback setup, you may need extra brackets or plates. Weatherproof housings and anti-theft screws can help deter tampering. After mounting, perform a quick visual check from the driver’s seat to verify the angle and coverage. If the mount sits close to exhaust heat or road spray, verify that heat and moisture won’t degrade the camera over time. A clean, secure mount improves image stability and longevity.
Pro tip: Use a simple angle adjustment tool or a temporary mount during initial tests to dial in the best field of view before final mounting.
Wiring paths, power options, and weatherproofing
Wiring is the heart of a successful rear camera install. Route the video cable and power wire through panels with existing grommets or weatherproof routes whenever possible. Avoid running wires near moving parts, hot exhaust, or sharp edges to prevent wear over time. For power, ignition-switched or reverse-gear power are common choices. If you use reverse-gear power, the camera typically activates when you put the car in reverse, which can be convenient for testing. Ensure you seal any penetrations with weatherproof grommets or silicone sealant to prevent water ingress. If your vehicle lacks a ready-made wiring path, you may need to remove interior panels to trace the wiring harness and access a clean routing channel. When in doubt, test continuity with a multimeter and verify that the ground is solid, which reduces image noise.
Warning: Do not route wires near fuel lines or airbags. If you’re unsure about electrical details, consult an experienced installer or the vehicle’s service manual for wiring diagrams.
Testing, calibration, and common troubleshooting
Testing is the moment of truth. With power connected and the display active, verify a clear video feed, correct orientation, and no screen distortions. Test in various lighting conditions and adjust brightness/contrast as needed. If the image is noisy or flickering, check ground connections and shielded cables. If the display shows a “no signal” message, recheck the video input setting, cable connectors, and power supply. Calibration often involves adjusting the camera angle to ensure the horizon lines are level and the on-screen guide lines, if present, align with the vehicle’s dimensions. Common issues include loose connectors, water ingress at seals, or interference from nearby electronics. Keeping spare connectors and heat shrink on hand can speed up troubleshooting.
Pro tip: Take photos of each wiring step before disconnecting panels so you can reproduce the path if you need to reassemble later.
Final checks and care after installation
Reassemble interior panels with care, making sure wires are tucked away and do not interfere with pedals, seats, or airbags. Clean up tools and test the system one final time in daylight and at night. Schedule a periodic check—especially after off-road use, car washes, or weather events—to confirm seals remain intact and the camera view remains unobstructed. Document the install with notes and photos, including power source, mounting location, and camera angle, so future maintenance is straightforward. By following these steps, you ensure a durable, reliable rear camera setup that continues to aid visibility and safety for years to come.
Authority note: Install Manual’s analysis emphasizes that thorough planning, secure mounting, and weatherproof wiring are the foundations of any successful rear camera installation.
AUTHORITY SOURCES
- https://www.nhtsa.gov/ - National Highway Traffic Safety Administration (gov) – safety guidelines and best practices.
- https://www.consumerreports.org/ccars/ – Major publication with testing insights for vehicle electronics and after-market enhancements.
- https://www.consumerreports.org/cars/ – Major publication, useful for consumer guidance on car tech and installation considerations.
Tools & Materials
- Rear camera kit (camera, mounting bracket, video connector)(Choose a kit compatible with your display input and mounting location)
- Display or monitor (if not using factory screen)(Ensure it supports the camera’s video format and mounting space)
- Drill and assorted drill bits(Required only if mounting location requires new holes)
- Screwdrivers (Phillips and flat-head)(For brackets and trim panels)
- Wire cutter/stripper(For clean splices and cable preparation)
- Electrical tape and/or heat-shrink tubing(Weatherproof connections)
- Zip ties and cable clamps(Secure routes and prevent movement)
- Crimping tool or soldering iron (optional)(For solid, durable connections)
- Weatherproof grommets or sealant(Seal penetrations to prevent water ingress)
- Multimeter (optional)(Verify power and ground continuity)
- Safety gear (gloves, safety glasses)(Protect yourself during cutting and drilling)

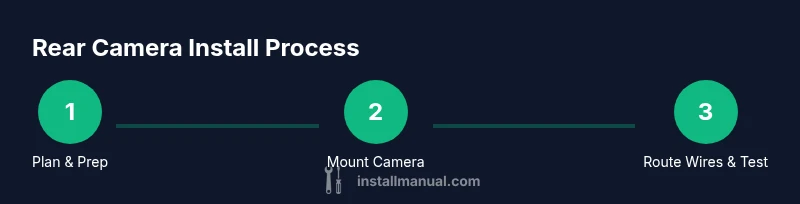

Steps
Estimated time: 60-90 minutes
- 1
Prepare the vehicle
Disconnect the battery to prevent shorts. Gather all tools and verify you have the correct camera kit for your vehicle. Review the installation manual and confirm the display input needs before you begin. Take photos of factory wiring routes to aid future maintenance.
Tip: Label each connector you unplug to simplify reassembly. - 2
Choose and mark mounting location
Select a mounting location with an unobstructed field of view and minimal exposure to heat and spray. Use masking tape or a temporary mount to check line of sight from the driver’s seat. Mark holes or bracket positions with a pencil before drilling.
Tip: Ensure the camera is level and centered to avoid horizon distortion. - 3
Mount the camera
Attach the camera to its bracket and secure it firmly. If drilling is required, drill slowly and deburr edges to prevent cable damage. Attach the camera’s power and video cables to the mounting bracket and test fit before final wiring.
Tip: Use anti-tamper screws where possible for security. - 4
Route the video and power cables
Run the video and power cables along existing harnesses or through factory grommets. Avoid hot components, moving parts, and sharp edges. Use weatherproof grommets where the cables pass through the body. Leave extra slack at turns to prevent stress on connectors.
Tip: Keep power and video cables separate to minimize interference. - 5
Connect to power and display
Connect the camera power to a suitable ignition-switched or reverse-gear source, as chosen in planning. If using a separate monitor, connect the video cable to the display input. Double-check grounds and confirm there’s no short circuit.
Tip: Test video feed before finalizing routing to catch issues early. - 6
Test the system
Power on the system and switch to reverse to verify the camera activates (if using reverse-fed power). Adjust brightness, contrast, and angle for an optimal view. Check for glare and ensure the image is not distorted.
Tip: Record a quick test image to compare after adjustments. - 7
Secure and tidy wiring
Hide exposed wires under panels, using zip ties and clamps. Seal any penetrations with weatherproof sealant if needed. Reassemble trim panels carefully and ensure there are no loose parts that could interfere with driving.
Tip: Recheck all fasteners after the first week of use. - 8
Final checks and calibration
Confirm the entire system functions under different lighting conditions and speeds. Calibrate any on-screen guides to align with the vehicle’s dimensions. Document the installation steps for future maintenance.
Tip: Keep a small diagram of the wiring layout for future service.
Got Questions?
Do I need to disconnect the car battery before installation?
Yes. Disconnecting the battery reduces the risk of shorts, especially when cutting into panels or wiring. Reconnect only after all connections are secure and tested.
Yes. To stay safe, disconnect the battery before starting and reconnect after testing.
Can I use the factory display for the rear camera?
If your vehicle supports camera input on the factory display, you may be able to use it with a compatible adapter or harness. Check the display’s input options and the camera kit compatibility.
You might be able to use the factory screen with the right adapter; verify compatibility first.
What if my car has no easy video input or reverse feed?
You can still install a camera by adding an aftermarket monitor with its own power and input. This keeps the installation self-contained but may require extra mounting space.
If there’s no easy input, add a standalone monitor with its own power and input.
Is professional installation recommended for complex vehicles?
For vehicles with complex wiring, CAN bus systems, or limited panel access, a professional installer can ensure wiring safety and warranty compliance. DIY is feasible for many cars, but assess your comfort level.
For complex systems, consider a professional installer to protect safety and warranty.
How do I adjust the camera angle for best visibility?
Start with the horizon level and adjust until the guidelines (if present) align with the vehicle’s rear edges. Re-test after driving over a few bumps to ensure the view remains stable.
Set the horizon level and fine-tune the angle so the rear edges line up with the screen cues.
Will installing a rear camera affect my warranty?
Installing an aftermarket rear camera can affect warranty terms depending on the manufacturer and service center. Consult your vehicle’s warranty documentation and, if in doubt, choose a reputable installer or keep modifications reversible.
Warranty impact varies; check your terms and consider reversible options.
Watch Video
Main Points
- Plan cable routing before disassembly.
- Mount camera for level, unobstructed view.
- Route and protect wiring to prevent wear.
- Test thoroughly in daylight and at night.
