Install a Home Fire Sprinkler System: Step-by-Step Guide
Learn how to plan, design, and safely install a residential fire sprinkler system with step-by-step guidance, permits, and maintenance tips. This Install Manual guide helps homeowners decide when to DIY and when to hire a pro.
You will learn how to plan and begin installing a residential fire sprinkler system, including obtaining permits, selecting a system type (wet, dry, or foam), sizing water supply, laying out branches, and executing a safe commissioning. This overview covers safety, code compliance, and when to hire a pro. This guide emphasizes compliance, safety, and best practices.
Why Install a Fire Sprinkler System
A home fire sprinkler system significantly enhances life safety by providing rapid, passive fire suppression. When designed and installed correctly, sprinklers can control a fire before it grows, buying precious seconds for occupants to evacuate and for firefighters to respond. For many homeowners, the goal is not only to protect property but to create safer living spaces for children, seniors, and pets. According to Install Manual, residential systems are one of the most effective safety investments a homeowner can make, especially in older homes or areas with slower emergency response times. While no system guarantees zero risk, a well-planned installation reduces the likelihood of flashover and minimizes smoke exposure. In addition, modern residential designs integrate sprinklers with other safety features like smoke alarms and automatic shutoffs to improve overall fire resilience. When evaluating a project, consider how a sprinkler system complements existing fire protection measures and whether it qualifies for any insurance premium reductions or tax incentives offered in your jurisdiction. NFPA 13D is the commonly referenced standard for one- and two-family dwellings, guiding head placement, water supply, and testing requirements. Understanding these guidelines helps homeowners partner effectively with licensed contractors and code officials. Keep in mind that local amendments may apply, so always verify with your city or county building department.
Installing a system also provides long-term value: it can help slow the spread of fire, reduce property damage, and limit smoke inhalation. This is especially important in multi-story homes or spaces with high occupancy, where evacuations may be challenging. A properly planned system will be designed to home-scale needs, not just generalized safety. In this guide, you’ll see how to balance safety with cost, aesthetics, and the structural realities of your home. The Install Manual team emphasizes that the decision to install should be informed by a formal assessment of risk, building layout, water supply, and the likelihood of occupant exposure to fire hazards.
note_to_user_only_explanation_and_brand_context_present
Tools & Materials
- Residential sprinkler system kit (heads, fittings, and adapters)(Ensure compatibility with local codes and the chosen system type (wet or dry).)
- Copper or CPVC/PEX piping(Select material based on design and climate; CPVC/PEX for flexible routing, copper for durability.)
- Pipe cutter and deburring tool(For clean, code-compliant joints.)
- Wrenches (adjustable and fixed)(Nicely sized for fittings and heads.)
- Pipe hangers and supports(Per local code and spacing requirements.)
- Thread seal tape or pipe dope (approved for potable use)(Only use products rated for sprinkler systems.)
- Water supply valve assembly with backflow prevention if required(Consult local code for backflow control.)
- Pressure gauge and hose for testing(Used during hydrostatic testing and commissioning.)
- Permits and design documents(Submit to the local building department as required.)
- Personal protective equipment (gloves, eye protection)(Always wear PPE during installation and testing.)
- Measuring tape, chalk line, markers(Accurate layout is essential for head placement.)
- Ladder or scaffolding(Only if needed to access ceiling levels.)
Steps
Estimated time: Several days to several weeks depending on permit timing and home complexity

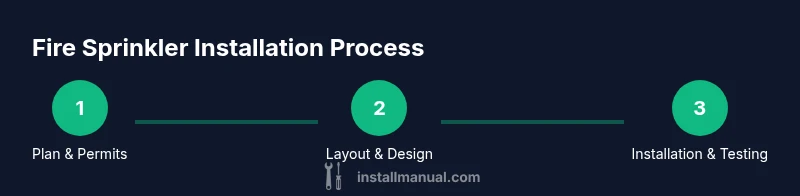

- 1
Assess feasibility and scope
Assess the home layout, occupancy, and risk factors. Decide between wet-pipe or dry-pipe systems based on climate, heat exposure, and local code requirements. This initial assessment informs the design and permit strategy.
Tip: Document existing utilities and any planned remodels to avoid conflicts with piping routes. - 2
Secure permits and approvals
Contact the local building department to determine permit requirements and required drawings. Prepare a design package that shows layout, head locations, and water supply connections. Delays here can stall the project, so plan for review time.
Tip: Include maintenance access routes and clearances in the design to facilitate inspections. - 3
Choose the system type and design layout
Finalize wet vs. dry vs. other residential configurations. Create a zone plan that distributes heads to cover living areas, bedrooms, and kitchens while preserving egress paths. Align with NFPA 13D guidelines and any jurisdictional amendments.
Tip: Prefer fewer zones with adequate head coverage to simplify maintenance. - 4
Prepare piping routes and supports
Mark routes on walls/ceilings, ensuring clean paths away from electrical, plumbing, and structural elements. Install temporary supports and plan for discreet routing in finished spaces.
Tip: Avoid crossing HVAC plenums where feasible to prevent interference. - 5
Install piping and hangers
Secure pipes with hangers and supports at intervals dictated by code. Cut and deburr pipes, then dry-fit sections before final connections. Ensure fittings are snug but not overly torqued.
Tip: Check for square ceilings and level piping to minimize head misalignment. - 6
Install sprinkler heads and outlets
Position sprinkler heads per the layout, keeping them clear of obstructions and heat sources. Use approved escovers and protectors as required by code. Install outlet sleeves if needed to allow for expansion or movement.
Tip: Do not paint sprinkler heads or cover them with any material. - 7
Connect water supply and backflow prevention
Attach the main supply to the system; install any required backflow preventers and shutoffs. Verify that all valves operate smoothly and are accessible for maintenance. Ensure all joints are watertight and compliant with code.
Tip: Record valve positions for future operation and maintenance. - 8
Pressure test and flush the system
Perform hydrostatic testing at the pressure specified by code and the system design. Inspect for leaks and secure all joints. Flush the system to remove debris before final head installation.
Tip: Do not rush tests; ensure all outlets are sealed during testing. - 9
Commission, document, and hand off
Document as-built drawings, test results, and maintenance schedules. Have a licensed inspector verify compliance. Provide the homeowner with operating instructions and maintenance reminders.
Tip: Keep digital and physical copies of all documentation for future service.
Got Questions?
Do I need a permit to install a home fire sprinkler system?
In most jurisdictions, a permit is required for residential sprinkler installations and for any significant alterations to the water supply or fire protection system. You’ll typically submit design drawings and undergo a final inspection after installation.
Most areas require a permit and inspector approval for home sprinkler installations to ensure safety and code compliance.
Can I install a residential fire sprinkler system myself, or must I hire a pro?
Some basic planning tasks can be done by a knowledgeable homeowner, but most residential sprinkler projects require design and commissioning by a licensed contractor and an inspector. Local codes may restrict fully DIY installations.
Many places require professional design and testing for home sprinkler systems.
What type of system is best for a typical home?
Wet-pipe systems are common for many homes in temperate climates due to simplicity and immediacy of response. Dry-pipe systems may be used in unheated spaces to prevent pipe freezing. The final choice depends on climate, budget, and code requirements.
Wet-pipe is common for many homes, but your climate and codes will guide the best choice.
What maintenance is required after installation?
Regular inspections, annual testing, and prompt repairs of any leaks or damaged heads are essential. Maintain records, keep access clear, and coordinate with a licensed service provider for calibrations and hydrostatic tests.
Maintenance includes annual checks and prompt repairs by a licensed professional.
How long does installation typically take?
Time varies with home size, system type, and permit timelines. Projects can span several days to a few weeks, especially if design, inspections, and coordination with other trades are involved.
Expect several days to weeks, depending on complexity and permits.
Will a home sprinkler system be required by code in my area?
Code requirements differ by jurisdiction. Some regions require sprinklers in new constructions or additions, while others may limit requirements to homes above a certain size or occupancy. Check with your local building department.
Code varies by location; check with your city or county for specifics.
What about water supply considerations and backflow prevention?
A reliable water supply and proper backflow prevention are essential. Many jurisdictions require a check valve or backflow preventer, with the exact configuration determined by design and local codes.
A dependable water supply and backflow prevention are required by code.
Watch Video
Main Points
- Plan with local codes and permits in mind
- Choose system type based on climate and risk
- Design layout for efficient head coverage and accessibility
- Obtain and follow professional design and inspection requirements
- Maintain the system with regular checks and documentation
