Fire Sprinkler System Install: A Complete Home Guide

Understanding the purpose and scope of a fire sprinkler system install

A residential fire sprinkler system install is more than a home improvement project; it's a life-safety upgrade that changes how a house responds to fire. In most homes, sprinklers are designed to release water through concealed heads triggered by heat, protecting occupants and reducing property damage. This block explains why homeowners consider sprinkler installation, the basic types, and how to set realistic expectations about cost, coverage, and maintenance.

According to Install Manual, starting with a clear definition of goals helps align design choices with local codes, water supply, and the needs of occupants. The two most common systems for residences are wet-pipe systems, which have water-filled pipes that release immediately when a head is activated, and dry-pipe systems, which delay water until main supply fills. There are also specialty configurations for larger homes, high-rises, or properties with unusual water pressure. The installation process also involves coordination with the local authority having jurisdiction (AHJ), a licensed sprinkler contractor, and sometimes an engineer or architect. By understanding these elements, homeowners can participate in decisions about placement, zoning, and integration with existing fire protection devices such as alarms and standpipes. Before committing to a fire sprinkler system install, it's essential to assess the building layout, ceiling heights, and accessibility of mechanical rooms to determine how pipes will run without compromising living spaces. Finally, keep expectations realistic about disruption and occupancy during installation, and recognize that a professionally installed system can deliver reliable performance for decades with proper care.

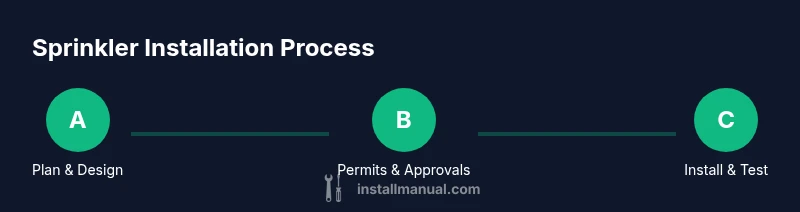

Planning and code considerations

Planning a sprinkler installation requires navigating codes, permits, and design choices that affect layout, materials, and inspection schedules. Start by identifying the occupancy type (single-family vs. multifamily) and local adaptations of NFPA 13 guidelines, as well as any state or city amendments. The AHJ will review proposed layouts, water supply, and backflow prevention requirements. The Install Manual analysis shows that early, proactive planning reduces delays in permit processing and helps homeowners avoid redesigns later in the project. Gather existing building drawings, water pressure data, and any available home warranty documents to inform the design. Decide on the system type (wet-pipe, dry-pipe, or deluge) based on climate, risk, and maintenance considerations. Consider how design choices affect ceiling aesthetics, room usage, and room-to-room coverage. Establish a zoning plan so that sprinklers cover high-risk areas (kitchens, mechanical rooms) without excessive overlap. Think about integration with other life safety systems, including fire alarms and building automation if present. Finally, clarify responsibilities with the contractor and ensure that a stamped design or engineer’s letter is part of the permit package where required. Install Manual analysis also emphasizes engaging the AHJ early to align timelines and expectations.

Tools, materials, and prerequisites

Before you begin, assemble essential planning tools and reference materials to support decisions, drawings, and compliance checks. The following items help you document layouts, verify measurements, and communicate with professionals:

• Measuring tape (25 ft minimum) – essential for spacing and run lengths
• Notebook and pencils – for quick sketches and notes
• Smartphone or camera – to photograph spaces and capture ceiling heights and access points
• Copies of local building codes and NFPA references – to verify requirements during design reviews
• Permitting forms and AHJ contact information – required for applications and inspections
• PPE (gloves, eye protection) – safety gear for site visits and measurement tasks
• Ladder or stable stool – for reaching ceiling locations during surveys
• Pens, markers, and graph paper – for marking layouts and creating scale drawings

Note: While these tools support planning and documentation, the actual installation should be performed by licensed professionals following local codes. The goal is to prepare, document, and coordinate effectively so contractors can work efficiently once on-site access is granted.

Design options and layout considerations

The design phase defines how a fire sprinkler system install will look in your home, how it will perform under pressure, and how it integrates with other systems. Common residential approaches include wet-pipe systems for buildings with reliable water supply and freeze risk, dry-pipe systems for colder climates or areas with freeze concerns, and deluge or wicking configurations for specialized spaces. Each option influences water volume, ceiling impact, and maintenance needs. When planning layout, consider room-by-room coverage, head spacing, and the placement of risers, backflow preventers, and control valves. Clustering sprinklers by zone reduces piping length and improves response times, but increases the complexity of zoning controls. Elevation, ceiling height, and attic access influence pipe routing; contractors will optimize runs to minimize visible impact while preserving living space usability. The design should also accommodate potential future changes, such as attic conversions or new bedroom suites. Throughout the process, verify that the system design aligns with AHJ requirements and includes detailing for backflow prevention. Remember that the goal is not only compliance but dependable performance under fire conditions, so allocate appropriate margins for head spacing and redundancy where feasible.

Coordination with utilities and other trades

A successful fire sprinkler system install hinges on coordinating with water supply, electrical, HVAC, and structural trades. Shared spaces like mechanical rooms and ceiling cavities require careful sequencing to prevent conflicts between sprinkler piping and ductwork, joists, or electrical conduits. The installer will typically verify water pressure and flow at the building’s main supply, ensuring adequate volume for the intended zoning. They may also need to coordinate hot-work clearances, attic access, or ceiling penetrations with other trades. Scheduling is key to avoid rework; establish a clear installation window and ensure that protective measures are in place to keep work areas safe for occupants. Comprehensive documentation, including as-built drawings and test results, should be compiled and shared with the homeowner and, if applicable, the AHJ. This coordination minimizes surprises and helps ensure the system will integrate smoothly with existing alarms and fire protection devices. Install Manual recommends maintaining open communication channels with your contractor throughout the process to resolve issues quickly and maintain project momentum.

Permitting, inspections, and approvals

Obtaining the necessary permits and arranging inspections is often the most time-consuming part of a fire sprinkler system install. Start by contacting your local AHJ to determine which drawings and verifications are required. Expect to submit design documents, hydraulic calculations, equipment lists, and backflow preventer details if applicable. Permits may require stamped drawings from a licensed engineer or sprinkler contractor. After installation, a field inspection will verify compliance with applicable codes, spacing, and safety requirements. Missing or inaccurate documentation can lead to rework and permit delays, so prepare digital copies of all drawings and tests. Maintain a record of permit numbers, inspection dates, and any corrections requested by the AHJ. Proactive communication with the AHJ can streamline the approval process and reduce the overall timeline of a fire sprinkler system install.

Testing, commissioning, and handover

Testing and commissioning confirm that the system performs as designed and that all components operate correctly under normal and fire conditions. Expect hydrostatic pressure tests, valve function tests, and a water-flow test to verify coverage and response times. Only qualified personnel should perform these tests, and test results must be documented for the homeowner and AHJ. During commissioning, verify alignment with the design documents, zone control, and any alarms or annunciation that accompany the sprinkler system. Upon successful tests, receive the final approvals and hand over as-built drawings, maintenance schedules, and warranty information. A clear handover ensures you know how to operate, test, and maintain the system going forward. The Install Manual team emphasizes that proper documentation supports safety and future upgrades, and stresses the importance of retaining manuals and contact information for service.
