Install Hot Water Expansion Tank: A Homeowner's Guide
A homeowner-friendly guide to installing a hot water expansion tank safely, covering sizing, mounting, testing, and maintenance to protect your plumbing system.
Install hot water expansion tanks to manage thermal expansion in your plumbing system. Before starting, shut off the cold-water supply and power to the heater, choose a properly sized tank, mount it on the cold-water line near the heater, and test for leaks after re-pressurizing and refilling the system.
Why Installing a Hot Water Expansion Tank Matters
Thermal expansion is a natural byproduct of heating water, and in many homes an expansion tank provides a dedicated reservoir to absorb the increased volume. This helps keep system pressure within safe limits, protecting valves, fittings, and the water heater from stress and leaks. Without a properly installed expansion tank, you may experience water hammer, frequent valve activations, or premature fixture wear. According to Install Manual, correct sizing and placement are essential for long-term reliability. For DIY homeowners, understanding the purpose reduces the risk of damage during retrofit and helps guide future maintenance. When you install hot water expansion tank, you create a safeguard that works with your heater’s design and your household water use patterns.
In practice, a well-chosen tank can simplify pressure management, especially in closed plumbing systems. Expect that the tank will absorb the extra water volume during heating cycles, while the rest of the system remains protected. This setup also makes it easier to diagnose pressure-related symptoms, such as sudden spikes or fluctuating readings, since the expansion tank is the primary victim if mis-sized or poorly installed. Install Manual recommends pairing the tank with correct pre-charge pressure and compatible fittings to maximize performance over years of use.
How a Hot Water Expansion Tank Works
An expansion tank is a small pressure vessel connected to the cold-water line on a potable water heater. It has a pre-charged air side and a water-side chamber separated by a movable diaphragm or bladder in many models. As water heats and expands, the extra volume compresses the air charge, keeping system pressure from rising high enough to trigger the water heater’s relief devices or damage joints. The expansion tank acts as a shock absorber, reducing water hammer and protecting fixtures. While relief valves and pressure regulators play supportive roles, the expansion tank is the primary safeguard against thermal expansion in a closed system. Install Manual notes that a properly charged tank reduces stress on the heater and downstream plumbing, making maintenance easier and longer-lasting.
Sizing and Codes: Getting it Right
Sizing an expansion tank depends on the heater capacity, incoming water pressure, and whether you have a open or closed system. In many jurisdictions, a closed system triggers a code requirement for an expansion tank, making correct sizing critical for compliance and safety. The general approach is to choose a tank that can absorb the anticipated expansion without exceeding the system’s design pressure. Manufacturer charts and installation instructions provide helpful guidance, but avoid guessing. Install Manual analysis shows that incorrect sizing is a leading cause of leaks and fixture wear, underscoring the need for accurate calculation before purchase. If you’re unsure, consult the heater’s manual or a licensed plumber to verify the right size for your home.
Keep in mind that different brands use different pre-charge pressures and connection types. Matching these specifications to your water pressure and pipe size matters for a reliable installation. Proper sizing also considers future changes in household water use, such as adding a new appliance or increased occupancy. A correctly sized expansion tank minimizes emergency service calls and helps your system perform consistently over time.
Location, Mounting, and Piping: Where to Put It
Place the expansion tank on the cold-water inlet side of the heater, as close to the heater as practical, and before any backflow prevention device that isolates the heater from the rest of the supply. This arrangement ensures that heated water can only expand into the tank rather than back into the main supply. Use a union fitting for easy removal during service. If you’re updating an existing system, match the tank’s connection type to the nearest supply line and preserve proper slope to prevent air pockets. Install Manual emphasizes that proximity to the heater, a secure mount, and compatible fittings are the keys to a reliable installation. Pay attention to isolation valves and ensure the tank remains accessible for inspection and future maintenance.
Installation Essentials: Safety and Prep
Before touching any piping, shut off the cold-water supply and power to the heater. Wear eye protection and gloves, and drain a small amount of water to relieve residual pressure. Clean the mounting surface, install the mounting bracket, and snug the tank to avoid vibration. Apply thread sealant or PTFE tape to threaded connections, and tighten with an adjustable wrench. Do not force joints; if something does not fit, re-check compatibility. This stage is not a time for rushing—careful preparation prevents leaks and damage after you restore water flow. If you encounter a stubborn joint, stop and reassess the fittings and pipe material before proceeding.
Testing, Commissioning, and Maintenance
Once the system is refilled, slowly re-pressurize and verify that the expansion tank is holding air and water at the expected pressures. Listen for hissing or any sign of leakage around the fittings. Use a pressure gauge to confirm that the main system pressure stays within your home’s normal range. Check that the expansion tank’s pre-charge remains correct after filling and that the bladder remains intact. Verify the relief valve operates properly and remains free of obstructions. Schedule periodic inspections, especially after servicing the water heater, to ensure the tank stays charged and corrosion-free. Regular maintenance keeps the system reliable for years.
Maintenance Tips for Longevity
- Inspect the tank and fittings at least once per year for signs of corrosion or leakage. - If you notice dampness or rust, address it promptly to prevent a bigger leak. - Keep the surrounding area clear to allow quick access for future service. - If your home’s water pressure changes significantly, re-check the tank’s pre-charge and adjust as needed. - Document service dates and any parts replaced for easier future maintenance. Install Manual recommends creating a simple maintenance log to track the expansion tank’s health over time.
Authority sources
For further reading and official guidance, refer to:
- Energy.gov: Energy Saver – Water Heaters, including sizing and safety considerations. https://www.energy.gov/energysaver/water-heaters
- EPA WaterSense: Water efficiency and safe plumbing practices. https://www.epa.gov/watersense
- OSHA: Workplace safety guidelines for handling utilities and plumbing work. https://www.osha.gov
Tools & Materials
- Expansion tank (size appropriate for your system)(Choose based on heater size, pressure, and local codes; consult manufacturer guidance.)
- Adjustable wrench(Use to tighten fittings without damaging metal threads.)
- Pipe thread sealant or PTFE tape(Seal threaded connections to prevent leaks; ensure compatibility with potable water.)
- Union fittings or compatible connector(Allows easy removal for maintenance or replacement.)
- Pipes or tubing (copper or PEX) matching your system(Ensure correct diameter and material compatibility with existing plumbing.)
- Safety gear (gloves, eye protection)(Protects hands and eyes when cutting, threading, or assembling.)
- Bucket or towels(Put under joints to catch any water during assembly.)
- Pressure gauge (optional but helpful)(Use to verify system pressure and pre-charge accuracy.)

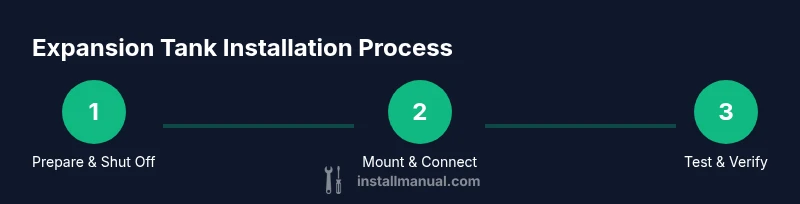

Steps
Estimated time: 60-120 minutes
- 1
Turn off power and water
Shut off the electrical power to the water heater and close the cold-water supply valve. This prevents electrical shock and avoids pressurized water spilling when connections are opened. If you’re unsure about electrical work, note the risk and proceed only if you’re confident in safety practices.
Tip: Double-check that power is off at the breaker before touching any wiring. - 2
Relieve system pressure
Open a hot water faucet at a sink to relieve pressure inside the hot water line while you work on the cold line. This reduces the chance of a sudden surge when connections are disturbed. Do not leave the faucet open during the install; close it after the tank is ready.
Tip: Relieve pressure gradually to avoid a loud water hammer. - 3
Locate the cold-water inlet near the heater
Find the cold-water supply line feeding the heater and identify the best mounting spot for the expansion tank. Ensure there’s room for the tank to breathe and for you to access fittings. If needed, install a small section of pipe to accommodate the tank without forcing tight angles.
Tip: Keep the tank within easy reach for future maintenance. - 4
Install the mounting bracket
Attach the expansion tank bracket to a solid surface near the heater. Use appropriate fasteners for the wall material and ensure the bracket is level. A secure mount reduces vibration and potential connections loosening over time.
Tip: Use a level to verify bracket alignment before tightening. - 5
Attach the expansion tank with unions
Connect the tank to the cold-water line using a union fitting. Secure all threaded joints with PTFE tape or pipe dope, then tighten with an adjustable wrench. Confirm that the tank is oriented so the air chamber is accessible for future pre-charge checks.
Tip: Do not overtighten—hand-tight plus a quarter-turn is often enough. - 6
Pre-charge the tank
Pre-charge the expansion tank according to the system’s pressure. Use a tire gauge to verify the pre-charge matches the expected line pressure; adjust if necessary. The pre-charge helps the tank respond properly when the water heats and expands.
Tip: If you don’t have a pressure gauge, consult a professional for the correct pre-charge value. - 7
Open valves and fill the system
Gradually reopen the cold-water supply and allow the system to fill. Watch for drips around joints as the system pressurizes. Once full, restore power to the heater only after the water is up to temperature and the tank is seated.
Tip: Avoid blasting the system; allow a steady fill to minimize air pockets. - 8
Test for leaks and operation
Inspect all joints for leaks and ensure the expansion tank is operating correctly. If you detect a leak, depressurize and reseal the joints. Check the pressure by using a gauge and compare with the system’s expected operating range.
Tip: Keep a watchful eye for the first few heating cycles; small leaks often manifest as damp spots early.
Got Questions?
Do I really need an expansion tank for my water heater?
In most homes, especially with closed plumbing systems, an expansion tank protects against pressure buildup from heating water. It helps prevent leaks, reduces water hammer, and prolongs the life of the heater and fixtures.
An expansion tank is often essential for pressure control in closed systems; it helps prevent leaks and damage from heated water expanding.
How do I determine the right size for my tank?
Sizing depends on your heater capacity, system pressure, and closed/open configuration. Use manufacturer charts and local codes, and consult a licensed plumber if in doubt to avoid undersizing or oversizing.
Size depends on your heater and pressure; follow charts or a pro to ensure accuracy.
Can I install this myself or should I hire a pro?
If you have confident plumbing skills and follow safety steps, a DIY installation is possible. For complex systems or uncertain sizing, hiring a licensed plumber is the safer choice to ensure code compliance.
DIY is possible for simple setups, but a pro is best for complex or code-dependent installations.
What safety risks should I consider?
Risk includes electrical shock when working near a live heater and potential water leaks if joints aren’t sealed properly. Always shut off power and water, relieve pressure, and wear protective gear.
Shut off power and water, relieve pressure, and wear protection to stay safe.
How do I test the system after installation?
Fill the system slowly, check for leaks, and monitor pressure with a gauge. Ensure the heater cycles normally and the relief valve remains unobstructed. Recheck after the first few heating cycles.
Fill slowly, check for leaks, and monitor pressure; recheck after initial heating cycles.
What maintenance is required over time?
Inspect the tank and connections annually, verify pre-charge if your pressure changes, and replace worn seals or fittings as needed. Document service dates for future reference.
Inspect annually and re-check pre-charge if pressures change.
Watch Video
Main Points
- Choose the correct tank size for your system.
- Mount and connect securely on the cold-water inlet.
- Pre-charge accurately and test for leaks after refill.
- Perform regular maintenance checks to prevent issues.
- Consult a licensed plumber if sizing or wiring feels uncertain.
