How to Install an Expansion Tank on a Water Heater
Learn how to install an expansion tank on a closed hot-water system with step-by-step instructions, safety tips, and code considerations to protect your water heater and plumbing.
Installing an expansion tank on a closed hot-water system reduces pressure spikes and protects your boiler or water heater. Start by turning off the cold-water supply and power, drain a small section of pipe to create space, choose the correct tank size and location, and attach it with proper fittings. Check code compliance before restoring pressure.
Why an Expansion Tank Matters
In a closed plumbing or hydronic heating system, water expands when heated. Without an expansion tank, the extra volume pushes against the water heater, pipes, and pressure-relief devices, which can cause premature wear or leak risks. An expansion tank acts like a cushion, providing an air chamber that absorbs the surge. This reduces cyclic pressure on the boiler, improves efficiency, and prolongs the life of the system. According to Install Manual, most residential setups using a storage water heater or boiler operate best with a properly charged expansion tank sized for the system's total water volume and anticipated pressure. If your home has a backflow preventer, curb stop, or pressure-reducing valve, an expansion tank becomes even more important to maintain a stable, safe pressure range. Note: never operate a system without a properly installed expansion device on a closed loop. This block sets the stage for understanding sizing, location, and installation steps.
How Expansion Tanks Work
Expansion tanks are diaphragm- or bladder-type vessels connected to the cold-water line. As water heats and expands, the pre-charged air chamber within the tank absorbs the extra volume, reducing pressure on the water heater and piping. The correct pre-charge pressure (set with a tire gauge or manometer) usually matches the home’s cut-off pressure and the system’s static pressure. A properly sized tank also helps limit nuisance pressure-relief valve activation and extends the life of seals and fittings. Install Manual emphasizes selecting a tank with a diaphragm rated for potable water and compatible with your system’s pressure range.
When to Install and Code Considerations
Install expansion tanks on closed piping systems where a backflow preventer or pressure-reducing valve prevents expansion from escaping. Local codes often require an expansion tank when the domestic hot-water system is part of a boiler or when a pressure-relief valve is present. A retrofit may require a permit. Always verify with your local plumbing inspector and consult the official code references. Install Manual analysis shows that most residential installations are straightforward but must adhere to venting, clearance, and pipe routing guidelines. Keep in mind that improper installation can negate the tank’s benefit and void warranties.
Sizing and Location
Tank size depends on the system’s total water volume, heater capacity, and expected pressure range. Larger homes with bigger storage tanks require proportionally larger expansion tanks. The tank should be mounted on the cold-water line near the heater or boiler, with a straight run of pipe to avoid turbulence. Ensure easy accessibility for maintenance and radii that minimize stress on connections. Installing the tank on the supply side helps isolate the heater from surge pressure while ensuring the relief valve operates within safe limits.
Tools, Materials, and Safety
Before you begin, gather essential tools and materials: expansion tank, compatible fittings, shut-off valves, a pressure gauge, Teflon tape, pipe dope or thread sealant, copper or PEX piping, a drain pan, rags, protective eyewear, and a bucket. Verify the tank’s pre-charge matches your system’s pressure (often around 40–60 psi for residential water heaters). Safety is paramount: depressurize the system, avoid hot surfaces, and never modify the PRV valve without training. Install Manual advises wearing eye protection and gloves, and keeping kids and pets away from the work area.
Step-by-Step Overview

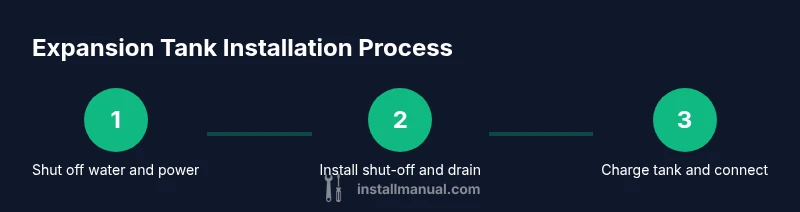

The installation follows a logical sequence: plan the location, verify space, shut down utilities, install shut-off and drain connections, attach the expansion tank, charge to the correct pressure, and test for leaks. This overview prepares you for the detailed steps in the dedicated section below, ensuring you understand the purpose of each action and how to verify success at every stage.
Post-Install Checks and Maintenance
After completing the installation, slowly restore water and power and observe the system for leaks or abnormal pressure fluctuations. Inspect the expansion tank for proper charge, verify that the pressure-relief valve remains functional, and re-check fittings after 24 hours. Periodic checks—every 6–12 months—help ensure the air charge remains correct and the tank continues to absorb pressure changes as intended. If you notice frequent pressure spikes, recheck the pre-charge and connections; a faulty diaphragm may require replacement.
Authority sources
For deeper understanding and safety guidelines, consult recognized sources such as the U.S. Department of Energy for water heater guidance, national code references, and professional standards. See: https://www.energy.gov/energysaver/water-heaters, https://www.energy.gov/eere/buildings/articles/choosing-water-heater, and https://www.nfpa.org.
Tools & Materials
- Expansion tank (pre-charged)(Sized for system and pressure; ensure compatibility with potable water.)
- Shut-off valve on cold-water line(Allows isolation for maintenance.)
- Drain valve and hose bib or drain pan(For depressurizing and draining portions of the line.)
- Pipe fittings (compression or threaded)(PVC, copper, or PEX compatible with your system.)
- Teflon tape and thread sealant(Seal threads on all connections.)
- Pressure gauge or manometer(To verify pre-charge and system pressure.)
- Wrench set and pliers(For tightening connections without damage.)
- Pipe cutter or deburring tool(Optional, for clean cuts on copper.)
- Bucket and rags(Clean up spills and keep area dry.)
- Safety glasses and gloves(Personal protective equipment.)
- Cold-water supply line shut-off extension (if needed)(For hard-to-reach valves.)
Steps
Estimated time: 1 hour 45 minutes
- 1
Power and Water Shutdown
Turn off the electrical power to the heater and close the cold-water supply valve. If your system uses gas, shut off the gas supply per the manufacturer's instructions. Relieve pressure by opening a nearby faucet until the flow stops.
Tip: Take a before photo of pipe routing to reference future connections. - 2
Choose a Mounting Location
Select a spot near the heater with accessible space for future maintenance. Ensure the wall can support the expansion tank and that no electrical or gas lines are in the way.
Tip: Avoid placing the tank where it could be knocked or damaged. - 3
Install Shut-Off Valve and Drain
Install a shut-off valve on the cold-water line if not already present, along with a drain outlet. This makes future service easier and safer.
Tip: Check that the drain allows gravity drainage without creating a backup. - 4
Attach the Expansion Tank
Thread the expansion tank to the cold-water line using the appropriate adapter. Ensure the connection is straight to avoid cross-threading and leaks.
Tip: Hand-tighten first, then snug with a wrench without overtightening. - 5
Pre-Charge the Tank
Charge the tank with air to match the system’s static pressure (commonly 40–60 psi). Use a gauge to set the correct pre-charge before final connection.
Tip: Do not exceed the tank’s maximum pressure rating. - 6
Connect and Seal All Fittings
Reconnect any removed lines, apply sealant where needed, and tighten fittings. Recheck each connection for moisture after pressingurizing.
Tip: Apply thread sealant on male threads only; avoid sealant on oxygen-rich fittings. - 7
Restore Water and Power
Slowly restore water supply while watching for leaks. Re-energize power/gas and run hot water to purge air from the system.
Tip: Open a hot-water faucet to help bleed air quickly. - 8
Test Pressure and Operation
Check the system pressure with a gauge and ensure the expansion tank diaphragm functions by observing stabilized pressure without spikes.
Tip: If pressure remains erratic, re-check pre-charge and re-seat connections. - 9
Final Inspection
Verify there are no leaks, confirm proper venting (if applicable), and document the install with photos for future maintenance.
Tip: Keep a copy of the installation notes for service calls.
