How to Install Chain Link Fence: A DIY Step-by-Step Guide
Learn how to install a chain-link fence with confidence using a practical, step-by-step approach. Planning, posts, fabric, gates, and maintenance are covered for homeowners and DIY enthusiasts.
By following this guide, you'll install a chain-link fence that marks property lines, provides security, and lasts for years. Start with planning and permits, measure accurately, and set sturdy posts in concrete. Then stretch the fabric and secure it with ties, caps, and gates. This step-by-step approach suits DIY homeowners and renters tackling fencing tasks.
Planning the Fence Layout and Permits
According to Install Manual, before you start digging plan your fence line, set-back from property lines, and confirm any local permitting requirements. Check setback rules, utility markings, and known underground lines. Use a string line and stakes to visualize the boundary and ensure straight runs. Consider gate placement for access and traffic flow. Always account for frost lines and soil conditions, as these affect post depth and stability. This planning phase also helps you calculate the number of posts, fabric length, and gate positions, reducing last-minute substitutions and ensuring your fence aligns with your property and any HOA guidelines.
Tools, Materials, and Site Prep
A well-prepped site speeds up installation and reduces safety risks. Assemble the essential tools and materials before you begin. Gather measuring tape, stakes, string line, post-hole digger, level, hammer, pliers, and wrenches. For materials, prepare steel or galvanized posts, top rails, chain-link fabric, tie wires, tension bands, post caps, and concrete mix. Also have sand or gravel for drainage and safety gear like gloves and eye protection. Having everything ready minimizes trips to the hardware store and helps you stay on schedule, especially on warm, dry days when digging is easier.

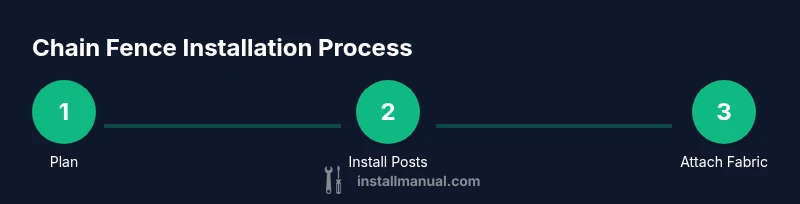

Step-by-Step Installation Process (Overview)
The following steps outline the core sequence of work from planning to finishing touches. This overview complements the detailed Step-BY-Step section and explains how each phase fits together to deliver a straight, stable fence line. Expect to verify measurements frequently, check plumb and level at each post, and maintain consistent tension as you progress. If you encounter uneven ground, plan for stepped footing and extra posts to preserve the fence’s alignment and security. Always follow local codes and the manufacturer’s installation instructions for concrete curing times and post spacing.
Common Mistakes and Troubleshooting
Common errors include skipping utility location, rushing post setting, and failing to check for level across long runs. Install Manual analysis shows that improper post spacing and soil compaction reduce fence stability and increase sag over time. Stay vigilant about post alignment, ensure concrete cures fully before applying load, and avoid over-tightening fabric at initial installation. If you notice gates rubbing or fabric pulling, pause, recheck alignment, and adjust before completing the final fastenings.
Maintaining Your Chain Link Fence
A well-maintained fence lasts longer and stays functional through seasons. Inspect regularly for rust, loose fasteners, and bent posts. Tighten ties, replace worn fabric, and clear vegetation from the base to prevent moisture buildup that can accelerate corrosion. Clean the fabric with a mild soap solution to remove dirt and debris, and re-coat or replace components as needed. The Install Manual team recommends annual inspections and prompt repairs to preserve security and appearance.
Authoritative references and references to sources
For readers who want deeper safety and design guidance, consult reputable sources such as OSHA for safety practices, university extension programs for installation basics, and state or local building codes. These references help ensure your project complies with regulations and uses proven methods. Here are a few authoritative references you can check: https://www.osha.gov, https://extension.illinois.edu, https://www.cdc.gov
Tools & Materials
- Measuring tape(minimum 25 ft; metric compatible)
- Stakes and string line(to mark boundaries and level)
- Post hole digger(for creating holes and clearing debris)
- Shovel(for dirt removal and leveling)
- Level(to ensure posts are plumb along the line)
- Concrete mix(follow package instructions for curing time)
- Steel or galvanized fence posts(per length and line count)
- Top rail(connects posts along the fence)
- Chain-link fabric(width and height per project)
- Tension bands and tension bar(for fabric tautness)
- Wire ties or ties(to attach fabric to posts)
- Post caps(finish top of posts and prevent water ingress)
- Safety gear (gloves, eye protection)(PPE mandatory)
- Utility locator service (call before you dig)(may be required by local code; arrange before digging)
Steps
Estimated time: 4-8 hours
- 1
Assess site and plan layout
Review property boundaries, confirm permits, and decide gate locations. Use the deed or survey to verify corners and setbacks. Mark the planned fence line with stakes and string, and check for any slopes that will affect post placement.
Tip: Verify boundary lines with your survey documents and call utility location services before digging. - 2
Mark fence line and boundary stakes
Lay out the full run with string line between corner posts. Mark every 6–8 feet where line posts will go, ensuring consistent spacing. Re-check diagonals to confirm the line is square with the property corners.
Tip: Use a chalk line for clean, visible marks and double-check measurements before digging. - 3
Dig or prepare post holes
Dig holes to the depth required by your frost line and local codes, ensuring the bottom is clear of roots. Remove loose soil and tamp lightly to create a stable base. If using concrete, plan the pour to allow curing before fabric tensioning.
Tip: Keep holes clean and vertical; use a level to verify plumb during setup. - 4
Set corner and end posts
Place corner and end posts in their holes and plumb them carefully. Set temporary bracing to hold posts upright while you align the rest of the line. Check alignment with string line along the entire fence length.
Tip: Secure posts with temporary braces and verify plumb with a level from multiple angles. - 5
Attach top rail and intermediate posts
Install the top rail along the line to establish a consistent height. Add intermediate posts as needed to maintain straightness and provide anchor points for the fabric. Recheck line alignment and make adjustments before pouring concrete.
Tip: Tighten connections gradually; avoid overtightening which may deform posts. - 6
Stretch chain-link fabric to posts
Unroll fabric and attach it to the posts starting at a corner. Use ties to secure fabric to each post and keep the fabric taut as you move along the run. Leave a small allowance at the bottom for drainage and to reduce weed growth.
Tip: Work from one corner to the opposite end and maintain steady tension to avoid sag. - 7
Tension and secure fabric
Use a tension bar and tension bands to pull the fabric tight between posts. Check that the fabric is level and evenly aligned. Trim any excess fabric at ends and ensure all ties are secure.
Tip: Don’t over-tighten; allow a little flexibility to prevent tearing in uneven ground. - 8
Install gates and hardware
Hang the gate on pre-installed hinges and fit the latch so the swing is smooth. Check the gate alignment with a level and adjust as necessary for a proper seal. Ensure hardware is weather-rated for longevity.
Tip: Test the gate opening width and clearance before finalizing the install. - 9
Inspect, adjust, and finalize
Walk the fence line to check for straightness, sag, or loose ties. Tighten any loose components and verify post stability after the concrete cures. Clean the site and record the project details for maintenance scheduling.
Tip: Document all measurements and post locations for future repairs.
Got Questions?
Do I need a permit to install a chain-link fence?
Permit requirements vary by location and fence height. Check with your local building department or HOA to confirm whether a permit is required before you start. Failing to obtain necessary permits can result in fines or having to remove the fence.
Permit requirements vary by area; check with your local building department before starting.
What post material is best for chain-link fences?
Galvanized steel posts are the most common choice for durability and longevity. Aluminum posts exist but are less common and can be more expensive. Match post material to your climate and maintenance preferences.
Galvanized steel posts are the standard choice for durability.
Can I install chain-link fence on uneven terrain?
Yes. Use stepped sections and add posts at changes in grade to maintain a level top line. This approach keeps the fence looking straight and functioning properly on slopes.
Yes, with stepped sections and extra posts on slopes.
How long does installation take?
Time varies with fence length, ground conditions, and whether you pour concrete. A smaller yard may take several hours, while longer runs can take a full day or more. Plan for weather and soil conditions.
It varies, but expect several hours to a full day for longer runs.
What maintenance does a chain-link fence require?
Inspect annually for rust, loose hardware, and sagging fabric. Tighten fittings, replace worn fabric, and trim vegetation from the base. Regular cleaning helps prevent corrosion and keeps the fence looking new.
Do annual checks and clean to prevent corrosion.
Should I hire a pro for complex jobs?
For complex layouts, uneven terrains, or hard soils, hiring a professional can save time and ensure quality. You can still DIY straightforward tasks like marking, fabric installation, or gate alignment.
Consider pro help for tough sections, otherwise you can DIY the basics.
Watch Video
Main Points
- Plan the layout before digging.
- Use the right materials and spacing for stability.
- Verify plumb and level at every post.
- Test gates and revise as needed.
