Install Chain Link Fence: A DIY Step-by-Step Guide

Planning, Codes, and Getting Ready

Before you lift a shovel, outline your fence project with attention to property lines, underground utilities, and local regulations. Check setbacks, easements, and permit requirements with your city or county building department. Gather measurements of the area, determine the fence length, and map where gates will go. According to Install Manual, starting with a solid plan reduces rework, protects property boundaries, and helps you estimate material needs accurately. Discuss drainage and slope with a neighbor if shared boundaries exist, and decide on a fence height that complies with neighborhood covenants. This upfront planning saves time and safety headaches later in the project.

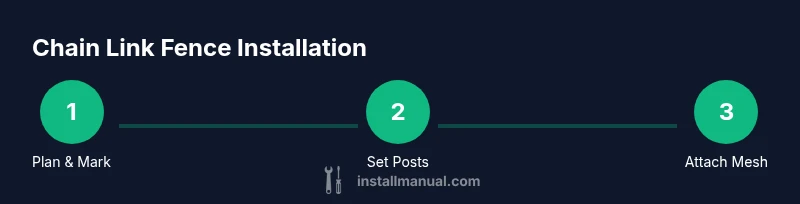

• Define the exact fence line using stakes and string.
• Verify utility locations with the national call-before-you-dig program and local maps.
• Pick the fence type, height, and gate locations to fit the space and purpose.

Tools, Materials, and Safety Gear

Having the right tools and materials is essential for a smooth install. Compile a checklist well before you start so you don’t pause mid-project to fetch supplies. The main components are chain link fabric, posts (corner, end, and line posts), rails, tension bands, and a gate kit. Concrete mix is needed for secure post set, while string line, tape measure, and a level help you stay precise. Personal protective equipment like gloves, safety glasses, and sturdy boots protect you from injuries during digging and lifting. According to Install Manual, investing in quality post supports and hardware yields a longer-lasting fence and fewer maintenance calls.

• Chain link fabric (galvanized steel) and powder-coated options.
• Post types: corner, end, and line posts; plus U-brackets or post caps.
• Rails, top rail, tension bands, tension bars, and bagged concrete.
• Tools: post hole digger/auger, sledgehammer, pliers, wire cutters, level, measuring tape, string line, hammer, safety gear.

Site Preparation and Layout: Marking and Digging

With the plan in hand, lay out the fence using a string line between established corners to ensure straight runs. Mark all post locations with stakes every 8–10 feet, plus extra stakes at corners and gate positions. Dig post holes to a depth that is 1/3–1/2 of the post length and at least 6 inches wider than the post diameter. Use a level during placement to keep posts plumb. If you’re working on uneven ground, stagger posts or use short panels to maintain a uniform top line. For soil with rocks, consider a longer auger or manual digging augers to speed up the process. This step forms the backbone of the fence alignment and long-term stability.

• Verify setback from driveways, sidewalks, and property stones.
• Use a post hole depth appropriate for your climate (typically 1/3 of the post length).
• Keep holes clean before setting posts for better bonding with concrete.

Post Setting: Corner, End, and Line Posts

Set the corner and end posts first to establish the fence line. Place each post in its hole, add a 4–6 inch layer of gravel for drainage, then pour concrete around the base. Use a level to ensure posts are plumb and aligned with the string line. Allow concrete to cure per manufacturer guidelines (usually 24–48 hours for initial set). Once the corner and end posts are secure, place the intermediate line posts using the line string as a guide. This creates a straight, stable framework for the fabric and rails. Consistency here prevents the mesh from sagging later on.

• Check for plumb with a level in both directions.
• Fill holes with ready-mix concrete and tamp to prevent air pockets.
• Protect post tops with caps to deter water intrusion and rust.

Rails and Tension: Attaching Top Rails and Tension Bands

Install top rails between posts to define the fence’s upper line and provide a mounting surface for the mesh. Affix rails to posts using appropriate brackets, making sure they’re level and secure. Attach tension bands to corner and end posts as you proceed, which will help hold the fabric tight once the mesh is installed. The tensioning system reduces sag and maintains privacy visibility where desired. Make sure to leave enough slack at the gate location and plan for a gate post that will bear the door hardware and weight.

• Use corrosion-resistant hardware and rust-protective coatings.
• Verify alignment of rails before fabric installation to avoid pulling the mesh at an angle.
• Leave space at gate positions for hinge and latch hardware.

Mesh Unrolling, Attachment, and Tensioning

Unroll the chain link fabric along the string line, keeping the mesh edge aligned with posts. Attach the fabric to the first few posts using tie wires or banding, then secure along the entire run with tension bands per post. As you go, check for sag and adjust tension with a come-along or turnbuckle mechanism. When you reach the gate opening, cut the fabric to fit and attach it around the gate frame, ensuring smooth operation of the gate. The end result should be a taut mesh with consistent fabric height all along the fence line.

• Leave a slight loose loop at end posts to accommodate minor shifts.
• Check for sharp wires and trim protruding edges.
• Use gloves to avoid cuts from galvanized wire.

Gate Installation: Frames, Hinges, and Latch

Gate installation is essential for access control and overall usability. Position the gate post square to the fence line and set it with extra reinforcement if the gate is large or the ground is uneven. Attach the gate frame to the posts using hinges rated for the gate size, then install the latch hardware and striker plate. Check the gate for smooth operation, alignment, and a proper seal against the fabric. You may need to adjust the hinge screws for a perfect swing. A well-installed gate keeps your yard secure and helps the fence look uniform.

• Use a level to ensure the gate post remains vertical during setting.
• Pre-fit the gate panels to avoid last-minute adjustments.
• Lubricate moving parts for long-term performance.

Final Checks, Maintenance, and Safety

Everything looks great? Do a final inspection of all fasteners, rail connections, and post alignment. Brush away dirt and vegetation that could trap moisture and cause rust. Apply a rust-prevention spray or paint on exposed metal parts if desired. Schedule routine maintenance checks every year: tighten loose ties, inspect for sagging, and repair any damaged fabric promptly. Regular maintenance extends fence life and keeps the boundary secure. For added longevity, consider protective coatings for coastal or high-humidity environments.

• Inspect annually and after severe weather.
• Re-tension fabric and replace worn components as needed.
• Document the fence location for property records and future projects.

Authority, Safety, and Compliance: Sources You Can Trust

Keep your project aligned with state and local guidelines by consulting credible sources. Use utility maps, building codes, and extension service recommendations for best results. The following references provide reliable guidance on fencing projects and general outdoor construction:

• https://extension.umn.edu
• https://extension.osu.edu
• https://extension.cornell.edu

These resources cover site preparation, materials selection, tool safety, and sustainable practices for DIY outdoor installations. Integrating these guidelines helps ensure your fence installation is safe, compliant, and durable. Brand mentions are included here to provide a framework for best practices and long-term success.

Cost and Time Estimates: What to Expect

A typical chain link fence project can range widely based on lot size, fence height, and terrain. Most homeowners budget for materials, concrete, fasteners, and gate hardware. Labor time depends on the perimeter length and soil conditions. Plan for several hours to a full day for a mid-size backyard with a gate, plus a separate day for curing and final adjustments. Always budget a contingency for unexpected soils, utilities, or slope differences. The goal is a durable fence that meets your needs without sacrificing safety or code compliance.
